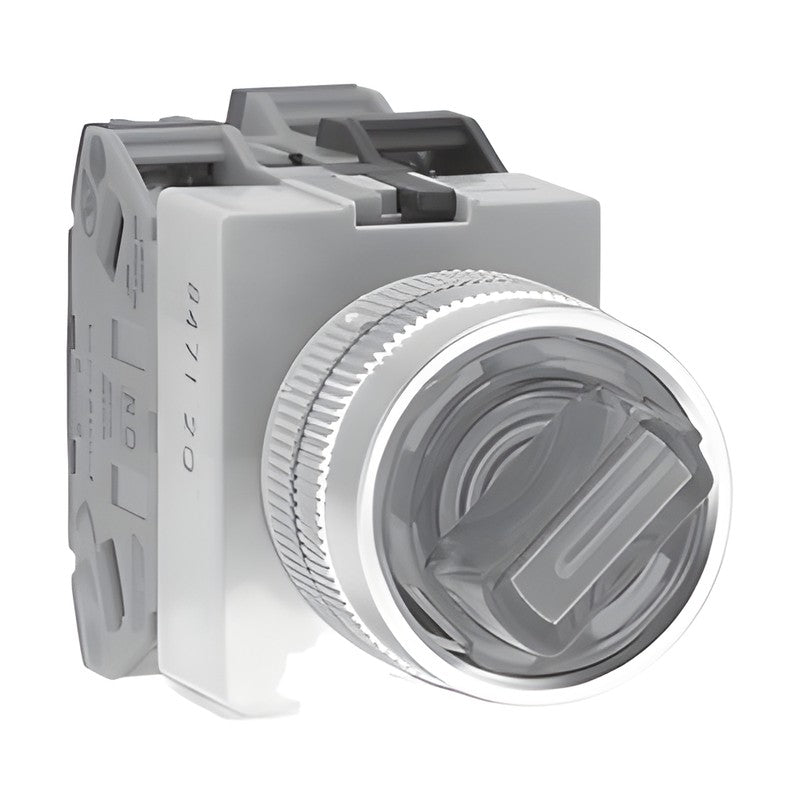

IDEC TW Series 22 mm Illuminated Selector Switches (Incandescent)

TW Series φ22 illuminated selector switches with incandescent lamp, 90° 2-position and 45° 3-position, maintained or spring return.

Key features

Rated voltages AC/DC6V to AC200/220V
Specify illumination colour code in the part number
φ22.3 mm panel cut-out, heavy-duty one-piece construction
Finger-protected SS terminals accept ring tongue terminals without removing screws
Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Operator	Illuminated handle
Series	IDEC TW Series (φ22)
Mounting hole	φ22.3 mm (IEC 60947-5-1)
Panel thickness	1 to 6 mm
Contact block	HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature	-25 to +50 °C (no freezing)
Insulation resistance	100 MΩ min. (500 V DC megger)
Terminals	M3.5 screw, finger-protected SS terminals
Source	IDEC TW Series φ22 Control Units catalogue, p. 33

ASLW26611R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW26611G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW26611A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW26611W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW26611S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW28811R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW28811G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW28811A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW28811W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW28811S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW23311R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW23311G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW23311A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW23311W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW23311S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW21611R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW21611G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW21611A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW21611W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW21611S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW22611R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW22611G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW22611A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW22611W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW22611S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW26620R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW26620G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW26620A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW26620W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW26620S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW28820R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW28820G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW28820A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW28820W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW28820S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW23320R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW23320G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW23320A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW23320W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW23320S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW21620R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW21620G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW21620A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW21620W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW21620S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW22620R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW22620G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW22620A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW22620W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW22620S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW26622R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW26622G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW26622A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW26622W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW26622S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW28822R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW28822G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW28822A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW28822W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW28822S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW23322R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW23322G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW23322A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW23322W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW23322S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW21622R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW21622G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW21622A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW21622W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW21622S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW22622R		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW22622G		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW22622A		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW22622W		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW22622S		Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW36620R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW36620G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW36620A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW36620W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW36620S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW38820R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW38820G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW38820A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW38820W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW38820S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW33320R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW33320G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW33320A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW33320W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW33320S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW31620R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW31620G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW31620A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW31620W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW31620S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW32620R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW32620G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW32620A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW32620W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW32620S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW36602R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
ASLW36602G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
ASLW36602A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW36602W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
ASLW36602S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW38802R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
ASLW38802G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
ASLW38802A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW38802W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
ASLW38802S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW33302R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
ASLW33302G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
ASLW33302A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW33302W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
ASLW33302S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW31602R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
ASLW31602G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
ASLW31602A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW31602W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
ASLW31602S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW32602R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
ASLW32602G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
ASLW32602A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW32602W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
ASLW32602S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW36622R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW36622G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW36622A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW36622W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW36622S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW38822R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW38822G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW38822A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW38822W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW38822S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW33322R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW33322G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW33322A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW33322W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW33322S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW31622R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW31622G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW31622A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW31622W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW31622S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW32622R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW32622G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW32622A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW32622W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW32622S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW36640R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
ASLW36640G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
ASLW36640A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW36640W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
ASLW36640S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW38840R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
ASLW38840G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
ASLW38840A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW38840W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
ASLW38840S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW33340R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
ASLW33340G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
ASLW33340A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW33340W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
ASLW33340S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW31640R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
ASLW31640G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
ASLW31640A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
ASLW31640W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
ASLW31640S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
ASLW32640R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
ASLW32640G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
ASLW32640A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW32640W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
ASLW32640S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW36604R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
ASLW36604G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
ASLW36604A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW36604W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
ASLW36604S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW38804R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
ASLW38804G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
ASLW38804A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW38804W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
ASLW38804S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW33304R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
ASLW33304G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
ASLW33304A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW33304W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
ASLW33304S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW31604R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
ASLW31604G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
ASLW31604A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW31604W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
ASLW31604S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW32604R		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
ASLW32604G		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
ASLW32604A		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW32604W		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
ASLW32604S		Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW216611R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW216611G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW216611A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW216611W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW216611S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW218811R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW218811G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW218811A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW218811W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW218811S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW213311R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW213311G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW213311A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW213311W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW213311S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW211611R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW211611G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW211611A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW211611W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW211611S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW212611R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW212611G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW212611A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW212611W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW212611S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW216620R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW216620G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW216620A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW216620W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW216620S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW218820R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW218820G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW218820A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW218820W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW218820S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW213320R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW213320G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW213320A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW213320W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW213320S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW211620R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW211620G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW211620A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW211620W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW211620S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW212620R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW212620G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW212620A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW212620W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW212620S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW216622R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW216622G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW216622A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW216622W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW216622S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW218822R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW218822G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW218822A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW218822W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW218822S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW213322R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW213322G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW213322A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW213322W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW213322S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW211622R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW211622G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW211622A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW211622W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW211622S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW212622R		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW212622G		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW212622A		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW212622W		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW212622S		Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW316620R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW316620G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW316620A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW316620W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW316620S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW318820R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW318820G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW318820A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW318820W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW318820S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW313320R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW313320G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW313320A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW313320W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW313320S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW311620R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW311620G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW311620A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW311620W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW311620S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW312620R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW312620G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW312620A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW312620W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW312620S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW316602R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
ASLW316602G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
ASLW316602A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW316602W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
ASLW316602S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW318802R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
ASLW318802G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
ASLW318802A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW318802W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
ASLW318802S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW313302R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
ASLW313302G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
ASLW313302A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW313302W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
ASLW313302S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW311602R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
ASLW311602G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
ASLW311602A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW311602W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
ASLW311602S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW312602R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
ASLW312602G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
ASLW312602A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW312602W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
ASLW312602S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW316622R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW316622G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW316622A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW316622W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW316622S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW318822R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW318822G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW318822A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW318822W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW318822S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW313322R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW313322G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW313322A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW313322W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW313322S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW311622R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW311622G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW311622A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW311622W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW311622S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW312622R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW312622G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW312622A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW312622W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW312622S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW316640R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
ASLW316640G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
ASLW316640A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW316640W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
ASLW316640S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW318840R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
ASLW318840G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
ASLW318840A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW318840W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
ASLW318840S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW313340R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
ASLW313340G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
ASLW313340A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW313340W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
ASLW313340S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW311640R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
ASLW311640G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
ASLW311640A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
ASLW311640W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
ASLW311640S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
ASLW312640R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
ASLW312640G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
ASLW312640A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW312640W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
ASLW312640S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW316604R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
ASLW316604G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
ASLW316604A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW316604W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
ASLW316604S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW318804R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
ASLW318804G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
ASLW318804A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW318804W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
ASLW318804S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW313304R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
ASLW313304G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
ASLW313304A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW313304W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
ASLW313304S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW311604R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
ASLW311604G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
ASLW311604A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW311604W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
ASLW311604S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW312604R		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
ASLW312604G		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
ASLW312604A		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW312604W		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
ASLW312604S		Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW226611R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW226611G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW226611A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW226611W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW226611S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW228811R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW228811G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW228811A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW228811W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW228811S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW223311R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW223311G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW223311A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW223311W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW223311S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW221611R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW221611G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW221611A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW221611W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW221611S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW222611R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
ASLW222611G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
ASLW222611A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
ASLW222611W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
ASLW222611S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
ASLW226620R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW226620G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW226620A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW226620W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW226620S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW228820R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW228820G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW228820A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW228820W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW228820S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW223320R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW223320G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW223320A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW223320W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW223320S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW221620R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW221620G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW221620A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW221620W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW221620S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW222620R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW222620G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW222620A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW222620W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW222620S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW226622R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW226622G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW226622A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW226622W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW226622S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW228822R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW228822G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW228822A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW228822W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW228822S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW223322R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW223322G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW223322A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW223322W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW223322S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW221622R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW221622G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW221622A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW221622W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW221622S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW222622R		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW222622G		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW222622A		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW222622W		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW222622S		Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW326620R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW326620G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW326620A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW326620W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW326620S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW328820R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW328820G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW328820A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW328820W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW328820S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW323320R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW323320G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW323320A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW323320W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW323320S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW321620R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW321620G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW321620A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW321620W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW321620S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW322620R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW322620G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW322620A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW322620W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW322620S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW326602R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
ASLW326602G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
ASLW326602A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW326602W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
ASLW326602S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW328802R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
ASLW328802G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
ASLW328802A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW328802W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
ASLW328802S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW323302R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
ASLW323302G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
ASLW323302A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW323302W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
ASLW323302S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW321602R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
ASLW321602G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
ASLW321602A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW321602W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
ASLW321602S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW322602R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
ASLW322602G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
ASLW322602A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW322602W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
ASLW322602S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW326622R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW326622G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW326622A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW326622W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW326622S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW328822R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW328822G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW328822A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW328822W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW328822S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW323322R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW323322G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW323322A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW323322W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW323322S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW321622R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW321622G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW321622A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW321622W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW321622S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW322622R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW322622G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW322622A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW322622W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW322622S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW326640R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
ASLW326640G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
ASLW326640A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW326640W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
ASLW326640S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW328840R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
ASLW328840G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
ASLW328840A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW328840W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
ASLW328840S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW323340R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
ASLW323340G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
ASLW323340A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW323340W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
ASLW323340S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW321640R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
ASLW321640G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
ASLW321640A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
ASLW321640W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
ASLW321640S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
ASLW322640R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
ASLW322640G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
ASLW322640A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW322640W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
ASLW322640S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW326604R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
ASLW326604G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
ASLW326604A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW326604W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
ASLW326604S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW328804R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
ASLW328804G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
ASLW328804A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW328804W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
ASLW328804S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW323304R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
ASLW323304G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
ASLW323304A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW323304W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
ASLW323304S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW321604R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
ASLW321604G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
ASLW321604A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW321604W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
ASLW321604S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW322604R		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
ASLW322604G		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
ASLW322604A		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW322604W		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
ASLW322604S		Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW336620R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
ASLW336620G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
ASLW336620A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW336620W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
ASLW336620S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW338820R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
ASLW338820G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
ASLW338820A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW338820W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
ASLW338820S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW333320R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
ASLW333320G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
ASLW333320A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW333320W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
ASLW333320S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW331620R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
ASLW331620G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
ASLW331620A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW331620W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
ASLW331620S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW332620R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
ASLW332620G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
ASLW332620A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
ASLW332620W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
ASLW332620S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
ASLW336602R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
ASLW336602G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
ASLW336602A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW336602W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
ASLW336602S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW338802R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
ASLW338802G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
ASLW338802A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW338802W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
ASLW338802S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW333302R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
ASLW333302G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
ASLW333302A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW333302W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
ASLW333302S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW331602R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
ASLW331602G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
ASLW331602A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW331602W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
ASLW331602S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW332602R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
ASLW332602G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
ASLW332602A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
ASLW332602W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
ASLW332602S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
ASLW336622R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW336622G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW336622A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW336622W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW336622S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW338822R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW338822G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW338822A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW338822W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW338822S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW333322R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW333322G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW333322A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW333322W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW333322S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW331622R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW331622G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW331622A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW331622W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW331622S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW332622R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
ASLW332622G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
ASLW332622A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
ASLW332622W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
ASLW332622S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
ASLW336640R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
ASLW336640G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
ASLW336640A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW336640W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
ASLW336640S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW338840R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
ASLW338840G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
ASLW338840A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW338840W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
ASLW338840S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW333340R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
ASLW333340G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
ASLW333340A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW333340W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
ASLW333340S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW331640R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
ASLW331640G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
ASLW331640A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
ASLW331640W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
ASLW331640S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
ASLW332640R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
ASLW332640G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
ASLW332640A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
ASLW332640W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
ASLW332640S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
ASLW336604R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
ASLW336604G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
ASLW336604A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW336604W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
ASLW336604S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW338804R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
ASLW338804G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
ASLW338804A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW338804W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
ASLW338804S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW333304R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
ASLW333304G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
ASLW333304A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW333304W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
ASLW333304S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW331604R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
ASLW331604G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
ASLW331604A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW331604W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
ASLW331604S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
ASLW332604R		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
ASLW332604G		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
ASLW332604A		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
ASLW332604W		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
ASLW332604S		Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue

Selector SwitchesIDEC

725 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series 22 mm Illuminated Selector Switches (Incandescent)

Brand IDEC·Selector Switches

Available part numbers (725)

ASLW26611R, ASLW26611G, ASLW26611A, ASLW26611W, ASLW26611S, ASLW28811R, ASLW28811G, ASLW28811A, ASLW28811W, ASLW28811S + 715 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ASLW26611R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW26611G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW26611A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW26611W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW26611S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW28811R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW28811G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW28811A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW28811W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW28811S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW23311R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW23311G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW23311A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW23311W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW23311S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW21611R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW21611G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW21611A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW21611W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW21611S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW22611R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW22611G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW22611A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW22611W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW22611S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW26620R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW26620G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW26620A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW26620W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW26620S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW28820R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW28820G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW28820A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW28820W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW28820S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW23320R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW23320G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW23320A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW23320W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW23320S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW21620R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW21620G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW21620A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW21620W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW21620S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW22620R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW22620G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW22620A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW22620W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW22620S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW26622R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW26622G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW26622A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW26622W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW26622S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW28822R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW28822G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW28822A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW28822W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW28822S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW23322R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW23322G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW23322A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW23322W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW23322S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW21622R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW21622G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW21622A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW21622W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW21622S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW22622R	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW22622G	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW22622A	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW22622W	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW22622S	Positions: 90° 2-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW36620R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW36620G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW36620A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW36620W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW36620S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW38820R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW38820G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW38820A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW38820W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW38820S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW33320R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW33320G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW33320A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW33320W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW33320S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW31620R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW31620G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW31620A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW31620W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW31620S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW32620R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW32620G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW32620A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW32620W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW32620S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW36602R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW36602G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW36602A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW36602W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	ASLW36602S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW38802R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW38802G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW38802A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW38802W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	ASLW38802S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW33302R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW33302G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW33302A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW33302W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	ASLW33302S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW31602R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW31602G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW31602A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW31602W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	ASLW31602S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW32602R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW32602G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW32602A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW32602W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	ASLW32602S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW36622R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW36622G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW36622A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW36622W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW36622S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW38822R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW38822G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW38822A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW38822W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW38822S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW33322R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW33322G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW33322A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW33322W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW33322S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW31622R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW31622G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW31622A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW31622W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW31622S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW32622R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW32622G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW32622A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW32622W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW32622S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW36640R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW36640G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW36640A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW36640W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	ASLW36640S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW38840R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW38840G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW38840A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW38840W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	ASLW38840S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW33340R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW33340G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW33340A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW33340W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	ASLW33340S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW31640R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	ASLW31640G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	ASLW31640A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW31640W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	ASLW31640S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW32640R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW32640G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW32640A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW32640W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	ASLW32640S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW36604R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW36604G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW36604A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW36604W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	ASLW36604S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW38804R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW38804G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW38804A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW38804W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	ASLW38804S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW33304R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW33304G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW33304A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW33304W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	ASLW33304S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW31604R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW31604G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW31604A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW31604W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	ASLW31604S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW32604R	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW32604G	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW32604A	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW32604W	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	ASLW32604S	Positions: 45° 3-position \| Operation: Maintained \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW216611R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW216611G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW216611A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW216611W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW216611S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW218811R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW218811G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW218811A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW218811W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW218811S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW213311R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW213311G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW213311A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW213311W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW213311S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW211611R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW211611G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW211611A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW211611W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW211611S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW212611R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW212611G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW212611A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW212611W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW212611S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW216620R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW216620G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW216620A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW216620W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW216620S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW218820R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW218820G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW218820A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW218820W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW218820S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW213320R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW213320G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW213320A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW213320W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW213320S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW211620R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW211620G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW211620A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW211620W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW211620S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW212620R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW212620G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW212620A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW212620W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW212620S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW216622R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW216622G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW216622A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW216622W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW216622S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW218822R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW218822G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW218822A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW218822W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW218822S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW213322R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW213322G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW213322A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW213322W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW213322S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW211622R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW211622G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW211622A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW211622W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW211622S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW212622R	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW212622G	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW212622A	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW212622W	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW212622S	Positions: 90° 2-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW316620R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW316620G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW316620A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW316620W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW316620S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW318820R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW318820G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW318820A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW318820W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW318820S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW313320R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW313320G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW313320A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW313320W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW313320S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW311620R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW311620G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW311620A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW311620W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW311620S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW312620R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW312620G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW312620A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW312620W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW312620S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW316602R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW316602G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW316602A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW316602W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	ASLW316602S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW318802R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW318802G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW318802A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW318802W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	ASLW318802S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW313302R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW313302G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW313302A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW313302W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	ASLW313302S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW311602R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW311602G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW311602A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW311602W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	ASLW311602S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW312602R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW312602G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW312602A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW312602W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	ASLW312602S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW316622R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW316622G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW316622A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW316622W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW316622S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW318822R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW318822G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW318822A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW318822W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW318822S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW313322R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW313322G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW313322A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW313322W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW313322S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW311622R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW311622G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW311622A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW311622W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW311622S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW312622R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW312622G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW312622A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW312622W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW312622S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW316640R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW316640G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW316640A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW316640W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	ASLW316640S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW318840R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW318840G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW318840A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW318840W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	ASLW318840S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW313340R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW313340G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW313340A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW313340W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	ASLW313340S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW311640R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	ASLW311640G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	ASLW311640A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW311640W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	ASLW311640S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW312640R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW312640G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW312640A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW312640W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	ASLW312640S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW316604R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW316604G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW316604A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW316604W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	ASLW316604S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW318804R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW318804G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW318804A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW318804W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	ASLW318804S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW313304R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW313304G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW313304A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW313304W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	ASLW313304S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW311604R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW311604G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW311604A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW311604W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	ASLW311604S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW312604R	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW312604G	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW312604A	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW312604W	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	ASLW312604S	Positions: 45° 3-position \| Operation: Spring return from right \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW226611R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW226611G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW226611A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW226611W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW226611S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW228811R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW228811G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW228811A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW228811W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW228811S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW223311R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW223311G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW223311A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW223311W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW223311S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW221611R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW221611G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW221611A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW221611W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW221611S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW222611R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Red
	ASLW222611G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Green
	ASLW222611A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Amber
	ASLW222611W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: White
	ASLW222611S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 1a-1b (1NO+1NC) \| Colour: Blue
	ASLW226620R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW226620G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW226620A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW226620W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW226620S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW228820R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW228820G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW228820A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW228820W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW228820S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW223320R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW223320G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW223320A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW223320W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW223320S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW221620R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW221620G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW221620A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW221620W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW221620S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW222620R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW222620G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW222620A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW222620W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW222620S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW226622R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW226622G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW226622A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW226622W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW226622S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW228822R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW228822G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW228822A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW228822W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW228822S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW223322R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW223322G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW223322A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW223322W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW223322S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW221622R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW221622G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW221622A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW221622W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW221622S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW222622R	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW222622G	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW222622A	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW222622W	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW222622S	Positions: 90° 2-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW326620R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW326620G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW326620A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW326620W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW326620S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW328820R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW328820G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW328820A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW328820W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW328820S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW323320R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW323320G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW323320A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW323320W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW323320S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW321620R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW321620G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW321620A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW321620W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW321620S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW322620R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW322620G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW322620A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW322620W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW322620S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW326602R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW326602G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW326602A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW326602W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	ASLW326602S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW328802R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW328802G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW328802A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW328802W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	ASLW328802S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW323302R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW323302G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW323302A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW323302W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	ASLW323302S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW321602R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW321602G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW321602A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW321602W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	ASLW321602S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW322602R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW322602G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW322602A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW322602W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	ASLW322602S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW326622R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW326622G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW326622A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW326622W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW326622S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW328822R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW328822G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW328822A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW328822W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW328822S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW323322R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW323322G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW323322A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW323322W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW323322S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW321622R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW321622G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW321622A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW321622W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW321622S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW322622R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW322622G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW322622A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW322622W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW322622S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW326640R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW326640G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW326640A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW326640W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	ASLW326640S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW328840R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW328840G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW328840A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW328840W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	ASLW328840S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW323340R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW323340G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW323340A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW323340W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	ASLW323340S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW321640R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	ASLW321640G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	ASLW321640A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW321640W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	ASLW321640S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW322640R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW322640G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW322640A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW322640W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	ASLW322640S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW326604R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW326604G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW326604A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW326604W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	ASLW326604S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW328804R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW328804G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW328804A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW328804W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	ASLW328804S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW323304R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW323304G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW323304A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW323304W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	ASLW323304S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW321604R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW321604G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW321604A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW321604W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	ASLW321604S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW322604R	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW322604G	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW322604A	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW322604W	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	ASLW322604S	Positions: 45° 3-position \| Operation: Spring return from left \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW336620R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW336620G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW336620A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW336620W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: White
	ASLW336620S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW338820R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW338820G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW338820A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW338820W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: White
	ASLW338820S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW333320R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW333320G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW333320A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW333320W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: White
	ASLW333320S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW331620R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW331620G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW331620A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW331620W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: White
	ASLW331620S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW332620R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Red
	ASLW332620G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Green
	ASLW332620A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Amber
	ASLW332620W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: White
	ASLW332620S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a (2NO) \| Colour: Blue
	ASLW336602R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW336602G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW336602A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW336602W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: White
	ASLW336602S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW338802R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW338802G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW338802A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW338802W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: White
	ASLW338802S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW333302R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW333302G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW333302A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW333302W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: White
	ASLW333302S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW331602R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW331602G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW331602A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW331602W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: White
	ASLW331602S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW332602R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Red
	ASLW332602G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Green
	ASLW332602A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Amber
	ASLW332602W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: White
	ASLW332602S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2b (2NC) \| Colour: Blue
	ASLW336622R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW336622G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW336622A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW336622W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW336622S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW338822R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW338822G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW338822A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW338822W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW338822S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW333322R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW333322G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW333322A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW333322W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW333322S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW331622R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW331622G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW331622A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW331622W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW331622S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW332622R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Red
	ASLW332622G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Green
	ASLW332622A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Amber
	ASLW332622W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: White
	ASLW332622S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 2a-2b (2NO+2NC) \| Colour: Blue
	ASLW336640R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW336640G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW336640A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW336640W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: White
	ASLW336640S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW338840R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW338840G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW338840A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW338840W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: White
	ASLW338840S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW333340R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW333340G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW333340A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW333340W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: White
	ASLW333340S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW331640R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Red
	ASLW331640G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Green
	ASLW331640A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW331640W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: White
	ASLW331640S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: - \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW332640R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Red
	ASLW332640G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Green
	ASLW332640A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Amber
	ASLW332640W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: White
	ASLW332640S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4a (4NO) \| Colour: Blue
	ASLW336604R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW336604G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW336604A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW336604W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: White
	ASLW336604S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC6V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW338804R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW338804G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW338804A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW338804W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: White
	ASLW338804S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC12V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW333304R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW333304G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW333304A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW333304W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: White
	ASLW333304S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC/DC24V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW331604R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW331604G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW331604A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW331604W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: White
	ASLW331604S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC100/110V \| Contacts: 4b (4NC) \| Colour: Blue
	ASLW332604R	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Red
	ASLW332604G	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Green
	ASLW332604A	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Amber
	ASLW332604W	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: White
	ASLW332604S	Positions: 45° 3-position \| Operation: Spring return both sides \| Voltage: AC200/220V \| Contacts: 4b (4NC) \| Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →

Item added to your cart

IDEC TW Series 22 mm Illuminated Selector Switches (Incandescent)
