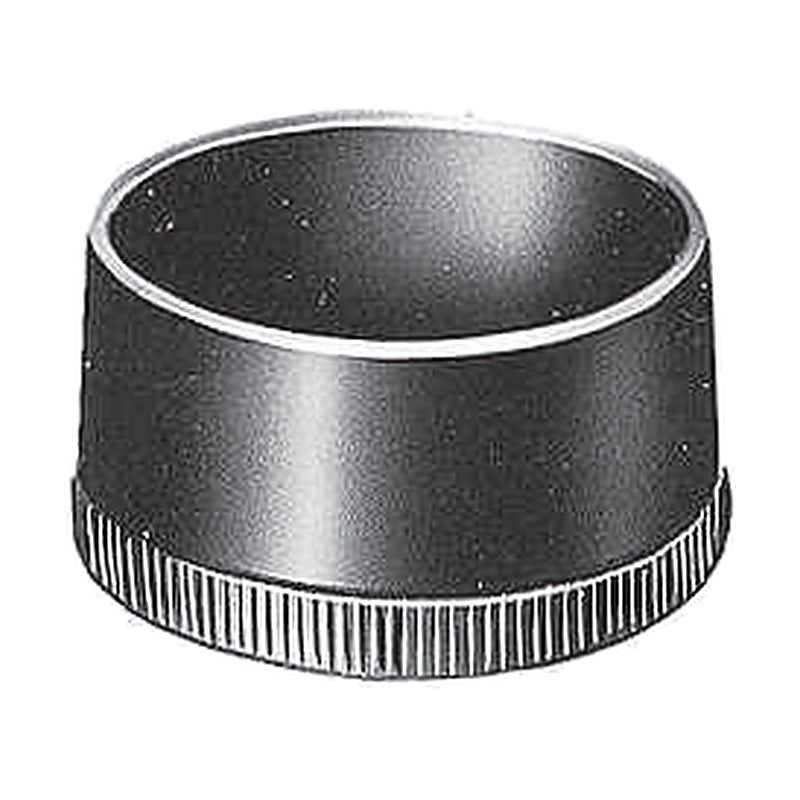

• IDEC TW Series φ40 Lenses, Colour Rings & Selector Handles
1 1

IDEC TW Series φ40 Lenses, Colour Rings & Selector Handles

IDEC TW Series φ40 Lenses, Colour Rings & Selector Handles

Optional φ40 lenses, resin and aluminium colour rings, selector handles, direction caps and anti-misoperation guard for TW Series units.

Key features

  • Polyacetal (black) and aluminium colour rings
  • Arrow, lever and knob handles in colours
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

For use with TW Series
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm
Ordering Order by the order part number shown
Pack suffix PN02 / PN05 / PN10 = pack of 2 / 5 / 10
Product category Accessory / maintenance part
Brand IDEC
Source IDEC TW Series φ22 Control Units catalogue, p. 41
ALW4L-R Item: φ40 lens for ALW3/AOLW3 | Colour: Red | Pack: 1 pc
ALW4L-G Item: φ40 lens for ALW3/AOLW3 | Colour: Green | Pack: 1 pc
ALW4L-S Item: φ40 lens for ALW3/AOLW3 | Colour: Blue | Pack: 1 pc
ALW4LD-A Item: φ40 lens for ALW3/AOLW3 | Colour: Amber | Pack: 1 pc
ALW4LD-W Item: φ40 lens for ALW3/AOLW3 | Colour: White | Pack: 1 pc
ALW4BL-R Item: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Red | Pack: 1 pc
ALW4BL-G Item: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Green | Pack: 1 pc
ALW4BL-S Item: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Blue | Pack: 1 pc
ALW4BL-W Item: φ40 lens, marking, for ALW3B/AOLW3B | Colour: White | Pack: 1 pc
ALW4BLD-A Item: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Amber | Pack: 1 pc
AW-RP1BPN05 Item: Colour ring, flush, polyacetal black | Colour: - | Pack: Pack of 5
AW-FP1B Item: Colour ring, extended, polyacetal black | Colour: - | Pack: 1 pc
AW-FP2B Item: Colour ring, extended (illum.), black | Colour: - | Pack: 1 pc
AW-H1B Item: Colour ring, square, round button, black | Colour: - | Pack: 1 pc
AW-Q1B Item: Colour ring, square, polyacetal black | Colour: - | Pack: 1 pc
AW-QF1B Item: Colour ring, sq. ext. full guard, black | Colour: - | Pack: 1 pc
AW-R1PN05 Item: Ring, flush, aluminium (natural) | Colour: - | Pack: Pack of 5
AW-R1B Item: Ring, flush, aluminium, black | Colour: - | Pack: 1 pc
AW-F1 Item: Ring, extended, aluminium (natural) | Colour: - | Pack: 1 pc
AW-F2 Item: Ring, extended (illum.), aluminium | Colour: - | Pack: 1 pc
AW-G4 Item: Ring, large, aluminium (natural) | Colour: - | Pack: 1 pc
ASWHHY-BPN02 Item: Selector handle, arrow type | Colour: Black | Pack: Pack of 2
ASWHHY-GPN02 Item: Selector handle, arrow type | Colour: Green | Pack: Pack of 2
ASWHHY-RPN02 Item: Selector handle, arrow type | Colour: Red | Pack: Pack of 2
ASWHHL-BPN02 Item: Selector handle, lever type | Colour: Black | Pack: Pack of 2
ASWHHL-GPN02 Item: Selector handle, lever type | Colour: Green | Pack: Pack of 2
ASWHHL-RPN02 Item: Selector handle, lever type | Colour: Red | Pack: Pack of 2
ASWHHM-BPN02 Item: Selector handle, knob type, black | Colour: - | Pack: Pack of 2
TW-HC1BPN05 Item: Colour direction cap | Colour: Black | Pack: Pack of 5
TW-HC1GPN05 Item: Colour direction cap | Colour: Green | Pack: Pack of 5
TW-HC1RPN05 Item: Colour direction cap | Colour: Red | Pack: Pack of 5
TW-HC1YPN05 Item: Colour direction cap | Colour: Yellow | Pack: Pack of 5
TW-HC1SPN05 Item: Colour direction cap | Colour: Blue | Pack: Pack of 5
TW-HC1WPN05 Item: Colour direction cap | Colour: White | Pack: Pack of 5
ASLWDDY-Y Item: Illuminated selector handle | Colour: Yellow | Pack: 1 pc
ASLWDDY-A Item: Illuminated selector handle | Colour: Amber | Pack: 1 pc
ASLWDDY-W Item: Illuminated selector handle | Colour: White | Pack: 1 pc
ASLWLDY-R Item: Illuminated selector handle | Colour: Red | Pack: 1 pc
ASLWLDY-G Item: Illuminated selector handle | Colour: Green | Pack: 1 pc
ASLWLDY-S Item: Illuminated selector handle | Colour: Blue | Pack: 1 pc
OLW-C Item: Anti-misoperation guard, flush button | Colour: - | Pack: 1 pc
Pushbutton AccessoriesIDEC
41 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series φ40 Lenses, Colour Rings & Selector Handles

Brand IDEC·Pushbutton Accessories

Available part numbers (41)

ALW4L-R, ALW4L-G, ALW4L-S, ALW4LD-A, ALW4LD-W, ALW4BL-R, ALW4BL-G, ALW4BL-S, ALW4BL-W, ALW4BLD-A + 31 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ALW4L-RItem: φ40 lens for ALW3/AOLW3 | Colour: Red | Pack: 1 pc
ALW4L-GItem: φ40 lens for ALW3/AOLW3 | Colour: Green | Pack: 1 pc
ALW4L-SItem: φ40 lens for ALW3/AOLW3 | Colour: Blue | Pack: 1 pc
ALW4LD-AItem: φ40 lens for ALW3/AOLW3 | Colour: Amber | Pack: 1 pc
ALW4LD-WItem: φ40 lens for ALW3/AOLW3 | Colour: White | Pack: 1 pc
ALW4BL-RItem: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Red | Pack: 1 pc
ALW4BL-GItem: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Green | Pack: 1 pc
ALW4BL-SItem: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Blue | Pack: 1 pc
ALW4BL-WItem: φ40 lens, marking, for ALW3B/AOLW3B | Colour: White | Pack: 1 pc
ALW4BLD-AItem: φ40 lens, marking, for ALW3B/AOLW3B | Colour: Amber | Pack: 1 pc
AW-RP1BPN05Item: Colour ring, flush, polyacetal black | Colour: - | Pack: Pack of 5
AW-FP1BItem: Colour ring, extended, polyacetal black | Colour: - | Pack: 1 pc
AW-FP2BItem: Colour ring, extended (illum.), black | Colour: - | Pack: 1 pc
AW-H1BItem: Colour ring, square, round button, black | Colour: - | Pack: 1 pc
AW-Q1BItem: Colour ring, square, polyacetal black | Colour: - | Pack: 1 pc
AW-QF1BItem: Colour ring, sq. ext. full guard, black | Colour: - | Pack: 1 pc
AW-R1PN05Item: Ring, flush, aluminium (natural) | Colour: - | Pack: Pack of 5
AW-R1BItem: Ring, flush, aluminium, black | Colour: - | Pack: 1 pc
AW-F1Item: Ring, extended, aluminium (natural) | Colour: - | Pack: 1 pc
AW-F2Item: Ring, extended (illum.), aluminium | Colour: - | Pack: 1 pc
AW-G4Item: Ring, large, aluminium (natural) | Colour: - | Pack: 1 pc
ASWHHY-BPN02Item: Selector handle, arrow type | Colour: Black | Pack: Pack of 2
ASWHHY-GPN02Item: Selector handle, arrow type | Colour: Green | Pack: Pack of 2
ASWHHY-RPN02Item: Selector handle, arrow type | Colour: Red | Pack: Pack of 2
ASWHHL-BPN02Item: Selector handle, lever type | Colour: Black | Pack: Pack of 2
ASWHHL-GPN02Item: Selector handle, lever type | Colour: Green | Pack: Pack of 2
ASWHHL-RPN02Item: Selector handle, lever type | Colour: Red | Pack: Pack of 2
ASWHHM-BPN02Item: Selector handle, knob type, black | Colour: - | Pack: Pack of 2
TW-HC1BPN05Item: Colour direction cap | Colour: Black | Pack: Pack of 5
TW-HC1GPN05Item: Colour direction cap | Colour: Green | Pack: Pack of 5
TW-HC1RPN05Item: Colour direction cap | Colour: Red | Pack: Pack of 5
TW-HC1YPN05Item: Colour direction cap | Colour: Yellow | Pack: Pack of 5
TW-HC1SPN05Item: Colour direction cap | Colour: Blue | Pack: Pack of 5
TW-HC1WPN05Item: Colour direction cap | Colour: White | Pack: Pack of 5
ASLWDDY-YItem: Illuminated selector handle | Colour: Yellow | Pack: 1 pc
ASLWDDY-AItem: Illuminated selector handle | Colour: Amber | Pack: 1 pc
ASLWDDY-WItem: Illuminated selector handle | Colour: White | Pack: 1 pc
ASLWLDY-RItem: Illuminated selector handle | Colour: Red | Pack: 1 pc
ASLWLDY-GItem: Illuminated selector handle | Colour: Green | Pack: 1 pc
ASLWLDY-SItem: Illuminated selector handle | Colour: Blue | Pack: 1 pc
OLW-CItem: Anti-misoperation guard, flush button | Colour: - | Pack: 1 pc

Need a different model, or a part not listed here? Send us your parts list →
