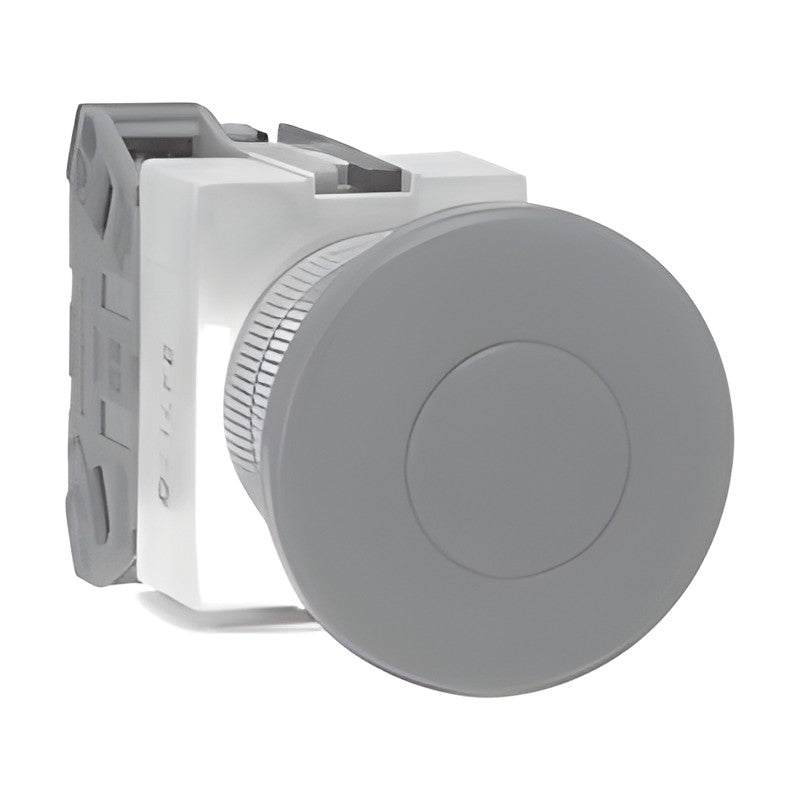

IDEC TW Series 22 mm Mushroom & Locking Pushbuttons

IDEC TW Series 22 mm Mushroom & Locking Pushbuttons

TW Series φ22 mushroom-head pushbuttons including φ40 large, full-guard, push-lock turn-reset, push-turn lock, push-lock key-reset and push-pull types.

Key features

  • Push-lock turn-reset, key-reset and push-turn lock versions
  • Note: catalogue states these are not for ISO 13850 emergency-stop use
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 7-8
ABW410B Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW410G Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW410R Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW410Y Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW410S Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW410W Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW401B Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW401G Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW401R Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW401Y Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW401S Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW401W Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW411B Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW411G Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW411R Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW411Y Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW411S Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW411W Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW420B Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW420G Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW420R Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW420Y Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW420S Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW420W Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW402B Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW402G Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW402R Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW402Y Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW402S Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW402W Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW422B Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW422G Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW422R Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW422Y Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW422S Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW422W Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW410B Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW410G Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW410R Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW410Y Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW410S Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW410W Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW401B Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW401G Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW401R Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW401Y Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW401S Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW401W Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW411B Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW411G Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW411R Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW411Y Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW411S Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW411W Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW420B Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW420G Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW420R Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW420Y Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW420S Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW420W Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW402B Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW402G Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW402R Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW402Y Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW402S Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW402W Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW422B Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW422G Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW422R Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW422Y Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW422S Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW422W Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABGW410B Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABGW410G Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABGW410R Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABGW410Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABGW410S Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABGW410W Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABGW401B Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABGW401G Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABGW401R Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABGW401Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABGW401S Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABGW401W Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABGW411B Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABGW411G Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABGW411R Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABGW411Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABGW411S Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABGW411W Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABGW420B Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABGW420G Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABGW420R Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABGW420Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABGW420S Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABGW420W Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABGW402B Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABGW402G Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABGW402R Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABGW402Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABGW402S Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABGW402W Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABGW422B Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABGW422G Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABGW422R Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABGW422Y Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABGW422S Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABGW422W Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AVW310R Operator: Medium push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AVW310Y Operator: Medium push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AVW301R Operator: Medium push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AVW301Y Operator: Medium push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AVW311R Operator: Medium push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVW311Y Operator: Medium push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVW320R Operator: Medium push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AVW320Y Operator: Medium push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AVW302R Operator: Medium push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AVW302Y Operator: Medium push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AVW322R Operator: Medium push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVW322Y Operator: Medium push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AVW410R Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AVW410Y Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AVW401R Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AVW401Y Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AVW411R Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVW411Y Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVW420R Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AVW420Y Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AVW402R Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AVW402Y Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AVW422R Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVW422Y Operator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AJW410B Operator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Black
AJW410G Operator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Green
AJW410R Operator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Red
AJW410Y Operator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AJW401B Operator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Black
AJW401G Operator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Green
AJW401R Operator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Red
AJW401Y Operator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AJW411B Operator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AJW411G Operator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJW411R Operator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJW411Y Operator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJW420B Operator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Black
AJW420G Operator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Green
AJW420R Operator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Red
AJW420Y Operator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AJW402B Operator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Black
AJW402G Operator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Green
AJW402R Operator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Red
AJW402Y Operator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AJW422B Operator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AJW422G Operator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AJW422R Operator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AJW422Y Operator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AXW310R Operator: Medium push-lock key-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AXW301R Operator: Medium push-lock key-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AXW311R Operator: Medium push-lock key-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AXW320R Operator: Medium push-lock key-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AXW302R Operator: Medium push-lock key-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AXW322R Operator: Medium push-lock key-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AXW410R Operator: Mushroom push-lock key-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AXW401R Operator: Mushroom push-lock key-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AXW411R Operator: Mushroom push-lock key-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AXW420R Operator: Mushroom push-lock key-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AXW402R Operator: Mushroom push-lock key-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AXW422R Operator: Mushroom push-lock key-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AYW410B Operator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Black
AYW410G Operator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Green
AYW410R Operator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Red
AYW410Y Operator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AYW410S Operator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Blue
AYW410W Operator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: White
AYW401B Operator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Black
AYW401G Operator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Green
AYW401R Operator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Red
AYW401Y Operator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AYW401S Operator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Blue
AYW401W Operator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: White
AYW411B Operator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AYW411G Operator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYW411R Operator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYW411Y Operator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AYW411S Operator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYW411W Operator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYW420B Operator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Black
AYW420G Operator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Green
AYW420R Operator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Red
AYW420Y Operator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AYW420S Operator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Blue
AYW420W Operator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: White
AYW402B Operator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Black
AYW402G Operator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Green
AYW402R Operator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Red
AYW402Y Operator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AYW402S Operator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Blue
AYW402W Operator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: White
PushbuttonsIDEC
198 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series 22 mm Mushroom & Locking Pushbuttons

Brand IDEC·Pushbuttons

Available part numbers (198)

ABW410B, ABW410G, ABW410R, ABW410Y, ABW410S, ABW410W, ABW401B, ABW401G, ABW401R, ABW401Y + 188 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABW410BOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW410GOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW410ROperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW410YOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW410SOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW410WOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW401BOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW401GOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW401ROperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW401YOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW401SOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW401WOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW411BOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW411GOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW411ROperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW411YOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW411SOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW411WOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW420BOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW420GOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW420ROperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW420YOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW420SOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW420WOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW402BOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW402GOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW402ROperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW402YOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW402SOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW402WOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW422BOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW422GOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW422ROperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW422YOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW422SOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW422WOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW410BOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW410GOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW410ROperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW410YOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW410SOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW410WOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW401BOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW401GOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW401ROperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW401YOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW401SOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW401WOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW411BOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW411GOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW411ROperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW411YOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW411SOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW411WOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW420BOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW420GOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW420ROperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW420YOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW420SOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW420WOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW402BOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW402GOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW402ROperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW402YOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW402SOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW402WOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW422BOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW422GOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW422ROperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW422YOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW422SOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW422WOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABGW410BOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABGW410GOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABGW410ROperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABGW410YOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABGW410SOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABGW410WOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABGW401BOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABGW401GOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABGW401ROperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABGW401YOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABGW401SOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABGW401WOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABGW411BOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABGW411GOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABGW411ROperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABGW411YOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABGW411SOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABGW411WOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABGW420BOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABGW420GOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABGW420ROperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABGW420YOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABGW420SOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABGW420WOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABGW402BOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABGW402GOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABGW402ROperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABGW402YOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABGW402SOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABGW402WOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABGW422BOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABGW422GOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABGW422ROperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABGW422YOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABGW422SOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABGW422WOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AVW310ROperator: Medium push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AVW310YOperator: Medium push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AVW301ROperator: Medium push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AVW301YOperator: Medium push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AVW311ROperator: Medium push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVW311YOperator: Medium push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVW320ROperator: Medium push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AVW320YOperator: Medium push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AVW302ROperator: Medium push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AVW302YOperator: Medium push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AVW322ROperator: Medium push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVW322YOperator: Medium push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AVW410ROperator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AVW410YOperator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AVW401ROperator: Mushroom push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AVW401YOperator: Mushroom push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AVW411ROperator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVW411YOperator: Mushroom push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVW420ROperator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AVW420YOperator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AVW402ROperator: Mushroom push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AVW402YOperator: Mushroom push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AVW422ROperator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVW422YOperator: Mushroom push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AJW410BOperator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Black
AJW410GOperator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Green
AJW410ROperator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Red
AJW410YOperator: Mushroom push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AJW401BOperator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Black
AJW401GOperator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Green
AJW401ROperator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Red
AJW401YOperator: Mushroom push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AJW411BOperator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AJW411GOperator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJW411ROperator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJW411YOperator: Mushroom push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJW420BOperator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Black
AJW420GOperator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Green
AJW420ROperator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Red
AJW420YOperator: Mushroom push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AJW402BOperator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Black
AJW402GOperator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Green
AJW402ROperator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Red
AJW402YOperator: Mushroom push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AJW422BOperator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AJW422GOperator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AJW422ROperator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AJW422YOperator: Mushroom push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AXW310ROperator: Medium push-lock key-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AXW301ROperator: Medium push-lock key-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AXW311ROperator: Medium push-lock key-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AXW320ROperator: Medium push-lock key-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AXW302ROperator: Medium push-lock key-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AXW322ROperator: Medium push-lock key-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AXW410ROperator: Mushroom push-lock key-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AXW401ROperator: Mushroom push-lock key-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AXW411ROperator: Mushroom push-lock key-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AXW420ROperator: Mushroom push-lock key-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AXW402ROperator: Mushroom push-lock key-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AXW422ROperator: Mushroom push-lock key-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AYW410BOperator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Black
AYW410GOperator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Green
AYW410ROperator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Red
AYW410YOperator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AYW410SOperator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: Blue
AYW410WOperator: Mushroom, full guard | Action: - | Contacts: 1a (1NO) | Colour: White
AYW401BOperator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Black
AYW401GOperator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Green
AYW401ROperator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Red
AYW401YOperator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AYW401SOperator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: Blue
AYW401WOperator: Mushroom, full guard | Action: - | Contacts: 1b (1NC) | Colour: White
AYW411BOperator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AYW411GOperator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYW411ROperator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYW411YOperator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AYW411SOperator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AYW411WOperator: Mushroom, full guard | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: White
AYW420BOperator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Black
AYW420GOperator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Green
AYW420ROperator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Red
AYW420YOperator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AYW420SOperator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: Blue
AYW420WOperator: Mushroom, full guard | Action: - | Contacts: 2a (2NO) | Colour: White
AYW402BOperator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Black
AYW402GOperator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Green
AYW402ROperator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Red
AYW402YOperator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AYW402SOperator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: Blue
AYW402WOperator: Mushroom, full guard | Action: - | Contacts: 2b (2NC) | Colour: White

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
