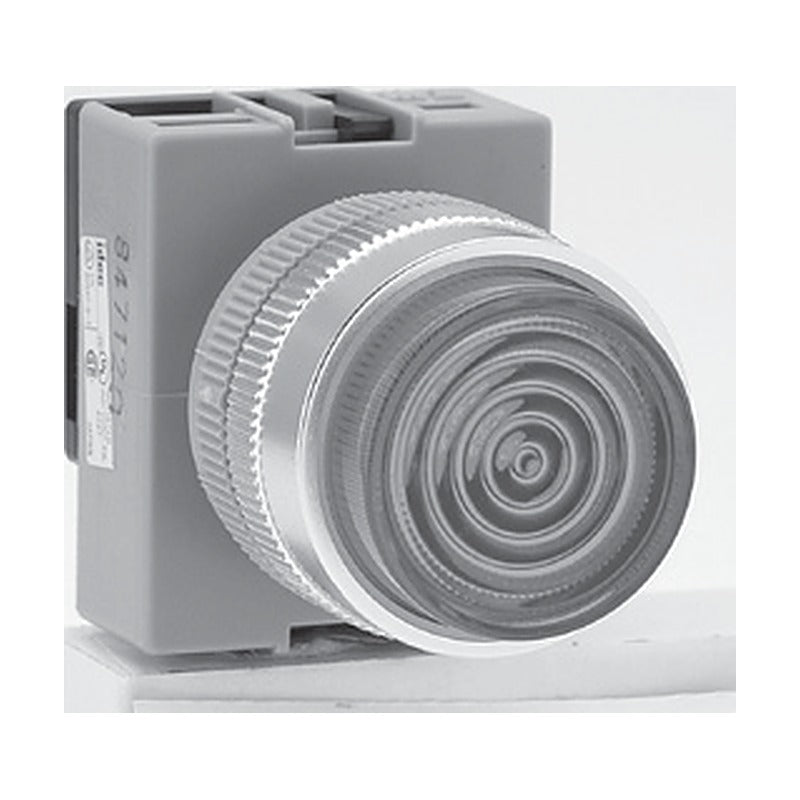

IDEC TW Series 22 mm Pilot Lights (LED / Incandescent)

IDEC TW Series 22 mm Pilot Lights (LED / Incandescent)

TW Series φ22 pilot lights in flush, flush marking, round and square flush marking styles with LED or incandescent lamps from AC/DC6V to AC200/220V.

Key features

  • LED (R, G, Y, A, W, S, PW) or incandescent (R, G, A, W, S) versions
  • DC110V DC-DC converter type available (LED)
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 9
APW166DR Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Red
APW166DG Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Green
APW166DY Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
APW166DA Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
APW166DW Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: White
APW166DS Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
APW166DPW Operator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
APW111DR Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Red
APW111DG Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Green
APW111DY Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
APW111DA Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
APW111DW Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: White
APW111DS Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
APW111DPW Operator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
APW122DR Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Red
APW122DG Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Green
APW122DY Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
APW122DA Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
APW122DW Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: White
APW122DS Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
APW122DPW Operator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
APW116DR Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Red
APW116DG Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Green
APW116DY Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
APW116DA Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Amber
APW116DW Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: White
APW116DS Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Blue
APW116DPW Operator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
APW126DR Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Red
APW126DG Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Green
APW126DY Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
APW126DA Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Amber
APW126DW Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: White
APW126DS Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Blue
APW126DPW Operator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
APW116DDR Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: Red
APW116DDG Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: Green
APW116DDY Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: Yellow
APW116DDA Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: Amber
APW116DDW Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: White
APW116DDS Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: Blue
APW116DDPW Operator: Flush | Lamp: LED | Voltage: DC110V | Colour: Pure white
APW166R Operator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
APW166G Operator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
APW166A Operator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
APW166W Operator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
APW166S Operator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
APW188R Operator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
APW188G Operator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
APW188A Operator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
APW188W Operator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
APW188S Operator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
APW133R Operator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
APW133G Operator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
APW133A Operator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
APW133W Operator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
APW133S Operator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
APW116R Operator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
APW116G Operator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
APW116A Operator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
APW116W Operator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
APW116S Operator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
APW126R Operator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
APW126G Operator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
APW126A Operator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
APW126W Operator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
APW126S Operator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
APW1B66DR Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Red
APW1B66DG Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Green
APW1B66DY Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
APW1B66DA Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
APW1B66DW Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: White
APW1B66DS Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
APW1B66DPW Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
APW1B11DR Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Red
APW1B11DG Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Green
APW1B11DY Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
APW1B11DA Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
APW1B11DW Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: White
APW1B11DS Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
APW1B11DPW Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
APW1B22DR Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Red
APW1B22DG Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Green
APW1B22DY Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
APW1B22DA Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
APW1B22DW Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: White
APW1B22DS Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
APW1B22DPW Operator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
APW1B16DR Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Red
APW1B16DG Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Green
APW1B16DY Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
APW1B16DA Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Amber
APW1B16DW Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: White
APW1B16DS Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Blue
APW1B16DPW Operator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
APW1B26DR Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Red
APW1B26DG Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Green
APW1B26DY Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
APW1B26DA Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Amber
APW1B26DW Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: White
APW1B26DS Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Blue
APW1B26DPW Operator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
APW1B16DDR Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Red
APW1B16DDG Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Green
APW1B16DDY Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Yellow
APW1B16DDA Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Amber
APW1B16DDW Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: White
APW1B16DDS Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Blue
APW1B16DDPW Operator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Pure white
APW1B66R Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
APW1B66G Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
APW1B66A Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
APW1B66W Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
APW1B66S Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
APW1B88R Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
APW1B88G Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
APW1B88A Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
APW1B88W Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
APW1B88S Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
APW1B33R Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
APW1B33G Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
APW1B33A Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
APW1B33W Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
APW1B33S Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
APW1B16R Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
APW1B16G Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
APW1B16A Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
APW1B16W Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
APW1B16S Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
APW1B26R Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
APW1B26G Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
APW1B26A Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
APW1B26W Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
APW1B26S Operator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
APW266DR Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Red
APW266DG Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Green
APW266DY Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
APW266DA Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
APW266DW Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: White
APW266DS Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
APW266DPW Operator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
APW211DR Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Red
APW211DG Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Green
APW211DY Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
APW211DA Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
APW211DW Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: White
APW211DS Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
APW211DPW Operator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
APW222DR Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Red
APW222DG Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Green
APW222DY Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
APW222DA Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
APW222DW Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: White
APW222DS Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
APW222DPW Operator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
APW216DR Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Red
APW216DG Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Green
APW216DY Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
APW216DA Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Amber
APW216DW Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: White
APW216DS Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Blue
APW216DPW Operator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
APW226DR Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Red
APW226DG Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Green
APW226DY Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
APW226DA Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Amber
APW226DW Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: White
APW226DS Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Blue
APW226DPW Operator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
APW216DDR Operator: Round | Lamp: LED | Voltage: DC110V | Colour: Red
APW216DDG Operator: Round | Lamp: LED | Voltage: DC110V | Colour: Green
APW216DDY Operator: Round | Lamp: LED | Voltage: DC110V | Colour: Yellow
APW216DDA Operator: Round | Lamp: LED | Voltage: DC110V | Colour: Amber
APW216DDW Operator: Round | Lamp: LED | Voltage: DC110V | Colour: White
APW216DDS Operator: Round | Lamp: LED | Voltage: DC110V | Colour: Blue
APW216DDPW Operator: Round | Lamp: LED | Voltage: DC110V | Colour: Pure white
APW266R Operator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
APW266G Operator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
APW266A Operator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
APW266W Operator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
APW266S Operator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
APW288R Operator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
APW288G Operator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
APW288A Operator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
APW288W Operator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
APW288S Operator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
APW233R Operator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
APW233G Operator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
APW233A Operator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
APW233W Operator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
APW233S Operator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
APW216R Operator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
APW216G Operator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
APW216A Operator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
APW216W Operator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
APW216S Operator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
APW226R Operator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
APW226G Operator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
APW226A Operator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
APW226W Operator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
APW226S Operator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
UPQW1B66DR Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Red
UPQW1B66DG Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Green
UPQW1B66DY Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
UPQW1B66DA Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
UPQW1B66DW Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: White
UPQW1B66DS Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
UPQW1B66DPW Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
UPQW1B11DR Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Red
UPQW1B11DG Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Green
UPQW1B11DY Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
UPQW1B11DA Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
UPQW1B11DW Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: White
UPQW1B11DS Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
UPQW1B11DPW Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
UPQW1B22DR Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Red
UPQW1B22DG Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Green
UPQW1B22DY Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
UPQW1B22DA Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
UPQW1B22DW Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: White
UPQW1B22DS Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
UPQW1B22DPW Operator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
UPQW1B16DR Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Red
UPQW1B16DG Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Green
UPQW1B16DY Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
UPQW1B16DA Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Amber
UPQW1B16DW Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: White
UPQW1B16DS Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Blue
UPQW1B16DPW Operator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
UPQW1B26DR Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Red
UPQW1B26DG Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Green
UPQW1B26DY Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
UPQW1B26DA Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Amber
UPQW1B26DW Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: White
UPQW1B26DS Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Blue
UPQW1B26DPW Operator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
UPQW1B16DDR Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Red
UPQW1B16DDG Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Green
UPQW1B16DDY Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Yellow
UPQW1B16DDA Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Amber
UPQW1B16DDW Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: White
UPQW1B16DDS Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Blue
UPQW1B16DDPW Operator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Pure white
UPQW1B66R Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
UPQW1B66G Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
UPQW1B66A Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
UPQW1B66W Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
UPQW1B66S Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
UPQW1B88R Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
UPQW1B88G Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
UPQW1B88A Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
UPQW1B88W Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
UPQW1B88S Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
UPQW1B33R Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
UPQW1B33G Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
UPQW1B33A Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
UPQW1B33W Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
UPQW1B33S Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
UPQW1B16R Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
UPQW1B16G Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
UPQW1B16A Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
UPQW1B16W Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
UPQW1B16S Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
UPQW1B26R Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
UPQW1B26G Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
UPQW1B26A Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
UPQW1B26W Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
UPQW1B26S Operator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
Pilot LightsIDEC
268 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series 22 mm Pilot Lights (LED / Incandescent)

Brand IDEC·Pilot Lights

Available part numbers (268)

APW166DR, APW166DG, APW166DY, APW166DA, APW166DW, APW166DS, APW166DPW, APW111DR, APW111DG, APW111DY + 258 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APW166DROperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Red
APW166DGOperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Green
APW166DYOperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
APW166DAOperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
APW166DWOperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: White
APW166DSOperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
APW166DPWOperator: Flush | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
APW111DROperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Red
APW111DGOperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Green
APW111DYOperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
APW111DAOperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
APW111DWOperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: White
APW111DSOperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
APW111DPWOperator: Flush | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
APW122DROperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Red
APW122DGOperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Green
APW122DYOperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
APW122DAOperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
APW122DWOperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: White
APW122DSOperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
APW122DPWOperator: Flush | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
APW116DROperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Red
APW116DGOperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Green
APW116DYOperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
APW116DAOperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Amber
APW116DWOperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: White
APW116DSOperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Blue
APW116DPWOperator: Flush | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
APW126DROperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Red
APW126DGOperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Green
APW126DYOperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
APW126DAOperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Amber
APW126DWOperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: White
APW126DSOperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Blue
APW126DPWOperator: Flush | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
APW116DDROperator: Flush | Lamp: LED | Voltage: DC110V | Colour: Red
APW116DDGOperator: Flush | Lamp: LED | Voltage: DC110V | Colour: Green
APW116DDYOperator: Flush | Lamp: LED | Voltage: DC110V | Colour: Yellow
APW116DDAOperator: Flush | Lamp: LED | Voltage: DC110V | Colour: Amber
APW116DDWOperator: Flush | Lamp: LED | Voltage: DC110V | Colour: White
APW116DDSOperator: Flush | Lamp: LED | Voltage: DC110V | Colour: Blue
APW116DDPWOperator: Flush | Lamp: LED | Voltage: DC110V | Colour: Pure white
APW166ROperator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
APW166GOperator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
APW166AOperator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
APW166WOperator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
APW166SOperator: Flush | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
APW188ROperator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
APW188GOperator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
APW188AOperator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
APW188WOperator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
APW188SOperator: Flush | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
APW133ROperator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
APW133GOperator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
APW133AOperator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
APW133WOperator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
APW133SOperator: Flush | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
APW116ROperator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
APW116GOperator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
APW116AOperator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
APW116WOperator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
APW116SOperator: Flush | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
APW126ROperator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
APW126GOperator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
APW126AOperator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
APW126WOperator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
APW126SOperator: Flush | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
APW1B66DROperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Red
APW1B66DGOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Green
APW1B66DYOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
APW1B66DAOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
APW1B66DWOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: White
APW1B66DSOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
APW1B66DPWOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
APW1B11DROperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Red
APW1B11DGOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Green
APW1B11DYOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
APW1B11DAOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
APW1B11DWOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: White
APW1B11DSOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
APW1B11DPWOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
APW1B22DROperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Red
APW1B22DGOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Green
APW1B22DYOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
APW1B22DAOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
APW1B22DWOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: White
APW1B22DSOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
APW1B22DPWOperator: Flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
APW1B16DROperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Red
APW1B16DGOperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Green
APW1B16DYOperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
APW1B16DAOperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Amber
APW1B16DWOperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: White
APW1B16DSOperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Blue
APW1B16DPWOperator: Flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
APW1B26DROperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Red
APW1B26DGOperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Green
APW1B26DYOperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
APW1B26DAOperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Amber
APW1B26DWOperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: White
APW1B26DSOperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Blue
APW1B26DPWOperator: Flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
APW1B16DDROperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Red
APW1B16DDGOperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Green
APW1B16DDYOperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Yellow
APW1B16DDAOperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Amber
APW1B16DDWOperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: White
APW1B16DDSOperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Blue
APW1B16DDPWOperator: Flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Pure white
APW1B66ROperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
APW1B66GOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
APW1B66AOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
APW1B66WOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
APW1B66SOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
APW1B88ROperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
APW1B88GOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
APW1B88AOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
APW1B88WOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
APW1B88SOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
APW1B33ROperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
APW1B33GOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
APW1B33AOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
APW1B33WOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
APW1B33SOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
APW1B16ROperator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
APW1B16GOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
APW1B16AOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
APW1B16WOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
APW1B16SOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
APW1B26ROperator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
APW1B26GOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
APW1B26AOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
APW1B26WOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
APW1B26SOperator: Flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
APW266DROperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Red
APW266DGOperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Green
APW266DYOperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
APW266DAOperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
APW266DWOperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: White
APW266DSOperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
APW266DPWOperator: Round | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
APW211DROperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Red
APW211DGOperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Green
APW211DYOperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
APW211DAOperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
APW211DWOperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: White
APW211DSOperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
APW211DPWOperator: Round | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
APW222DROperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Red
APW222DGOperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Green
APW222DYOperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
APW222DAOperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
APW222DWOperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: White
APW222DSOperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
APW222DPWOperator: Round | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
APW216DROperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Red
APW216DGOperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Green
APW216DYOperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
APW216DAOperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Amber
APW216DWOperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: White
APW216DSOperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Blue
APW216DPWOperator: Round | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
APW226DROperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Red
APW226DGOperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Green
APW226DYOperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
APW226DAOperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Amber
APW226DWOperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: White
APW226DSOperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Blue
APW226DPWOperator: Round | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
APW216DDROperator: Round | Lamp: LED | Voltage: DC110V | Colour: Red
APW216DDGOperator: Round | Lamp: LED | Voltage: DC110V | Colour: Green
APW216DDYOperator: Round | Lamp: LED | Voltage: DC110V | Colour: Yellow
APW216DDAOperator: Round | Lamp: LED | Voltage: DC110V | Colour: Amber
APW216DDWOperator: Round | Lamp: LED | Voltage: DC110V | Colour: White
APW216DDSOperator: Round | Lamp: LED | Voltage: DC110V | Colour: Blue
APW216DDPWOperator: Round | Lamp: LED | Voltage: DC110V | Colour: Pure white
APW266ROperator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
APW266GOperator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
APW266AOperator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
APW266WOperator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
APW266SOperator: Round | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
APW288ROperator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
APW288GOperator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
APW288AOperator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
APW288WOperator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
APW288SOperator: Round | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
APW233ROperator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
APW233GOperator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
APW233AOperator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
APW233WOperator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
APW233SOperator: Round | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
APW216ROperator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
APW216GOperator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
APW216AOperator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
APW216WOperator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
APW216SOperator: Round | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
APW226ROperator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
APW226GOperator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
APW226AOperator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
APW226WOperator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
APW226SOperator: Round | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue
UPQW1B66DROperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Red
UPQW1B66DGOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Green
UPQW1B66DYOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Yellow
UPQW1B66DAOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Amber
UPQW1B66DWOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: White
UPQW1B66DSOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Blue
UPQW1B66DPWOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC6V | Colour: Pure white
UPQW1B11DROperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Red
UPQW1B11DGOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Green
UPQW1B11DYOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Yellow
UPQW1B11DAOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Amber
UPQW1B11DWOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: White
UPQW1B11DSOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Blue
UPQW1B11DPWOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC12V | Colour: Pure white
UPQW1B22DROperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Red
UPQW1B22DGOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Green
UPQW1B22DYOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Yellow
UPQW1B22DAOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Amber
UPQW1B22DWOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: White
UPQW1B22DSOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Blue
UPQW1B22DPWOperator: Square flush (marking) | Lamp: LED | Voltage: AC/DC24V | Colour: Pure white
UPQW1B16DROperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Red
UPQW1B16DGOperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Green
UPQW1B16DYOperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Yellow
UPQW1B16DAOperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Amber
UPQW1B16DWOperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: White
UPQW1B16DSOperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Blue
UPQW1B16DPWOperator: Square flush (marking) | Lamp: LED | Voltage: AC100/110V | Colour: Pure white
UPQW1B26DROperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Red
UPQW1B26DGOperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Green
UPQW1B26DYOperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Yellow
UPQW1B26DAOperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Amber
UPQW1B26DWOperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: White
UPQW1B26DSOperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Blue
UPQW1B26DPWOperator: Square flush (marking) | Lamp: LED | Voltage: AC200/220V | Colour: Pure white
UPQW1B16DDROperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Red
UPQW1B16DDGOperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Green
UPQW1B16DDYOperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Yellow
UPQW1B16DDAOperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Amber
UPQW1B16DDWOperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: White
UPQW1B16DDSOperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Blue
UPQW1B16DDPWOperator: Square flush (marking) | Lamp: LED | Voltage: DC110V | Colour: Pure white
UPQW1B66ROperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Red
UPQW1B66GOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Green
UPQW1B66AOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Amber
UPQW1B66WOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: White
UPQW1B66SOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC6V | Colour: Blue
UPQW1B88ROperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Red
UPQW1B88GOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Green
UPQW1B88AOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Amber
UPQW1B88WOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: White
UPQW1B88SOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC12V | Colour: Blue
UPQW1B33ROperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Red
UPQW1B33GOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Green
UPQW1B33AOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Amber
UPQW1B33WOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: White
UPQW1B33SOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC/DC24V | Colour: Blue
UPQW1B16ROperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Red
UPQW1B16GOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Green
UPQW1B16AOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Amber
UPQW1B16WOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: White
UPQW1B16SOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC100/110V | Colour: Blue
UPQW1B26ROperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Red
UPQW1B26GOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Green
UPQW1B26AOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Amber
UPQW1B26WOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: White
UPQW1B26SOperator: Square flush (marking) | Lamp: Incandescent | Voltage: AC200/220V | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
