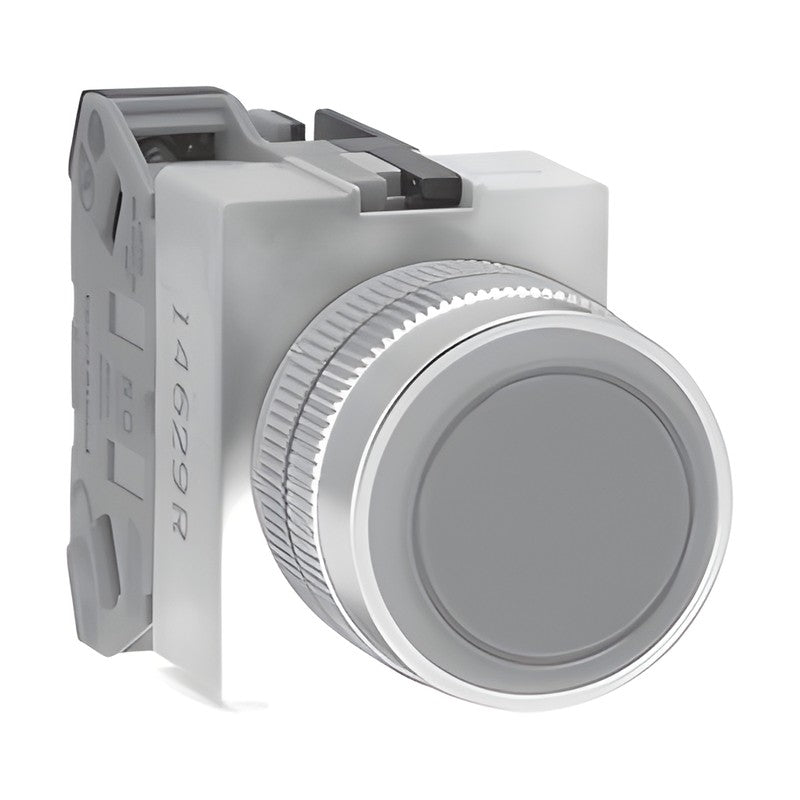

IDEC TW Series 22 mm Pushbuttons (Flush, Extended, Guard, φ29)

IDEC TW Series 22 mm Pushbuttons (Flush, Extended, Guard, φ29)

Non-illuminated φ22 TW Series pushbuttons with flush, extended, full-guard extended and φ29 medium buttons, in momentary and alternate action. Specify the button colour code in the part number.

Key features

  • Momentary or alternate action, 1a to 2a-2b contacts
  • Button colours B, G, R, Y, S, W; aluminium-colour metal ring
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 6
ABW110B Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW110G Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW110R Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW110Y Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW110S Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW110W Operator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW101B Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW101G Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW101R Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW101Y Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW101S Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW101W Operator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW111B Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW111G Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW111R Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW111Y Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW111S Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW111W Operator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW120B Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW120G Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW120R Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW120Y Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW120S Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW120W Operator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW102B Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW102G Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW102R Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW102Y Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW102S Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW102W Operator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW122B Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW122G Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW122R Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW122Y Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW122S Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW122W Operator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW110B Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW110G Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW110R Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW110Y Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW110S Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW110W Operator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW101B Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW101G Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW101R Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW101Y Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW101S Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW101W Operator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW111B Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW111G Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW111R Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW111Y Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW111S Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW111W Operator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW120B Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW120G Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW120R Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW120Y Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW120S Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW120W Operator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW102B Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW102G Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW102R Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW102Y Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW102S Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW102W Operator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW122B Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW122G Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW122R Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW122Y Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW122S Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW122W Operator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABW210B Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW210G Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW210R Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW210Y Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW210S Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW210W Operator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW201B Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW201G Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW201R Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW201Y Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW201S Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW201W Operator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW211B Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW211G Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW211R Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW211Y Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW211S Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW211W Operator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW220B Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW220G Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW220R Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW220Y Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW220S Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW220W Operator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW202B Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW202G Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW202R Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW202Y Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW202S Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW202W Operator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW222B Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW222G Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW222R Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW222Y Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW222S Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW222W Operator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW210B Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW210G Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW210R Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW210Y Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW210S Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW210W Operator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW201B Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW201G Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW201R Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW201Y Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW201S Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW201W Operator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW211B Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW211G Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW211R Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW211Y Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW211S Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW211W Operator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW220B Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW220G Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW220R Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW220Y Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW220S Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW220W Operator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW202B Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW202G Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW202R Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW202Y Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW202S Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW202W Operator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW222B Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW222G Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW222R Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW222Y Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW222S Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW222W Operator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABFW210B Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABFW210G Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABFW210R Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABFW210Y Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABFW210S Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABFW210W Operator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABFW201B Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABFW201G Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABFW201R Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABFW201Y Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABFW201S Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABFW201W Operator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABFW211B Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABFW211G Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABFW211R Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABFW211Y Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABFW211S Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABFW211W Operator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABFW220B Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABFW220G Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABFW220R Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABFW220Y Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABFW220S Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABFW220W Operator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABFW202B Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABFW202G Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABFW202R Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABFW202Y Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABFW202S Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABFW202W Operator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABFW222B Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABFW222G Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABFW222R Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABFW222Y Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABFW222S Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABFW222W Operator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOFW210B Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOFW210G Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOFW210R Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOFW210Y Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOFW210S Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOFW210W Operator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOFW201B Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOFW201G Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOFW201R Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOFW201Y Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOFW201S Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOFW201W Operator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOFW211B Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOFW211G Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOFW211R Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOFW211Y Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOFW211S Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOFW211W Operator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOFW220B Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOFW220G Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOFW220R Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOFW220Y Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOFW220S Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOFW220W Operator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOFW202B Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOFW202G Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOFW202R Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOFW202Y Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOFW202S Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOFW202W Operator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOFW222B Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOFW222G Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOFW222R Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOFW222Y Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOFW222S Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOFW222W Operator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABW310B Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW310G Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW310R Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW310Y Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW310S Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW310W Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW301B Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW301G Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW301R Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW301Y Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW301S Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW301W Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW311B Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW311G Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW311R Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW311Y Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW311S Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW311W Operator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW320B Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW320G Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW320R Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW320Y Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW320S Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW320W Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW302B Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW302G Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW302R Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW302Y Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW302S Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW302W Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW322B Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW322G Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW322R Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW322Y Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW322S Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW322W Operator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW310B Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW310G Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW310R Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW310Y Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW310S Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW310W Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW301B Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW301G Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW301R Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW301Y Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW301S Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW301W Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW311B Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW311G Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW311R Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW311Y Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW311S Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW311W Operator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW320B Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW320G Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW320R Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW320Y Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW320S Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW320W Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW302B Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW302G Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW302R Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW302Y Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW302S Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW302W Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW322B Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW322G Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW322R Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW322Y Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW322S Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW322W Operator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
PushbuttonsIDEC
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series 22 mm Pushbuttons (Flush, Extended, Guard, φ29)

Brand IDEC·Pushbuttons

Available part numbers (288)

ABW110B, ABW110G, ABW110R, ABW110Y, ABW110S, ABW110W, ABW101B, ABW101G, ABW101R, ABW101Y + 278 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABW110BOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW110GOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW110ROperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW110YOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW110SOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW110WOperator: Flush | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW101BOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW101GOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW101ROperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW101YOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW101SOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW101WOperator: Flush | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW111BOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW111GOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW111ROperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW111YOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW111SOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW111WOperator: Flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW120BOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW120GOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW120ROperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW120YOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW120SOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW120WOperator: Flush | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW102BOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW102GOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW102ROperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW102YOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW102SOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW102WOperator: Flush | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW122BOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW122GOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW122ROperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW122YOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW122SOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW122WOperator: Flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW110BOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW110GOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW110ROperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW110YOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW110SOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW110WOperator: Flush | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW101BOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW101GOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW101ROperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW101YOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW101SOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW101WOperator: Flush | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW111BOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW111GOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW111ROperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW111YOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW111SOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW111WOperator: Flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW120BOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW120GOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW120ROperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW120YOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW120SOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW120WOperator: Flush | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW102BOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW102GOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW102ROperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW102YOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW102SOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW102WOperator: Flush | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW122BOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW122GOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW122ROperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW122YOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW122SOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW122WOperator: Flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABW210BOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW210GOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW210ROperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW210YOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW210SOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW210WOperator: Extended | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW201BOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW201GOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW201ROperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW201YOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW201SOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW201WOperator: Extended | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW211BOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW211GOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW211ROperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW211YOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW211SOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW211WOperator: Extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW220BOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW220GOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW220ROperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW220YOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW220SOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW220WOperator: Extended | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW202BOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW202GOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW202ROperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW202YOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW202SOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW202WOperator: Extended | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW222BOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW222GOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW222ROperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW222YOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW222SOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW222WOperator: Extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW210BOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW210GOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW210ROperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW210YOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW210SOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW210WOperator: Extended | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW201BOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW201GOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW201ROperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW201YOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW201SOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW201WOperator: Extended | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW211BOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW211GOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW211ROperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW211YOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW211SOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW211WOperator: Extended | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW220BOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW220GOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW220ROperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW220YOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW220SOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW220WOperator: Extended | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW202BOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW202GOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW202ROperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW202YOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW202SOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW202WOperator: Extended | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW222BOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW222GOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW222ROperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW222YOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW222SOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW222WOperator: Extended | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABFW210BOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABFW210GOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABFW210ROperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABFW210YOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABFW210SOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABFW210WOperator: Extended, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABFW201BOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABFW201GOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABFW201ROperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABFW201YOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABFW201SOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABFW201WOperator: Extended, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABFW211BOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABFW211GOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABFW211ROperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABFW211YOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABFW211SOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABFW211WOperator: Extended, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABFW220BOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABFW220GOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABFW220ROperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABFW220YOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABFW220SOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABFW220WOperator: Extended, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABFW202BOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABFW202GOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABFW202ROperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABFW202YOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABFW202SOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABFW202WOperator: Extended, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABFW222BOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABFW222GOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABFW222ROperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABFW222YOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABFW222SOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABFW222WOperator: Extended, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOFW210BOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOFW210GOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOFW210ROperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOFW210YOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOFW210SOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOFW210WOperator: Extended, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOFW201BOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOFW201GOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOFW201ROperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOFW201YOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOFW201SOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOFW201WOperator: Extended, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOFW211BOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOFW211GOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOFW211ROperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOFW211YOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOFW211SOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOFW211WOperator: Extended, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOFW220BOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOFW220GOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOFW220ROperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOFW220YOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOFW220SOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOFW220WOperator: Extended, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOFW202BOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOFW202GOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOFW202ROperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOFW202YOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOFW202SOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOFW202WOperator: Extended, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOFW222BOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOFW222GOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOFW222ROperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOFW222YOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOFW222SOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOFW222WOperator: Extended, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABW310BOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABW310GOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABW310ROperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABW310YOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABW310SOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABW310WOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABW301BOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABW301GOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABW301ROperator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABW301YOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABW301SOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABW301WOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABW311BOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABW311GOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABW311ROperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABW311YOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABW311SOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABW311WOperator: Medium (φ29 button) | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABW320BOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABW320GOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABW320ROperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABW320YOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABW320SOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABW320WOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABW302BOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABW302GOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABW302ROperator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABW302YOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABW302SOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABW302WOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABW322BOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABW322GOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABW322ROperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABW322YOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABW322SOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABW322WOperator: Medium (φ29 button) | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOW310BOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOW310GOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOW310ROperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOW310YOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOW310SOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOW310WOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOW301BOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOW301GOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOW301ROperator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOW301YOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOW301SOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOW301WOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOW311BOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOW311GOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOW311ROperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOW311YOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOW311SOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOW311WOperator: Medium (φ29 button) | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOW320BOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOW320GOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOW320ROperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOW320YOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOW320SOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOW320WOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOW302BOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOW302GOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOW302ROperator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOW302YOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOW302SOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOW302WOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOW322BOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOW322GOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOW322ROperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOW322YOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOW322SOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOW322WOperator: Medium (φ29 button) | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
