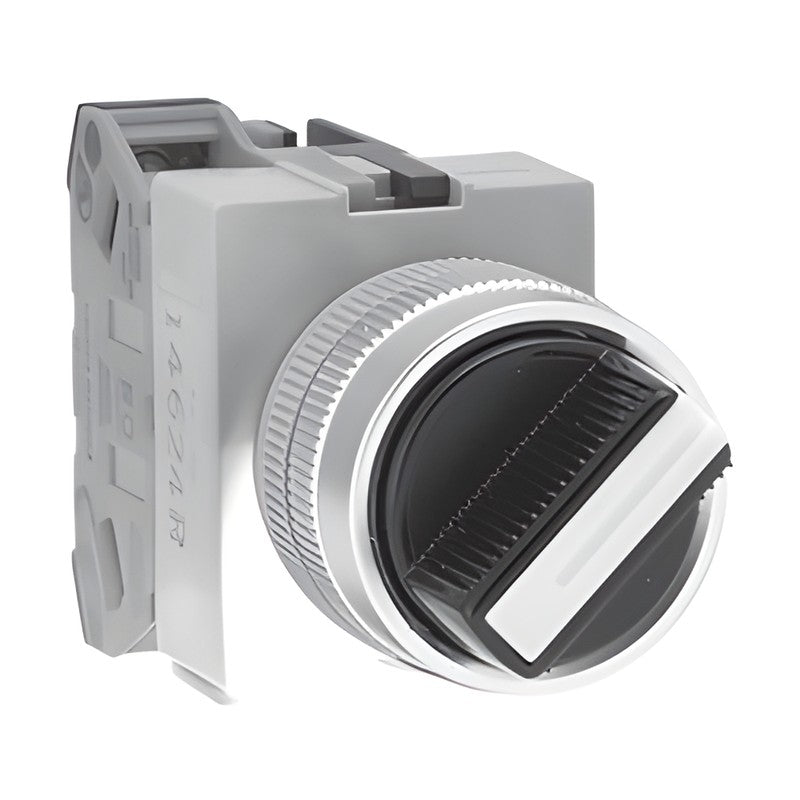

IDEC TW Series 22 mm Selector Switches (Arrow Handle)

IDEC TW Series 22 mm Selector Switches (Arrow Handle)

TW Series φ22 selector switches with arrow handle, 2-, 3-, 4- and 5-position versions, maintained or spring-return operation.

Key features

  • 90° 2-position, 45° 3-position and multi-position versions
  • Black handle, white direction cap, aluminium ring
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Operator Arrow handle
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 29
ASW210 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASW211 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASW220 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASW222 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW320 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASW302 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASW322 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW340 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASW304 Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASW33S-243 Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASW44S-407 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW44S-411 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW43S-461 Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASW2110 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASW2111 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASW2120 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW2122 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW3120 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW3102 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASW3122 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW3140 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASW3104 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASW54S-501 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW2210 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASW2211 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASW2220 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW2222 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW3220 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW3202 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASW3222 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW3240 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASW3204 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASW3320 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASW3302 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASW3322 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASW3340 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASW3304 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
Selector SwitchesIDEC
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series 22 mm Selector Switches (Arrow Handle)

Brand IDEC·Selector Switches

Available part numbers (37)

ASW210, ASW211, ASW220, ASW222, ASW320, ASW302, ASW322, ASW340, ASW304, ASW33S-243 + 27 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASW210Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASW211Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASW220Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASW222Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW320Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASW302Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASW322Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW340Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASW304Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASW33S-243Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASW44S-407Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW44S-411Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW43S-461Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASW2110Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASW2111Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASW2120Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW2122Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW3120Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW3102Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASW3122Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW3140Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASW3104Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASW54S-501Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW2210Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASW2211Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASW2220Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW2222Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW3220Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW3202Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASW3222Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW3240Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASW3204Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASW3320Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASW3302Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASW3322Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASW3340Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASW3304Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)

Need a different model, or a part not listed here? Send us your parts list →
