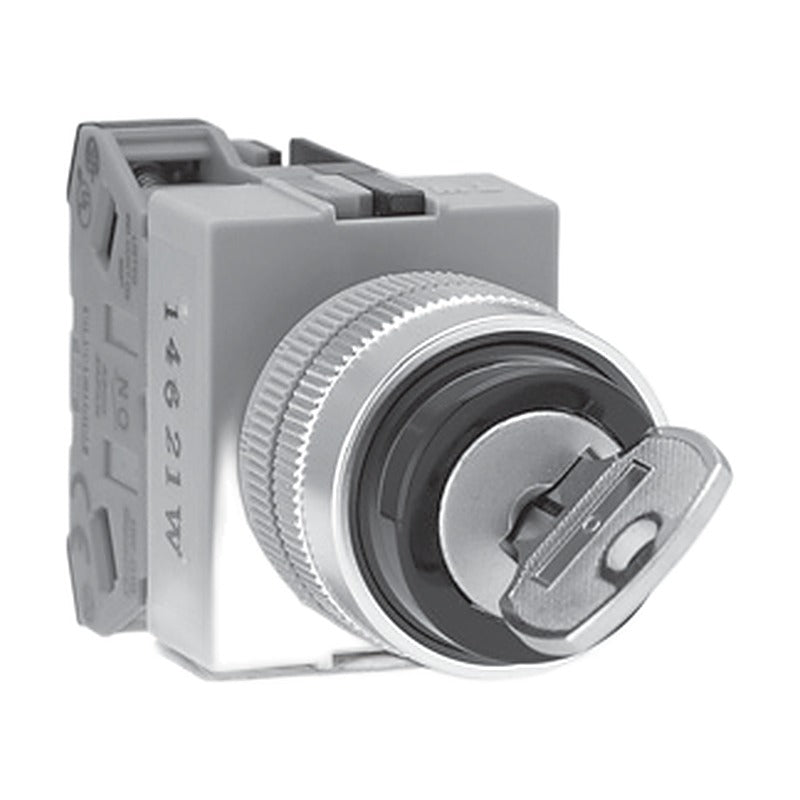

IDEC TW Series 22 mm Selector Switches (Key Operated)

IDEC TW Series 22 mm Selector Switches (Key Operated)

TW Series φ22 selector switches with key operated, 2-, 3-, 4- and 5-position versions, maintained or spring-return operation.

Key features

  • 90° 2-position, 45° 3-position and multi-position versions
  • Black handle, white direction cap, aluminium ring
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Operator Key operated
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 31
ASW2K10 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASW2K11 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASW2K20 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASW2K22 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW3K20 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASW3K02 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASW3K22 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW3K40 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASW3K04 Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASW3K3S-243 Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASW21K10 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASW21K11 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASW21K20 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW21K22 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW31K20 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW31K02 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASW31K22 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW31K40 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASW31K04 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASW22K10 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASW22K11 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASW22K20 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW22K22 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW32K20 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW32K02 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASW32K22 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW32K40 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASW32K04 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASW33K20 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASW33K02 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASW33K22 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASW33K40 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASW33K04 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
