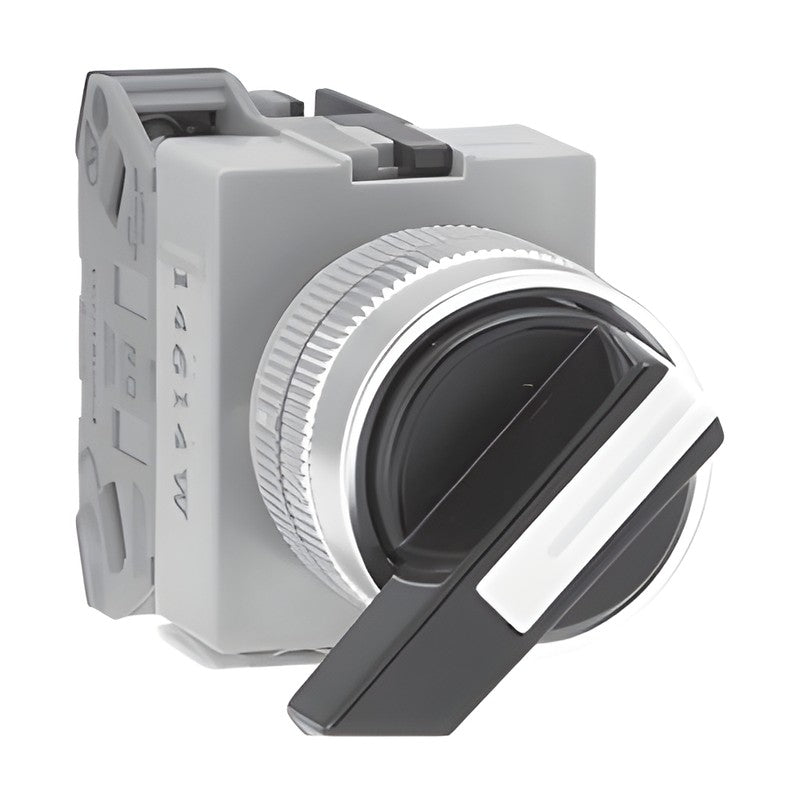

IDEC TW Series 22 mm Selector Switches (Lever Handle)

IDEC TW Series 22 mm Selector Switches (Lever Handle)

TW Series φ22 selector switches with lever handle, 2-, 3-, 4- and 5-position versions, maintained or spring-return operation.

Key features

  • 90° 2-position, 45° 3-position and multi-position versions
  • Black handle, white direction cap, aluminium ring
  • φ22.3 mm panel cut-out, heavy-duty one-piece construction
  • Finger-protected SS terminals accept ring tongue terminals without removing screws
  • Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

Operator Lever handle
Series IDEC TW Series (φ22)
Mounting hole φ22.3 mm (IEC 60947-5-1)
Panel thickness 1 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Terminals M3.5 screw, finger-protected SS terminals
Source IDEC TW Series φ22 Control Units catalogue, p. 30
ASW2L10 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASW2L11 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASW2L20 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASW2L22 Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW3L20 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASW3L02 Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASW3L22 Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASW3L40 Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASW3L04 Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASW3L3S-243 Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASW4L4S-407 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW4L4S-411 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW4L3S-461 Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASW21L10 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASW21L11 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASW21L20 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW21L22 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW31L20 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASW31L02 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASW31L22 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASW31L40 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASW31L04 Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASW5L4S-501 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASW22L10 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASW22L11 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASW22L20 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW22L22 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW32L20 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASW32L02 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASW32L22 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASW32L40 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASW32L04 Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASW33L20 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASW33L02 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASW33L22 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASW33L40 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASW33L04 Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
Selector SwitchesIDEC
37 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series 22 mm Selector Switches (Lever Handle)

Brand IDEC·Selector Switches

Available part numbers (37)

ASW2L10, ASW2L11, ASW2L20, ASW2L22, ASW3L20, ASW3L02, ASW3L22, ASW3L40, ASW3L04, ASW3L3S-243 + 27 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
