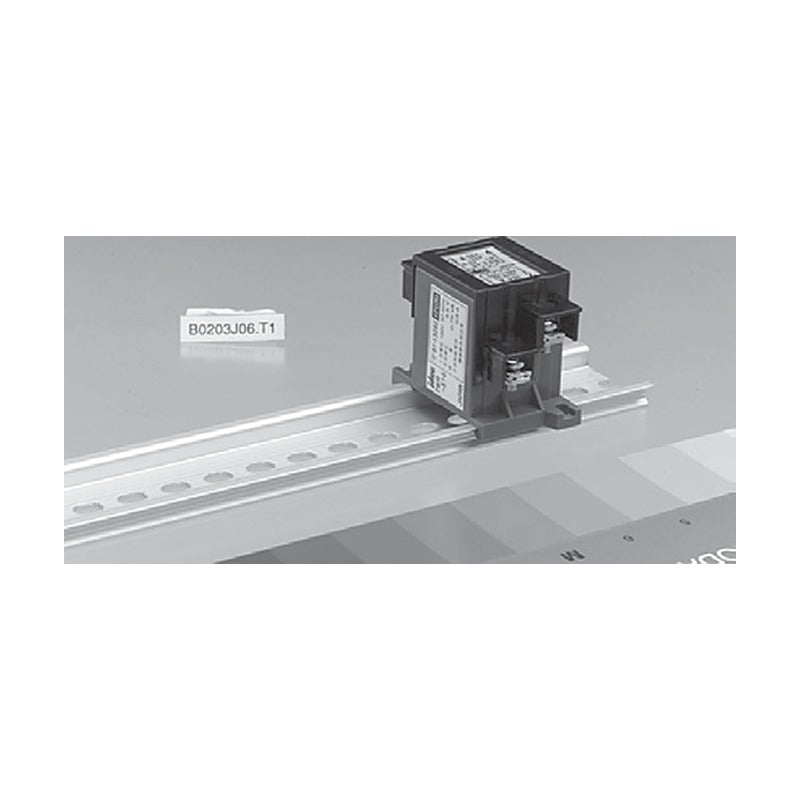

IDEC TWR Separate Transformers, DIN Rail & End Clips

TWR5 separate transformers for 6 V or 24 V lamp loads, 35 mm DIN rails and BNL6 end clips.

Key features

Primary AC100/110V, AC200/220V or AC400/440V
Aluminium or steel 1000 mm DIN rail
φ22.3 mm panel cut-out, heavy-duty one-piece construction
Finger-protected SS terminals accept ring tongue terminals without removing screws
Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

For use with	TW / HW / TWS Series
Series	IDEC TW Series (φ22)
Mounting hole	φ22.3 mm
Ordering	Order by the order part number shown
Pack suffix	PN02 / PN05 / PN10 = pack of 2 / 5 / 10
Product category	Accessory / maintenance part
Brand	IDEC
Source	IDEC TW Series φ22 Control Units catalogue, p. 44

TWR516		Item: Separate transformer, 6V lamp load \| Voltage: AC100/110V \| Pack: 1 pc
TWR526		Item: Separate transformer, 6V lamp load \| Voltage: AC200/220V \| Pack: 1 pc
TWR546		Item: Separate transformer, 6V lamp load \| Voltage: AC400/440V \| Pack: 1 pc
TWR512		Item: Separate transformer, 24V lamp load \| Voltage: AC100/110V \| Pack: 1 pc
TWR522		Item: Separate transformer, 24V lamp load \| Voltage: AC200/220V \| Pack: 1 pc
TWR542		Item: Separate transformer, 24V lamp load \| Voltage: AC400/440V \| Pack: 1 pc
BAA1000PN10		Item: DIN rail 35 mm, aluminium, 1000 mm \| Voltage: - \| Pack: Pack of 10
BAP1000PN10		Item: DIN rail 35 mm, steel, 1000 mm \| Voltage: - \| Pack: Pack of 10
BNL6PN10		Item: End clip for DIN rail \| Voltage: - \| Pack: Pack of 10

Pushbutton AccessoriesIDEC

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWR Separate Transformers, DIN Rail & End Clips

Brand IDEC·Pushbutton Accessories

Available part numbers (9)

TWR516, TWR526, TWR546, TWR512, TWR522, TWR542, BAA1000PN10, BAP1000PN10, BNL6PN10

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
