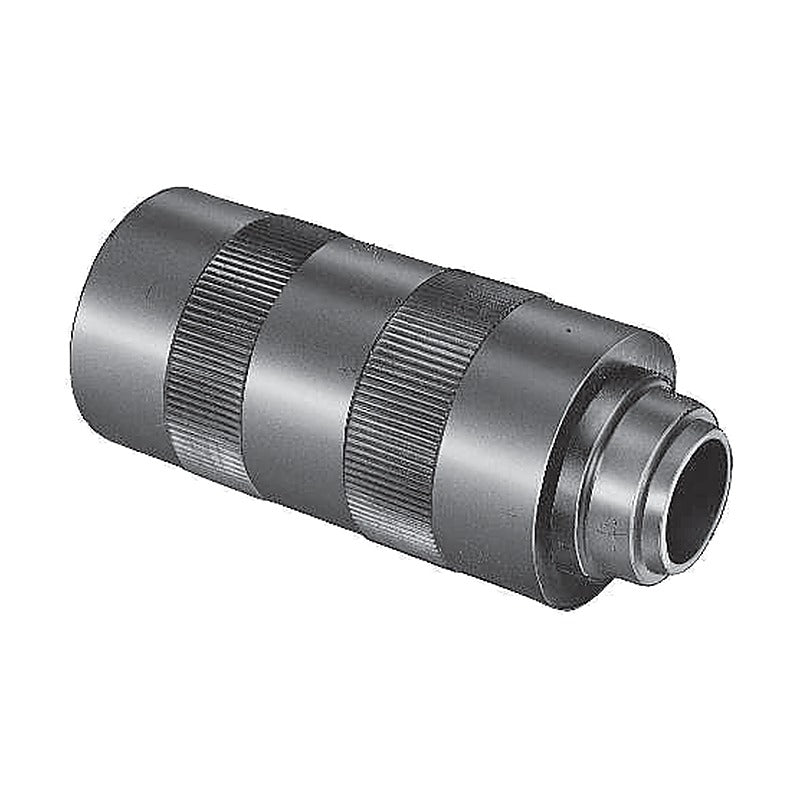

IDEC TW Series Tools & Mounting Accessories

Installation tools, anti-rotation rings, mounting hole plugs, barriers and protective covers for TW Series φ22 units.

Key features

Ring wrench, lamp replacement tool and contact block removal tool
Hole plugs, rubber boots, padlock covers
φ22.3 mm panel cut-out, heavy-duty one-piece construction
Finger-protected SS terminals accept ring tongue terminals without removing screws
Front protection IP65 (IEC 60529); main models UL/CSA listed and EN compliant
HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600); up to 2 tiers (4 blocks)

Specifications

For use with	TW Series
Series	IDEC TW Series (φ22)
Mounting hole	φ22.3 mm
Ordering	Order by the order part number shown
Pack suffix	PN02 / PN05 / PN10 = pack of 2 / 5 / 10
Product category	Accessory / maintenance part
Brand	IDEC
Source	IDEC TW Series φ22 Control Units catalogue, p. 39-40

OR-14		Item: Ring wrench (rubber) \| Colour: - \| Pack: 1 pc
OR-55		Item: Lamp replacement tool \| Colour: - \| Pack: 1 pc
TW-KC1		Item: Contact block removal tool \| Colour: - \| Pack: 1 pc
TW-KQ2		Item: Locking nut tightening tool (metal) \| Colour: - \| Pack: 1 pc
OGL-31PN10		Item: Anti-rotation ring (metal) \| Colour: - \| Pack: Pack of 10
OB-31PN05		Item: Mounting hole plug, rubber, IP65 \| Colour: - \| Pack: Pack of 5
LW9Z-BM		Item: Mounting hole plug, metal, IP66 \| Colour: - \| Pack: 1 pc
LW9Z-BP1		Item: Mounting hole plug, polyamide, IP65 \| Colour: - \| Pack: 1 pc
HW-VG1PN10		Item: Barrier between contact blocks \| Colour: - \| Pack: Pack of 10
OCW-99		Item: Contact rubber cover, 1 tier/2 contacts \| Colour: - \| Pack: 1 pc
OCW-299		Item: Contact rubber cover, 2 tiers/4 contacts \| Colour: - \| Pack: 1 pc
OC-31		Item: Clear button cover, flush button \| Colour: - \| Pack: 1 pc
OC-32		Item: Clear button cover, extended button \| Colour: - \| Pack: 1 pc
OCW-10B		Item: Rubber boot, flush button \| Colour: Black \| Pack: 1 pc
OCW-10G		Item: Rubber boot, flush button \| Colour: Green \| Pack: 1 pc
OCW-10R		Item: Rubber boot, flush button \| Colour: Red \| Pack: 1 pc
OCW-10Y		Item: Rubber boot, flush button \| Colour: Yellow \| Pack: 1 pc
OCW-11B		Item: Rubber boot, extended button \| Colour: Black \| Pack: 1 pc
OCW-11G		Item: Rubber boot, extended button \| Colour: Green \| Pack: 1 pc
OCW-11R		Item: Rubber boot, extended button \| Colour: Red \| Pack: 1 pc
OCW-11Y		Item: Rubber boot, extended button \| Colour: Yellow \| Pack: 1 pc
HW9Z-KL1		Item: Padlock cover \| Colour: - \| Pack: 1 pc
HS9Z-PC22		Item: Padlock cover, key selector switch \| Colour: - \| Pack: 1 pc

Pushbutton AccessoriesIDEC

23 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TW Series Tools & Mounting Accessories

Brand IDEC·Pushbutton Accessories

Available part numbers (23)

OR-14, OR-55, TW-KC1, TW-KQ2, OGL-31PN10, OB-31PN05, LW9Z-BM, LW9Z-BP1, HW-VG1PN10, OCW-99 + 13 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
