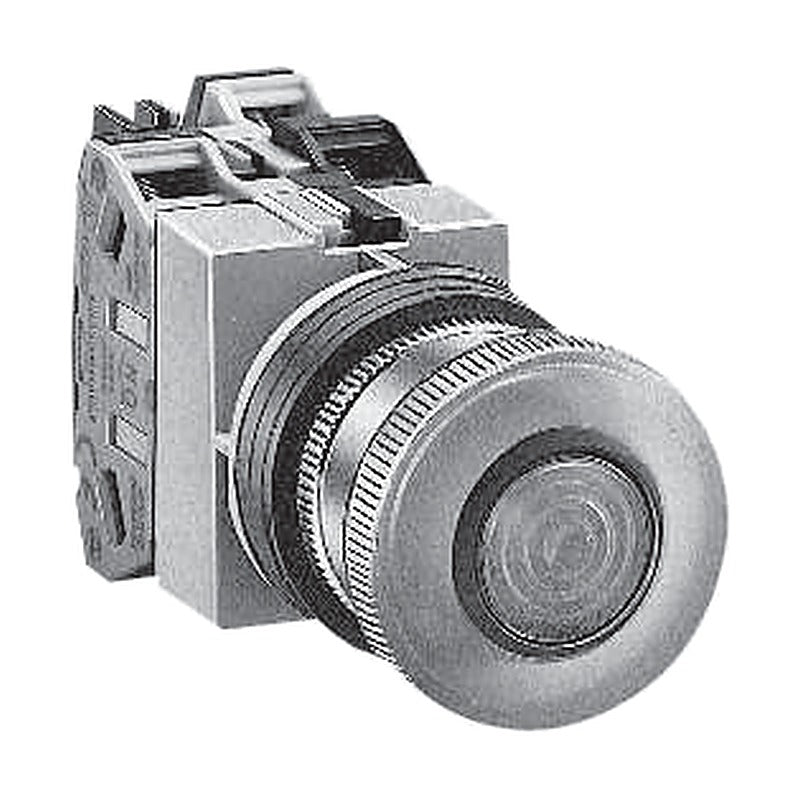

IDEC TWS Series 25 mm Illuminated Pushbuttons (φ35 Large / Push-Lock)

IDEC TWS Series 25 mm Illuminated Pushbuttons (φ35 Large / Push-Lock)

TWS Series φ25 illuminated pushbuttons, φ35 large / push-lock type, LED or incandescent, momentary or alternate.

Key features

  • Specify the illumination colour code in the part number
  • Rated voltages AC/DC6V to AC200/220V
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 15
ALS36611NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS36611NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS36611NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS36611NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS36611NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS36620NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALS36620NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALS36620NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
ALS36620NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALS36620NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALS36622NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS36622NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS36622NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS36622NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS36622NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS38811NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS38811NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS38811NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS38811NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS38811NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS38820NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALS38820NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALS38820NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
ALS38820NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALS38820NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALS38822NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS38822NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS38822NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS38822NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS38822NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS33311NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS33311NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS33311NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS33311NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS33311NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS33320NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALS33320NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALS33320NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
ALS33320NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALS33320NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALS33322NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS33322NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS33322NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS33322NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS33322NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS31611NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS31611NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS31611NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS31611NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS31611NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS31620NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALS31620NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALS31620NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
ALS31620NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALS31620NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALS31622NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS31622NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS31622NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS31622NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS31622NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS32611NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS32611NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS32611NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS32611NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS32611NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS32620NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALS32620NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALS32620NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
ALS32620NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALS32620NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALS32622NR Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS32622NG Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS32622NA Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS32622NW Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS32622NS Operator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS36611NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS36611NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS36611NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS36611NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS36611NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS36620NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AOLS36620NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AOLS36620NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AOLS36620NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AOLS36620NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AOLS36622NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS36622NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS36622NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS36622NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS36622NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS38811NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS38811NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS38811NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS38811NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS38811NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS38820NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AOLS38820NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AOLS38820NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AOLS38820NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AOLS38820NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AOLS38822NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS38822NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS38822NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS38822NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS38822NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS33311NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS33311NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS33311NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS33311NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS33311NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS33320NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AOLS33320NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AOLS33320NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AOLS33320NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AOLS33320NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AOLS33322NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS33322NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS33322NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS33322NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS33322NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS31611NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS31611NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS31611NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS31611NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS31611NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS31620NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AOLS31620NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AOLS31620NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AOLS31620NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AOLS31620NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AOLS31622NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS31622NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS31622NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS31622NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS31622NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS32611NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS32611NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS32611NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS32611NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS32611NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS32620NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AOLS32620NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AOLS32620NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AOLS32620NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AOLS32620NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AOLS32622NR Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS32622NG Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS32622NA Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS32622NW Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS32622NS Operator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AVLS36611DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS36620DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLS36622DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS31111DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS31120DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLS31122DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS32211DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS32220DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLS32222DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS31611DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS31620DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLS31622DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS32611DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS32620DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLS32622DNR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS36611NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS36620NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLS36622NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS38811NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS38820NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLS38822NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS33311NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS33320NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLS33322NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS31611NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS31620NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLS31622NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS32611NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS32620NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLS32622NR Operator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
Illuminated PushbuttonsIDEC
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Illuminated Pushbuttons (φ35 Large / Push-Lock)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (180)

ALS36611NR, ALS36611NG, ALS36611NA, ALS36611NW, ALS36611NS, ALS36620NR, ALS36620NG, ALS36620NA, ALS36620NW, ALS36620NS + 170 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ALS36611NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS36611NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS36611NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS36611NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS36611NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS36620NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
ALS36620NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
ALS36620NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
ALS36620NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
ALS36620NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
ALS36622NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS36622NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS36622NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS36622NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS36622NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS38811NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS38811NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS38811NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS38811NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS38811NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS38820NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
ALS38820NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
ALS38820NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
ALS38820NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
ALS38820NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
ALS38822NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS38822NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS38822NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS38822NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS38822NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS33311NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS33311NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS33311NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS33311NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS33311NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS33320NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
ALS33320NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
ALS33320NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
ALS33320NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
ALS33320NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
ALS33322NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS33322NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS33322NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS33322NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS33322NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS31611NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS31611NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS31611NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS31611NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS31611NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS31620NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
ALS31620NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
ALS31620NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
ALS31620NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
ALS31620NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
ALS31622NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS31622NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS31622NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS31622NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS31622NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ALS32611NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ALS32611NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ALS32611NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
ALS32611NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
ALS32611NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ALS32620NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
ALS32620NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
ALS32620NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
ALS32620NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
ALS32620NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
ALS32622NROperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ALS32622NGOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ALS32622NAOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
ALS32622NWOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
ALS32622NSOperator: Large (φ35 button) | Action: Momentary | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS36611NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS36611NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS36611NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS36611NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS36611NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS36620NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AOLS36620NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
AOLS36620NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
AOLS36620NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
AOLS36620NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
AOLS36622NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS36622NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS36622NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS36622NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS36622NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS38811NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS38811NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS38811NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS38811NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS38811NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS38820NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AOLS38820NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
AOLS38820NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
AOLS38820NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
AOLS38820NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
AOLS38822NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS38822NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS38822NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS38822NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS38822NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS33311NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS33311NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS33311NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS33311NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS33311NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS33320NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AOLS33320NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
AOLS33320NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
AOLS33320NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
AOLS33320NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
AOLS33322NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS33322NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS33322NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS33322NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS33322NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS31611NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS31611NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS31611NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS31611NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS31611NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS31620NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AOLS31620NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
AOLS31620NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
AOLS31620NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
AOLS31620NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
AOLS31622NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS31622NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS31622NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS31622NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS31622NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOLS32611NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOLS32611NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOLS32611NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
AOLS32611NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOLS32611NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOLS32620NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AOLS32620NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
AOLS32620NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
AOLS32620NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
AOLS32620NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
AOLS32622NROperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOLS32622NGOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOLS32622NAOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
AOLS32622NWOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOLS32622NSOperator: Large (φ35 button) | Action: Alternate | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AVLS36611DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS36620DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLS36622DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS31111DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS31120DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLS31122DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS32211DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS32220DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLS32222DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS31611DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS31620DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLS31622DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS32611DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS32620DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLS32622DNROperator: Mushroom push-lock turn-reset | Action: - | Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS36611NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS36620NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
AVLS36622NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS38811NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS38820NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
AVLS38822NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS33311NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS33320NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
AVLS33322NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS31611NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS31620NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
AVLS31622NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVLS32611NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVLS32620NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
AVLS32622NROperator: Mushroom push-lock turn-reset | Action: - | Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
