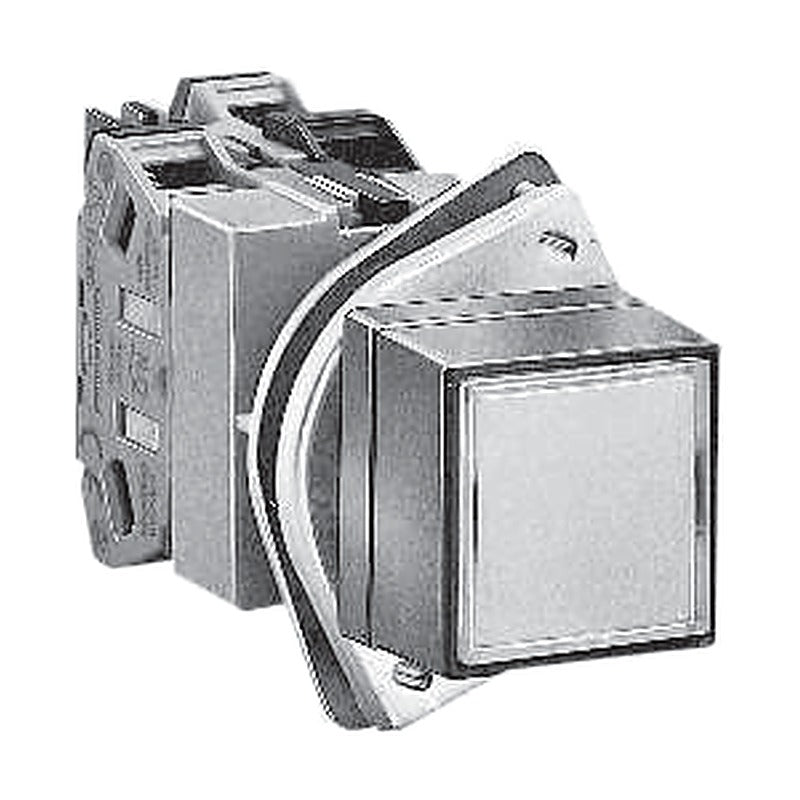

IDEC TWS Series 25 mm Illuminated Pushbuttons (Square Flush, Marking)

IDEC TWS Series 25 mm Illuminated Pushbuttons (Square Flush, Marking)

TWS Series φ25 illuminated pushbuttons, square flush, marking type, LED or incandescent, momentary or alternate.

Key features

  • Specify the illumination colour code in the part number
  • Rated voltages AC/DC6V to AC200/220V
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Operator Square flush (marking)
Action Alternate
Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 16
UOLQS1B6611DNR Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B6611DNG Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B6611DNY Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B6611DNA Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B6611DNW Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B6611DNS Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B6611DNPW Lamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B6620DNR Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B6620DNG Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B6620DNY Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B6620DNA Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B6620DNW Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQS1B6620DNS Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B6620DNPW Lamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B6622DNR Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B6622DNG Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B6622DNY Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B6622DNA Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B6622DNW Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B6622DNS Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B6622DNPW Lamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B1111DNR Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B1111DNG Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B1111DNY Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B1111DNA Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B1111DNW Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B1111DNS Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B1111DNPW Lamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B1120DNR Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B1120DNG Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B1120DNY Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B1120DNA Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B1120DNW Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQS1B1120DNS Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B1120DNPW Lamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B1122DNR Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B1122DNG Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B1122DNY Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B1122DNA Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B1122DNW Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B1122DNS Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B1122DNPW Lamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B2211DNR Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B2211DNG Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B2211DNY Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B2211DNA Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B2211DNW Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B2211DNS Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B2211DNPW Lamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B2220DNR Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B2220DNG Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B2220DNY Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B2220DNA Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B2220DNW Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQS1B2220DNS Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B2220DNPW Lamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B2222DNR Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B2222DNG Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B2222DNY Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B2222DNA Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B2222DNW Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B2222DNS Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B2222DNPW Lamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B1611DNR Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B1611DNG Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B1611DNY Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B1611DNA Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B1611DNW Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B1611DNS Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B1611DNPW Lamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B1620DNR Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B1620DNG Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B1620DNY Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B1620DNA Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B1620DNW Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQS1B1620DNS Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B1620DNPW Lamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B1622DNR Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B1622DNG Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B1622DNY Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B1622DNA Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B1622DNW Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B1622DNS Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B1622DNPW Lamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B2611DNR Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B2611DNG Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B2611DNY Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B2611DNA Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B2611DNW Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B2611DNS Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B2611DNPW Lamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B2620DNR Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B2620DNG Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B2620DNY Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B2620DNA Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B2620DNW Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQS1B2620DNS Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B2620DNPW Lamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B2622DNR Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B2622DNG Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B2622DNY Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B2622DNA Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B2622DNW Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B2622DNS Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B2622DNPW Lamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B6611NR Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B6611NG Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B6611NA Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B6611NW Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B6611NS Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B6620NR Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B6620NG Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B6620NA Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B6620NW Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQS1B6620NS Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B6622NR Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B6622NG Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B6622NA Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B6622NW Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B6622NS Lamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B8811NR Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B8811NG Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B8811NA Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B8811NW Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B8811NS Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B8820NR Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B8820NG Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B8820NA Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B8820NW Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQS1B8820NS Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B8822NR Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B8822NG Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B8822NA Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B8822NW Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B8822NS Lamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B3311NR Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B3311NG Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B3311NA Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B3311NW Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B3311NS Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B3320NR Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B3320NG Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B3320NA Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B3320NW Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQS1B3320NS Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B3322NR Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B3322NG Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B3322NA Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B3322NW Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B3322NS Lamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B1611NR Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B1611NG Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B1611NA Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B1611NW Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B1611NS Lamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B1620NR Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B1620NG Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B1620NA Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B1620NW Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQS1B1620NS Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B1622NR Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B1622NG Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B1622NA Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B1622NW Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B1622NS Lamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B2611NR Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B2611NG Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B2611NA Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B2611NW Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B2611NS Lamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B2620NR Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B2620NG Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B2620NA Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B2620NW Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQS1B2620NS Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B2622NR Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B2622NG Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B2622NA Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B2622NW Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B2622NS Lamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
Illuminated PushbuttonsIDEC
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Illuminated Pushbuttons (Square Flush, Marking)

Brand IDEC·Illuminated Pushbuttons

Available part numbers (180)

UOLQS1B6611DNR, UOLQS1B6611DNG, UOLQS1B6611DNY, UOLQS1B6611DNA, UOLQS1B6611DNW, UOLQS1B6611DNS, UOLQS1B6611DNPW, UOLQS1B6620DNR, UOLQS1B6620DNG, UOLQS1B6620DNY + 170 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
UOLQS1B6611DNRLamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B6611DNGLamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B6611DNYLamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B6611DNALamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B6611DNWLamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B6611DNSLamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B6611DNPWLamp: LED | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B6620DNRLamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B6620DNGLamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B6620DNYLamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B6620DNALamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B6620DNWLamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQS1B6620DNSLamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B6620DNPWLamp: LED | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B6622DNRLamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B6622DNGLamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B6622DNYLamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B6622DNALamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B6622DNWLamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B6622DNSLamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B6622DNPWLamp: LED | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B1111DNRLamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B1111DNGLamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B1111DNYLamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B1111DNALamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B1111DNWLamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B1111DNSLamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B1111DNPWLamp: LED | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B1120DNRLamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B1120DNGLamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B1120DNYLamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B1120DNALamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B1120DNWLamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQS1B1120DNSLamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B1120DNPWLamp: LED | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B1122DNRLamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B1122DNGLamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B1122DNYLamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B1122DNALamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B1122DNWLamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B1122DNSLamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B1122DNPWLamp: LED | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B2211DNRLamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B2211DNGLamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B2211DNYLamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B2211DNALamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B2211DNWLamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B2211DNSLamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B2211DNPWLamp: LED | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B2220DNRLamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B2220DNGLamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B2220DNYLamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B2220DNALamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B2220DNWLamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQS1B2220DNSLamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B2220DNPWLamp: LED | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B2222DNRLamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B2222DNGLamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B2222DNYLamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B2222DNALamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B2222DNWLamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B2222DNSLamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B2222DNPWLamp: LED | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B1611DNRLamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B1611DNGLamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B1611DNYLamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B1611DNALamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B1611DNWLamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B1611DNSLamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B1611DNPWLamp: LED | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B1620DNRLamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B1620DNGLamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B1620DNYLamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B1620DNALamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B1620DNWLamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQS1B1620DNSLamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B1620DNPWLamp: LED | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B1622DNRLamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B1622DNGLamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B1622DNYLamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B1622DNALamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B1622DNWLamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B1622DNSLamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B1622DNPWLamp: LED | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B2611DNRLamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B2611DNGLamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B2611DNYLamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOLQS1B2611DNALamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B2611DNWLamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B2611DNSLamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B2611DNPWLamp: LED | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Pure white
UOLQS1B2620DNRLamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B2620DNGLamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B2620DNYLamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Yellow
UOLQS1B2620DNALamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B2620DNWLamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQS1B2620DNSLamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B2620DNPWLamp: LED | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Pure white
UOLQS1B2622DNRLamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B2622DNGLamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B2622DNYLamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOLQS1B2622DNALamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B2622DNWLamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B2622DNSLamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B2622DNPWLamp: LED | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Pure white
UOLQS1B6611NRLamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B6611NGLamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B6611NALamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B6611NWLamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B6611NSLamp: Incandescent | Voltage: AC/DC6V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B6620NRLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B6620NGLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B6620NALamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B6620NWLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: White
UOLQS1B6620NSLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B6622NRLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B6622NGLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B6622NALamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B6622NWLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B6622NSLamp: Incandescent | Voltage: AC/DC6V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B8811NRLamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B8811NGLamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B8811NALamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B8811NWLamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B8811NSLamp: Incandescent | Voltage: AC/DC12V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B8820NRLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B8820NGLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B8820NALamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B8820NWLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: White
UOLQS1B8820NSLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B8822NRLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B8822NGLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B8822NALamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B8822NWLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B8822NSLamp: Incandescent | Voltage: AC/DC12V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B3311NRLamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B3311NGLamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B3311NALamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B3311NWLamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B3311NSLamp: Incandescent | Voltage: AC/DC24V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B3320NRLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B3320NGLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B3320NALamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B3320NWLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: White
UOLQS1B3320NSLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B3322NRLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B3322NGLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B3322NALamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B3322NWLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B3322NSLamp: Incandescent | Voltage: AC/DC24V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B1611NRLamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B1611NGLamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B1611NALamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B1611NWLamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B1611NSLamp: Incandescent | Voltage: AC100/110V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B1620NRLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B1620NGLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B1620NALamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B1620NWLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: White
UOLQS1B1620NSLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B1622NRLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B1622NGLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B1622NALamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B1622NWLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B1622NSLamp: Incandescent | Voltage: AC100/110V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOLQS1B2611NRLamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOLQS1B2611NGLamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOLQS1B2611NALamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Amber
UOLQS1B2611NWLamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: White
UOLQS1B2611NSLamp: Incandescent | Voltage: AC200/220V | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOLQS1B2620NRLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Red
UOLQS1B2620NGLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Green
UOLQS1B2620NALamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Amber
UOLQS1B2620NWLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: White
UOLQS1B2620NSLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a (2NO) | Colour: Blue
UOLQS1B2622NRLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOLQS1B2622NGLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOLQS1B2622NALamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Amber
UOLQS1B2622NWLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: White
UOLQS1B2622NSLamp: Incandescent | Voltage: AC200/220V | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
