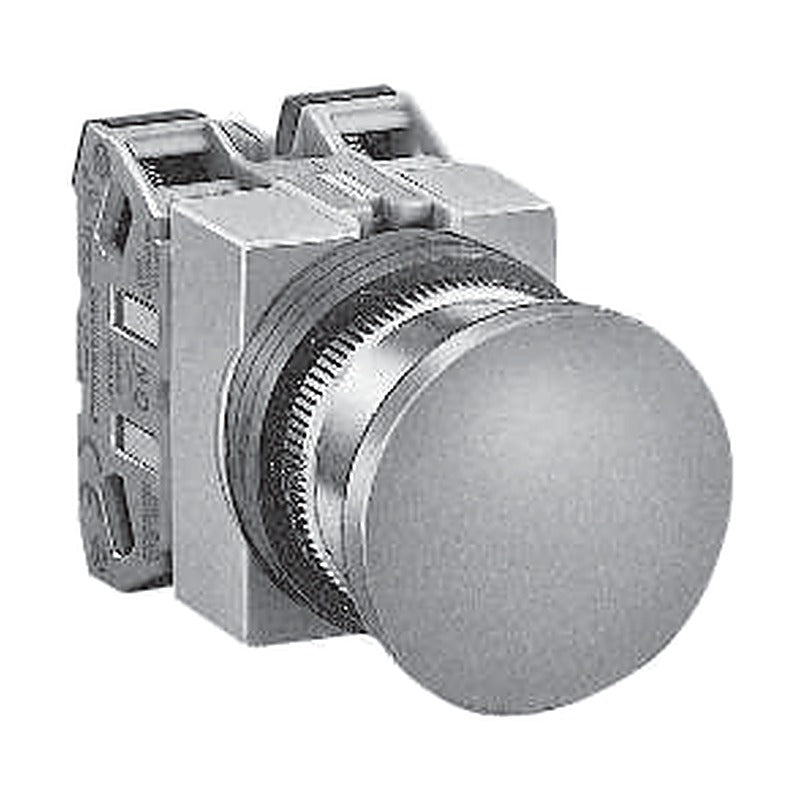

IDEC TWS Series 25 mm Mushroom, Push-Pull & Square Pushbuttons

IDEC TWS Series 25 mm Mushroom, Push-Pull & Square Pushbuttons

TWS Series φ25 large mushroom, guarded mushroom, push-lock turn-reset, push-turn lock, push-pull and square flush/extended pushbuttons.

Key features

  • Note: catalogue states locking types are not for ISO 13850 emergency-stop use
  • Square resin ring units
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 7-8
ABS310NB Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABS310NG Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABS310NR Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABS310NY Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABS310NS Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABS310NW Operator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABS301NB Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABS301NG Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABS301NR Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABS301NY Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABS301NS Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABS301NW Operator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABS311NB Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABS311NG Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABS311NR Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABS311NY Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABS311NS Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABS311NW Operator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABS320NB Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABS320NG Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABS320NR Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABS320NY Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABS320NS Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABS320NW Operator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABS302NB Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABS302NG Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABS302NR Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABS302NY Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABS302NS Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABS302NW Operator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABS322NB Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABS322NG Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABS322NR Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABS322NY Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABS322NS Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABS322NW Operator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOS310NB Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOS310NG Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOS310NR Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOS310NY Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOS310NS Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOS310NW Operator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOS301NB Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOS301NG Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOS301NR Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOS301NY Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOS301NS Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOS301NW Operator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOS311NB Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOS311NG Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOS311NR Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOS311NY Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOS311NS Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOS311NW Operator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOS320NB Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOS320NG Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOS320NR Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOS320NY Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOS320NS Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOS320NW Operator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOS302NB Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOS302NG Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOS302NR Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOS302NY Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOS302NS Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOS302NW Operator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOS322NB Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOS322NG Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOS322NR Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOS322NY Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOS322NS Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOS322NW Operator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABGS310NB Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABGS310NG Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABGS310NR Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABGS310NY Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABGS310NS Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABGS310NW Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABGS301NB Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABGS301NG Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABGS301NR Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABGS301NY Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABGS301NS Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABGS301NW Operator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABGS311NB Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABGS311NG Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABGS311NR Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABGS311NY Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABGS311NS Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABGS311NW Operator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABGS320NB Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABGS320NG Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABGS320NR Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABGS320NY Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABGS320NS Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABGS320NW Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABGS302NB Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABGS302NG Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABGS302NR Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABGS302NY Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABGS302NS Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABGS302NW Operator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABGS322NB Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABGS322NG Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABGS322NR Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABGS322NY Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABGS322NS Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABGS322NW Operator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOGS310NB Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOGS310NG Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOGS310NR Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOGS310NY Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOGS310NS Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOGS310NW Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOGS301NB Operator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOGS301NG Operator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOGS301NR Operator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOGS301NY Operator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOGS301NS Operator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOGS301NW Operator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOGS311NB Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOGS311NG Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOGS311NR Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOGS311NY Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOGS311NS Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOGS311NW Operator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOGS320NB Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOGS320NG Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOGS320NR Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOGS320NY Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOGS320NS Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOGS320NW Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOGS302NB Operator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOGS302NG Operator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOGS302NR Operator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOGS302NY Operator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOGS302NS Operator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOGS302NW Operator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOGS322NB Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOGS322NG Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOGS322NR Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOGS322NY Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOGS322NS Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOGS322NW Operator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
AVS310NR Operator: Push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AVS310NY Operator: Push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AVS301NR Operator: Push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AVS301NY Operator: Push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AVS311NR Operator: Push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVS311NY Operator: Push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVS320NR Operator: Push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AVS320NY Operator: Push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AVS302NR Operator: Push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AVS302NY Operator: Push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AVS322NR Operator: Push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVS322NY Operator: Push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AJS310NB Operator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Black
AJS310NG Operator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Green
AJS310NR Operator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Red
AJS310NY Operator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AJS301NB Operator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Black
AJS301NG Operator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Green
AJS301NR Operator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Red
AJS301NY Operator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AJS311NB Operator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AJS311NG Operator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJS311NR Operator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJS311NY Operator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJS320NB Operator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Black
AJS320NG Operator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Green
AJS320NR Operator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Red
AJS320NY Operator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AJS302NB Operator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Black
AJS302NG Operator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Green
AJS302NR Operator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Red
AJS302NY Operator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AJS322NB Operator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AJS322NG Operator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AJS322NR Operator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AJS322NY Operator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AYS3110NB Operator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Black
AYS3110NG Operator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Green
AYS3110NR Operator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Red
AYS3110NY Operator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AYS3101NB Operator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Black
AYS3101NG Operator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Green
AYS3101NR Operator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Red
AYS3101NY Operator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AYS3111NB Operator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AYS3111NG Operator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYS3111NR Operator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYS3111NY Operator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AYS3120NB Operator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Black
AYS3120NG Operator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Green
AYS3120NR Operator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Red
AYS3120NY Operator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AYS3102NB Operator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Black
AYS3102NG Operator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Green
AYS3102NR Operator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Red
AYS3102NY Operator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Yellow
UBQS110NB Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQS110NG Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQS110NR Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQS110NY Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQS110NS Operator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
UBQS101NB Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQS101NG Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQS101NR Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQS101NY Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQS101NS Operator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
UBQS111NB Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQS111NG Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQS111NR Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQS111NY Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQS111NS Operator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UBQS120NB Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQS120NG Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQS120NR Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQS120NY Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQS120NS Operator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
UBQS102NB Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQS102NG Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQS102NR Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQS102NY Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQS102NS Operator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
UBQS122NB Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQS122NG Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQS122NR Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQS122NY Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UBQS122NS Operator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOQS110NB Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
UOQS110NG Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
UOQS110NR Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
UOQS110NY Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
UOQS110NS Operator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
UOQS101NB Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
UOQS101NG Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
UOQS101NR Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
UOQS101NY Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
UOQS101NS Operator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
UOQS111NB Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UOQS111NG Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOQS111NR Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOQS111NY Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOQS111NS Operator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOQS120NB Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
UOQS120NG Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
UOQS120NR Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
UOQS120NY Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
UOQS120NS Operator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
UOQS102NB Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
UOQS102NG Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
UOQS102NR Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
UOQS102NY Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
UOQS102NS Operator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
UOQS122NB Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UOQS122NG Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOQS122NR Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOQS122NY Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOQS122NS Operator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UBQS210NB Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQS210NG Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQS210NR Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQS210NY Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQS210NS Operator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
UBQS201NB Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQS201NG Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQS201NR Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQS201NY Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQS201NS Operator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
UBQS211NB Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQS211NG Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQS211NR Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQS211NY Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQS211NS Operator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UBQS220NB Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQS220NG Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQS220NR Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQS220NY Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQS220NS Operator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
UBQS202NB Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQS202NG Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQS202NR Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQS202NY Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQS202NS Operator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
UBQS222NB Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQS222NG Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQS222NR Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQS222NY Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UBQS222NS Operator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
PushbuttonsIDEC
290 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Mushroom, Push-Pull & Square Pushbuttons

Brand IDEC·Pushbuttons

Available part numbers (290)

ABS310NB, ABS310NG, ABS310NR, ABS310NY, ABS310NS, ABS310NW, ABS301NB, ABS301NG, ABS301NR, ABS301NY + 280 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ABS310NBOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABS310NGOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABS310NROperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABS310NYOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABS310NSOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABS310NWOperator: Mushroom | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABS301NBOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABS301NGOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABS301NROperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABS301NYOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABS301NSOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABS301NWOperator: Mushroom | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABS311NBOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABS311NGOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABS311NROperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABS311NYOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABS311NSOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABS311NWOperator: Mushroom | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABS320NBOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABS320NGOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABS320NROperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABS320NYOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABS320NSOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABS320NWOperator: Mushroom | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABS302NBOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABS302NGOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABS302NROperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABS302NYOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABS302NSOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABS302NWOperator: Mushroom | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABS322NBOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABS322NGOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABS322NROperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABS322NYOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABS322NSOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABS322NWOperator: Mushroom | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOS310NBOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOS310NGOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOS310NROperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOS310NYOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOS310NSOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOS310NWOperator: Mushroom | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOS301NBOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOS301NGOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOS301NROperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOS301NYOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOS301NSOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOS301NWOperator: Mushroom | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOS311NBOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOS311NGOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOS311NROperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOS311NYOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOS311NSOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOS311NWOperator: Mushroom | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOS320NBOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOS320NGOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOS320NROperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOS320NYOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOS320NSOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOS320NWOperator: Mushroom | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOS302NBOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOS302NGOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOS302NROperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOS302NYOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOS302NSOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOS302NWOperator: Mushroom | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOS322NBOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOS322NGOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOS322NROperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOS322NYOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOS322NSOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOS322NWOperator: Mushroom | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
ABGS310NBOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
ABGS310NGOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
ABGS310NROperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
ABGS310NYOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
ABGS310NSOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
ABGS310NWOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a (1NO) | Colour: White
ABGS301NBOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
ABGS301NGOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
ABGS301NROperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
ABGS301NYOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
ABGS301NSOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
ABGS301NWOperator: Mushroom, full guard | Action: Momentary | Contacts: 1b (1NC) | Colour: White
ABGS311NBOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
ABGS311NGOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
ABGS311NROperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
ABGS311NYOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
ABGS311NSOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
ABGS311NWOperator: Mushroom, full guard | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: White
ABGS320NBOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
ABGS320NGOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
ABGS320NROperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
ABGS320NYOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
ABGS320NSOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
ABGS320NWOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a (2NO) | Colour: White
ABGS302NBOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
ABGS302NGOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
ABGS302NROperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
ABGS302NYOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
ABGS302NSOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
ABGS302NWOperator: Mushroom, full guard | Action: Momentary | Contacts: 2b (2NC) | Colour: White
ABGS322NBOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
ABGS322NGOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
ABGS322NROperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
ABGS322NYOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
ABGS322NSOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
ABGS322NWOperator: Mushroom, full guard | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: White
AOGS310NBOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
AOGS310NGOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
AOGS310NROperator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
AOGS310NYOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
AOGS310NSOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
AOGS310NWOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a (1NO) | Colour: White
AOGS301NBOperator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
AOGS301NGOperator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
AOGS301NROperator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
AOGS301NYOperator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
AOGS301NSOperator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
AOGS301NWOperator: Mushroom, full guard | Action: Alternate | Contacts: 1b (1NC) | Colour: White
AOGS311NBOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AOGS311NGOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AOGS311NROperator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AOGS311NYOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AOGS311NSOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
AOGS311NWOperator: Mushroom, full guard | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: White
AOGS320NBOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
AOGS320NGOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
AOGS320NROperator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
AOGS320NYOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
AOGS320NSOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
AOGS320NWOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a (2NO) | Colour: White
AOGS302NBOperator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
AOGS302NGOperator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
AOGS302NROperator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
AOGS302NYOperator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
AOGS302NSOperator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
AOGS302NWOperator: Mushroom, full guard | Action: Alternate | Contacts: 2b (2NC) | Colour: White
AOGS322NBOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AOGS322NGOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AOGS322NROperator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AOGS322NYOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AOGS322NSOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
AOGS322NWOperator: Mushroom, full guard | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: White
AVS310NROperator: Push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Red
AVS310NYOperator: Push-lock turn-reset | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AVS301NROperator: Push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Red
AVS301NYOperator: Push-lock turn-reset | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AVS311NROperator: Push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AVS311NYOperator: Push-lock turn-reset | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AVS320NROperator: Push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Red
AVS320NYOperator: Push-lock turn-reset | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AVS302NROperator: Push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Red
AVS302NYOperator: Push-lock turn-reset | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AVS322NROperator: Push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AVS322NYOperator: Push-lock turn-reset | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AJS310NBOperator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Black
AJS310NGOperator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Green
AJS310NROperator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Red
AJS310NYOperator: Push-turn lock | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AJS301NBOperator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Black
AJS301NGOperator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Green
AJS301NROperator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Red
AJS301NYOperator: Push-turn lock | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AJS311NBOperator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AJS311NGOperator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AJS311NROperator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AJS311NYOperator: Push-turn lock | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AJS320NBOperator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Black
AJS320NGOperator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Green
AJS320NROperator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Red
AJS320NYOperator: Push-turn lock | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AJS302NBOperator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Black
AJS302NGOperator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Green
AJS302NROperator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Red
AJS302NYOperator: Push-turn lock | Action: - | Contacts: 2b (2NC) | Colour: Yellow
AJS322NBOperator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Black
AJS322NGOperator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Green
AJS322NROperator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Red
AJS322NYOperator: Push-turn lock | Action: - | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
AYS3110NBOperator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Black
AYS3110NGOperator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Green
AYS3110NROperator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Red
AYS3110NYOperator: Push-pull | Action: - | Contacts: 1a (1NO) | Colour: Yellow
AYS3101NBOperator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Black
AYS3101NGOperator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Green
AYS3101NROperator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Red
AYS3101NYOperator: Push-pull | Action: - | Contacts: 1b (1NC) | Colour: Yellow
AYS3111NBOperator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Black
AYS3111NGOperator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Green
AYS3111NROperator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Red
AYS3111NYOperator: Push-pull | Action: - | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
AYS3120NBOperator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Black
AYS3120NGOperator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Green
AYS3120NROperator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Red
AYS3120NYOperator: Push-pull | Action: - | Contacts: 2a (2NO) | Colour: Yellow
AYS3102NBOperator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Black
AYS3102NGOperator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Green
AYS3102NROperator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Red
AYS3102NYOperator: Push-pull | Action: - | Contacts: 2b (2NC) | Colour: Yellow
UBQS110NBOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQS110NGOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQS110NROperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQS110NYOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQS110NSOperator: Square flush | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
UBQS101NBOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQS101NGOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQS101NROperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQS101NYOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQS101NSOperator: Square flush | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
UBQS111NBOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQS111NGOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQS111NROperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQS111NYOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQS111NSOperator: Square flush | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UBQS120NBOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQS120NGOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQS120NROperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQS120NYOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQS120NSOperator: Square flush | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
UBQS102NBOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQS102NGOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQS102NROperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQS102NYOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQS102NSOperator: Square flush | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
UBQS122NBOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQS122NGOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQS122NROperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQS122NYOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UBQS122NSOperator: Square flush | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UOQS110NBOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Black
UOQS110NGOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Green
UOQS110NROperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Red
UOQS110NYOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Yellow
UOQS110NSOperator: Square flush | Action: Alternate | Contacts: 1a (1NO) | Colour: Blue
UOQS101NBOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Black
UOQS101NGOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Green
UOQS101NROperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Red
UOQS101NYOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Yellow
UOQS101NSOperator: Square flush | Action: Alternate | Contacts: 1b (1NC) | Colour: Blue
UOQS111NBOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UOQS111NGOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UOQS111NROperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UOQS111NYOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UOQS111NSOperator: Square flush | Action: Alternate | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UOQS120NBOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Black
UOQS120NGOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Green
UOQS120NROperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Red
UOQS120NYOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Yellow
UOQS120NSOperator: Square flush | Action: Alternate | Contacts: 2a (2NO) | Colour: Blue
UOQS102NBOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Black
UOQS102NGOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Green
UOQS102NROperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Red
UOQS102NYOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Yellow
UOQS102NSOperator: Square flush | Action: Alternate | Contacts: 2b (2NC) | Colour: Blue
UOQS122NBOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UOQS122NGOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UOQS122NROperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UOQS122NYOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UOQS122NSOperator: Square flush | Action: Alternate | Contacts: 2a-2b (2NO+2NC) | Colour: Blue
UBQS210NBOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Black
UBQS210NGOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Green
UBQS210NROperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Red
UBQS210NYOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Yellow
UBQS210NSOperator: Square extended | Action: Momentary | Contacts: 1a (1NO) | Colour: Blue
UBQS201NBOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Black
UBQS201NGOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Green
UBQS201NROperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Red
UBQS201NYOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Yellow
UBQS201NSOperator: Square extended | Action: Momentary | Contacts: 1b (1NC) | Colour: Blue
UBQS211NBOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Black
UBQS211NGOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Green
UBQS211NROperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Red
UBQS211NYOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Yellow
UBQS211NSOperator: Square extended | Action: Momentary | Contacts: 1a-1b (1NO+1NC) | Colour: Blue
UBQS220NBOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Black
UBQS220NGOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Green
UBQS220NROperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Red
UBQS220NYOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Yellow
UBQS220NSOperator: Square extended | Action: Momentary | Contacts: 2a (2NO) | Colour: Blue
UBQS202NBOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Black
UBQS202NGOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Green
UBQS202NROperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Red
UBQS202NYOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Yellow
UBQS202NSOperator: Square extended | Action: Momentary | Contacts: 2b (2NC) | Colour: Blue
UBQS222NBOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Black
UBQS222NGOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Green
UBQS222NROperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Red
UBQS222NYOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Yellow
UBQS222NSOperator: Square extended | Action: Momentary | Contacts: 2a-2b (2NO+2NC) | Colour: Blue

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
