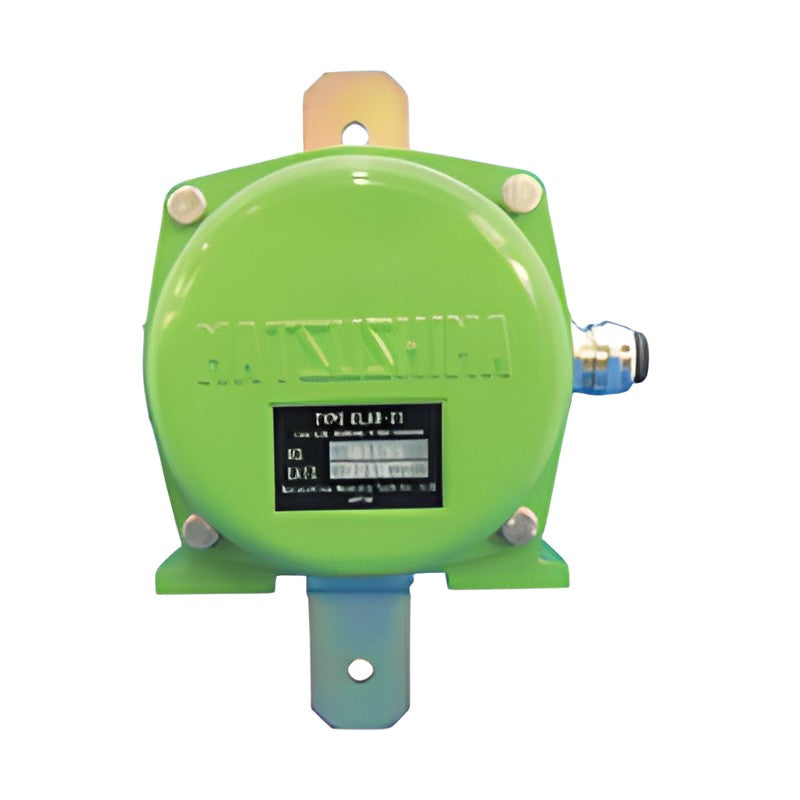

Matsushima ELAW/ELAM/ELADP Pull Cord Switches (Belt Conveyor)

Large heavy-duty pull cord switches installed along the side of a belt conveyor so the conveyor can be stopped from any position by pulling the cord. Available in weather-proof, flameproof and dust-ignition-proof versions with self-reset or manual-reset action.

Key features

Large-size switch with high cord tension rating and durability
Two-way operation: workable from both directions
Two contacts provided for stop and alarm
Manual-reset types lock at 30 deg and reset by lever
Types with operation-indicating plate available
Weather-proof IP67, flameproof d2G4 and dust-ignition-proof SDP13 enclosures

Specifications

Contacts	2c
Contact capacity	15A-125, 250 VAC; 1/2A-125 VDC
Operating torque	49 +/-9.8 N (5 +/-1 kgf)
Operating angle	20 deg (61P types lock at 30 deg)
Ambient temperature	-20 to +60 C
Coating color	Munsell 7.5GY 6/10; plate Munsell 5R 4/13
Source	Matsushima Pull Cord Switch catalogue CELAW-115JE, p. 2-4

ELAW-21		Enclosure: Weather proof IP67 \| Reset: Self-reset \| Indicating plate: No \| Lead outlet: Cable dia. 6-12 mm \| Mass: 1.7 kg
ELAW-31		Enclosure: Weather proof IP67 \| Reset: Manual reset \| Indicating plate: No \| Lead outlet: Cable dia. 6-12 mm \| Mass: 1.8 kg
ELAW-61P		Enclosure: Weather proof IP67 \| Reset: Manual reset \| Indicating plate: Yes \| Lead outlet: Cable dia. 6-12 mm \| Mass: 2 kg
ELAM-21W		Enclosure: Flameproof d2G4 \| Reset: Self-reset \| Indicating plate: No \| Lead outlet: G3/4 \| Mass: 12 kg
ELAM-31W		Enclosure: Flameproof d2G4 \| Reset: Manual reset \| Indicating plate: No \| Lead outlet: G3/4 \| Mass: 12 kg
ELAM-61PW		Enclosure: Flameproof d2G4 \| Reset: Manual reset \| Indicating plate: Yes \| Lead outlet: G3/4 \| Mass: 12 kg
ELADP-22W		Enclosure: Dust-ignition-proof SDP13 \| Reset: Self-reset \| Indicating plate: No \| Lead outlet: G3/4 \| Mass: 4.5 kg
ELADP-32W		Enclosure: Dust-ignition-proof SDP13 \| Reset: Manual reset \| Indicating plate: No \| Lead outlet: G3/4 \| Mass: 4.5 kg
ELADP-62PW		Enclosure: Dust-ignition-proof SDP13 \| Reset: Manual reset \| Indicating plate: Yes \| Lead outlet: G3/4 \| Mass: 4.5 kg

Pull-Cord SwitchesMatsushima

9 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Matsushima ELAW/ELAM/ELADP Pull Cord Switches (Belt Conveyor)

Brand Matsushima·Pull-Cord Switches

Available part numbers (9)

ELAW-21, ELAW-31, ELAW-61P, ELAM-21W, ELAM-31W, ELAM-61PW, ELADP-22W, ELADP-32W, ELADP-62PW

How to order

Send the Matsushima part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
