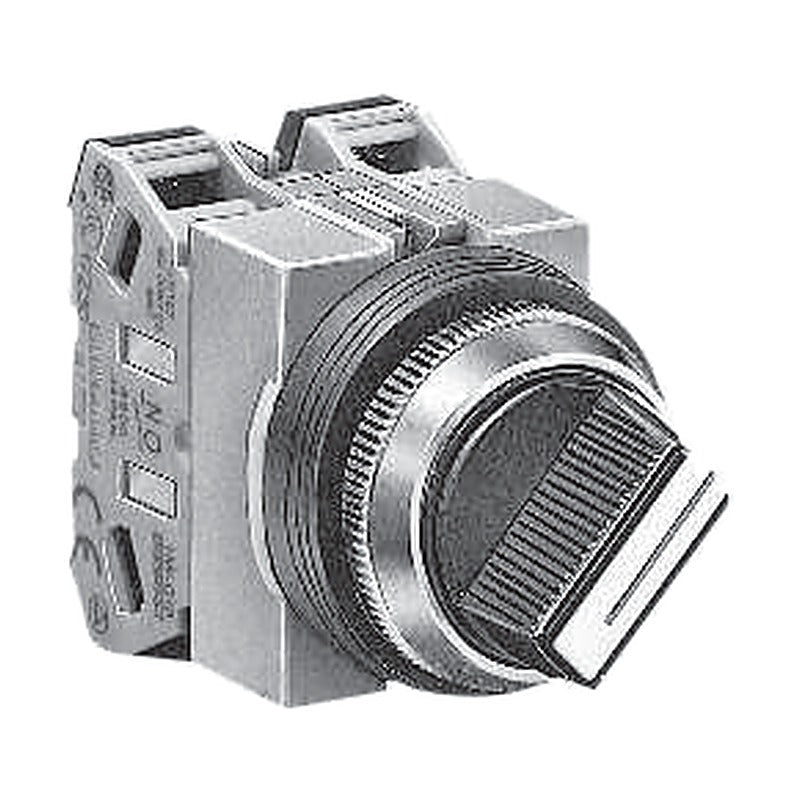

IDEC TWS Series 25 mm Selector Switches (Arrow Handle)

IDEC TWS Series 25 mm Selector Switches (Arrow Handle)

TWS Series φ25 selector switches with arrow handle, 2- to 5-position, maintained or spring return.

Key features

  • 90° 2-position, 45° 3-/4-position and 30° 5-position
  • Black handle, chrome-plated ring
  • φ25 mm heavy-duty series with finger-protected SS terminals; no terminal cover needed
  • HW-G contact blocks rated 600 V / 10 A (AC-15 A600, DC-13 P600)
  • Up to 2 tiers (4 blocks) of contacts per operator
  • UL/CSA listed and EN compliant (some models excluded)

Specifications

Operator Arrow handle
Series IDEC TWS Series (φ25)
Panel thickness 0.8 to 6 mm
Contact block HW-G, 600 V / 10 A (AC-15 A600, DC-13 P600)
Operating temperature -25 to +50 °C (no freezing)
Insulation resistance 100 MΩ min. (500 V DC megger)
Protection IP65 (A-prefix), IP40 (U-prefix square units)
Source IDEC TWS Series φ25 Control Units catalogue, p. 18
ASS210N Positions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASS211N Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS220N Positions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASS222N Positions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS22RN-118 Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS320N Positions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASS302N Positions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASS322N Positions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS340N Positions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASS304N Positions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASS33SN-243 Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASS44SN-407 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS44SN-411 Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS43SN-461 Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASS2110N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASS2111N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS2120N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS2122N Positions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS212RN-118 Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS3120N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS3102N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASS3122N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS3140N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASS3104N Positions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASS54SN-501 Positions: 30° 5-position | Operation: Maintained | Contacts: 4S
ASS2210N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASS2211N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS2220N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS2222N Positions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS222RN-169 Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS3220N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS3202N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASS3222N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS3240N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASS3204N Positions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASS3320N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASS3302N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASS3322N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASS3340N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASS3304N Positions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
Selector SwitchesIDEC
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

IDEC TWS Series 25 mm Selector Switches (Arrow Handle)

Brand IDEC·Selector Switches

Available part numbers (40)

ASS210N, ASS211N, ASS220N, ASS222N, ASS22RN-118, ASS320N, ASS302N, ASS322N, ASS340N, ASS304N + 30 more — see full table ↓

How to order

Send the IDEC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASS210NPositions: 90° 2-position | Operation: Maintained | Contacts: 1a (1NO)
ASS211NPositions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS220NPositions: 90° 2-position | Operation: Maintained | Contacts: 2a (2NO)
ASS222NPositions: 90° 2-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS22RN-118Positions: 90° 2-position | Operation: Maintained | Contacts: 1a-1b (1NO+1NC)
ASS320NPositions: 45° 3-position | Operation: Maintained | Contacts: 2a (2NO)
ASS302NPositions: 45° 3-position | Operation: Maintained | Contacts: 2b (2NC)
ASS322NPositions: 45° 3-position | Operation: Maintained | Contacts: 2a-2b (2NO+2NC)
ASS340NPositions: 45° 3-position | Operation: Maintained | Contacts: 4a (4NO)
ASS304NPositions: 45° 3-position | Operation: Maintained | Contacts: 4b (4NC)
ASS33SN-243Positions: 45° 3-position | Operation: Maintained | Contacts: 3S
ASS44SN-407Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS44SN-411Positions: 45° 4-position | Operation: Maintained | Contacts: 4S
ASS43SN-461Positions: 45° 4-position | Operation: Maintained | Contacts: 3S
ASS2110NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 1a (1NO)
ASS2111NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS2120NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS2122NPositions: 90° 2-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS212RN-118Positions: 90° 2-position | Operation: Spring return from right | Contacts: 1a-1b (1NO+1NC)
ASS3120NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 2a (2NO)
ASS3102NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 2b (2NC)
ASS3122NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 2a-2b (2NO+2NC)
ASS3140NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 4a (4NO)
ASS3104NPositions: 45° 3-position | Operation: Spring return from right | Contacts: 4b (4NC)
ASS54SN-501Positions: 30° 5-position | Operation: Maintained | Contacts: 4S
ASS2210NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 1a (1NO)
ASS2211NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS2220NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS2222NPositions: 90° 2-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS222RN-169Positions: 90° 2-position | Operation: Spring return from left | Contacts: 1a-1b (1NO+1NC)
ASS3220NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 2a (2NO)
ASS3202NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 2b (2NC)
ASS3222NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 2a-2b (2NO+2NC)
ASS3240NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 4a (4NO)
ASS3204NPositions: 45° 3-position | Operation: Spring return from left | Contacts: 4b (4NC)
ASS3320NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a (2NO)
ASS3302NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 2b (2NC)
ASS3322NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 2a-2b (2NO+2NC)
ASS3340NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 4a (4NO)
ASS3304NPositions: 45° 3-position | Operation: Spring return both sides | Contacts: 4b (4NC)
