INA SMDE Minimum Quantity Lubrication Metering Units

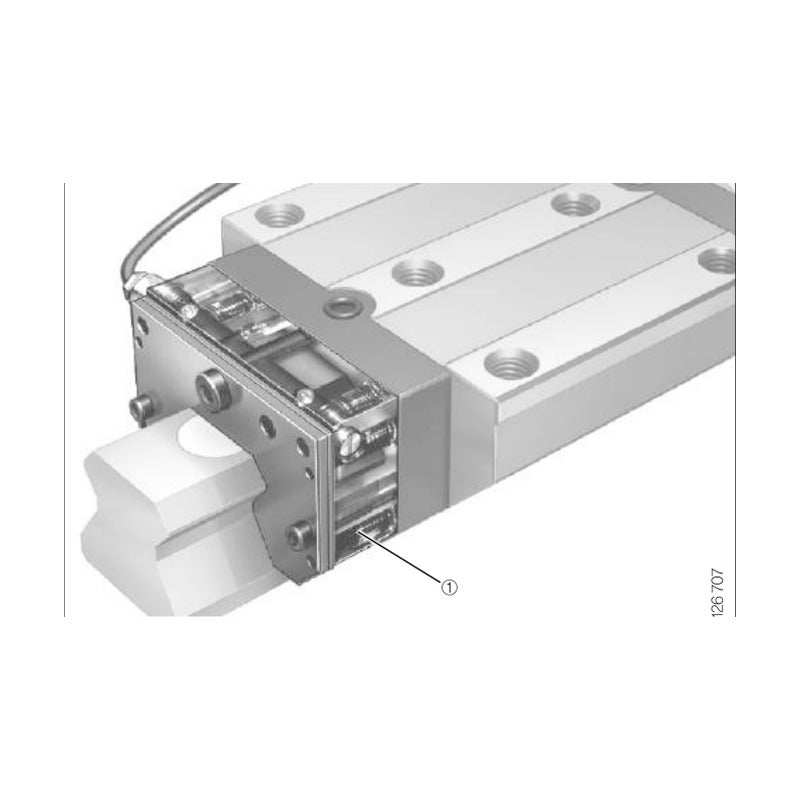

INA SMDE minimum quantity lubrication metering units for RUE..D roller monorail carriages, relubricating from the side (S), above (O) or for high carriages (HO).

Key features

Meters minimum lubricant quantities to the carriage
Side (S) or top (O/HO) relubrication connection
For RUE 35 to 65 D roller monorail carriages
Reduces lubricant consumption

Specifications

Brand	INA
Product type	Lubricators
Series	SMDE
Designations listed	12
Units	mm
Source	INA Monorail Guidance Systems catalogue, p. 130-131

SMDE 35 D S		B: 66.9 mm \| H: 41.2 mm \| For: RUE 35 D
SMDE 35 D O		B: 66.9 mm \| H: 41.2 mm \| For: RUE 35 D
SMDE 35 D HO		B: 66.9 mm \| H: 48.2 mm \| For: RUE 35 D H
SMDE 45 D S		B: 81.7 mm \| H: 51.3 mm \| For: RUE 45 D
SMDE 45 D O		B: 81.7 mm \| H: 51.3 mm \| For: RUE 45 D
SMDE 45 D HO		B: 81.7 mm \| H: 61.3 mm \| For: RUE 45 D H
SMDE 55 D S		B: 95 mm \| H: 59 mm \| For: RUE 55 D
SMDE 55 D O		B: 95 mm \| H: 59 mm \| For: RUE 55 D
SMDE 55 D HO		B: 95 mm \| H: 69 mm \| For: RUE 55 D H
SMDE 65 D S		B: 121 mm \| H: 78.5 mm \| For: RUE 65 D L
SMDE 65 D O		B: 121 mm \| H: 78.5 mm \| For: RUE 65 D L
SMDE 65 D HO		B: 121 mm \| H: 88.5 mm \| For: RUE 65 D HL

LubricatorsINA

12 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

INA SMDE Minimum Quantity Lubrication Metering Units

Brand INA·Lubricators

Available part numbers (12)

SMDE 35 D S, SMDE 35 D O, SMDE 35 D HO, SMDE 45 D S, SMDE 45 D O, SMDE 45 D HO, SMDE 55 D S, SMDE 55 D O, SMDE 55 D HO, SMDE 65 D S + 2 more — see full table ↓
