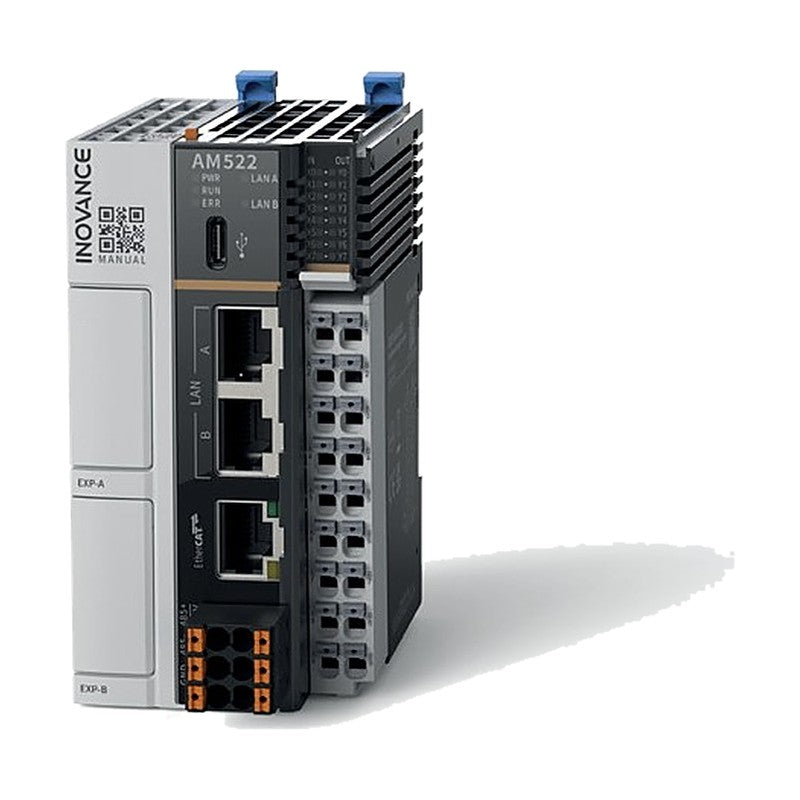

Inovance AM320 / AM521 / AM522 Compact CODESYS Controller

Inovance AM320 / AM521 / AM522 Compact CODESYS Controller

AM320 and AM521/AM522 are compact, high-performance controllers based on IEC 61131-3 CODESYS, programmed with the InoProShop PC tool.

Key features

  • A quad-core processor reduces CPU load by about 66% versus the previous generation
  • AM521 and AM522 add a real-time EtherCAT master for 8 or 16 synchronized axes and up to 127 slaves, with PLCopen motion, CAM and interpolation
  • All models provide 4 pulse axes, 4 encoder inputs, dual Ethernet with Modbus TCP, EtherNet/IP and OPC UA, plus RS485 and optional CANopen
  • Two GE20 card slots and up to 16 GL20 modules allow tool-free, compact expansion

Specifications

Encoder inputs 4 ch (8 high-speed inputs, 200 kHz)
Serial 1x RS485 (+2 via GE20 cards)
Expansion 16 GL20 modules, 2 GE20 card slots
Program / data 10 MB / 20 MB (512 kB non-volatile)
Instruction time 0.143 µs bit / 0.416 µs word
Power supply 24 V DC ±10%, 1 A
Dimensions 53 x 100 x 80 mm
Inovance AM320 / AM521 / AM522 Compact CODESYS Controller reference 2
AM320-0808TP Motion axes: 4 pulse axes | EtherCAT: Not supported | Ethernet: 2 ports, 2 independent IP addresses | Built-in I/O: 8 DI (sink/source) / 8 DO (source type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM320-0808TN Motion axes: 4 pulse axes | EtherCAT: Not supported | Ethernet: 2 ports, 2 independent IP addresses | Built-in I/O: 8 DI (sink/source) / 8 DO (sink type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM521-0808TP Motion axes: 8 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (source type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM522-0808TP Motion axes: 16 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (source type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM521-0808TN Motion axes: 8 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (sink type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM522-0808TN Motion axes: 16 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (sink type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
PLCsInovance
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance AM320 / AM521 / AM522 Compact CODESYS Controller

Brand Inovance·PLCs

Available part numbers (6)

AM320-0808TP, AM320-0808TN, AM521-0808TP, AM522-0808TP, AM521-0808TN, AM522-0808TN

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Inovance AM320 / AM521 / AM522 Compact CODESYS Controller reference 2
0 selected
RFQ List (0)
Product codeSpec
AM320-0808TPMotion axes: 4 pulse axes | EtherCAT: Not supported | Ethernet: 2 ports, 2 independent IP addresses | Built-in I/O: 8 DI (sink/source) / 8 DO (source type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM320-0808TNMotion axes: 4 pulse axes | EtherCAT: Not supported | Ethernet: 2 ports, 2 independent IP addresses | Built-in I/O: 8 DI (sink/source) / 8 DO (sink type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM521-0808TPMotion axes: 8 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (source type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM522-0808TPMotion axes: 16 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (source type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM521-0808TNMotion axes: 8 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (sink type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
AM522-0808TNMotion axes: 16 EtherCAT + 4 pulse axes | EtherCAT: Up to 127 slaves, 1 ms cycle | Ethernet: 2 ports, built-in switch | Built-in I/O: 8 DI (sink/source) / 8 DO (sink type) | Encoder inputs: 4 ch (8 high-speed inputs, 200 kHz) | Serial: 1x RS485 (+2 via GE20 cards) | Expansion: 16 GL20 modules, 2 GE20 card slots | Program / data: 10 MB / 20 MB (512 kB non-volatile) | Instruction time: 0.143 µs bit / 0.416 µs word | Power supply: 24 V DC ±10%, 1 A | Dimensions: 53 x 100 x 80 mm
