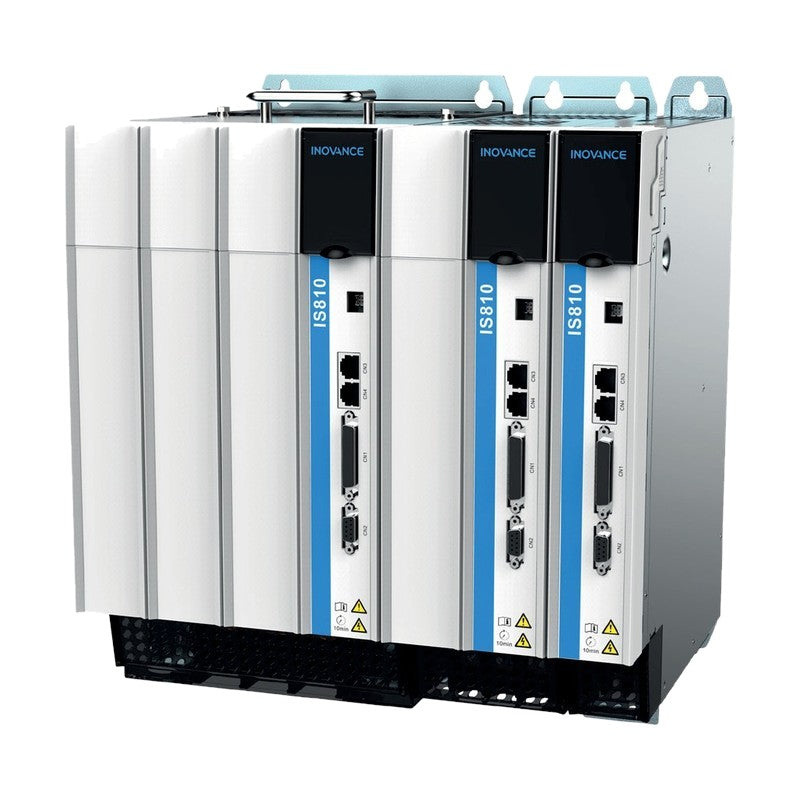

Inovance IS810N Dual-Axis Servo Drive Module (400 V, 0.85-18.5 kW)

Inovance IS810N Dual-Axis Servo Drive Module (400 V, 0.85-18.5 kW)

IS810N is a modular multi-axis servo drive platform; these dual-axis modules drive two motors from one 50 or 100 mm wide unit for demanding high-precision machines, supplied from a common DC bus by an MD810 rectifier.

Key features

  • A 4.5 kHz current loop bandwidth and 31.25 µs speed/position loop cycle give fast settling and high throughput, with 23-bit absolute encoder feedback
  • Full EtherCAT CiA 402 support covers PP, PV, PT, HM, CSP, CSV and CST modes, and a dedicated Ethernet port with Modbus TCP allows remote service
  • Dual STO inputs (SIL3), 6 DI/2 DO, brake output, conformal coating and smart tuning with automatic notch and damping filters are standard

Specifications

Axes 2 (dual)
Input voltage 537-679 V DC (350-800 V DC)
Output voltage 0-480 V AC
Fieldbus EtherCAT (CiA 402)
Safety STO SIL3
Inovance IS810N Dual-Axis Servo Drive Module (400 V, 0.85-18.5 kW) reference 2
IS810N50M4TD3R5INT Axes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 0.85 kW | Rated input DC current: 10 A | Rated output AC current: 3.5 A | Peak output current (3 s): 8.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD5R4INT Axes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 1.3 kW | Rated input DC current: 14 A | Rated output AC current: 5.4 A | Peak output current (3 s): 14 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD8R4INT Axes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 1.8 kW | Rated input DC current: 24 A | Rated output AC current: 8.4 A | Peak output current (3 s): 20 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD012INT Axes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 2.9 kW | Rated input DC current: 34 A | Rated output AC current: 12 A | Peak output current (3 s): 28 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD017INT Axes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 4.4 kW | Rated input DC current: 44 A | Rated output AC current: 16.5 A | Peak output current (3 s): 42 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD021INT Axes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 5.5 kW | Rated input DC current: 54 A | Rated output AC current: 20.8 A | Peak output current (3 s): 55 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD026INT Axes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 7.5 kW | Rated input DC current: 62 A | Rated output AC current: 25.7 A | Peak output current (3 s): 65 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD032INT Axes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 15 kW | Rated input DC current: 80 A | Rated output AC current: 32 A | Peak output current (3 s): 80 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD037INT Axes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 18.5 kW | Rated input DC current: 92 A | Rated output AC current: 37 A | Peak output current (3 s): 92.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
Servo DrivesInovance
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance IS810N Dual-Axis Servo Drive Module (400 V, 0.85-18.5 kW)

Brand Inovance·Servo Drives

Available part numbers (9)

IS810N50M4TD3R5INT, IS810N50M4TD5R4INT, IS810N50M4TD8R4INT, IS810N50M4TD012INT, IS810N50M4TD017INT, IS810N50M4TD021INT, IS810N50M4TD026INT, IS810N50M4TD032INT, IS810N50M4TD037INT

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Inovance IS810N Dual-Axis Servo Drive Module (400 V, 0.85-18.5 kW) reference 2
0 selected
RFQ List (0)
Product codeSpec
IS810N50M4TD3R5INTAxes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 0.85 kW | Rated input DC current: 10 A | Rated output AC current: 3.5 A | Peak output current (3 s): 8.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD5R4INTAxes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 1.3 kW | Rated input DC current: 14 A | Rated output AC current: 5.4 A | Peak output current (3 s): 14 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD8R4INTAxes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 1.8 kW | Rated input DC current: 24 A | Rated output AC current: 8.4 A | Peak output current (3 s): 20 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD012INTAxes: 2 (dual) | Size: 1 (50 mm wide) | Rated power: 2.9 kW | Rated input DC current: 34 A | Rated output AC current: 12 A | Peak output current (3 s): 28 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TD017INTAxes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 4.4 kW | Rated input DC current: 44 A | Rated output AC current: 16.5 A | Peak output current (3 s): 42 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD021INTAxes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 5.5 kW | Rated input DC current: 54 A | Rated output AC current: 20.8 A | Peak output current (3 s): 55 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD026INTAxes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 7.5 kW | Rated input DC current: 62 A | Rated output AC current: 25.7 A | Peak output current (3 s): 65 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD032INTAxes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 15 kW | Rated input DC current: 80 A | Rated output AC current: 32 A | Peak output current (3 s): 80 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TD037INTAxes: 2 (dual) | Size: 2 (100 mm wide) | Rated power: 18.5 kW | Rated input DC current: 92 A | Rated output AC current: 37 A | Peak output current (3 s): 92.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
