Inovance IS810N Single-Axis Servo Drive Module (400 V, 0.85-75 kW)

Inovance IS810N Single-Axis Servo Drive Module (400 V, 0.85-75 kW)

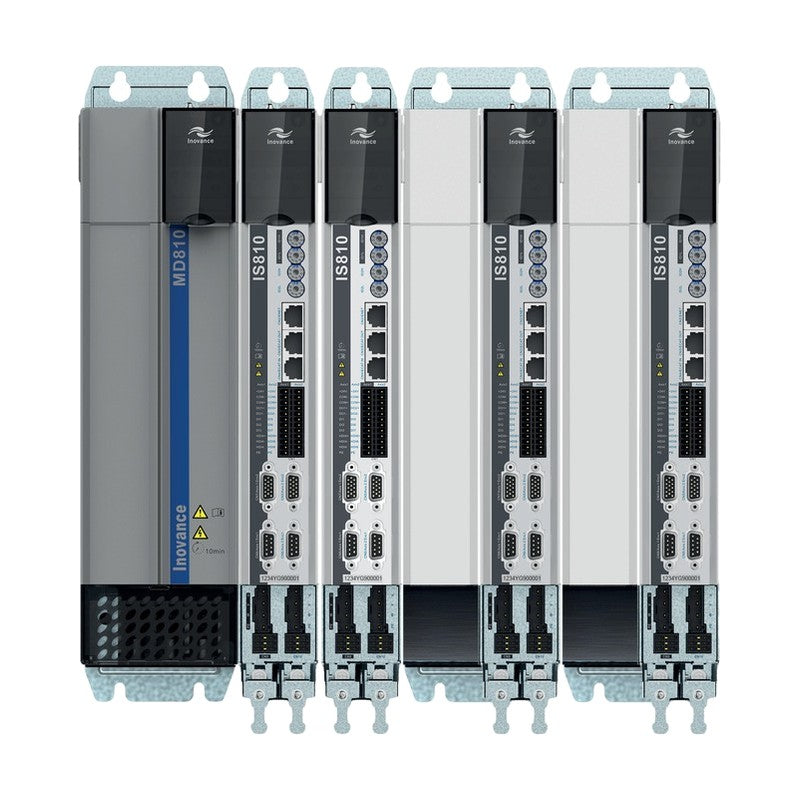

IS810N is a modular multi-axis servo drive platform; these single-axis modules cover 0.85 to 75 kW in 50, 100 and 200 mm widths for demanding high-precision machines, supplied from a common DC bus by an MD810 rectifier.

Key features

  • A 4.5 kHz current loop bandwidth and 31.25 µs speed/position loop cycle give fast settling and high throughput, with 23-bit absolute encoder feedback
  • Full EtherCAT CiA 402 support covers PP, PV, PT, HM, CSP, CSV and CST modes, and a dedicated Ethernet port with Modbus TCP allows remote service
  • Dual STO inputs (SIL3), 6 DI/2 DO, brake output, conformal coating and smart tuning with automatic notch and damping filters are standard

Specifications

Axes 1 (single)
Input voltage 537-679 V DC (350-800 V DC)
Output voltage 0-480 V AC
Fieldbus EtherCAT (CiA 402)
Safety STO SIL3
Inovance IS810N Single-Axis Servo Drive Module (400 V, 0.85-75 kW) reference 2
IS810N50M4TS3R5INT Axes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 0.85 kW | Rated input DC current: 5 A | Rated output AC current: 3.5 A | Peak output current (3 s): 8.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS5R4INT Axes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 1.3 kW | Rated input DC current: 7 A | Rated output AC current: 5.4 A | Peak output current (3 s): 14 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS8R4INT Axes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 1.8 kW | Rated input DC current: 12 A | Rated output AC current: 8.4 A | Peak output current (3 s): 20 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS012INT Axes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 2.9 kW | Rated input DC current: 17 A | Rated output AC current: 12 A | Peak output current (3 s): 28 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS017INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 4.4 kW | Rated input DC current: 22 A | Rated output AC current: 16.5 A | Peak output current (3 s): 42 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS021INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 5.5 kW | Rated input DC current: 27 A | Rated output AC current: 20.8 A | Peak output current (3 s): 55 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS026INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 7.5 kW | Rated input DC current: 31 A | Rated output AC current: 25.7 A | Peak output current (3 s): 65 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS032INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 15 kW | Rated input DC current: 40 A | Rated output AC current: 32 A | Peak output current (3 s): 80 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS037INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 18.5 kW | Rated input DC current: 46 A | Rated output AC current: 37 A | Peak output current (3 s): 92.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS045INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 22 kW | Rated input DC current: 55 A | Rated output AC current: 45 A | Peak output current (3 s): 112.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS060INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 30 kW | Rated input DC current: 73 A | Rated output AC current: 60 A | Peak output current (3 s): 150 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS075INT Axes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 37 kW | Rated input DC current: 90 A | Rated output AC current: 75 A | Peak output current (3 s): 187.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS090INT Axes: 1 (single) | Size: 3 (200 mm wide) | Rated power: 45 kW | Rated input DC current: 105 A | Rated output AC current: 91 A | Peak output current (3 s): 227.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 200 x 305 mm
IS810N50M4TS112INT Axes: 1 (single) | Size: 3 (200 mm wide) | Rated power: 55 kW | Rated input DC current: 129 A | Rated output AC current: 112 A | Peak output current (3 s): 280 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 200 x 305 mm
IS810N50M4TS152INT Axes: 1 (single) | Size: 3 (200 mm wide) | Rated power: 75 kW | Rated input DC current: 172 A | Rated output AC current: 152 A | Peak output current (3 s): 380 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 200 x 305 mm
Servo DrivesInovance
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance IS810N Single-Axis Servo Drive Module (400 V, 0.85-75 kW)

Brand Inovance·Servo Drives

Available part numbers (15)

IS810N50M4TS3R5INT, IS810N50M4TS5R4INT, IS810N50M4TS8R4INT, IS810N50M4TS012INT, IS810N50M4TS017INT, IS810N50M4TS021INT, IS810N50M4TS026INT, IS810N50M4TS032INT, IS810N50M4TS037INT, IS810N50M4TS045INT + 5 more — see full table ↓

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
Inovance IS810N Single-Axis Servo Drive Module (400 V, 0.85-75 kW) reference 2
0 selected
RFQ List (0)
Product codeSpec
IS810N50M4TS3R5INTAxes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 0.85 kW | Rated input DC current: 5 A | Rated output AC current: 3.5 A | Peak output current (3 s): 8.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS5R4INTAxes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 1.3 kW | Rated input DC current: 7 A | Rated output AC current: 5.4 A | Peak output current (3 s): 14 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS8R4INTAxes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 1.8 kW | Rated input DC current: 12 A | Rated output AC current: 8.4 A | Peak output current (3 s): 20 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS012INTAxes: 1 (single) | Size: 1 (50 mm wide) | Rated power: 2.9 kW | Rated input DC current: 17 A | Rated output AC current: 12 A | Peak output current (3 s): 28 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 50 x 305 mm
IS810N50M4TS017INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 4.4 kW | Rated input DC current: 22 A | Rated output AC current: 16.5 A | Peak output current (3 s): 42 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS021INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 5.5 kW | Rated input DC current: 27 A | Rated output AC current: 20.8 A | Peak output current (3 s): 55 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS026INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 7.5 kW | Rated input DC current: 31 A | Rated output AC current: 25.7 A | Peak output current (3 s): 65 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS032INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 15 kW | Rated input DC current: 40 A | Rated output AC current: 32 A | Peak output current (3 s): 80 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS037INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 18.5 kW | Rated input DC current: 46 A | Rated output AC current: 37 A | Peak output current (3 s): 92.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS045INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 22 kW | Rated input DC current: 55 A | Rated output AC current: 45 A | Peak output current (3 s): 112.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS060INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 30 kW | Rated input DC current: 73 A | Rated output AC current: 60 A | Peak output current (3 s): 150 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS075INTAxes: 1 (single) | Size: 2 (100 mm wide) | Rated power: 37 kW | Rated input DC current: 90 A | Rated output AC current: 75 A | Peak output current (3 s): 187.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 100 x 305 mm
IS810N50M4TS090INTAxes: 1 (single) | Size: 3 (200 mm wide) | Rated power: 45 kW | Rated input DC current: 105 A | Rated output AC current: 91 A | Peak output current (3 s): 227.5 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 200 x 305 mm
IS810N50M4TS112INTAxes: 1 (single) | Size: 3 (200 mm wide) | Rated power: 55 kW | Rated input DC current: 129 A | Rated output AC current: 112 A | Peak output current (3 s): 280 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 200 x 305 mm
IS810N50M4TS152INTAxes: 1 (single) | Size: 3 (200 mm wide) | Rated power: 75 kW | Rated input DC current: 172 A | Rated output AC current: 152 A | Peak output current (3 s): 380 A | Input voltage: 537-679 V DC (350-800 V DC) | Output voltage: 0-480 V AC | Fieldbus: EtherCAT (CiA 402) | Safety: STO SIL3 | Dimensions H x W x D: 400 x 200 x 305 mm
