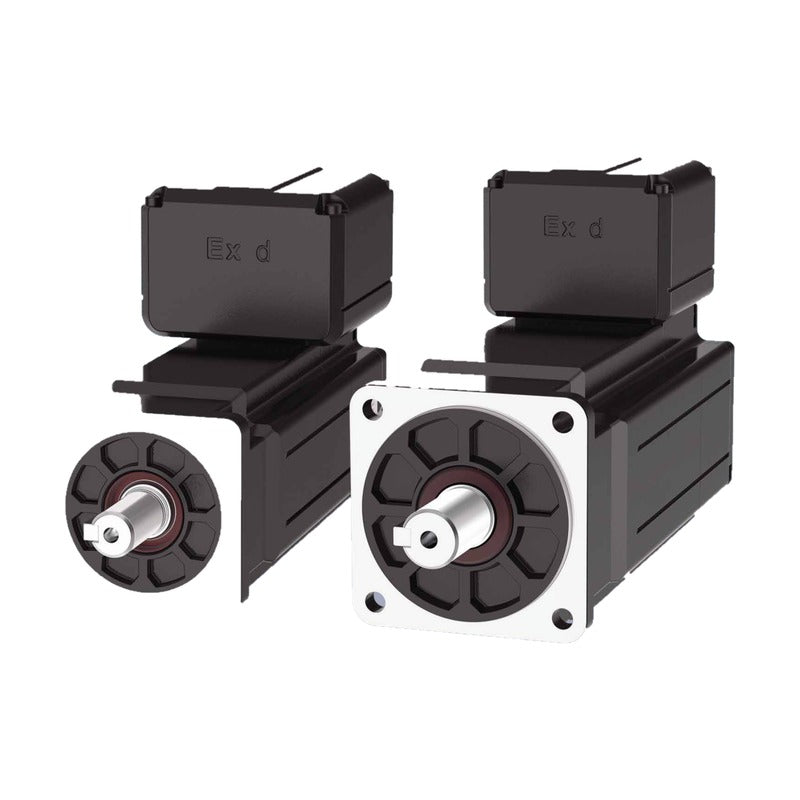

Inovance MS1-R EX Explosion-Protected Servo Motors (ATEX, 0.2-7.5 kW)

Inovance MS1-R EX Explosion-Protected Servo Motors (ATEX, 0.2-7.5 kW)

ATEX/IECEx and CCC certified flameproof MS1-R servo motors for explosive gas and dust atmospheres.

Key features

  • Gas: II 2 G Ex db IIC T5/T4 Gb; dust: II 2 D Ex tb IIIC T100 C/T135 C Db
  • PTC thermal protection, IP66/IP67, terminal box rotatable 360 deg
  • 23-bit absolute (A3) or battery-less (D3) multi-turn encoder
  • MS1H4 (60/80 mm) and MS1H3 (130/180 mm) sizes, with or without brake
  • Recommended drives: SV680-GINT or IS810N (PTC module needed with other drives)

Specifications

Series MS1-R EX explosion-protected motor
Certification ATEX, IECEx, CCC
Ex dust (T5 / T4) II 2 D Ex tb IIIC T100 C / T135 C Db
Shaft 3: solid, keyed, threaded hole
Thermal protection PTC
Protection IP66/IP67
Source Inovance Servo System Overview 19120627 A00, p. 19-21
MS1H4-20B30CB-A331R-INT-EX d T5 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-20B30CB-A334R-INT-EX d T5 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-20B30CB-D331R-INT-EX d T5 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-20B30CB-D334R-INT-EX d T5 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-40B30CB-A331R-INT-EX d T5 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-40B30CB-A334R-INT-EX d T5 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-40B30CB-D331R-INT-EX d T5 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-40B30CB-D334R-INT-EX d T5 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-55B30CB-A331R-INT-EX d T5 Rated power: 0.55 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-55B30CB-D331R-INT-EX d T5 Rated power: 0.55 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-75B30CB-A331R-INT-EX d T5 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-75B30CB-A334R-INT-EX d T5 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-75B30CB-D331R-INT-EX d T5 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-75B30CB-D334R-INT-EX d T5 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-90B30CB-A331R-INT-EX d T5 Rated power: 0.9 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-90B30CB-A334R-INT-EX d T5 Rated power: 0.9 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-90B30CB-D331R-INT-EX d T5 Rated power: 0.9 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-90B30CB-D334R-INT-EX d T5 Rated power: 0.9 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-85B15CD-A331R-INT-EX d T5 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-85B15CD-A334R-INT-EX d T5 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-85B15CD-D331R-INT-EX d T5 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-85B15CD-D334R-INT-EX d T5 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-13C15CD-A331R-INT-EX d T5 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-13C15CD-A334R-INT-EX d T5 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-13C15CD-D331R-INT-EX d T5 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-13C15CD-D334R-INT-EX d T5 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-16C15CD-A331R-INT-EX d T5 Rated power: 1.6 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-16C15CD-A334R-INT-EX d T5 Rated power: 1.6 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-16C15CD-D331R-INT-EX d T5 Rated power: 1.6 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-16C15CD-D334R-INT-EX d T5 Rated power: 1.6 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-29C15CD-A331R-INT-EX d T5 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-29C15CD-A334R-INT-EX d T5 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-29C15CD-D331R-INT-EX d T5 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-29C15CD-D334R-INT-EX d T5 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-37C15CD-A331R-INT-EX d T5 Rated power: 3.7 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-37C15CD-A334R-INT-EX d T5 Rated power: 3.7 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-37C15CD-D331R-INT-EX d T5 Rated power: 3.7 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-37C15CD-D334R-INT-EX d T5 Rated power: 3.7 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-45C15CD-A331R-INT-EX d T5 Rated power: 4.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-45C15CD-A334R-INT-EX d T5 Rated power: 4.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-45C15CD-D331R-INT-EX d T5 Rated power: 4.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H3-45C15CD-D334R-INT-EX d T5 Rated power: 4.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T5 Gb
MS1H4-20B30CB-A331R-INT-EX d T4 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-20B30CB-A334R-INT-EX d T4 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-20B30CB-D331R-INT-EX d T4 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-20B30CB-D334R-INT-EX d T4 Rated power: 0.2 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-40B30CB-A331R-INT-EX d T4 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-40B30CB-A334R-INT-EX d T4 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-40B30CB-D331R-INT-EX d T4 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-40B30CB-D334R-INT-EX d T4 Rated power: 0.4 kW | Flange: 60 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-55B30CB-A331R-INT-EX d T4 Rated power: 0.55 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-55B30CB-D331R-INT-EX d T4 Rated power: 0.55 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-75B30CB-A331R-INT-EX d T4 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-75B30CB-A334R-INT-EX d T4 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-75B30CB-D331R-INT-EX d T4 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-75B30CB-D334R-INT-EX d T4 Rated power: 0.75 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-10C30CB-A331R-INT-EX d T4 Rated power: 1.0 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-10C30CB-A334R-INT-EX d T4 Rated power: 1.0 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-10C30CB-D331R-INT-EX d T4 Rated power: 1.0 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H4-10C30CB-D334R-INT-EX d T4 Rated power: 1.0 kW | Flange: 80 mm | Voltage: 220 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-85B15CD-A331R-INT-EX d T4 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-85B15CD-A334R-INT-EX d T4 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-85B15CD-D331R-INT-EX d T4 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-85B15CD-D334R-INT-EX d T4 Rated power: 0.85 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-13C15CD-A331R-INT-EX d T4 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-13C15CD-A334R-INT-EX d T4 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-13C15CD-D331R-INT-EX d T4 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-13C15CD-D334R-INT-EX d T4 Rated power: 1.3 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-18C15CD-A331R-INT-EX d T4 Rated power: 1.8 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-18C15CD-A334R-INT-EX d T4 Rated power: 1.8 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-18C15CD-D331R-INT-EX d T4 Rated power: 1.8 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-18C15CD-D334R-INT-EX d T4 Rated power: 1.8 kW | Flange: 130 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-29C15CD-A331R-INT-EX d T4 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-29C15CD-A334R-INT-EX d T4 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-29C15CD-D331R-INT-EX d T4 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-29C15CD-D334R-INT-EX d T4 Rated power: 2.9 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-44C15CD-A331R-INT-EX d T4 Rated power: 4.4 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-44C15CD-A334R-INT-EX d T4 Rated power: 4.4 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-44C15CD-D331R-INT-EX d T4 Rated power: 4.4 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-44C15CD-D334R-INT-EX d T4 Rated power: 4.4 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-55C15CD-A331R-INT-EX d T4 Rated power: 5.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-55C15CD-A334R-INT-EX d T4 Rated power: 5.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-55C15CD-D331R-INT-EX d T4 Rated power: 5.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-55C15CD-D334R-INT-EX d T4 Rated power: 5.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-75C15CD-A331R-INT-EX d T4 Rated power: 7.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-75C15CD-A334R-INT-EX d T4 Rated power: 7.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit multi-turn abs. | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-75C15CD-D331R-INT-EX d T4 Rated power: 7.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Oil seal | Ex class: II 2 G Ex db IIC T4 Gb
MS1H3-75C15CD-D334R-INT-EX d T4 Rated power: 7.5 kW | Flange: 180 mm | Voltage: 380 V | Encoder: 23-bit battery-less multi-turn | Brake oil seal: Brake + oil seal | Ex class: II 2 G Ex db IIC T4 Gb
