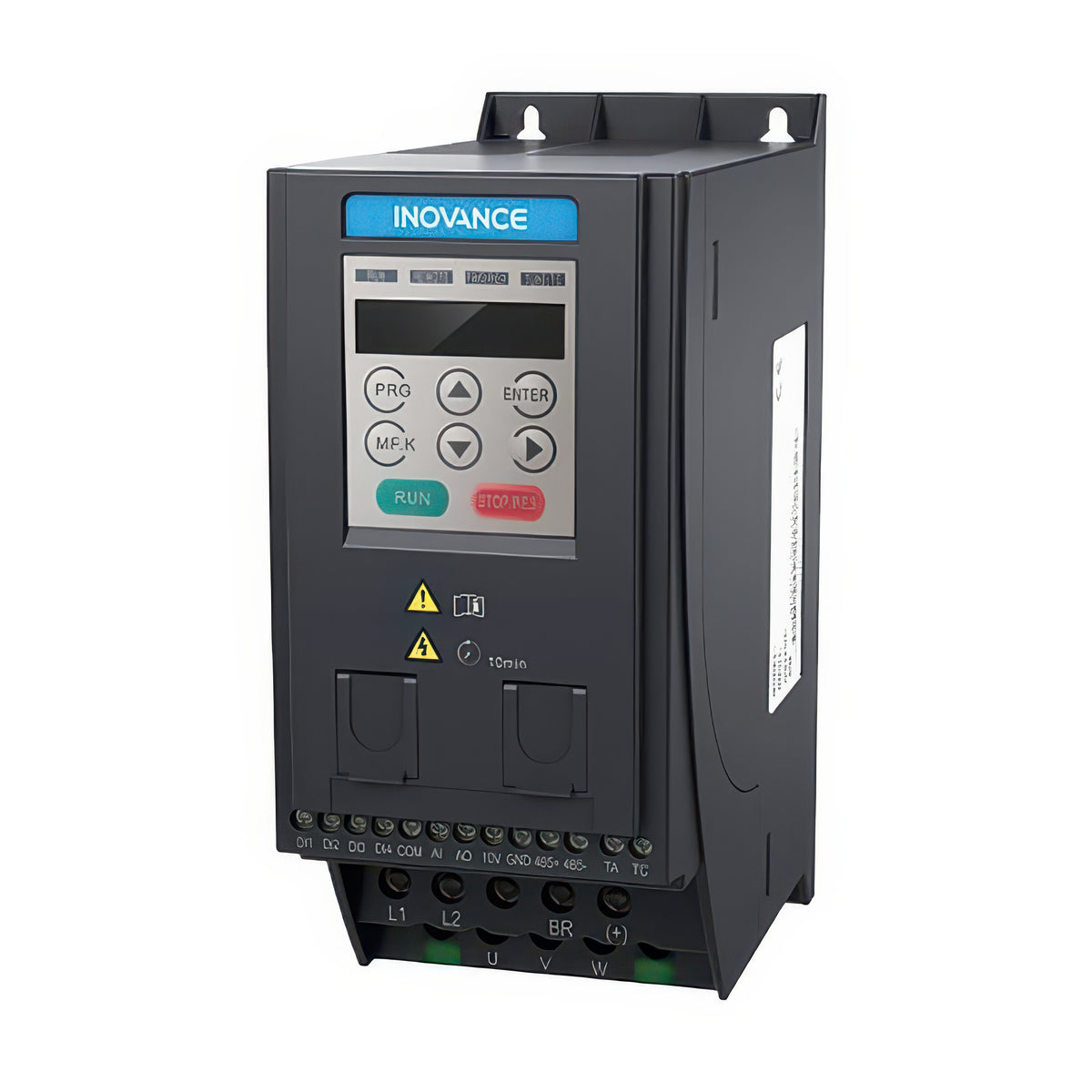

Inovance MD200 Series Compact AC Drive (Single-Phase 220 V / 3-Phase 380 V, 0.4-3.7 kW)

Inovance MD200 Series Compact AC Drive (Single-Phase 220 V / 3-Phase 380 V, 0.4-3.7 kW)

The MD200 is a compact general-purpose AC drive for single-phase 200-240 VAC (0.4-2.2 kW) and three-phase 380-480 VAC (0.4-3.7 kW) supplies.

Key features

  • It offers V/F control and sensorless vector control (three-phase models) with up to 500 Hz output and 150% overload for 60 seconds
  • A braking unit is built in on all ratings, and Modbus-RTU is built in with CANlink support
  • Functions include 8-step multi-speed, simple PLC and pulse-train input up to 20 kHz
  • Units can be installed side by side, wall mounted or on DIN rail, with selectable voltage/current analog input and optional remote keypads
  • PCB coating improves dust resistance, and a dust protection cover is available

Specifications

Overload 150% for 60 s
Max output frequency 500 Hz
Braking unit Built-in
Dimensions (HxWxD) 180 x 75 x 145 mm
MD200S0.4B-INT Input: Single-phase 200-240 VAC | Applicable motor: 0.4 kW (0.5 HP) | Rated output current: 2.6 A | Rated input current: 6.5 A | Rated capacity: 1.7 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 80 W, >=200 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200S0.75B-INT Input: Single-phase 200-240 VAC | Applicable motor: 0.75 kW (1 HP) | Rated output current: 4.6 A | Rated input current: 11.0 A | Rated capacity: 3.0 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 80 W, >=150 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200S1.5B-INT Input: Single-phase 200-240 VAC | Applicable motor: 1.5 kW (2 HP) | Rated output current: 8 A | Rated input current: 18.0 A | Rated capacity: 4.8 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 100 W, >=100 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200S2.2B-INT Input: Single-phase 200-240 VAC | Applicable motor: 2.2 kW (3 HP) | Rated output current: 11 A | Rated input current: 27.0 A | Rated capacity: 7.1 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 100 W, >=70 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T0.4B-INT Input: 3-phase 380-480 VAC | Applicable motor: 0.4 kW (0.5 HP) | Rated output current: 1.8 A | Rated input current: 2.6 A | Rated capacity: 1 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 150 W, >=300 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T0.75B-INT Input: 3-phase 380-480 VAC | Applicable motor: 0.75 kW (1 HP) | Rated output current: 3.4 A | Rated input current: 4.5 A | Rated capacity: 1.5 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 150 W, >=300 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T1.5B-INT Input: 3-phase 380-480 VAC | Applicable motor: 1.5 kW (2 HP) | Rated output current: 4.8 A | Rated input current: 5.5 A | Rated capacity: 3.0 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 250 W, >=220 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T2.2B-INT Input: 3-phase 380-480 VAC | Applicable motor: 2.2 kW (3 HP) | Rated output current: 5.5 A | Rated input current: 6.5 A | Rated capacity: 4.0 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 300 W, >=200 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T3.7B-INT Input: 3-phase 380-480 VAC | Applicable motor: 3.7 kW (5 HP) | Rated output current: 9.5 A | Rated input current: 11 A | Rated capacity: 5.9 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 400 W, >=130 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
AC DrivesInovance
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance MD200 Series Compact AC Drive (Single-Phase 220 V / 3-Phase 380 V, 0.4-3.7 kW)

Brand Inovance·AC Drives

Available part numbers (9)

MD200S0.4B-INT, MD200S0.75B-INT, MD200S1.5B-INT, MD200S2.2B-INT, MD200T0.4B-INT, MD200T0.75B-INT, MD200T1.5B-INT, MD200T2.2B-INT, MD200T3.7B-INT

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MD200S0.4B-INTInput: Single-phase 200-240 VAC | Applicable motor: 0.4 kW (0.5 HP) | Rated output current: 2.6 A | Rated input current: 6.5 A | Rated capacity: 1.7 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 80 W, >=200 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200S0.75B-INTInput: Single-phase 200-240 VAC | Applicable motor: 0.75 kW (1 HP) | Rated output current: 4.6 A | Rated input current: 11.0 A | Rated capacity: 3.0 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 80 W, >=150 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200S1.5B-INTInput: Single-phase 200-240 VAC | Applicable motor: 1.5 kW (2 HP) | Rated output current: 8 A | Rated input current: 18.0 A | Rated capacity: 4.8 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 100 W, >=100 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200S2.2B-INTInput: Single-phase 200-240 VAC | Applicable motor: 2.2 kW (3 HP) | Rated output current: 11 A | Rated input current: 27.0 A | Rated capacity: 7.1 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 100 W, >=70 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T0.4B-INTInput: 3-phase 380-480 VAC | Applicable motor: 0.4 kW (0.5 HP) | Rated output current: 1.8 A | Rated input current: 2.6 A | Rated capacity: 1 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 150 W, >=300 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T0.75B-INTInput: 3-phase 380-480 VAC | Applicable motor: 0.75 kW (1 HP) | Rated output current: 3.4 A | Rated input current: 4.5 A | Rated capacity: 1.5 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 150 W, >=300 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T1.5B-INTInput: 3-phase 380-480 VAC | Applicable motor: 1.5 kW (2 HP) | Rated output current: 4.8 A | Rated input current: 5.5 A | Rated capacity: 3.0 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 250 W, >=220 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T2.2B-INTInput: 3-phase 380-480 VAC | Applicable motor: 2.2 kW (3 HP) | Rated output current: 5.5 A | Rated input current: 6.5 A | Rated capacity: 4.0 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 300 W, >=200 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
MD200T3.7B-INTInput: 3-phase 380-480 VAC | Applicable motor: 3.7 kW (5 HP) | Rated output current: 9.5 A | Rated input current: 11 A | Rated capacity: 5.9 kVA | Overload: 150% for 60 s | Max output frequency: 500 Hz | Braking unit: Built-in | Recommended braking resistor: 400 W, >=130 ohm | Dimensions (HxWxD): 180 x 75 x 145 mm
