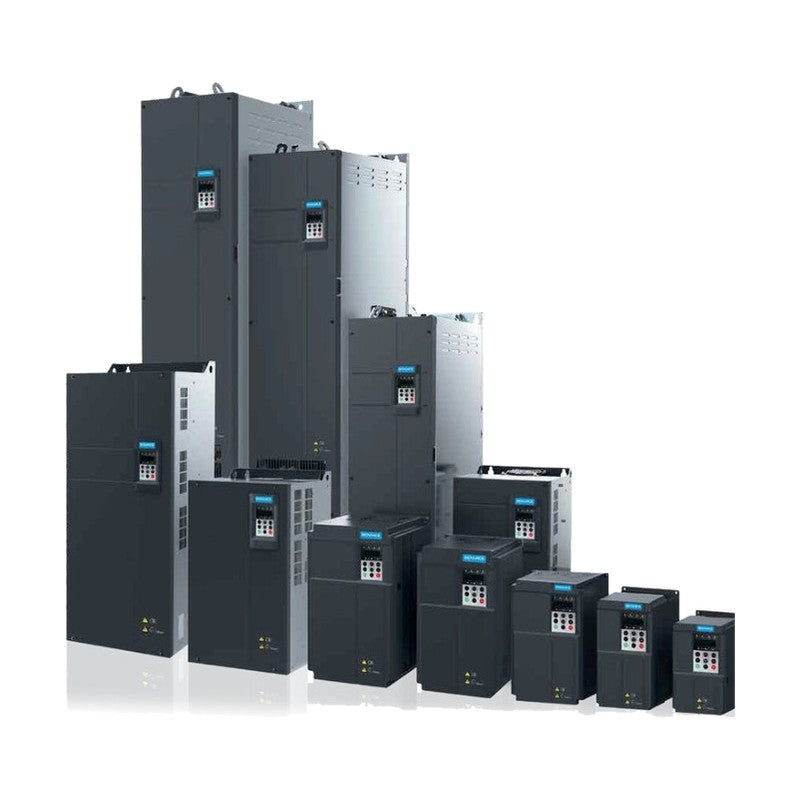

Inovance MD290 Series AC Drive for Fans and Pumps, 400 V Class (0.4-500 kW)

Inovance MD290 Series AC Drive for Fans and Pumps, 400 V Class (0.4-500 kW)

The MD290 is a general-purpose open-loop AC drive designed for fan and pump applications.

Key features

  • Each model carries a dual rating for heavy-duty G type (150% overload for 60 s) and light-duty P type (110% for 60 s) use, with a maximum output frequency of 500 Hz
  • Features include rotating speed tracking, intelligent energy saving, PID control, multi-step voltage and speed settings and an independent air duct designed to withstand polluted environments
  • Communication options include Modbus-RTU, PROFIBUS-DP, CANopen, CANlink and PROFINET via extension cards
  • The 400 V class covers 0.4 kW to 500 kW, with -L versions of frames T10-T12 adding a built-in AC output reactor for long motor cables

Specifications

Voltage Three-phase 380-480 Vac
MD290T0.4G/0.7PB-INT Voltage: Three-phase 380-480 Vac | Frame: T1 | Applicable motor G/P: 0.4/0.7 kW | Rated input current G/P: 1.8/2.5 A | Power capacity: 2.3 kVA | Output current G/P: 1.5/2.1 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.08 kW / 1450 Ω | Enclosure: IP20
MD290T0.7G/1.1PB-INT Voltage: Three-phase 380-480 Vac | Frame: T1 | Applicable motor G/P: 0.7/1.1 kW | Rated input current G/P: 2.4/3.7 A | Power capacity: 3.4 kVA | Output current G/P: 2.1/3.1 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.14 kW / 800 Ω | Enclosure: IP20
MD290T1.1G/1.5PB-INT Voltage: Three-phase 380-480 Vac | Frame: T1 | Applicable motor G/P: 1.1/1.5 kW | Rated input current G/P: 3.7/4.6 A | Power capacity: 4.2 kVA | Output current G/P: 3.1/3.8 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.22 kW / 500 Ω | Enclosure: IP20
MD290T1.5G/2.2PB-INT Voltage: Three-phase 380-480 Vac | Frame: T1 | Applicable motor G/P: 1.5/2.2 kW | Rated input current G/P: 4.6/6.4 A | Power capacity: 5.9 kVA | Output current G/P: 3.8/5.1 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.3 kW / 380 Ω | Enclosure: IP20
MD290T2.2G/3.0PB-INT Voltage: Three-phase 380-480 Vac | Frame: T1 | Applicable motor G/P: 2.2/3.0 kW | Rated input current G/P: 6.3/9.1 A | Power capacity: 8.3 kVA | Output current G/P: 5.1/7.2 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.44 kW / 260 Ω | Enclosure: IP20
MD290T3.0G/3.7PB-INT Voltage: Three-phase 380-480 Vac | Frame: T1 | Applicable motor G/P: 3.0/3.7 kW | Rated input current G/P: 9.0/11.3 A | Power capacity: 10.4 kVA | Output current G/P: 7.2/9.0 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.6 kW / 190 Ω | Enclosure: IP20
MD290T3.7G/5.5PB-INT Voltage: Three-phase 380-480 Vac | Frame: T2 | Applicable motor G/P: 3.7/5.5 kW | Rated input current G/P: 11.4/15.9 A | Power capacity: 15.5 kVA | Output current G/P: 9.0/13 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 0.74 kW / 150 Ω | Enclosure: IP20
MD290T5.5G/7.5PB-INT Voltage: Three-phase 380-480 Vac | Frame: T2 | Applicable motor G/P: 5.5/7.5 kW | Rated input current G/P: 16.7/22.4 A | Power capacity: 20.5 kVA | Output current G/P: 13/17 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 1.1 kW / 100 Ω | Enclosure: IP20
MD290T7.5G/11PB-INT Voltage: Three-phase 380-480 Vac | Frame: T3 | Applicable motor G/P: 7.5/11 kW | Rated input current G/P: 21.9/32.9 A | Power capacity: 30.2 kVA | Output current G/P: 17/25 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 1.5 kW / 75 Ω | Enclosure: IP20
MD290T11G/15PB-INT Voltage: Three-phase 380-480 Vac | Frame: T3 | Applicable motor G/P: 11/15 kW | Rated input current G/P: 32.2/39.7 A | Power capacity: 38.2 kVA | Output current G/P: 25/32 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 2.2 kW / 50 Ω | Enclosure: IP20
MD290T15G/18.5PB-INT Voltage: Three-phase 380-480 Vac | Frame: T4 | Applicable motor G/P: 15/18.5 kW | Rated input current G/P: 41.3/44 A | Power capacity: 44.4 kVA | Output current G/P: 32/37 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in | Recommended braking resistor: 3 kW / 38 Ω | Enclosure: IP20
MD290T18.5G/22P-INT Voltage: Three-phase 380-480 Vac | Frame: T5 | Applicable motor G/P: 18.5/22 kW | Rated input current G/P: 49.5/59 A | Power capacity: 54 kVA | Output current G/P: 37/45 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 4 kW / 32 Ω | Enclosure: IP20 | Printed model: MD290T18.5G/22P(B)-INT
MD290T22G/30P-INT Voltage: Three-phase 380-480 Vac | Frame: T5 | Applicable motor G/P: 22/30 kW | Rated input current G/P: 59/65.8 A | Power capacity: 60 kVA | Output current G/P: 45/60 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 4.5 kW / 27 Ω | Enclosure: IP20 | Printed model: MD290T22G/30P(B)-INT
MD290T30G/37P-INT Voltage: Three-phase 380-480 Vac | Frame: T6 | Applicable motor G/P: 30/37 kW | Rated input current G/P: 57/71 A | Power capacity: 65 kVA | Output current G/P: 60/75 A | Carrier frequency: 6 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 6 kW / 20 Ω | Enclosure: IP20 | Printed model: MD290T30G/37P(B)-INT
MD290T37G/45P-INT Voltage: Three-phase 380-480 Vac | Frame: T6 | Applicable motor G/P: 37/45 kW | Rated input current G/P: 69/86 A | Power capacity: 79 kVA | Output current G/P: 75/91 A | Carrier frequency: 5 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 7 kW / 16 Ω | Enclosure: IP20 | Printed model: MD290T37G/45P(B)-INT
MD290T45G/55P-INT Voltage: Three-phase 380-480 Vac | Frame: T7 | Applicable motor G/P: 45/55 kW | Rated input current G/P: 89/111 A | Power capacity: 102 kVA | Output current G/P: 91/112 A | Carrier frequency: 5 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 9 kW / 13 Ω | Enclosure: IP20 | Printed model: MD290T45G/55P(B)-INT
MD290T55G/75P-INT Voltage: Three-phase 380-480 Vac | Frame: T7 | Applicable motor G/P: 55/75 kW | Rated input current G/P: 106/143 A | Power capacity: 131 kVA | Output current G/P: 112/150 A | Carrier frequency: 4 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 11 kW / 10.5 Ω | Enclosure: IP20 | Printed model: MD290T55G/75P(B)-INT
MD290T75G/90P-INT Voltage: Three-phase 380-480 Vac | Frame: T8 | Applicable motor G/P: 75/90 kW | Rated input current G/P: 139/167 A | Power capacity: 153 kVA | Output current G/P: 150/176 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: Built-in (B models) | Recommended braking resistor: 15 kW / 7.7 Ω | Enclosure: IP20 | Printed model: MD290T75G/90P(B)-INT
MD290T90G/110P-INT Voltage: Three-phase 380-480 Vac | Frame: T8 | Applicable motor G/P: 90/110 kW | Rated input current G/P: 164/198 A | Power capacity: 181 kVA | Output current G/P: 176/210 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-60-5T x2 | Recommended braking resistor: 18 kW / 6.4 Ω | Enclosure: IP20
MD290T110G/132P-INT Voltage: Three-phase 380-480 Vac | Frame: T8 | Applicable motor G/P: 110/132 kW | Rated input current G/P: 196/239 A | Power capacity: 219 kVA | Output current G/P: 210/253 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-60-5T x2 | Recommended braking resistor: 22 kW / 5.3 Ω | Enclosure: IP20
MD290T132G/160P-INT Voltage: Three-phase 380-480 Vac | Frame: T9 | Applicable motor G/P: 132/160 kW | Rated input current G/P: 240/295 A | Power capacity: 270 kVA | Output current G/P: 253/304 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-90-5T x2 | Recommended braking resistor: 26 kW / 4.4 Ω | Enclosure: IP20
MD290T160G/200P-INT Voltage: Three-phase 380-480 Vac | Frame: T9 | Applicable motor G/P: 160/200 kW | Rated input current G/P: 287/359 A | Power capacity: 328 kVA | Output current G/P: 304/377 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-90-5T x2 | Recommended braking resistor: 32 kW / 3.6 Ω | Enclosure: IP20
MD290T200G-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 200 kW | Rated input current: 365 A | Power capacity: 334 kVA | Output current: 377 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 38 kW / 2.9 Ω | Enclosure: IP00
MD290T220P-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 220 kW | Rated input current: 410 A | Power capacity: 375 kVA | Output current: 426 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 38 kW / 2.9 Ω | Enclosure: IP00
MD290T220G-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 220 kW | Rated input current: 410 A | Power capacity: 375 kVA | Output current: 426 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 42 kW / 2.7 Ω | Enclosure: IP00
MD290T250P-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 250 kW | Rated input current: 456 A | Power capacity: 417 kVA | Output current: 465 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 42 kW / 2.7 Ω | Enclosure: IP00
MD290T250G-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 250 kW | Rated input current: 441 A | Power capacity: 404 kVA | Output current: 465 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 48 kW / 2.3 Ω | Enclosure: IP00
MD290T280P-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 280 kW | Rated input current: 507 A | Power capacity: 464 kVA | Output current: 520 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 48 kW / 2.3 Ω | Enclosure: IP00
MD290T280G-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 280 kW | Rated input current: 495 A | Power capacity: 453 kVA | Output current: 520 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 54 kW / 2.1 Ω | Enclosure: IP00
MD290T315P-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 315 kW | Rated input current: 559 A | Power capacity: 511 kVA | Output current: 585 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 54 kW / 2.1 Ω | Enclosure: IP00
MD290T315G-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 315 kW | Rated input current: 565 A | Power capacity: 517 kVA | Output current: 585 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 60 kW / 1.9 Ω | Enclosure: IP00
MD290T355P-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 355 kW | Rated input current: 624 A | Power capacity: 571 kVA | Output current: 650 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 60 kW / 1.9 Ω | Enclosure: IP00
MD290T355G-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 355 kW | Rated input current: 617 A | Power capacity: 565 kVA | Output current: 650 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 69 kW / 1.7 Ω | Enclosure: IP00
MD290T400P-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 400 kW | Rated input current: 708 A | Power capacity: 647 kVA | Output current: 725 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 69 kW / 1.7 Ω | Enclosure: IP00
MD290T400G-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 400 kW | Rated input current: 687 A | Power capacity: 629 kVA | Output current: 725 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 78 kW / 1.5 Ω | Enclosure: IP00
MD290T450P-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 450 kW | Rated input current: 782 A | Power capacity: 715 kVA | Output current: 820 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 78 kW / 1.5 Ω | Enclosure: IP00
MD290T450G-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 450 kW | Rated input current: 782 A | Power capacity: 716 kVA | Output current: 820 A | Carrier frequency: 3 kHz | Overload: 130% for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 87 kW / 1.3 Ω | Enclosure: IP00
MD290T500P-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 500 kW | Rated input current: 840 A | Power capacity: 768 kVA | Output current: 880 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 87 kW / 1.3 Ω | Enclosure: IP00
MD290T200G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 200 kW | Rated input current: 365 A | Power capacity: 334 kVA | Output current: 377 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 38 kW / 2.9 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T220P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 220 kW | Rated input current: 410 A | Power capacity: 375 kVA | Output current: 426 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 38 kW / 2.9 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T220G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 220 kW | Rated input current: 410 A | Power capacity: 375 kVA | Output current: 426 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 42 kW / 2.7 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T250P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T10 | Applicable motor: 250 kW | Rated input current: 456 A | Power capacity: 417 kVA | Output current: 465 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 42 kW / 2.7 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T250G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 250 kW | Rated input current: 441 A | Power capacity: 404 kVA | Output current: 465 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 48 kW / 2.3 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T280P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 280 kW | Rated input current: 507 A | Power capacity: 464 kVA | Output current: 520 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 48 kW / 2.3 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T280G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 280 kW | Rated input current: 495 A | Power capacity: 453 kVA | Output current: 520 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 54 kW / 2.1 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T315P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T11 | Applicable motor: 315 kW | Rated input current: 559 A | Power capacity: 511 kVA | Output current: 585 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x2 | Recommended braking resistor: 54 kW / 2.1 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T315G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 315 kW | Rated input current: 565 A | Power capacity: 517 kVA | Output current: 585 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 60 kW / 1.9 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T355P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 355 kW | Rated input current: 624 A | Power capacity: 571 kVA | Output current: 650 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 60 kW / 1.9 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T355G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 355 kW | Rated input current: 617 A | Power capacity: 565 kVA | Output current: 650 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 69 kW / 1.7 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T400P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 400 kW | Rated input current: 708 A | Power capacity: 647 kVA | Output current: 725 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 69 kW / 1.7 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T400G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 400 kW | Rated input current: 687 A | Power capacity: 629 kVA | Output current: 725 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 78 kW / 1.5 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T450P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 450 kW | Rated input current: 782 A | Power capacity: 715 kVA | Output current: 820 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 78 kW / 1.5 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T450G-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 450 kW | Rated input current: 782 A | Power capacity: 716 kVA | Output current: 820 A | Carrier frequency: 3 kHz | Overload: 130% for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 87 kW / 1.3 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
MD290T500P-L-INT Voltage: Three-phase 380-480 Vac | Frame: T12 | Applicable motor: 500 kW | Rated input current: 840 A | Power capacity: 768 kVA | Output current: 880 A | Carrier frequency: 3 kHz | Overload: 150% (G) / 110% (P) for 60 s | Braking unit: MDBUN-200-5T x3 | Recommended braking resistor: 87 kW / 1.3 Ω | Enclosure: IP00 | Output reactor: Built-in AC output reactor (1% voltage drop) for long motor cables
