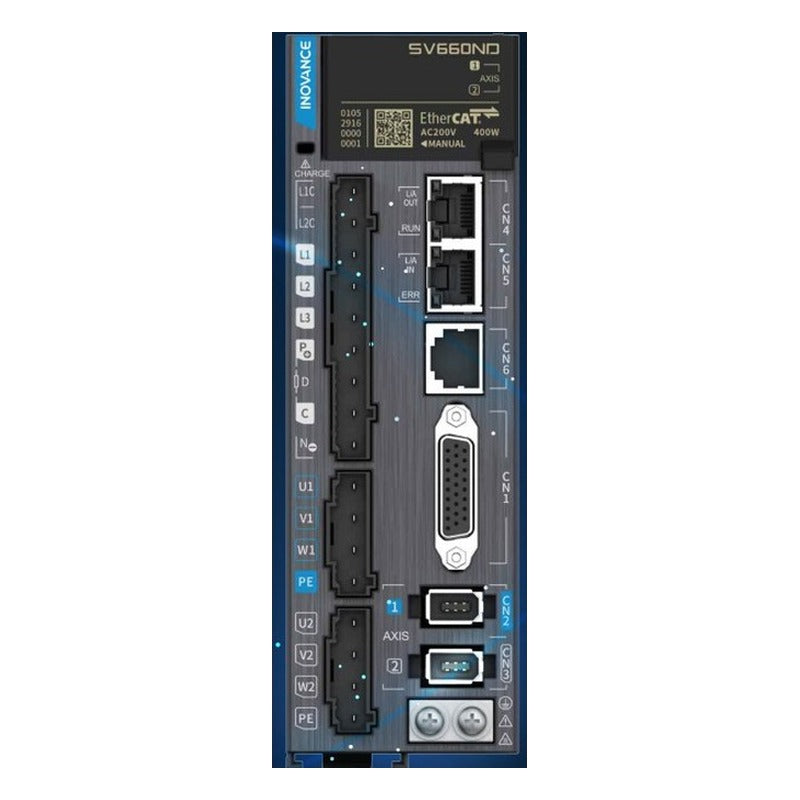

Inovance SV660ND Series Dual-Axis EtherCAT Servo Drive (2 x 0.4-0.75 kW)

Inovance SV660ND Series Dual-Axis EtherCAT Servo Drive (2 x 0.4-0.75 kW)

The SV660ND is a two-axis (2-in-1) AC servo drive with EtherCAT bus communication for 0.4 kW and 0.75 kW motors per axis.

Key features

  • It supports STO (SIL3) functional safety, one-click commissioning and adaptive notch filtering
  • Zero-distance side-by-side installation without derating saves cabinet width compared with single-axis drives
  • Speed loop bandwidth reaches 3 kHz with a 1:6000 speed range
  • It pairs with MS1 series motors with 23-bit multi-turn absolute encoders for quiet, accurate positioning

Specifications

Input single/three-phase 200-240 V AC
Control power single-phase 200-240 V AC
Communication EtherCAT
Encoder support 23-bit multi-turn absolute
Axes 2
SV660NDS2R8 Size: A | Drive power: 0.4 kW x 2 | Continuous output current (Arms): 2.8 | Max. output current (Arms): 10.1 | Dimensions W x H x D (mm): 55 x 170 x 183 | Braking resistor: No internal braking resistor | Input: single/three-phase 200-240 V AC | Control power: single-phase 200-240 V AC | Communication: EtherCAT | Encoder support: 23-bit multi-turn absolute | Axes: 2
SV660NDS5R5 Size: B | Drive power: 0.75 kW x 2 | Continuous output current (Arms): 5.5 | Max. output current (Arms): 16.9 | Dimensions W x H x D (mm): 75 x 170 x 183 | Braking resistor: Internal 25 ohm / 80 W braking resistor | Input: single/three-phase 200-240 V AC | Control power: single-phase 200-240 V AC | Communication: EtherCAT | Encoder support: 23-bit multi-turn absolute | Axes: 2
Servo DrivesInovance
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Inovance SV660ND Series Dual-Axis EtherCAT Servo Drive (2 x 0.4-0.75 kW)

Brand Inovance·Servo Drives

Available part numbers (2)

SV660NDS2R8, SV660NDS5R5

How to order

Send the Inovance part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SV660NDS2R8Size: A | Drive power: 0.4 kW x 2 | Continuous output current (Arms): 2.8 | Max. output current (Arms): 10.1 | Dimensions W x H x D (mm): 55 x 170 x 183 | Braking resistor: No internal braking resistor | Input: single/three-phase 200-240 V AC | Control power: single-phase 200-240 V AC | Communication: EtherCAT | Encoder support: 23-bit multi-turn absolute | Axes: 2
SV660NDS5R5Size: B | Drive power: 0.75 kW x 2 | Continuous output current (Arms): 5.5 | Max. output current (Arms): 16.9 | Dimensions W x H x D (mm): 75 x 170 x 183 | Braking resistor: Internal 25 ohm / 80 W braking resistor | Input: single/three-phase 200-240 V AC | Control power: single-phase 200-240 V AC | Communication: EtherCAT | Encoder support: 23-bit multi-turn absolute | Axes: 2
