Jeoneo B22 and K Hexagonal Dies for JX-22A and JX-22B

Jeoneo B22 and K Hexagonal Dies for JX-22A and JX-22B

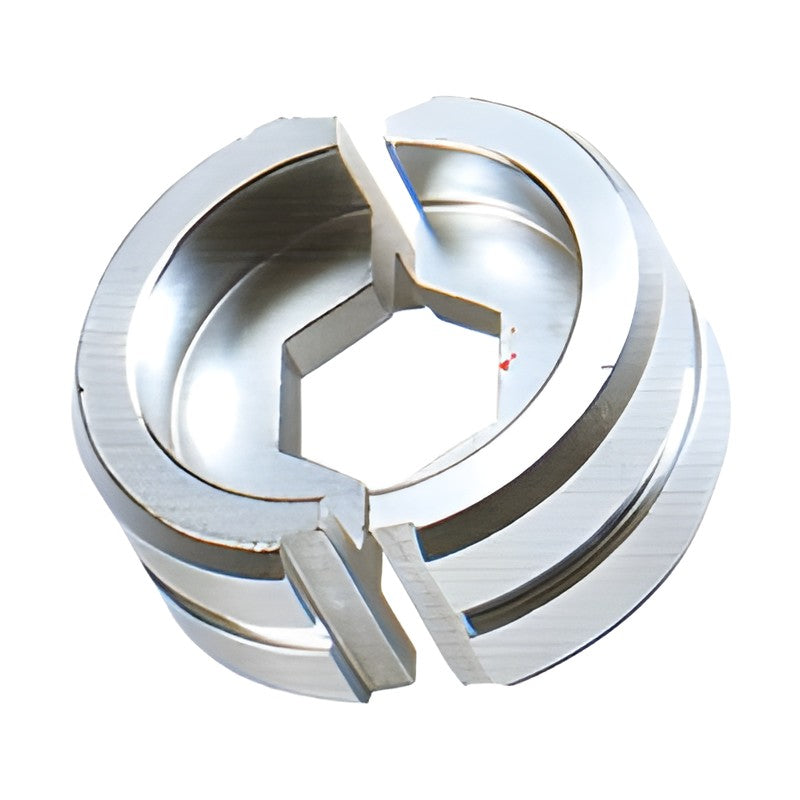

Hexagonal crimping dies for the JX-22B (copper, B22 series) and JX-22A (aluminium, K series) hydraulic hand tools.

Key features

  • Purchased separately from the tool

Specifications

Profile Hexagonal
B2210 Tool: JX-22B | Copper conductor: 10 mm²
B2216 Tool: JX-22B | Copper conductor: 16 mm²
B2225 Tool: JX-22B | Copper conductor: 25 mm²
B2235 Tool: JX-22B | Copper conductor: 35 mm²
B2250 Tool: JX-22B | Copper conductor: 50 mm²
B2270 Tool: JX-22B | Copper conductor: 70 mm²
B2295 Tool: JX-22B | Copper conductor: 95 mm²
B22120 Tool: JX-22B | Copper conductor: 120 mm²
B22150 Tool: JX-22B | Copper conductor: 150 mm²
B22185 Tool: JX-22B | Copper conductor: 185 mm²
B22240 Tool: JX-22B | Copper conductor: 240 mm²
B22300 Tool: JX-22B | Copper conductor: 300 mm²
K6 Tool: JX-22A | Aluminium conductor: 6 mm²
K8 Tool: JX-22A | Aluminium conductor: 10 mm²
K10 Tool: JX-22A | Aluminium conductor: 16 mm²
K12 Tool: JX-22A | Aluminium conductor: 25 mm²
K14 Tool: JX-22A | Aluminium conductor: 35 mm²
K16 Tool: JX-22A | Aluminium conductor: 50 mm²
K18 Tool: JX-22A | Aluminium conductor: 70 mm²
K20 Tool: JX-22A | Aluminium conductor: 95 mm²
K22 Tool: JX-22A | Aluminium conductor: 120 mm²
K25 Tool: JX-22A | Aluminium conductor: 150 mm²
K28 Tool: JX-22A | Aluminium conductor: 185 mm²
K32 Tool: JX-22A | Aluminium conductor: 240 mm²
Crimping DiesJeoneo
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Jeoneo B22 and K Hexagonal Dies for JX-22A and JX-22B

Brand Jeoneo·Crimping Dies

Available part numbers (24)

B2210, B2216, B2225, B2235, B2250, B2270, B2295, B22120, B22150, B22185 + 14 more — see full table ↓

How to order

Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
B2210Tool: JX-22B | Copper conductor: 10 mm²
B2216Tool: JX-22B | Copper conductor: 16 mm²
B2225Tool: JX-22B | Copper conductor: 25 mm²
B2235Tool: JX-22B | Copper conductor: 35 mm²
B2250Tool: JX-22B | Copper conductor: 50 mm²
B2270Tool: JX-22B | Copper conductor: 70 mm²
B2295Tool: JX-22B | Copper conductor: 95 mm²
B22120Tool: JX-22B | Copper conductor: 120 mm²
B22150Tool: JX-22B | Copper conductor: 150 mm²
B22185Tool: JX-22B | Copper conductor: 185 mm²
B22240Tool: JX-22B | Copper conductor: 240 mm²
B22300Tool: JX-22B | Copper conductor: 300 mm²
K6Tool: JX-22A | Aluminium conductor: 6 mm²
K8Tool: JX-22A | Aluminium conductor: 10 mm²
K10Tool: JX-22A | Aluminium conductor: 16 mm²
K12Tool: JX-22A | Aluminium conductor: 25 mm²
K14Tool: JX-22A | Aluminium conductor: 35 mm²
K16Tool: JX-22A | Aluminium conductor: 50 mm²
K18Tool: JX-22A | Aluminium conductor: 70 mm²
K20Tool: JX-22A | Aluminium conductor: 95 mm²
K22Tool: JX-22A | Aluminium conductor: 120 mm²
K25Tool: JX-22A | Aluminium conductor: 150 mm²
K28Tool: JX-22A | Aluminium conductor: 185 mm²
K32Tool: JX-22A | Aluminium conductor: 240 mm²
