KJF SPF/SPD Swivel Pads
KJF SPF/SPD Swivel Pads
Swivel clamping pads with a ball that tilts up to 9° to clamp uneven or irregular workpiece surfaces, with flat (SPF) or diamond-serrated (SPD) faces in tapped and bolt versions.
Key features
- Clamps uneven workpieces and reduces clamping deformation
- Pad ball swivels up to 9°
- Flat or diamond pad surface; improves clamping force
- Adapts to irregularly changing clamping surfaces

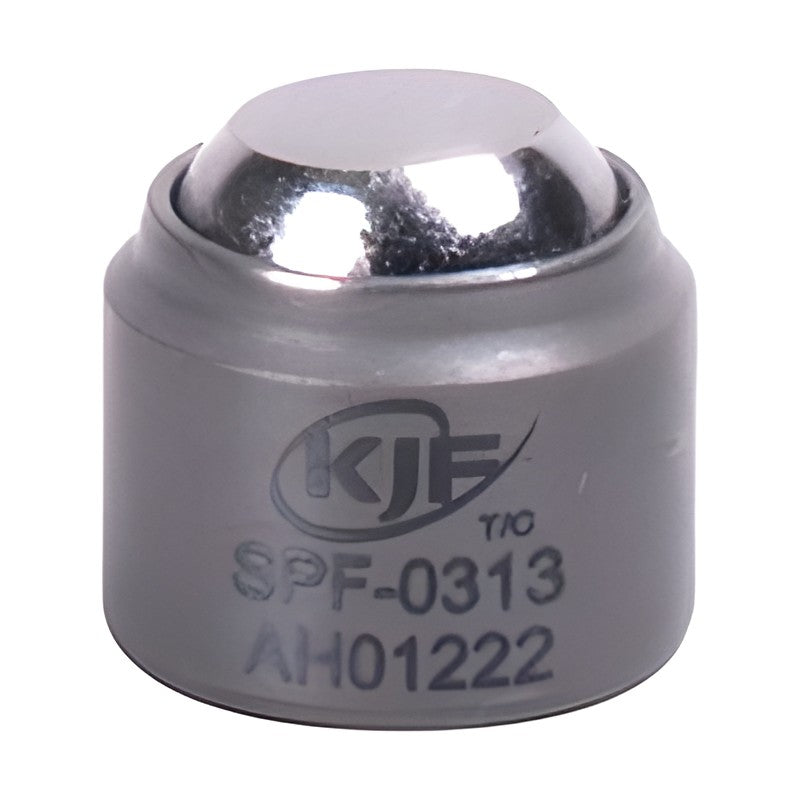

| SPF-0313 | Style: Tapped (female) | Pad: Flat | Thread: M3 | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 13 g | |
| SPF-0419 | Style: Tapped (female) | Pad: Flat | Thread: M4 | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | |
| SPF-0527 | Style: Tapped (female) | Pad: Flat | Thread: M5 | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 130 g | |
| SPF-0600 | Style: Bolt (male) | Pad: Flat | Thread: M6 x 1.0 | Thread length: 8 mm | Pad diameter: Ø13 mm | Max load: 0.8 t | Weight: 13 g | |
| SPF-0800 | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 8 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 15 g | |
| SPF-0800-A | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 46 g | |
| SPF-0815 | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 15 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 18 g | |
| SPF-0825 | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 25 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 25 g | |
| SPF-1000 | Style: Bolt (male) | Pad: Flat | Thread: M10 x 1.5 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 48 g | |
| SPF-1015 | Style: Bolt (male) | Pad: Flat | Thread: M10 x 1.5 | Thread length: 15 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 51 g | |
| SPF-1030 | Style: Bolt (male) | Pad: Flat | Thread: M10 x 1.5 | Thread length: 30 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 62 g | |
| SPF-1200 | Style: Bolt (male) | Pad: Flat | Thread: M12 x 1.75 | Thread length: 12 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | |
| SPF-1235 | Style: Bolt (male) | Pad: Flat | Thread: M12 x 1.75 | Thread length: 35 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 73 g | |
| SPF-1600 | Style: Bolt (male) | Pad: Flat | Thread: M16 x 2.0 | Thread length: 16 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 167 g | |
| SPF-1640 | Style: Bolt (male) | Pad: Flat | Thread: M16 x 2.0 | Thread length: 40 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 216 g | |
| SPD-0313 | Style: Tapped (female) | Pad: Diamond | Thread: M3 | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 13 g | |
| SPD-0419 | Style: Tapped (female) | Pad: Diamond | Thread: M4 | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | |
| SPD-0527 | Style: Tapped (female) | Pad: Diamond | Thread: M5 | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 130 g | |
| SPD-0600 | Style: Bolt (male) | Pad: Diamond | Thread: M6 x 1.0 | Thread length: 8 mm | Pad diameter: Ø13 mm | Max load: 0.8 t | Weight: 13 g | |
| SPD-0800 | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 8 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 15 g | |
| SPD-0800-A | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 46 g | |
| SPD-0815 | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 15 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 18 g | |
| SPD-0825 | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 25 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 25 g | |
| SPD-1000 | Style: Bolt (male) | Pad: Diamond | Thread: M10 x 1.5 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 48 g | |
| SPD-1015 | Style: Bolt (male) | Pad: Diamond | Thread: M10 x 1.5 | Thread length: 15 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 51 g | |
| SPD-1030 | Style: Bolt (male) | Pad: Diamond | Thread: M10 x 1.5 | Thread length: 30 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 62 g | |
| SPD-1200 | Style: Bolt (male) | Pad: Diamond | Thread: M12 x 1.75 | Thread length: 12 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | |
| SPD-1235 | Style: Bolt (male) | Pad: Diamond | Thread: M12 x 1.75 | Thread length: 35 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 73 g | |
| SPD-1600 | Style: Bolt (male) | Pad: Diamond | Thread: M16 x 2.0 | Thread length: 16 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 167 g | |
| SPD-1640 | Style: Bolt (male) | Pad: Diamond | Thread: M16 x 2.0 | Thread length: 40 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 216 g |
Swivel PadsKJF
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF SPF/SPD Swivel Pads
Available part numbers (30)
SPF-0313, SPF-0419, SPF-0527, SPF-0600, SPF-0800, SPF-0800-A, SPF-0815, SPF-0825, SPF-1000, SPF-1015 + 20 more — see full table ↓
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KJF
Swivel Pads
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| SPF-0313 | Style: Tapped (female) | Pad: Flat | Thread: M3 | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 13 g | ||
| SPF-0419 | Style: Tapped (female) | Pad: Flat | Thread: M4 | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | ||
| SPF-0527 | Style: Tapped (female) | Pad: Flat | Thread: M5 | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 130 g | ||
| SPF-0600 | Style: Bolt (male) | Pad: Flat | Thread: M6 x 1.0 | Thread length: 8 mm | Pad diameter: Ø13 mm | Max load: 0.8 t | Weight: 13 g | ||
| SPF-0800 | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 8 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 15 g | ||
| SPF-0800-A | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 46 g | ||
| SPF-0815 | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 15 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 18 g | ||
| SPF-0825 | Style: Bolt (male) | Pad: Flat | Thread: M8 x 1.25 | Thread length: 25 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 25 g | ||
| SPF-1000 | Style: Bolt (male) | Pad: Flat | Thread: M10 x 1.5 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 48 g | ||
| SPF-1015 | Style: Bolt (male) | Pad: Flat | Thread: M10 x 1.5 | Thread length: 15 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 51 g | ||
| SPF-1030 | Style: Bolt (male) | Pad: Flat | Thread: M10 x 1.5 | Thread length: 30 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 62 g | ||
| SPF-1200 | Style: Bolt (male) | Pad: Flat | Thread: M12 x 1.75 | Thread length: 12 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | ||
| SPF-1235 | Style: Bolt (male) | Pad: Flat | Thread: M12 x 1.75 | Thread length: 35 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 73 g | ||
| SPF-1600 | Style: Bolt (male) | Pad: Flat | Thread: M16 x 2.0 | Thread length: 16 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 167 g | ||
| SPF-1640 | Style: Bolt (male) | Pad: Flat | Thread: M16 x 2.0 | Thread length: 40 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 216 g | ||
| SPD-0313 | Style: Tapped (female) | Pad: Diamond | Thread: M3 | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 13 g | ||
| SPD-0419 | Style: Tapped (female) | Pad: Diamond | Thread: M4 | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | ||
| SPD-0527 | Style: Tapped (female) | Pad: Diamond | Thread: M5 | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 130 g | ||
| SPD-0600 | Style: Bolt (male) | Pad: Diamond | Thread: M6 x 1.0 | Thread length: 8 mm | Pad diameter: Ø13 mm | Max load: 0.8 t | Weight: 13 g | ||
| SPD-0800 | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 8 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 15 g | ||
| SPD-0800-A | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 46 g | ||
| SPD-0815 | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 15 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 18 g | ||
| SPD-0825 | Style: Bolt (male) | Pad: Diamond | Thread: M8 x 1.25 | Thread length: 25 mm | Pad diameter: Ø14 mm | Max load: 0.8 t | Weight: 25 g | ||
| SPD-1000 | Style: Bolt (male) | Pad: Diamond | Thread: M10 x 1.5 | Thread length: 10 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 48 g | ||
| SPD-1015 | Style: Bolt (male) | Pad: Diamond | Thread: M10 x 1.5 | Thread length: 15 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 51 g | ||
| SPD-1030 | Style: Bolt (male) | Pad: Diamond | Thread: M10 x 1.5 | Thread length: 30 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 62 g | ||
| SPD-1200 | Style: Bolt (male) | Pad: Diamond | Thread: M12 x 1.75 | Thread length: 12 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 39 g | ||
| SPD-1235 | Style: Bolt (male) | Pad: Diamond | Thread: M12 x 1.75 | Thread length: 35 mm | Pad diameter: Ø20 mm | Max load: 2.1 t | Weight: 73 g | ||
| SPD-1600 | Style: Bolt (male) | Pad: Diamond | Thread: M16 x 2.0 | Thread length: 16 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 167 g | ||
| SPD-1640 | Style: Bolt (male) | Pad: Diamond | Thread: M16 x 2.0 | Thread length: 40 mm | Pad diameter: Ø30 mm | Max load: 7.9 t | Weight: 216 g |
