KJF MBS Mounting Base, Square

KJF MBS Mounting Base, Square

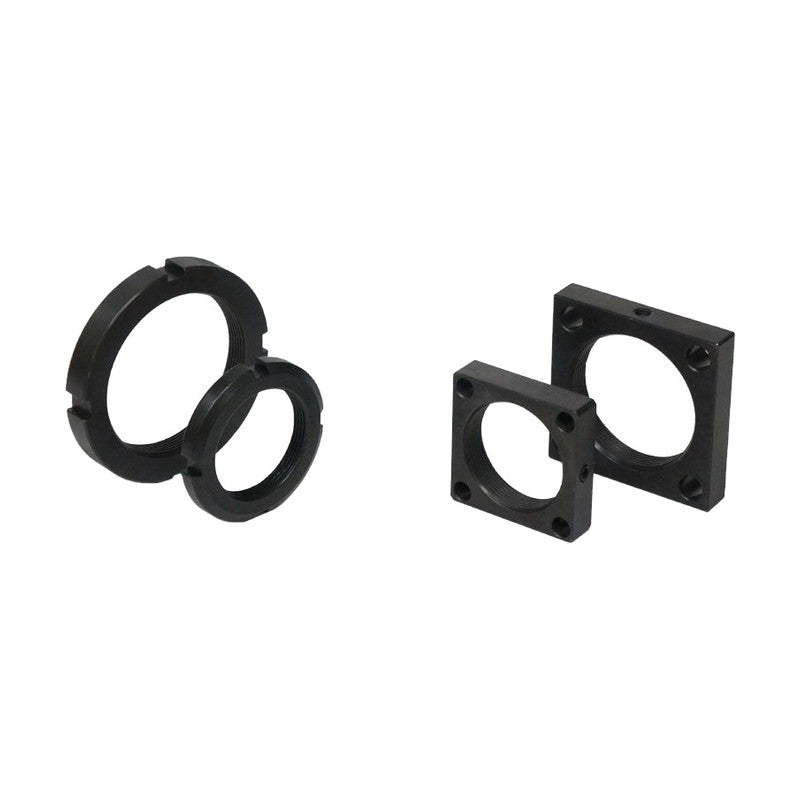

Square threaded mounting base with bolt holes for installing threaded-body swing clamps and threaded cylinders on a fixture plate.

Key features

  • Square block with internal thread and mounting bolt holes
  • Sizes M20 to M90
MBS-2012 Width A: 30 mm | Thickness B: 12 mm | Dim C: 22 mm | Thread: M20 x 1.0 | Dim E: 4.5 mm | Mounting bolt: M6 x 1.0
MBS-2112 Width A: 30 mm | Thickness B: 12 mm | Dim C: 22 mm | Thread: M20 x 1.5 | Dim E: 4.5 mm | Mounting bolt: M6 x 1.0
MBS-2512 Width A: 38 mm | Thickness B: 12 mm | Dim C: 28 mm | Thread: M25 x 1.5 | Dim E: 5.5 mm | Mounting bolt: M6 x 1.0
MBS-2812 Width A: 40 mm | Thickness B: 12 mm | Dim C: 29 mm | Thread: M28 x 1.5 | Dim E: 6.7 mm | Mounting bolt: M6 x 1.0
MBS-3012 Width A: 42 mm | Thickness B: 12 mm | Dim C: 32 mm | Thread: M30 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-3212 Width A: 42 mm | Thickness B: 12 mm | Dim C: 32 mm | Thread: M32 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-3615 Width A: 45 mm | Thickness B: 15 mm | Dim C: 36 mm | Thread: M36 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-3815 Width A: 50 mm | Thickness B: 15 mm | Dim C: 38 mm | Thread: M38 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-4012 Width A: 50 mm | Thickness B: 12 mm | Dim C: 40 mm | Thread: M40 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-4518 Width A: 60 mm | Thickness B: 18 mm | Dim C: 45 mm | Thread: M45 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M6 x 1.0
MBS-4820 Width A: 60 mm | Thickness B: 20 mm | Dim C: 45 mm | Thread: M48 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M6 x 1.0
MBS-5012 Width A: 65 mm | Thickness B: 12 mm | Dim C: 50 mm | Thread: M50 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M6 x 1.0
MBS-6015 Width A: 75 mm | Thickness B: 15 mm | Dim C: 60 mm | Thread: M60 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-6025 Width A: 75 mm | Thickness B: 25 mm | Dim C: 60 mm | Thread: M60 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-6125 Width A: 75 mm | Thickness B: 25 mm | Dim C: 60 mm | Thread: M60 x 2.0 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-6525 Width A: 80 mm | Thickness B: 25 mm | Dim C: 65 mm | Thread: M65 x 2.0 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-7025 Width A: 90 mm | Thickness B: 25 mm | Dim C: 70 mm | Thread: M70 x 2.0 | Dim E: 11.0 mm | Mounting bolt: M8 x 1.25
MBS-8025 Width A: 100 mm | Thickness B: 25 mm | Dim C: 80 mm | Thread: M80 x 2.0 | Dim E: 13.0 mm | Mounting bolt: M8 x 1.25
MBS-9025 Width A: 110 mm | Thickness B: 25 mm | Dim C: 90 mm | Thread: M90 x 2.0 | Dim E: 13.0 mm | Mounting bolt: M8 x 1.25
Clamp Mounting AccessoriesKJF
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF MBS Mounting Base, Square

Brand KJF·Clamp Mounting Accessories

Available part numbers (19)

MBS-2012, MBS-2112, MBS-2512, MBS-2812, MBS-3012, MBS-3212, MBS-3615, MBS-3815, MBS-4012, MBS-4518 + 9 more — see full table ↓

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MBS-2012Width A: 30 mm | Thickness B: 12 mm | Dim C: 22 mm | Thread: M20 x 1.0 | Dim E: 4.5 mm | Mounting bolt: M6 x 1.0
MBS-2112Width A: 30 mm | Thickness B: 12 mm | Dim C: 22 mm | Thread: M20 x 1.5 | Dim E: 4.5 mm | Mounting bolt: M6 x 1.0
MBS-2512Width A: 38 mm | Thickness B: 12 mm | Dim C: 28 mm | Thread: M25 x 1.5 | Dim E: 5.5 mm | Mounting bolt: M6 x 1.0
MBS-2812Width A: 40 mm | Thickness B: 12 mm | Dim C: 29 mm | Thread: M28 x 1.5 | Dim E: 6.7 mm | Mounting bolt: M6 x 1.0
MBS-3012Width A: 42 mm | Thickness B: 12 mm | Dim C: 32 mm | Thread: M30 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-3212Width A: 42 mm | Thickness B: 12 mm | Dim C: 32 mm | Thread: M32 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-3615Width A: 45 mm | Thickness B: 15 mm | Dim C: 36 mm | Thread: M36 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-3815Width A: 50 mm | Thickness B: 15 mm | Dim C: 38 mm | Thread: M38 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-4012Width A: 50 mm | Thickness B: 12 mm | Dim C: 40 mm | Thread: M40 x 1.5 | Dim E: 7.0 mm | Mounting bolt: M6 x 1.0
MBS-4518Width A: 60 mm | Thickness B: 18 mm | Dim C: 45 mm | Thread: M45 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M6 x 1.0
MBS-4820Width A: 60 mm | Thickness B: 20 mm | Dim C: 45 mm | Thread: M48 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M6 x 1.0
MBS-5012Width A: 65 mm | Thickness B: 12 mm | Dim C: 50 mm | Thread: M50 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M6 x 1.0
MBS-6015Width A: 75 mm | Thickness B: 15 mm | Dim C: 60 mm | Thread: M60 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-6025Width A: 75 mm | Thickness B: 25 mm | Dim C: 60 mm | Thread: M60 x 1.5 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-6125Width A: 75 mm | Thickness B: 25 mm | Dim C: 60 mm | Thread: M60 x 2.0 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-6525Width A: 80 mm | Thickness B: 25 mm | Dim C: 65 mm | Thread: M65 x 2.0 | Dim E: 9.0 mm | Mounting bolt: M8 x 1.25
MBS-7025Width A: 90 mm | Thickness B: 25 mm | Dim C: 70 mm | Thread: M70 x 2.0 | Dim E: 11.0 mm | Mounting bolt: M8 x 1.25
MBS-8025Width A: 100 mm | Thickness B: 25 mm | Dim C: 80 mm | Thread: M80 x 2.0 | Dim E: 13.0 mm | Mounting bolt: M8 x 1.25
MBS-9025Width A: 110 mm | Thickness B: 25 mm | Dim C: 90 mm | Thread: M90 x 2.0 | Dim E: 13.0 mm | Mounting bolt: M8 x 1.25
