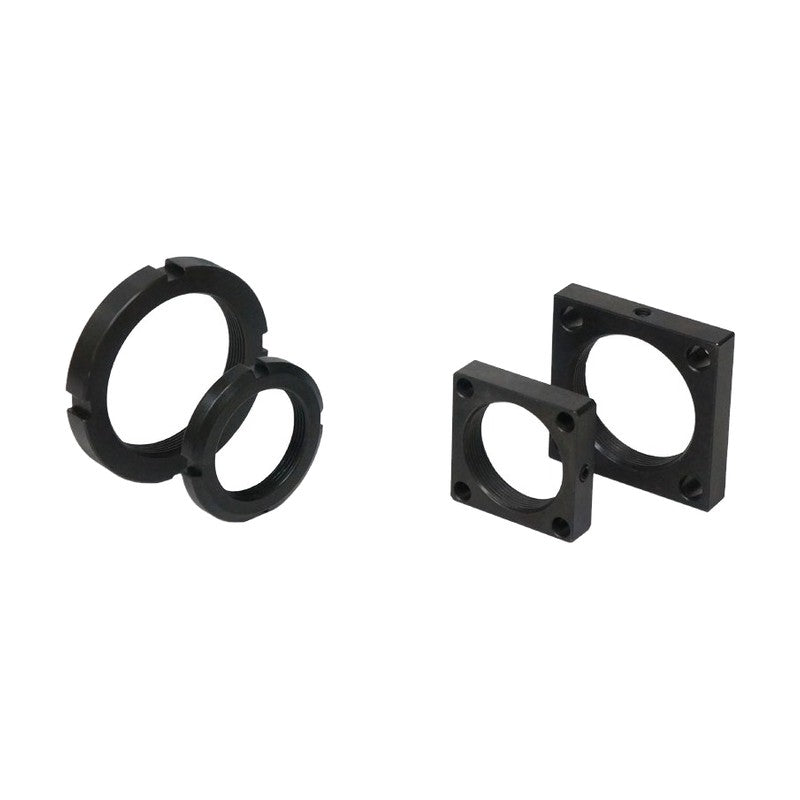

KJF MBR Mounting Base, Round

KJF MBR Mounting Base, Round

Round threaded mounting base (flange nut) for installing threaded-body swing clamps and threaded cylinders on a fixture plate.

Key features

  • Round flange with internal thread to receive threaded-body clamps
  • Sizes M20 to M90
MBR-2010 Outer diameter: Ø32 mm | Thickness B: 6 mm | Dim C: 4 mm | Thread: M20 x 1.0 | Dim E: 2.0 mm
MBR-2110 Outer diameter: Ø32 mm | Thickness B: 10 mm | Dim C: 4 mm | Thread: M20 x 1.5 | Dim E: 2.0 mm
MBR-2510 Outer diameter: Ø38 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M25 x 1.5 | Dim E: 2.0 mm
MBR-2810 Outer diameter: Ø40 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M28 x 1.5 | Dim E: 2.0 mm
MBR-3010 Outer diameter: Ø45 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M30 x 1.5 | Dim E: 2.0 mm
MBR-3210 Outer diameter: Ø45 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M32 x 1.5 | Dim E: 2.0 mm
MBR-3610 Outer diameter: Ø52 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M36 x 1.5 | Dim E: 2.0 mm
MBR-3810 Outer diameter: Ø52 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M38 x 1.5 | Dim E: 2.0 mm
MBR-4010 Outer diameter: Ø58 mm | Thickness B: 10 mm | Dim C: 6 mm | Thread: M40 x 1.5 | Dim E: 2.5 mm
MBR-4510 Outer diameter: Ø65 mm | Thickness B: 10 mm | Dim C: 6 mm | Thread: M45 x 1.5 | Dim E: 2.5 mm
MBR-4811 Outer diameter: Ø70 mm | Thickness B: 11 mm | Dim C: 6 mm | Thread: M48 x 1.5 | Dim E: 2.5 mm
MBR-5011 Outer diameter: Ø70 mm | Thickness B: 11 mm | Dim C: 6 mm | Thread: M50 x 1.5 | Dim E: 2.5 mm
MBR-6011 Outer diameter: Ø80 mm | Thickness B: 11 mm | Dim C: 7 mm | Thread: M60 x 1.5 | Dim E: 3.0 mm
MBR-6111 Outer diameter: Ø80 mm | Thickness B: 11 mm | Dim C: 7 mm | Thread: M60 x 2.0 | Dim E: 3.0 mm
MBR-6512 Outer diameter: Ø85 mm | Thickness B: 12 mm | Dim C: 7 mm | Thread: M65 x 2.0 | Dim E: 3.0 mm
MBR-7012 Outer diameter: Ø92 mm | Thickness B: 12 mm | Dim C: 8 mm | Thread: M70 x 2.0 | Dim E: 3.5 mm
MBR-8015 Outer diameter: Ø105 mm | Thickness B: 15 mm | Dim C: 8 mm | Thread: M80 x 2.0 | Dim E: 3.5 mm
MBR-9016 Outer diameter: Ø120 mm | Thickness B: 16 mm | Dim C: 10 mm | Thread: M90 x 2.0 | Dim E: 4.0 mm
Clamp Mounting AccessoriesKJF
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF MBR Mounting Base, Round

Brand KJF·Clamp Mounting Accessories

Available part numbers (18)

MBR-2010, MBR-2110, MBR-2510, MBR-2810, MBR-3010, MBR-3210, MBR-3610, MBR-3810, MBR-4010, MBR-4510 + 8 more — see full table ↓

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MBR-2010Outer diameter: Ø32 mm | Thickness B: 6 mm | Dim C: 4 mm | Thread: M20 x 1.0 | Dim E: 2.0 mm
MBR-2110Outer diameter: Ø32 mm | Thickness B: 10 mm | Dim C: 4 mm | Thread: M20 x 1.5 | Dim E: 2.0 mm
MBR-2510Outer diameter: Ø38 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M25 x 1.5 | Dim E: 2.0 mm
MBR-2810Outer diameter: Ø40 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M28 x 1.5 | Dim E: 2.0 mm
MBR-3010Outer diameter: Ø45 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M30 x 1.5 | Dim E: 2.0 mm
MBR-3210Outer diameter: Ø45 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M32 x 1.5 | Dim E: 2.0 mm
MBR-3610Outer diameter: Ø52 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M36 x 1.5 | Dim E: 2.0 mm
MBR-3810Outer diameter: Ø52 mm | Thickness B: 10 mm | Dim C: 5 mm | Thread: M38 x 1.5 | Dim E: 2.0 mm
MBR-4010Outer diameter: Ø58 mm | Thickness B: 10 mm | Dim C: 6 mm | Thread: M40 x 1.5 | Dim E: 2.5 mm
MBR-4510Outer diameter: Ø65 mm | Thickness B: 10 mm | Dim C: 6 mm | Thread: M45 x 1.5 | Dim E: 2.5 mm
MBR-4811Outer diameter: Ø70 mm | Thickness B: 11 mm | Dim C: 6 mm | Thread: M48 x 1.5 | Dim E: 2.5 mm
MBR-5011Outer diameter: Ø70 mm | Thickness B: 11 mm | Dim C: 6 mm | Thread: M50 x 1.5 | Dim E: 2.5 mm
MBR-6011Outer diameter: Ø80 mm | Thickness B: 11 mm | Dim C: 7 mm | Thread: M60 x 1.5 | Dim E: 3.0 mm
MBR-6111Outer diameter: Ø80 mm | Thickness B: 11 mm | Dim C: 7 mm | Thread: M60 x 2.0 | Dim E: 3.0 mm
MBR-6512Outer diameter: Ø85 mm | Thickness B: 12 mm | Dim C: 7 mm | Thread: M65 x 2.0 | Dim E: 3.0 mm
MBR-7012Outer diameter: Ø92 mm | Thickness B: 12 mm | Dim C: 8 mm | Thread: M70 x 2.0 | Dim E: 3.5 mm
MBR-8015Outer diameter: Ø105 mm | Thickness B: 15 mm | Dim C: 8 mm | Thread: M80 x 2.0 | Dim E: 3.5 mm
MBR-9016Outer diameter: Ø120 mm | Thickness B: 16 mm | Dim C: 10 mm | Thread: M90 x 2.0 | Dim E: 4.0 mm
