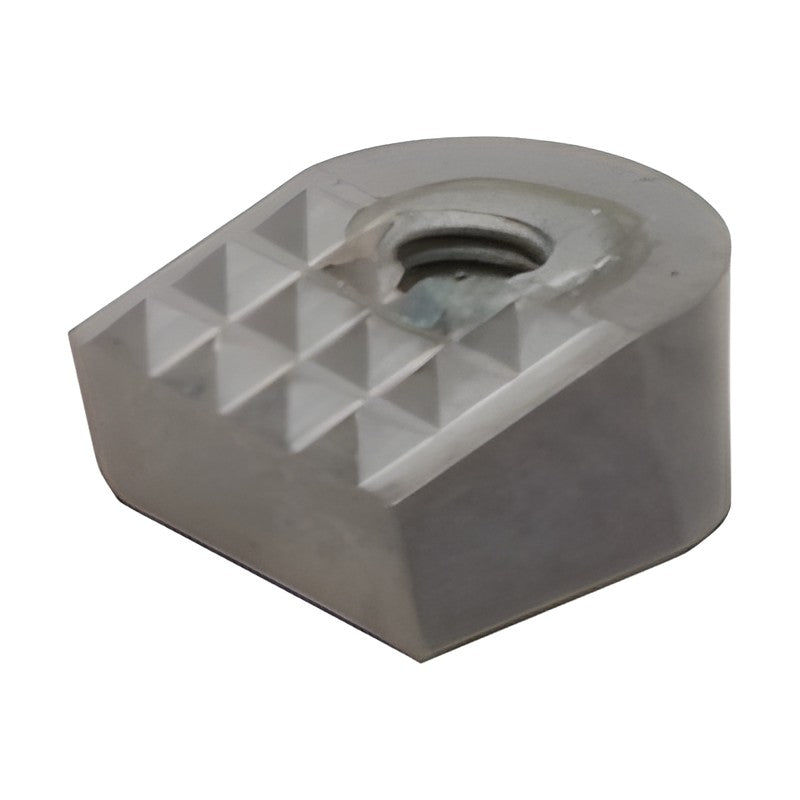

KJF TCP Tungsten Carbide Gripper Pads
KJF TCP Tungsten Carbide Gripper Pads
Tungsten carbide gripper pads with serrated or grooved faces that bite into the workpiece to raise clamping force by about 30% compared with ordinary pads.
Key features
- Tungsten carbide material improves clamping force by about 30% over general pads
- Usable to approx. 700 °C
- Various shapes: jaw inserts and round or square pads with M5 mounting
Specifications
| Material | Tungsten carbide |
|---|---|
| Temperature | up to approx. 700 °C |
| TCP-12 | Shape: Serrated face, M5 tapped through, width 14.2 mm, height 16.5 mm | |
| TCP-13 | Shape: Serrated face, M5 tapped through, width 14.2 mm, height 16.5 mm | |
| TCP-42 | Shape: Serrated face, M5 tapped through, width 10.0 mm, height 16.5 mm | |
| TCP-40 | Shape: Serrated face, M5 tapped through, width 10.0 mm, height 16.5 mm | |
| TCP-21 | Shape: Grooved face, M5 tapped through, width 14.2 mm, height 16.5 mm | |
| TCP-41 | Shape: Grooved face, M5 tapped through, width 10.0 mm, height 16.5 mm | |
| TCP-70 | Shape: Serrated face, Ø5.5 through / Ø10 counterbore, 14 x 9 mm | |
| TCP-60 | Shape: Serrated square face 12 mm, M5 tap depth 5.5 mm | |
| TCP-50 | Shape: Serrated round face Ø9.0 mm | |
| TCP-10 | Shape: Serrated round face Ø8.0 mm, M5 tap depth 5.5 mm | |
| TCP-11 | Shape: Serrated round face Ø10.0 mm, M5 tap depth 5.5 mm | |
| TCP-31 | Shape: Serrated round face Ø12.7 mm, M5 tap depth 5.5 mm | |
| TCP-32 | Shape: Serrated round face Ø12.7 mm, M5 tap depth 5.5 mm |
Gripper PadsKJF
13 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF TCP Tungsten Carbide Gripper Pads
Available part numbers (13)
TCP-12, TCP-13, TCP-42, TCP-40, TCP-21, TCP-41, TCP-70, TCP-60, TCP-50, TCP-10 + 3 more — see full table ↓
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KJF
Gripper Pads
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| TCP-12 | Shape: Serrated face, M5 tapped through, width 14.2 mm, height 16.5 mm | ||
| TCP-13 | Shape: Serrated face, M5 tapped through, width 14.2 mm, height 16.5 mm | ||
| TCP-42 | Shape: Serrated face, M5 tapped through, width 10.0 mm, height 16.5 mm | ||
| TCP-40 | Shape: Serrated face, M5 tapped through, width 10.0 mm, height 16.5 mm | ||
| TCP-21 | Shape: Grooved face, M5 tapped through, width 14.2 mm, height 16.5 mm | ||
| TCP-41 | Shape: Grooved face, M5 tapped through, width 10.0 mm, height 16.5 mm | ||
| TCP-70 | Shape: Serrated face, Ø5.5 through / Ø10 counterbore, 14 x 9 mm | ||
| TCP-60 | Shape: Serrated square face 12 mm, M5 tap depth 5.5 mm | ||
| TCP-50 | Shape: Serrated round face Ø9.0 mm | ||
| TCP-10 | Shape: Serrated round face Ø8.0 mm, M5 tap depth 5.5 mm | ||
| TCP-11 | Shape: Serrated round face Ø10.0 mm, M5 tap depth 5.5 mm | ||
| TCP-31 | Shape: Serrated round face Ø12.7 mm, M5 tap depth 5.5 mm | ||
| TCP-32 | Shape: Serrated round face Ø12.7 mm, M5 tap depth 5.5 mm |
