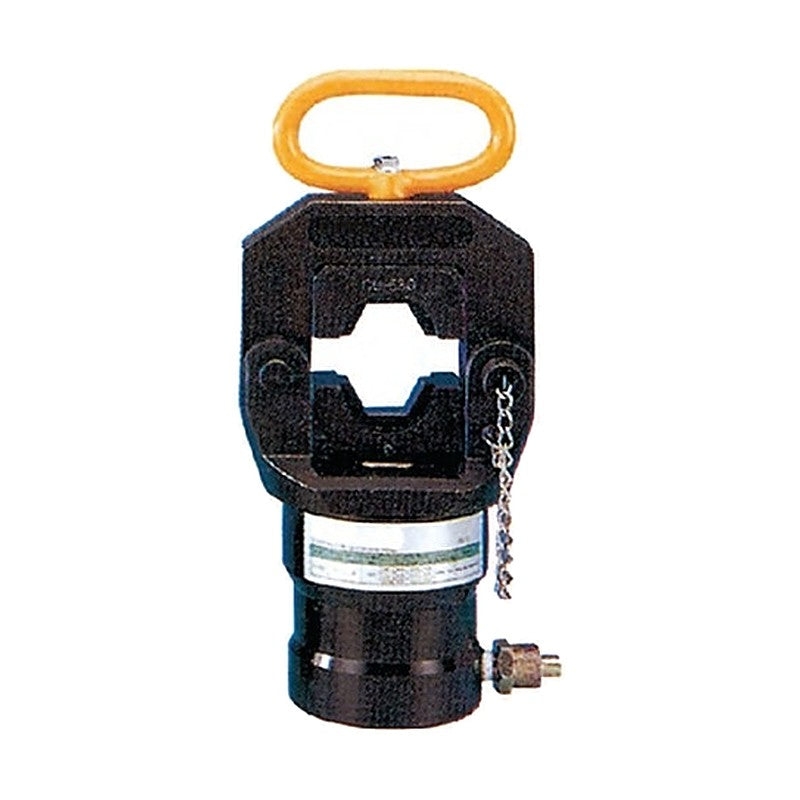

Jeoneo JCO Hydraulic Crimping Heads
Jeoneo JCO Hydraulic Crimping Heads
Hydraulic crimping heads for compression casting lugs, grounding sleeves and flush plates, driven by an external hydraulic pump.
Key features
- JCO-800 supplied with steel carrying case and die case
| JCO-800 | Output: 30 t | Ram stroke: 26 mm between dies | Oil volume required: 133 cc | Range: 25-630 mm² | Size: 125 dia. x 360 mm | Weight: 16 kg | |
| JCO-1000 | Output: 60 t | Stroke: 24 mm | Range: 300-800 mm² Al, 400-1000 mm² Cu | Standard dies: 400, 500, 630, 800, 1000 mm² | Weight: 32 kg |
Crimping ToolsJeoneo
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JCO Hydraulic Crimping Heads
Available part numbers (2)
JCO-800, JCO-1000
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Crimping Tools
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JCO-800 | Output: 30 t | Ram stroke: 26 mm between dies | Oil volume required: 133 cc | Range: 25-630 mm² | Size: 125 dia. x 360 mm | Weight: 16 kg | ||
| JCO-1000 | Output: 60 t | Stroke: 24 mm | Range: 300-800 mm² Al, 400-1000 mm² Cu | Standard dies: 400, 500, 630, 800, 1000 mm² | Weight: 32 kg |
