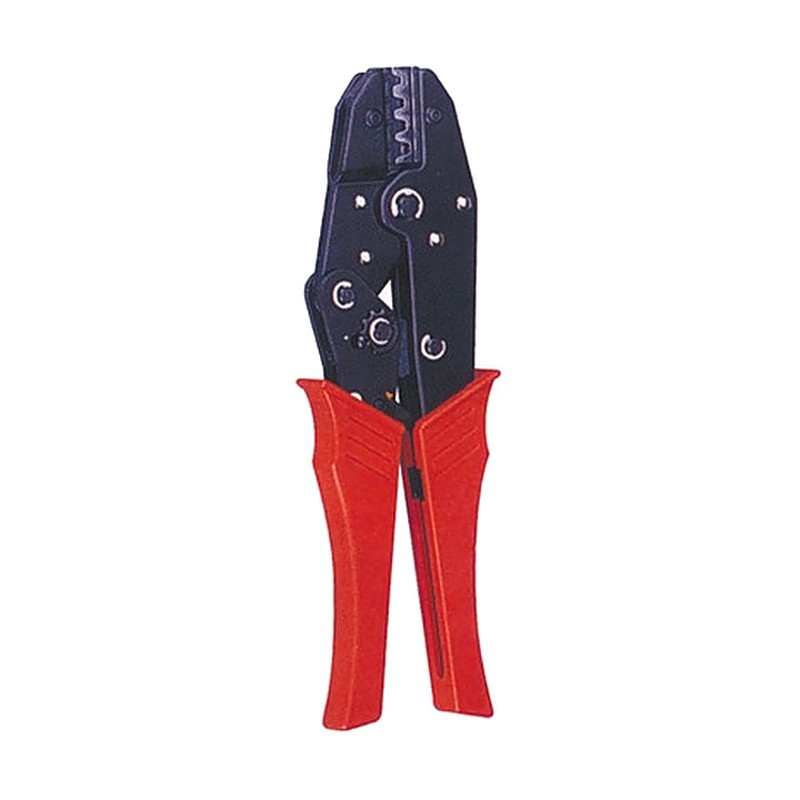

Jeoneo JLY Hand Crimping Tools for Open-Barrel and Tab Terminals
Jeoneo JLY Hand Crimping Tools for Open-Barrel and Tab Terminals
Hand crimping tools for open-barrel receptacles, tab terminals and modular connector pins.
Key features
- JOC 13 crimps ATX, FCI, EPS and Molex female connector pins
| JLY-48B | Application: Uninsulated receptacles and tabs 4.8 mm and 2.8 mm wide | Range: 0.14-2.5 mm² (AWG 26-14) | Weight: 0.6 kg | Length: 230 mm | |
| JLY-03B | Application: Uninsulated receptacles and tabs 6.3 mm wide | Range: 0.5-6 mm² (AWG 20-10) | Weight: 0.6 kg | Length: 230 mm | |
| JOT 06 | Application: Modular connectors 351638 and 355638 | Length: 220 mm | |
| JOC 13 | Application: ATX, FCI, EPS and Molex female connector pins | Range: 0.05-0.8 mm² (AWG 30-18) | Weight: 0.35 kg | Length: 190 mm |
Crimping ToolsJeoneo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JLY Hand Crimping Tools for Open-Barrel and Tab Terminals
Available part numbers (4)
JLY-48B, JLY-03B, JOT 06, JOC 13
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Crimping Tools
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JLY-48B | Application: Uninsulated receptacles and tabs 4.8 mm and 2.8 mm wide | Range: 0.14-2.5 mm² (AWG 26-14) | Weight: 0.6 kg | Length: 230 mm | ||
| JLY-03B | Application: Uninsulated receptacles and tabs 6.3 mm wide | Range: 0.5-6 mm² (AWG 20-10) | Weight: 0.6 kg | Length: 230 mm | ||
| JOT 06 | Application: Modular connectors 351638 and 355638 | Length: 220 mm | ||
| JOC 13 | Application: ATX, FCI, EPS and Molex female connector pins | Range: 0.05-0.8 mm² (AWG 30-18) | Weight: 0.35 kg | Length: 190 mm |
Need a different model, or a part not listed here? Send us your parts list →
