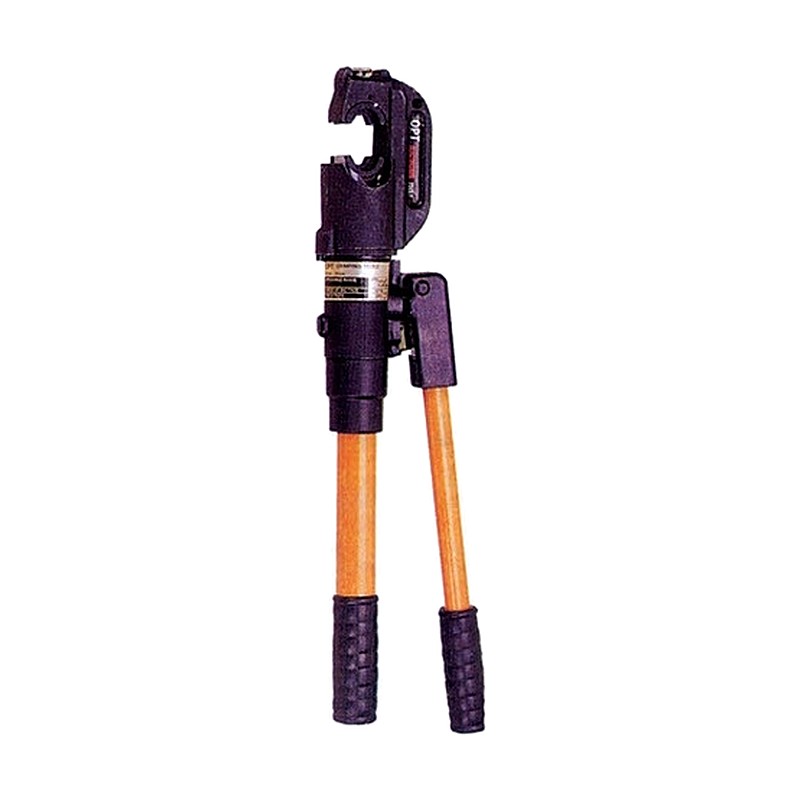

Jeoneo JP Hand-Operated Hydraulic Crimping Tools
Jeoneo JP Hand-Operated Hydraulic Crimping Tools
Hand-pumped hydraulic crimping tools for copper and aluminium lugs and connectors up to 400 mm².
Key features
- JP-420 with 42 mm C-jaw opening and fiberglass handle
| JP-420 | Output: 12 t | Jaw opening: 42 mm | Range: 35-400 mm² (to 750 MCM) | Standard dies: 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² | Weight: 8.2 kg | Length: 640 mm | |
| JP-150D | Output: 10 t | Jaw opening: 38 mm | Range: 16-185 mm² (to 300 MCM), non-insulated terminals | Standard dies: Male dies 16-25, 35-70, 70-185; female die 16, 25-35, 50-60, 70-120, 150-185 | Weight: 5.2 kg | |
| JX-22B | Application: Copper terminals up to 300 mm² | Dies: Hexagonal B22 dies (purchase separately) | |
| JX-22A | Application: Aluminium conductors up to 300 mm² | Dies: Hexagonal K dies (purchase separately) |
Crimping ToolsJeoneo
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JP Hand-Operated Hydraulic Crimping Tools
Available part numbers (4)
JP-420, JP-150D, JX-22B, JX-22A
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Crimping Tools
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JP-420 | Output: 12 t | Jaw opening: 42 mm | Range: 35-400 mm² (to 750 MCM) | Standard dies: 35, 50, 70, 95, 120, 150, 185, 240, 300, 400 mm² | Weight: 8.2 kg | Length: 640 mm | ||
| JP-150D | Output: 10 t | Jaw opening: 38 mm | Range: 16-185 mm² (to 300 MCM), non-insulated terminals | Standard dies: Male dies 16-25, 35-70, 70-185; female die 16, 25-35, 50-60, 70-120, 150-185 | Weight: 5.2 kg | ||
| JX-22B | Application: Copper terminals up to 300 mm² | Dies: Hexagonal B22 dies (purchase separately) | ||
| JX-22A | Application: Aluminium conductors up to 300 mm² | Dies: Hexagonal K dies (purchase separately) |
