Jeoneo JPM Hydraulic Pumps for Crimping Heads
Jeoneo JPM Hydraulic Pumps for Crimping Heads

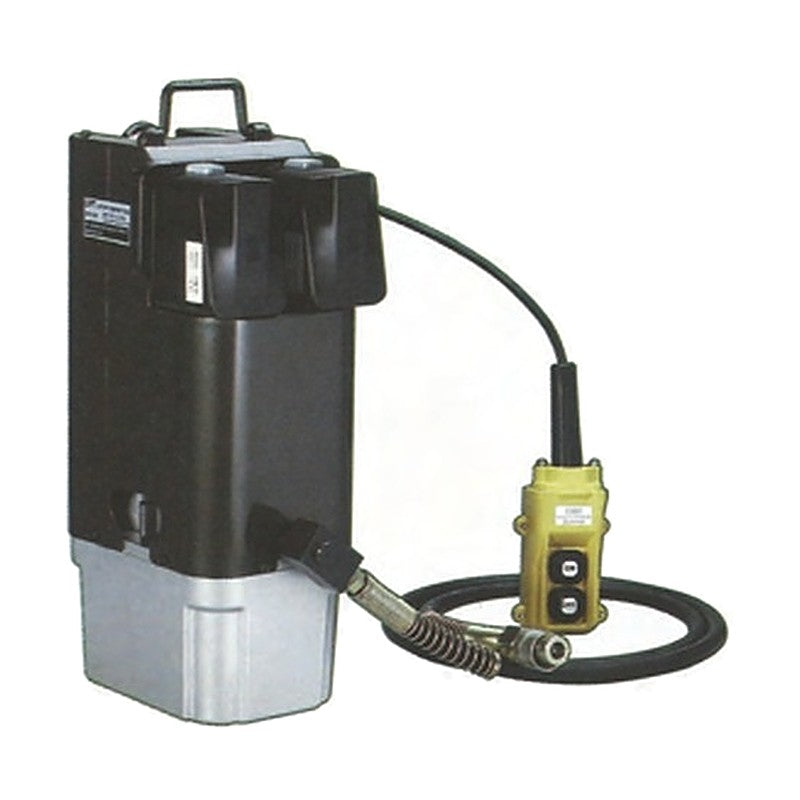

Battery-operated and electric hydraulic pumps (10,000 psi) for driving remote crimping heads.
Key features
- Supplied with wired remote control and 1.8 m hydraulic hose
Specifications
| Max. pressure | 68.5 MPa (10,000 psi) |
|---|
| JPM-P2 | Drive: Battery, 28.8 V DC | Reservoir: 1000 cc | Oil delivery: 0.3 L/min high pressure, 1.8 L/min low pressure | Size: 220 x 180 x 400 mm | Weight: 14.5 kg with battery | |
| JPM-3000 | Drive: Electric, AC 110/220 V, 650 W, 50/60 Hz | Reservoir: 3000 cc | Oil delivery: 0.5 L/min high pressure, 1.8 L/min low pressure | Size: 225 x 185 x 382 mm | Weight: 22.1 kg |
Hydraulic PumpsJeoneo
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo JPM Hydraulic Pumps for Crimping Heads
Available part numbers (2)
JPM-P2, JPM-3000
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
Jeoneo
Hydraulic Pumps
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| JPM-P2 | Drive: Battery, 28.8 V DC | Reservoir: 1000 cc | Oil delivery: 0.3 L/min high pressure, 1.8 L/min low pressure | Size: 220 x 180 x 400 mm | Weight: 14.5 kg with battery | ||
| JPM-3000 | Drive: Electric, AC 110/220 V, 650 W, 50/60 Hz | Reservoir: 3000 cc | Oil delivery: 0.5 L/min high pressure, 1.8 L/min low pressure | Size: 225 x 185 x 382 mm | Weight: 22.1 kg |
