Jeoneo LY Crimping Die Sets
Jeoneo LY Crimping Die Sets
Interchangeable crimping die sets for the JEM-6B2, JPA-6B, JAN-13C, JAN-28C and JBN-03C8 crimping tools, covering terminals, ferrules and twin ferrules.
Key features
- Fit the JEM-6B2 electric crimper, JPA-6B pneumatic head and JAN/JBN hand tools
- Profiles for insulated, non-insulated, open-barrel terminals and wire ferrules
Specifications
| Compatible tools | JEM-6B2, JPA-6B, JAN-13C, JAN-28C, JBN-03C8 |
|---|

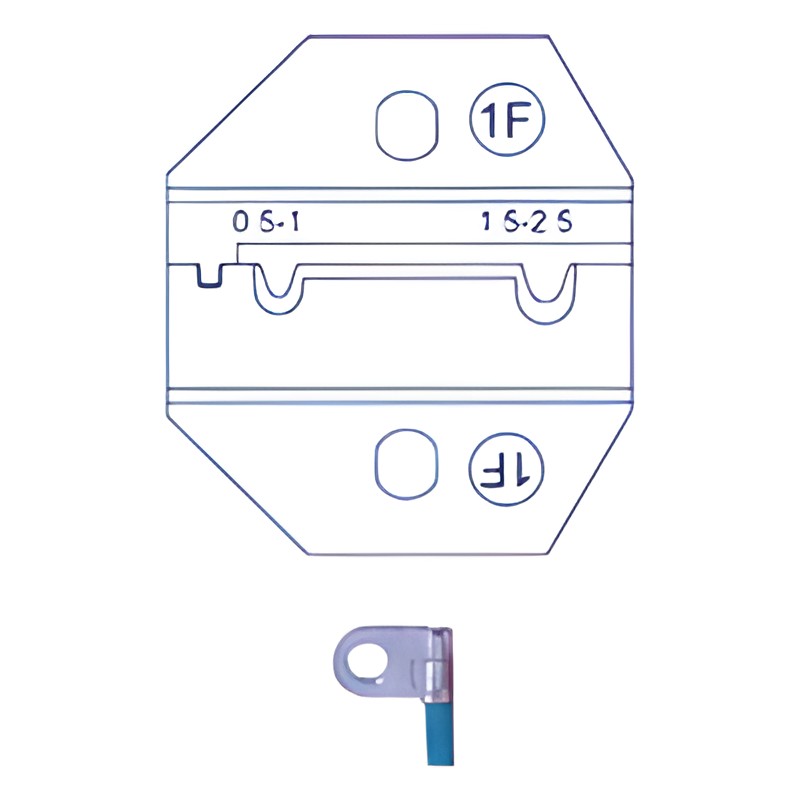

| LY01FL | Range: 0.5-1, 1.5-2.5 mm² (AWG 20-18, 16-14) | |
| LY02FL | Range: 0.5-1, 1.5-2.5 mm² (AWG 20-18, 16-14) | |
| LY02H | Range: Hexagon A/F 6.5, 4.4, 1.72 mm | |
| LY02H1 | Range: Hexagon A/F 6.5, 5.4, 3.25, 2.0, 1.72, 1.0 mm | |
| LY03B | Range: 0.5-6 mm² (AWG 20-10) | |
| LY03BM | Range: 0.5-6 mm² (AWG 20-10) | |
| LY03C | Range: 0.5-1.5 mm² AWG 20-16; 2.5 mm² AWG 14; 4-6 mm² AWG 12-10 | |
| LY03C8 | Range: 0.5-1.5 mm² AWG 20-16; 0.5-2.5 mm² AWG 16-14; 3-6 mm² AWG 12-10; 10 mm² AWG 8 | |
| LY03457 | Range: Hexagon 11, 8.2, 5.4 mm | |
| LY03FL | Range: 0.5-1, 1.5-2.5 mm² (AWG 20-18, 16-14) | |
| LY04B | Range: 0.5-6 mm² (AWG 20-10) | |
| LY04WF | Range: 0.5-4 mm² (AWG 20-12) | |
| LY04C | Range: 0.14-0.5 mm² AWG 26-20; 0.75-1.5 mm² AWG 18-16; 2.0-2.5 mm² AWG 14; 3.5-6 mm² AWG 12-10 | |
| LY04FL | Range: 0.5-1 mm² (AWG 20-18) | |
| LY05H | Range: Hexagon A/F 8.1, 6.5, 5.4, 2.6, 1.72 mm | |
| LY05FL | Range: 1.5-2.5 mm² (AWG 6-14) | |
| LYS1 | Range: 2.5, 4, 6 mm² (AWG 14, 12, 10) | |
| LYS2 | Range: 2.5, 4, 6 mm² (AWG 14, 12, 10) | |
| LY06H | Range: 10.8, 2.6 mm² | |
| LY06FL | Range: 16 mm² (AWG 6) | |
| LY06FT | Range: 3.6 mm² (AWG 10-16) | |
| LY06PT | Range: 1.5-6 mm² (AWG 20-18, 16-14) | |
| LY06TW | Range: 0.5-6 mm² (AWG 20-10) | |
| LY06WF | Range: 0.5-6 mm² (AWG 20-10) | |
| LY06WF02C | Range: 0.5-6 mm² (AWG 20-10) | |
| LY09 | Range: 1.5-10 mm² (AWG 16-8) | |
| LY10FL | Range: 10 mm² (AWG 8) | |
| LY10WF | Range: 1-10 mm² (AWG 18-8) | |
| LY11 | Range: 0.1-10 mm² (AWG 26-8) | |
| LY11WF | Range: 0.14-10 mm² (AWG 26-10) | |
| LY13C | Range: 0.5-6 mm² (AWG 20-10) | |
| LY16 | Range: 2.5-16 mm² (AWG 14-6) | |
| LY16WF | Range: 6-16 mm² (AWG 10-5) | |
| LY18C | Range: 10-16 mm² (AWG 8-6) | |
| LY25WF | Range: 10-25 mm² (AWG 8-3) | |
| LY26TW | Range: 2x0.5, 2x0.75, 2x1, 2x1.5, 2x2.5, 2x4, 2x6 mm² (2xAWG 20-2xAWG 10) | |
| LY29B | Range: 0.14-2.5 mm² (AWG 26-14) | |
| LY35WF | Range: 10-35 mm² (AWG 8-2) | |
| LY457 | Range: Hexagon A/F 11, 8.2, 5.4 mm | |
| LY48B | Range: 0.14-2.5 mm² (AWG 26-14) | |
| LY050WF | Range: 25-50 mm² (AWG 3-0) | |
| LY63B | Range: 0.25-6 mm² (AWG 22-10) | |
| LY07H | Range: Hexagon A/F 8.9, 8.1, 6.5 mm | |
| LY210TW | Range: 2x6, 2x10, 2x16 mm² (2xAWG 20-2xAWG 10) | |
| LY08H | Range: Hexagon A/F 10.8, 3.25, 2.5 mm | |
| LY28C | Range: 4-6 mm² (AWG 12-8) |
Crimping DiesJeoneo
46 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
Jeoneo LY Crimping Die Sets
Available part numbers (46)
LY01FL, LY02FL, LY02H, LY02H1, LY03B, LY03BM, LY03C, LY03C8, LY03457, LY03FL + 36 more — see full table ↓
How to order
Send the Jeoneo part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
