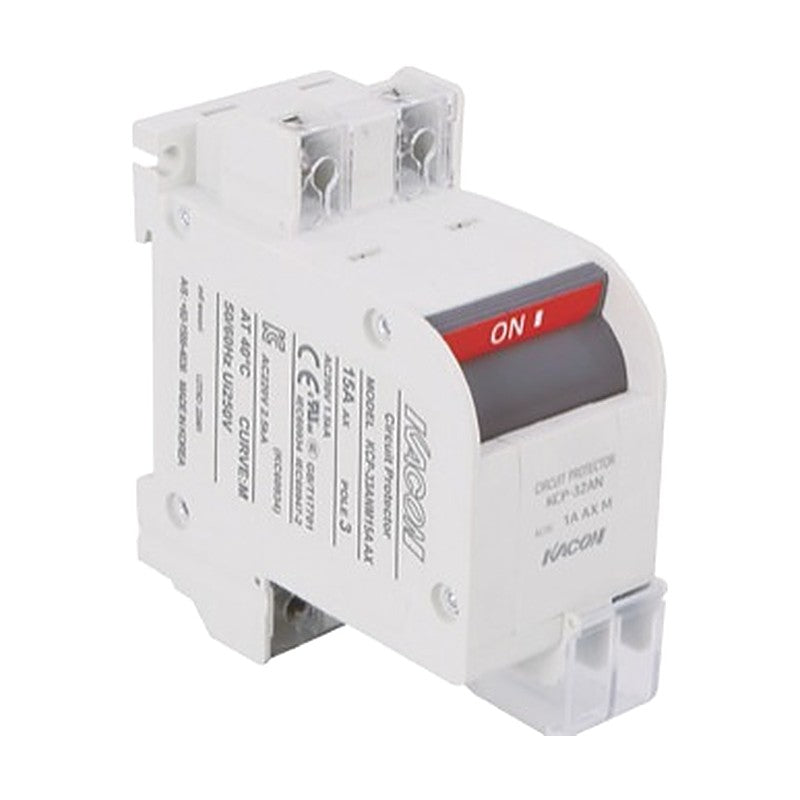

KACON KCP Series DIN-Rail Circuit Protector

KACON KCP Series DIN-Rail Circuit Protector

Slim 16.5 mm per pole DIN-rail circuit protector with hydraulic-magnetic medium-speed tripping for overload and short-circuit protection of control circuits.

Key features

  • Slim design: 16.5 mm width per pole
  • 1, 2 and 3 pole versions, 1-30A ratings
  • 1P and 2P usable on AC or DC without distinction
  • Clear ON/OFF status display and trip-free handle with protective wall
  • Optional auxiliary contact (AX) with protection cover for remote trip signalling
  • CE, UL, KC, CCC, PSE and CB certified

Specifications

Rated current 1, 2, 3, 5, 7, 10, 15, 20, 25, 30A
Tripping characteristic M (medium speed), hydraulic-magnetic
Insulation resistance 100MΩ min. (500V)
Durability Mechanical 10,000 ops, electrical 6,000 ops
Withstand voltage AC 1,500V (50/60Hz) 1 min
Ambient conditions -10 to +60°C (reference +40°C), 0-85% RH
Vibration / shock 15G (IEC 60068-2-6) / 50G (IEC 60068-2-27)
Trip method ODP (trip-free)
Mounting 35 mm DIN rail
Aux contact capacity DC30V 3A / AC250V 3A (option AX)
Terminal torque M4 (20A and under) 1.2-1.5N·m; M5 (25A and over) 1.8-2.2N·m; aux M3 0.8-1.0N·m
Approvals KC60934, UL1077, IEC60934 (CE), GB17701 (CCC), JET6977 (PSE), IEC 60947-2 (CB)
KACON KCP Series DIN-Rail Circuit Protector - reference 2KACON KCP Series DIN-Rail Circuit Protector - reference 3
KCP-31ANM Poles: 1P | Rated voltage: 250VAC / 60VDC | Breaking capacity: 1.5kA (UL/CCC/PSE/CE), 2.5kA (KC) | Weight: 58g | Width: 16.5 mm
KCP-32ANM Poles: 2P | Rated voltage: 250VAC / 120VDC | Breaking capacity: 1.5kA (UL/CCC/PSE/CE), 2.5kA (KC) | Weight: 114g | Width: 33 mm
KCP-33ANM Poles: 3P | Rated voltage: 250VAC (AC only) | Breaking capacity: 1.5kA (UL/CCC/PSE/CE), 2.5kA (KC) at 250VAC | Weight: 170g | Width: 49.5 mm
Circuit ProtectorsKACON
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KCP Series DIN-Rail Circuit Protector

Brand KACON·Circuit Protectors

Available part numbers (3)

KCP-31ANM, KCP-32ANM, KCP-33ANM

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
KACON KCP Series DIN-Rail Circuit Protector - reference 2KACON KCP Series DIN-Rail Circuit Protector - reference 3
0 selected
RFQ List (0)
Product codeSpec
KCP-31ANMPoles: 1P | Rated voltage: 250VAC / 60VDC | Breaking capacity: 1.5kA (UL/CCC/PSE/CE), 2.5kA (KC) | Weight: 58g | Width: 16.5 mm
KCP-32ANMPoles: 2P | Rated voltage: 250VAC / 120VDC | Breaking capacity: 1.5kA (UL/CCC/PSE/CE), 2.5kA (KC) | Weight: 114g | Width: 33 mm
KCP-33ANMPoles: 3P | Rated voltage: 250VAC (AC only) | Breaking capacity: 1.5kA (UL/CCC/PSE/CE), 2.5kA (KC) at 250VAC | Weight: 170g | Width: 49.5 mm
