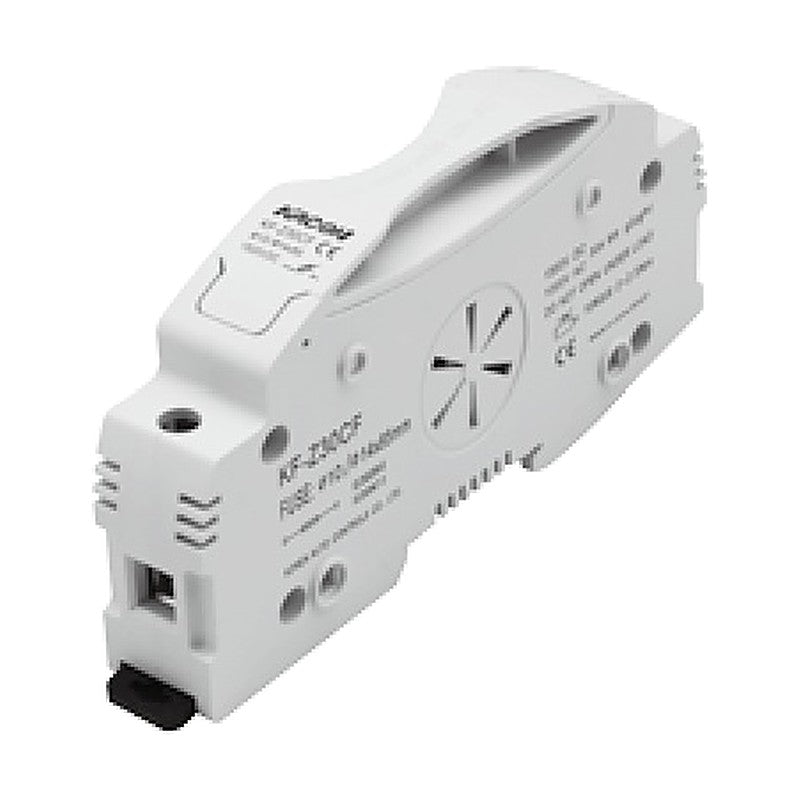

KACON KF-Z30 Solar Fuse Holders 1,500VDC

Touch-safe 30A fuse holders for 1,500VDC photovoltaic systems, accepting 10 x 85 mm solar fuses.

Key features

Sliding open/close with complete separation when open
Safety design to prevent electric shock
Double terminal structure

Specifications

Rated voltage	1500VDC
Rated current	30A
Insulation resistance	100 MOhm (500VDC)
Withstand voltage	2,500V for 1 minute
Material	Flame-retardant PC
Installation altitude	2000m max.
Standards	IEC 60947-3, IEC 60269-6

KACON KF-Z30 Solar Fuse Holders 1,500VDC - reference 2

KACON KF-Z30 Solar Fuse Holders 1,500VDC - reference 3

KF-Z30CF		Rated breaking current: 20kA \| Ambient temperature: -50 to 90°C
KF-Z30D		Rated breaking current: 30kA \| Ambient temperature: -40 to 90°C

Fuse HoldersKACON

2 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KACON KF-Z30 Solar Fuse Holders 1,500VDC

Brand KACON·Fuse Holders

Available part numbers (2)

KF-Z30CF, KF-Z30D

How to order

Send the KACON part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
