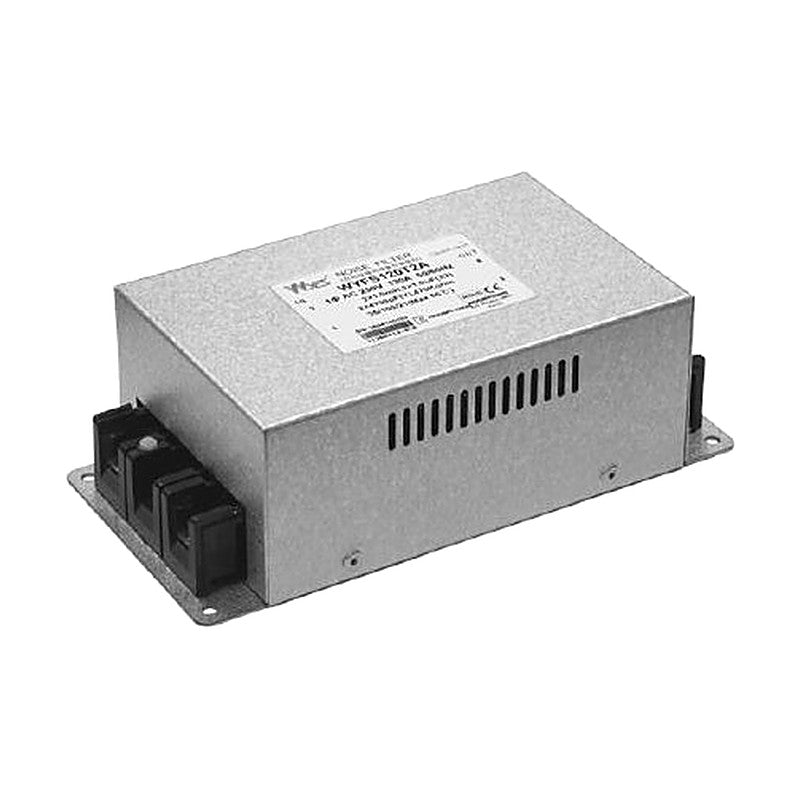

Woonyoung WYFS-T2A Series Single-Phase General-Purpose Noise Filter, 250 VAC

Woonyoung WYFS-T2A Series Single-Phase General-Purpose Noise Filter, 250 VAC

General-purpose single-phase noise filter in a steel case for higher currents, rated 60 A to 200 A.

Key features

  • Low leakage current
  • Steel case with terminal block
  • Rated 60 A to 200 A at 250 VAC

Specifications

Phase Single phase
Rated voltage 250 VAC
Frequency 50/60 Hz
Dielectric withstand 1500 VAC or 2250 VDC for 1 min (line-case)
Leakage current <= 1.5 mA at 250 VAC
Operating temperature -25 to +100 C (derating curve type 1)
Case Steel
Safety standards KC, CE
WYFS60T2A Rated current: 60 A | Safety standards: KC, CE
WYFS80T2A Rated current: 80 A | Safety standards: KC, CE
WYFS100T2A Rated current: 100 A | Safety standards: KC, CE
WYFS120T2A Rated current: 120 A | Safety standards: KC, CE
WYFS150T2A Rated current: 150 A | Safety standards: KC, CE
WYFS200T2A Rated current: 200 A | Safety standards: KC, CE
Noise FiltersWoonyoung
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFS-T2A Series Single-Phase General-Purpose Noise Filter, 250 VAC

Brand Woonyoung·Noise Filters

Available part numbers (6)

WYFS60T2A, WYFS80T2A, WYFS100T2A, WYFS120T2A, WYFS150T2A, WYFS200T2A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFS60T2ARated current: 60 A | Safety standards: KC, CE
WYFS80T2ARated current: 80 A | Safety standards: KC, CE
WYFS100T2ARated current: 100 A | Safety standards: KC, CE
WYFS120T2ARated current: 120 A | Safety standards: KC, CE
WYFS150T2ARated current: 150 A | Safety standards: KC, CE
WYFS200T2ARated current: 200 A | Safety standards: KC, CE
