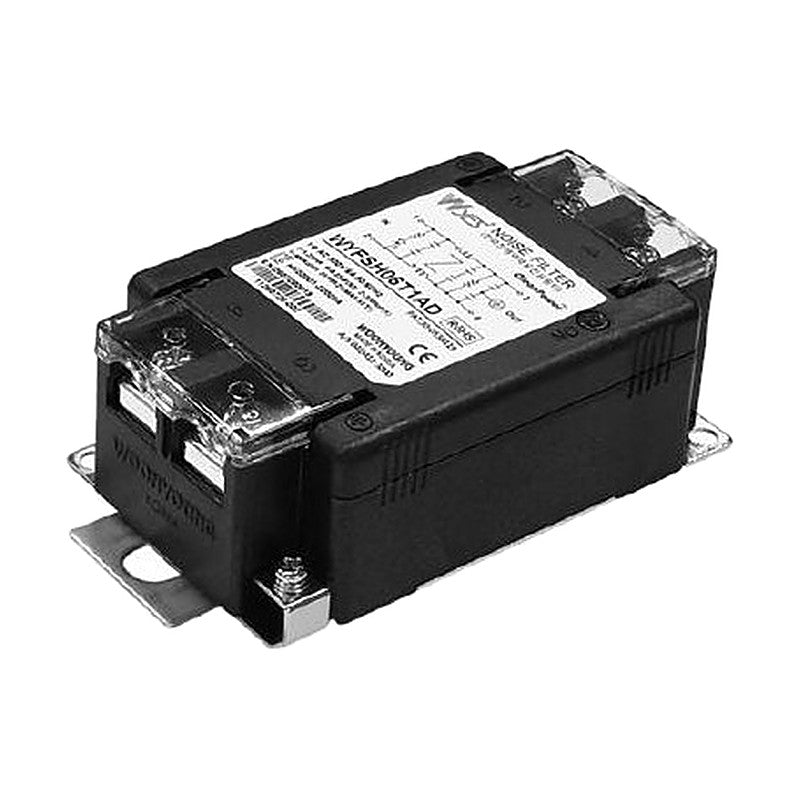

Woonyoung WYFSH-T1A Series Single-Phase General-Purpose Noise Filter, 500 VAC

Woonyoung WYFSH-T1A Series Single-Phase General-Purpose Noise Filter, 500 VAC

General-purpose single-phase noise filter for 500 VAC lines, rated 6 A to 20 A.

Key features

  • Low leakage current
  • Plastic case with terminal block
  • DIN-rail version available (D suffix)
  • Rated 6 A to 20 A at 500 VAC

Specifications

Phase Single phase
Rated voltage 500 VAC
Frequency 50/60 Hz
Dielectric withstand 2500 VAC or 2800 VDC for 1 min (line-case)
Insulation resistance 500 MOhm at 500 VDC
Leakage current <= 2.1 mA at 500 VAC
Operating temperature -25 to +100 C (derating curve type 1)
Operating humidity 35-85% RH
Weight 0.2 kg
Mounting Screw; DIN rail with (D) suffix
Safety standards KC, CE
WYFSH06T1A Rated current: 6 A | Safety standards: KC, CE
WYFSH10T1A Rated current: 10 A | Safety standards: KC, CE
WYFSH15T1A Rated current: 15 A | Safety standards: KC, CE
WYFSH20T1A Rated current: 20 A | Safety standards: KC, CE
Noise FiltersWoonyoung
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYFSH-T1A Series Single-Phase General-Purpose Noise Filter, 500 VAC

Brand Woonyoung·Noise Filters

Available part numbers (4)

WYFSH06T1A, WYFSH10T1A, WYFSH15T1A, WYFSH20T1A

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYFSH06T1ARated current: 6 A | Safety standards: KC, CE
WYFSH10T1ARated current: 10 A | Safety standards: KC, CE
WYFSH15T1ARated current: 15 A | Safety standards: KC, CE
WYFSH20T1ARated current: 20 A | Safety standards: KC, CE
