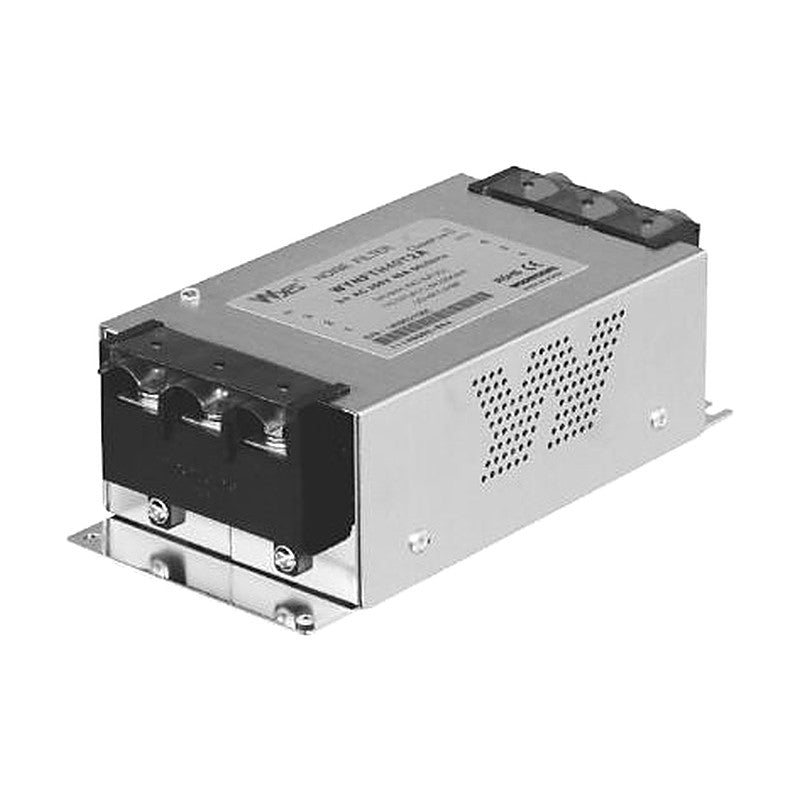

Woonyoung WYNFTH-T2A/T2C N Series Three-Phase General-Purpose Noise Filter, 500 VAC

Woonyoung WYNFTH-T2A/T2C N Series Three-Phase General-Purpose Noise Filter, 500 VAC

N-series general-purpose three-phase noise filter for 500 VAC lines, rated 40 A to 250 A, in general (A) and inverter-output (C) versions.

Key features

  • General (A) and inverter output (C) versions
  • Steel case with terminal block
  • Rated 40 A to 250 A at 500 VAC
  • RoHS compliant

Specifications

Phase Three phase
Rated voltage 500 VAC
Frequency 50/60 Hz
Dielectric withstand 2500 VAC or 2800 VDC for 1 min (line-case)
Insulation resistance 100 MOhm at 500 VDC
Leakage current <= 5 mA (lower ratings); <= 26 mA (higher ratings) at 500 VAC
Operating temperature -25 to +100 C (derating curve type 2)
Operating humidity 35-85% RH
WYNFTH40T2A Rated current: 40 A | Safety standards: KC, CE | Version: General (A)
WYNFTH40T2C Rated current: 40 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH50T2A Rated current: 50 A | Safety standards: KC, CE | Version: General (A)
WYNFTH50T2C Rated current: 50 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH60T2A Rated current: 60 A | Safety standards: KC, CE | Version: General (A)
WYNFTH60T2C Rated current: 60 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH80T2A Rated current: 80 A | Safety standards: KC, CE | Version: General (A)
WYNFTH80T2C Rated current: 80 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH100T2A Rated current: 100 A | Safety standards: KC, CE | Version: General (A)
WYNFTH100T2C Rated current: 100 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH120T2A Rated current: 120 A | Safety standards: CE | Version: General (A)
WYNFTH120T2C Rated current: 120 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH150T2A Rated current: 150 A | Safety standards: CE | Version: General (A)
WYNFTH150T2C Rated current: 150 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH200T2A Rated current: 200 A | Safety standards: CE | Version: General (A)
WYNFTH200T2C Rated current: 200 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH250T2A Rated current: 250 A | Safety standards: CE | Version: General (A)
WYNFTH250T2C Rated current: 250 A | Safety standards: CE | Version: Inverter output (C)
Noise FiltersWoonyoung
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Woonyoung WYNFTH-T2A/T2C N Series Three-Phase General-Purpose Noise Filter, 500 VAC

Brand Woonyoung·Noise Filters

Available part numbers (18)

WYNFTH40T2A, WYNFTH40T2C, WYNFTH50T2A, WYNFTH50T2C, WYNFTH60T2A, WYNFTH60T2C, WYNFTH80T2A, WYNFTH80T2C, WYNFTH100T2A, WYNFTH100T2C + 8 more — see full table ↓

How to order

Send the Woonyoung part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WYNFTH40T2ARated current: 40 A | Safety standards: KC, CE | Version: General (A)
WYNFTH40T2CRated current: 40 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH50T2ARated current: 50 A | Safety standards: KC, CE | Version: General (A)
WYNFTH50T2CRated current: 50 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH60T2ARated current: 60 A | Safety standards: KC, CE | Version: General (A)
WYNFTH60T2CRated current: 60 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH80T2ARated current: 80 A | Safety standards: KC, CE | Version: General (A)
WYNFTH80T2CRated current: 80 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH100T2ARated current: 100 A | Safety standards: KC, CE | Version: General (A)
WYNFTH100T2CRated current: 100 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH120T2ARated current: 120 A | Safety standards: CE | Version: General (A)
WYNFTH120T2CRated current: 120 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH150T2ARated current: 150 A | Safety standards: CE | Version: General (A)
WYNFTH150T2CRated current: 150 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH200T2ARated current: 200 A | Safety standards: CE | Version: General (A)
WYNFTH200T2CRated current: 200 A | Safety standards: CE | Version: Inverter output (C)
WYNFTH250T2ARated current: 250 A | Safety standards: CE | Version: General (A)
WYNFTH250T2CRated current: 250 A | Safety standards: CE | Version: Inverter output (C)
