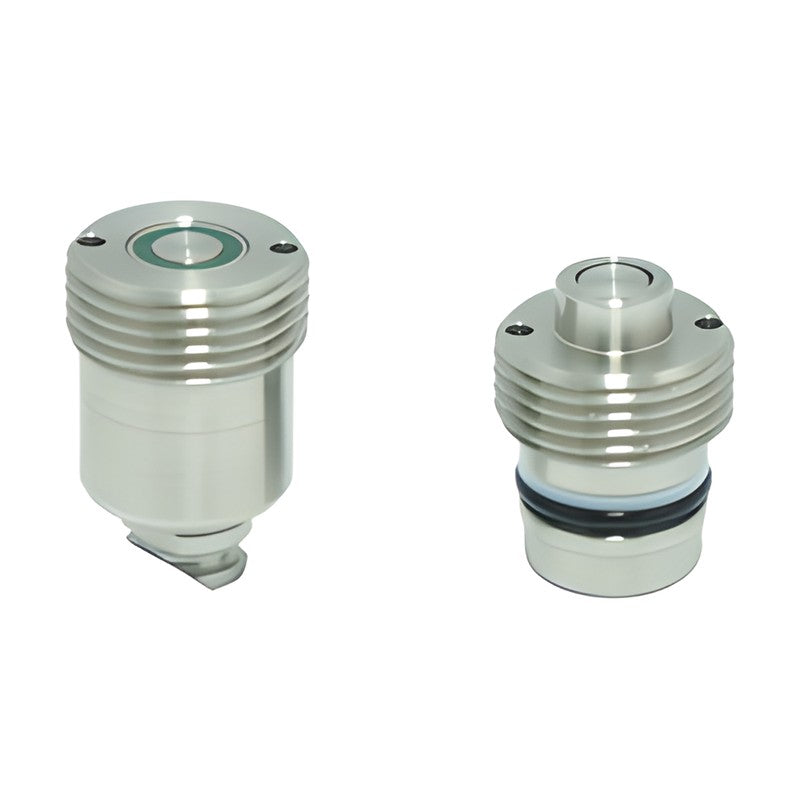

KJF ACO Auto Coupler, Hydraulic, Threaded Type

KJF ACO Auto Coupler, Hydraulic, Threaded Type

Stainless steel threaded auto coupler for hydraulic oil or air that connects pressure-source and fixture sides automatically, with check valves that close when disconnected.

Key features

  • Stainless steel body; usable for vacuum
  • Compact and suitable for automation
  • Both couplers must be on the same axis and guided within about 3 mm before connecting
  • Do not connect or disconnect under pressure; use a 3-position 4-way solenoid valve in the center position

Specifications

Usable fluid Oil / air
Operating temperature 0-70 °C
Coupling stroke 4.3 mm
Radial positioning tolerance ±0.3 mm
Permitted angle tolerance ±1°
ACO-2001 Side: Pressure source side | Body thread: M20 x 1.5 | Max pressure: 350 kgf/cm² | Max reaction force: 335 kgf | Max flow: 8 L/min | Weight: 30 g
ACO-2002 Side: Fixture side | Body thread: M20 x 1.5 | Max pressure: 350 kgf/cm² | Max reaction force: 335 kgf | Max flow: 8 L/min | Weight: 40 g
ACO-2401 Side: Pressure source side | Body thread: M24 x 1.5 | Max pressure: 500 kgf/cm² | Max reaction force: 785 kgf | Max flow: 12 L/min | Weight: 65 g
ACO-2402 Side: Fixture side | Body thread: M24 x 1.5 | Max pressure: 500 kgf/cm² | Max reaction force: 785 kgf | Max flow: 12 L/min | Weight: 50 g
Auto CouplersKJF
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF ACO Auto Coupler, Hydraulic, Threaded Type

Brand KJF·Auto Couplers

Available part numbers (4)

ACO-2001, ACO-2002, ACO-2401, ACO-2402

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ACO-2001Side: Pressure source side | Body thread: M20 x 1.5 | Max pressure: 350 kgf/cm² | Max reaction force: 335 kgf | Max flow: 8 L/min | Weight: 30 g
ACO-2002Side: Fixture side | Body thread: M20 x 1.5 | Max pressure: 350 kgf/cm² | Max reaction force: 335 kgf | Max flow: 8 L/min | Weight: 40 g
ACO-2401Side: Pressure source side | Body thread: M24 x 1.5 | Max pressure: 500 kgf/cm² | Max reaction force: 785 kgf | Max flow: 12 L/min | Weight: 65 g
ACO-2402Side: Fixture side | Body thread: M24 x 1.5 | Max pressure: 500 kgf/cm² | Max reaction force: 785 kgf | Max flow: 12 L/min | Weight: 50 g
