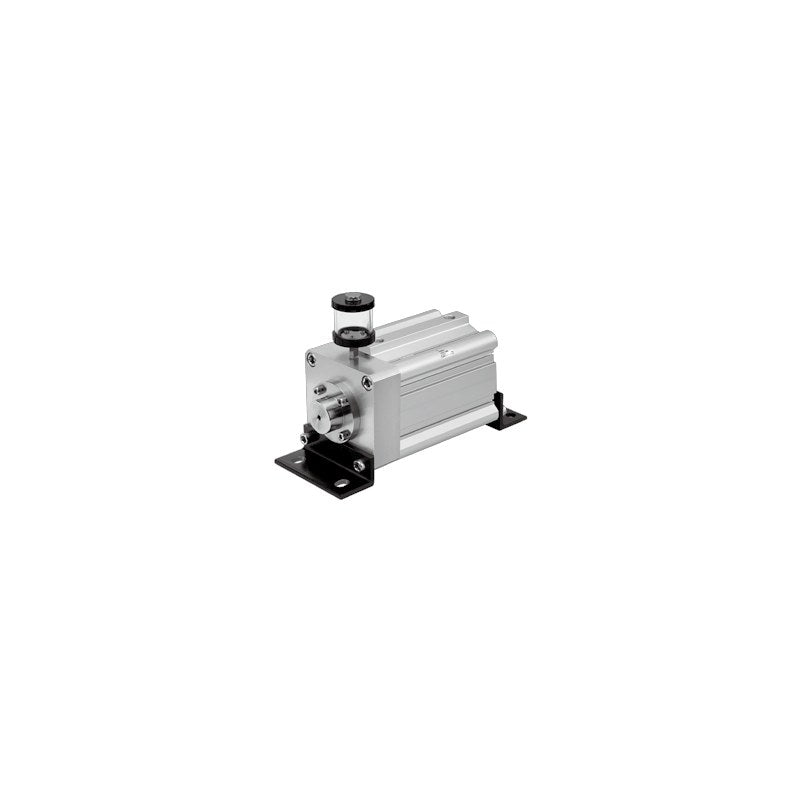

SMC CQ2 Air-Hydro Booster (Intensification Ratio 1:7 to 1:32.6)

SMC CQ2 Air-Hydro Booster (Intensification Ratio 1:7 to 1:32.6)

SMC CQ2-based air-hydro booster (made-to-order) that converts 0.5 MPa shop air into 3.5 to 14 MPa hydraulic pressure to drive high-pressure hydraulic cylinders without a pump.

Key features

  • Generates 3.5 to 14 MPa hydraulic pressure from 0.5 MPa air; no hydraulic pump required
  • Hydraulic output adjusted steplessly with an air regulator; no temperature rise trouble under continuous pressurization
  • Direct-pressure or pre-pressure (with CCT air-hydro converter) operation for lifting, automatic clamping and thin hydraulic cylinder drives
  • Seven catalog models with intensification ratios 1:7 to 1:32.6 and discharge volumes 17 to 105 cm3
  • Air ports 2 x Rc3/8; intensified oil outlet Rc1/2 or Rc1; wall or horizontal mounting

Specifications

Fluid Air (pneumatic side), turbine oil ISO VG32 (hydraulic side)
Ambient and fluid temperature 5 to 60°C
Air ports 2 x Rc3/8
Intensified oil outlet Rc1/2 (Rc1 on CDQ2LH160-105Z)
Base cylinder SMC CQ2 compact cylinder (air-hydro type)
Supply Made-to-order product; other specifications on request
Source SMC Korea catalog Air-hydro booster (SMCKR_CQ2_airhydrobooster.pdf), p. 425-427 (PDF p. 1-3)
CQ2LH160-17Z-DCN640HN Air cylinder bore: ø160 mm | Intensification ratio: 1:7 | Discharge: 17 cm3 | Max. air pressure: 1.0 MPa | Output (air 0.5 MPa): 3.5 MPa | Oil pot: Yes
CQ2LH160-101Z-DCP8253P Air cylinder bore: ø160 mm | Intensification ratio: 1:10 | Discharge: 101 cm3 | Max. air pressure: 1.0 MPa | Output (air 0.5 MPa): 5.0 MPa | Oil pot: Yes
CQ2LH100-60Z-DCN5997N Air cylinder bore: ø100 mm | Intensification ratio: 1:13 | Discharge: 60 cm3 | Max. air pressure: 1.0 MPa | Output (air 0.5 MPa): 6.5 MPa | Oil pot: Yes
CQ2LH140-17Z-DCQ223CQ Air cylinder bore: ø140 mm | Intensification ratio: 1:15 | Discharge: 17 cm3 | Max. air pressure: 1.0 MPa | Output (air 0.5 MPa): 7.5 MPa | Oil pot: Yes
CDQ2FH100-60Z-DCQ9625Q Air cylinder bore: ø100 mm | Intensification ratio: 1:16 | Discharge: 60 cm3 | Max. air pressure: 0.87 MPa | Output (air 0.5 MPa): 8.0 MPa | Oil pot: No
CQ2LH160-20Z-DCQ236FQ Air cylinder bore: ø160 mm | Intensification ratio: 1:32.6 | Discharge: 20 cm3 | Max. air pressure: 0.43 MPa | Output (air 0.5 MPa): 14 MPa | Oil pot: Yes
CDQ2LH160-105Z-DCP8230P Air cylinder bore: ø160 mm | Intensification ratio: 1:25 | Discharge: 105 cm3 | Max. air pressure: 0.56 MPa | Output (air 0.5 MPa): 12.5 MPa | Oil pot: No
