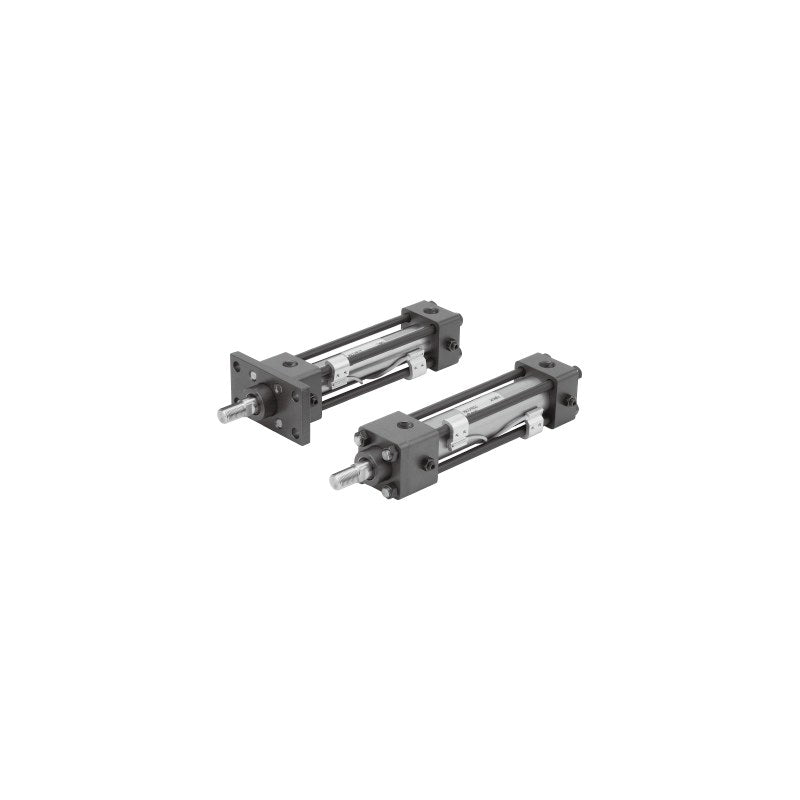

SMC CH2H JIS Hydraulic Cylinder (14 MPa, ø32 to ø100)

SMC CH2H series JIS-compliant hydraulic cylinder with stainless steel tube, 14 MPa nominal, double acting single rod, ø32 to ø100 mm, with or without a built-in auto switch magnet (CHD2H).

Key features

JIS-compliant tie-rod hydraulic cylinder with stainless steel tube, 14 MPa nominal pressure
Mounting: basic (B), axial-perpendicular foot (LA), rod rectangular flange (FY), head rectangular flange (FZ), rod square flange (FC), head square flange (FD), single clevis (CA), double clevis (CB), center trunnion (TC)
Rod size series B listed (C series rod for ø40 to ø100 as order symbol); cushion at both ends standard (N/R/H options)
Options as order symbols: rod end nut (A), nylon tarpaulin (J) or heat-resistant tarpaulin (K) bellows, port and cushion valve position (A to H)
Built-in magnet models (CHD2H) accept tie-rod or band mounted D-M9/D-F5/D-G5/D-A5 series auto switches, ordered as a suffix
Made-to-order: rod end change (-XA), trunnion position change (-XC14), short stroke 5 to 24 mm (-X2967)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	14 MPa
Proof pressure	21 MPa
Max. allowable pressure	18 MPa (head), 18 MPa (rod, B rod)
Min. operating pressure	0.15 MPa (head side), 0.2 MPa (rod side)
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes, both ends
Tube material	Stainless steel
Rod size series	B (listed); C on order (ø40 to ø100)
Standard stroke range	25 to 1400 (ø32 to ø50), 25 to 1500 (ø63), 25 to 1800 mm (ø80/ø100)
Source	SMC Korea catalog CH2E/CH2F/CH2G/CH2H (SMCKR_CH2E_CH2F_CH2G_CH2H.pdf), p. 358-359 (PDF p. 2-3)

CH2HB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HLA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HLA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HLA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HLA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HLA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HLA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HLA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HLA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HLA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HLA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HLA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HLA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HLA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HLA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HLA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HLA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HLA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HLA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HLA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HLA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HLA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HLA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HLA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HLA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HLA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HLA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HLA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HLA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HLA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HLA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HLA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HLA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HLA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HLA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HLA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HLA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HLA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HLA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HLA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HLA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HLA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HLA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HLA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HLA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HLA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HLA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HLA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HLA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HLA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HLA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HLA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HLA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HLA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HLA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HLA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HLA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HLA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HLA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HLA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HLA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFY32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFY32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFY32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFY32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFY32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFY32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFY32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFY32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFY32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFY32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFY40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFY40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFY40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFY40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFY40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFY40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFY40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFY40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFY40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFY40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFY50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFY50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFY50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFY50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFY50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFY50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFY50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFY50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFY50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFY50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFY63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFY63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFY63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFY63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFY63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFY63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFY63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFY63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFY63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFY63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFY80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFY80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFY80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFY80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFY80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFY80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFY80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFY80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFY80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFY80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFY100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFY100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFY100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFY100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFY100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFY100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFY100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFY100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFY100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFY100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFZ32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFZ32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFZ32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFZ32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFZ32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFZ32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFZ32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFZ32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFZ32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFZ32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFZ40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFZ40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFZ40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFZ40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFZ40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFZ40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFZ40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFZ40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFZ40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFZ40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFZ50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFZ50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFZ50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFZ50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFZ50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFZ50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFZ50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFZ50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFZ50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFZ50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFZ63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFZ63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFZ63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFZ63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFZ63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFZ63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFZ63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFZ63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFZ63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFZ63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFZ80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFZ80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFZ80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFZ80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFZ80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFZ80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFZ80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFZ80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFZ80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFZ80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFZ100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFZ100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFZ100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFZ100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFZ100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFZ100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFZ100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFZ100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFZ100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFZ100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HCB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HCB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HCB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HCB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HCB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HCB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HCB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HCB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HCB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HCB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HTC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HTC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HTC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HTC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HTC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HTC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HTC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HTC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HTC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HTC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HTC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HTC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HTC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HTC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HTC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HTC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HTC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HTC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HTC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HTC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HTC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HTC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HTC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HTC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HTC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HTC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HTC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HTC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HTC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HTC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HTC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HTC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HTC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HTC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HTC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HTC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HTC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HTC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HTC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HTC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HTC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HTC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HTC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HTC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HTC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HTC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HTC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HTC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HTC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HTC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2HTC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2HTC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2HTC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2HTC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2HTC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2HTC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2HTC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2HTC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2HTC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2HTC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHD2HB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HLA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HLA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HLA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HLA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HLA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HLA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HLA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HLA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HLA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HLA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HLA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HLA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HLA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HLA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HLA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HLA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HLA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HLA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HLA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HLA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HLA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HLA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HLA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HLA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HLA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HLA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HLA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HLA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HLA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HLA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HLA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HLA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HLA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HLA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HLA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HLA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HLA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HLA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HLA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HLA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HLA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HLA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HLA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HLA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HLA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HLA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HLA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HLA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HLA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HLA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HLA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HLA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HLA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HLA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HLA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HLA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HLA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HLA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HLA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HLA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFY32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFY32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFY32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFY32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFY32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFY32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFY32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFY32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFY32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFY32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFY40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFY40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFY40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFY40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFY40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFY40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFY40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFY40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFY40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFY40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFY50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFY50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFY50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFY50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFY50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFY50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFY50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFY50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFY50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFY50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFY63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFY63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFY63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFY63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFY63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFY63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFY63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFY63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFY63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFY63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFY80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFY80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFY80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFY80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFY80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFY80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFY80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFY80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFY80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFY80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFY100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFY100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFY100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFY100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFY100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFY100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFY100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFY100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFY100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFY100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFZ32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFZ32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFZ32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFZ32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFZ32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFZ32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFZ32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFZ32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFZ32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFZ32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFZ40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFZ40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFZ40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFZ40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFZ40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFZ40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFZ40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFZ40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFZ40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFZ40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFZ50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFZ50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFZ50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFZ50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFZ50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFZ50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFZ50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFZ50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFZ50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFZ50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFZ63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFZ63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFZ63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFZ63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFZ63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFZ63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFZ63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFZ63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFZ63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFZ63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFZ80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFZ80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFZ80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFZ80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFZ80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFZ80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFZ80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFZ80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFZ80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFZ80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFZ100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFZ100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFZ100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFZ100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFZ100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFZ100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFZ100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFZ100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFZ100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFZ100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HCB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HCB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HCB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HCB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HCB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HCB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HCB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HCB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HCB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HCB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HTC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HTC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HTC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HTC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HTC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HTC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HTC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HTC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HTC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HTC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HTC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HTC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HTC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HTC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HTC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HTC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HTC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HTC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HTC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HTC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HTC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HTC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HTC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HTC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HTC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HTC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HTC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HTC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HTC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HTC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HTC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HTC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HTC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HTC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HTC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HTC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HTC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HTC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HTC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HTC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HTC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HTC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HTC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HTC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HTC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HTC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HTC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HTC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HTC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HTC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2HTC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2HTC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2HTC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2HTC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2HTC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2HTC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2HTC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2HTC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2HTC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2HTC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

1080 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CH2H JIS Hydraulic Cylinder (14 MPa, ø32 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (1080)

CH2HB32B-25, CH2HB32B-50, CH2HB32B-75, CH2HB32B-100, CH2HB32B-150, CH2HB32B-200, CH2HB32B-250, CH2HB32B-300, CH2HB32B-400, CH2HB32B-500 + 1070 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CH2HB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HLA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HLA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HLA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HLA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HLA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HLA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HLA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HLA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HLA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HLA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HLA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HLA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HLA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HLA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HLA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HLA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HLA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HLA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HLA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HLA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HLA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HLA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HLA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HLA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HLA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HLA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HLA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HLA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HLA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HLA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HLA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HLA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HLA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HLA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HLA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HLA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HLA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HLA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HLA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HLA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HLA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HLA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HLA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HLA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HLA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HLA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HLA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HLA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HLA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HLA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HLA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HLA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HLA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HLA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HLA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HLA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HLA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HLA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HLA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HLA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFY32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFY32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFY32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFY32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFY32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFY32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFY32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFY32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFY32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFY32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFY40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFY40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFY40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFY40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFY40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFY40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFY40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFY40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFY40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFY40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFY50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFY50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFY50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFY50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFY50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFY50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFY50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFY50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFY50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFY50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFY63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFY63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFY63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFY63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFY63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFY63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFY63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFY63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFY63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFY63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFY80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFY80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFY80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFY80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFY80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFY80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFY80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFY80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFY80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFY80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFY100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFY100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFY100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFY100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFY100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFY100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFY100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFY100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFY100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFY100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFZ32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFZ32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFZ32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFZ32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFZ32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFZ32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFZ32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFZ32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFZ32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFZ32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFZ40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFZ40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFZ40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFZ40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFZ40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFZ40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFZ40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFZ40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFZ40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFZ40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFZ50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFZ50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFZ50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFZ50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFZ50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFZ50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFZ50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFZ50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFZ50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFZ50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFZ63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFZ63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFZ63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFZ63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFZ63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFZ63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFZ63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFZ63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFZ63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFZ63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFZ80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFZ80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFZ80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFZ80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFZ80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFZ80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFZ80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFZ80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFZ80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFZ80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFZ100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFZ100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFZ100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFZ100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFZ100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFZ100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFZ100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFZ100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFZ100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFZ100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HCB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HCB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HCB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HCB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HCB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HCB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HCB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HCB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HCB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HCB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HTC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HTC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HTC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HTC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HTC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HTC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HTC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HTC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HTC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HTC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HTC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HTC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HTC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HTC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HTC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HTC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HTC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HTC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HTC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HTC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HTC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HTC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HTC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HTC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HTC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HTC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HTC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HTC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HTC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HTC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HTC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HTC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HTC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HTC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HTC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HTC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HTC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HTC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HTC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HTC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HTC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HTC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HTC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HTC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HTC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HTC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HTC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HTC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HTC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HTC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2HTC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2HTC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2HTC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2HTC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2HTC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2HTC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2HTC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2HTC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2HTC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2HTC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHD2HB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HLA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HLA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HLA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HLA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HLA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HLA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HLA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HLA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HLA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HLA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HLA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HLA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HLA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HLA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HLA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HLA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HLA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HLA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HLA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HLA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HLA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HLA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HLA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HLA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HLA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HLA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HLA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HLA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HLA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HLA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HLA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HLA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HLA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HLA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HLA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HLA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HLA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HLA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HLA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HLA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HLA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HLA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HLA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HLA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HLA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HLA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HLA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HLA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HLA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HLA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HLA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HLA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HLA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HLA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HLA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HLA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HLA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HLA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HLA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HLA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFY32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFY32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFY32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFY32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFY32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFY32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFY32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFY32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFY32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFY32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFY40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFY40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFY40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFY40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFY40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFY40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFY40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFY40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFY40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFY40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFY50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFY50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFY50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFY50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFY50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFY50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFY50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFY50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFY50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFY50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFY63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFY63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFY63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFY63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFY63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFY63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFY63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFY63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFY63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFY63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFY80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFY80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFY80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFY80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFY80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFY80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFY80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFY80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFY80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFY80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFY100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFY100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFY100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFY100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFY100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFY100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFY100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFY100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFY100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFY100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFZ32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFZ40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFZ50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFZ63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFZ80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFZ100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HCB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HCB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HCB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HCB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HCB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HCB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HCB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HCB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HCB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HCB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HTC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HTC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HTC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HTC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HTC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HTC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HTC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HTC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HTC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HTC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HTC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HTC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HTC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HTC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HTC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HTC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HTC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HTC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HTC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HTC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HTC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HTC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HTC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HTC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HTC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HTC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HTC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HTC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HTC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HTC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HTC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HTC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HTC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HTC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HTC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HTC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HTC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HTC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HTC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HTC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HTC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HTC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HTC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HTC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HTC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HTC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HTC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HTC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HTC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HTC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2HTC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2HTC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2HTC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2HTC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2HTC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2HTC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2HTC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2HTC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2HTC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2HTC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CH2H JIS Hydraulic Cylinder (14 MPa, ø32 to ø100)
