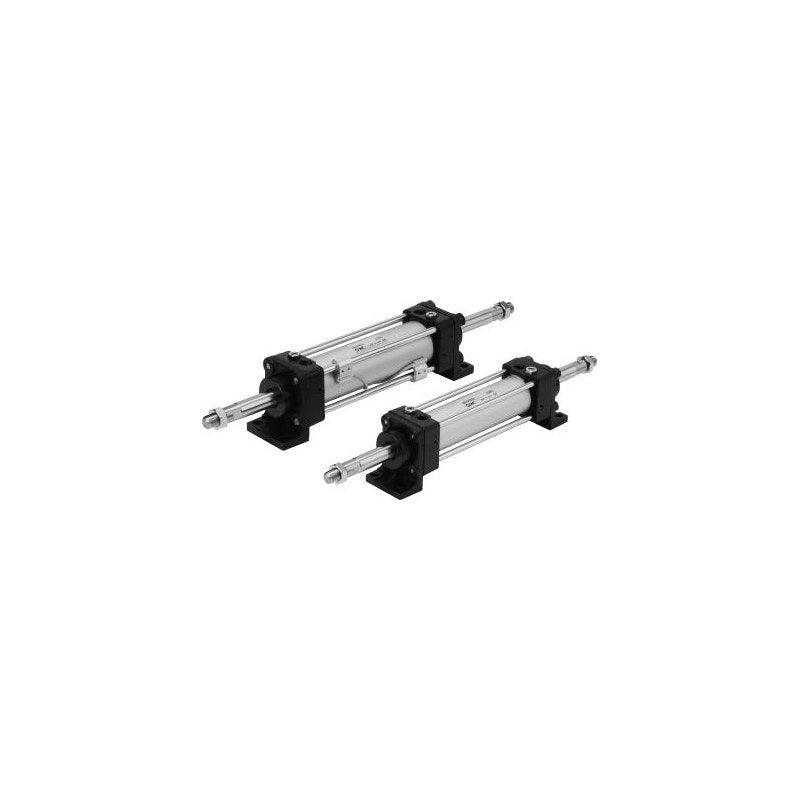

SMC CHAW Tie-Rod Hydraulic Cylinder (Double Rod, 3.5 MPa, ø40 to ø160)

SMC CHAW series double rod tie-rod hydraulic cylinder, 3.5 MPa nominal, aluminum tube ø40 to ø100 or steel tube ø40 to ø160 mm, with or without a built-in auto switch magnet (CHDAW).

Key features

Double acting, double rod tie-rod hydraulic cylinder with aluminum alloy tube (CHAW) or steel tube (CHAFW)
Five mounting styles: basic, axial foot, rod flange, center trunnion and rod trunnion
Cushion at both ends standard; no cushion (N), rod-end (R) or head-end (H) as order symbols
Built-in magnet models (CHDAW, aluminum tube) accept tie-rod or band mounted auto switches, ordered as a suffix
Knuckle, Y-knuckle and knuckle pin available as options

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	3.5 MPa
Proof pressure	5.0 MPa
Max. allowable pressure	3.5 MPa
Min. operating pressure	0.25 MPa
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes, both ends (N/R/H options)
Tube material	Aluminum alloy ø40 to ø100; steel (F) ø40 to ø160
Auto switch	Magnet versions aluminum tube only (ø40 to ø100)
Standard stroke range	25 to 800 (ø40 to ø63), 25 to 1000 (ø80/ø100), 50 to 1000 (ø125), 50 to 1200 mm (ø160)
Source	SMC Korea catalog CHA series (SMCKR_CHA.pdf), p. 416-417 (PDF p. 22-23)

CHAWB40-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWB40-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWB40-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWB40-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWB40-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWB40-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWB40-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWB40-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWB40-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWB40-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWB50-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWB50-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWB50-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWB50-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWB50-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWB50-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWB50-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWB50-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWB50-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWB50-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWB63-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWB63-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWB63-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWB63-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWB63-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWB63-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWB63-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWB63-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWB63-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWB63-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWB80-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWB80-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWB80-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWB80-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWB80-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWB80-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWB80-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWB80-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWB80-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWB80-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWB100-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWB100-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWB100-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWB100-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWB100-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWB100-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWB100-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWB100-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWB100-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWB100-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWL40-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWL40-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWL40-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWL40-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWL40-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWL40-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWL40-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWL40-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWL40-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWL40-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWL50-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWL50-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWL50-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWL50-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWL50-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWL50-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWL50-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWL50-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWL50-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWL50-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWL63-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWL63-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWL63-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWL63-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWL63-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWL63-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWL63-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWL63-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWL63-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWL63-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWL80-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWL80-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWL80-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWL80-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWL80-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWL80-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWL80-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWL80-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWL80-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWL80-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWL100-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWL100-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWL100-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWL100-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWL100-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWL100-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWL100-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWL100-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWL100-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWL100-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWF40-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWF40-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWF40-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWF40-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWF40-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWF40-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWF40-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWF40-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWF40-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWF40-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWF50-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWF50-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWF50-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWF50-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWF50-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWF50-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWF50-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWF50-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWF50-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWF50-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWF63-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWF63-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWF63-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWF63-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWF63-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWF63-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWF63-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWF63-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWF63-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWF63-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWF80-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWF80-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWF80-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWF80-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWF80-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWF80-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWF80-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWF80-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWF80-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWF80-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWF100-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWF100-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWF100-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWF100-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWF100-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWF100-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWF100-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWF100-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWF100-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWF100-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWT40-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWT40-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWT40-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWT40-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWT40-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWT40-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWT40-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWT40-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWT40-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWT40-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWT50-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWT50-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWT50-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWT50-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWT50-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWT50-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWT50-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWT50-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWT50-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWT50-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWT63-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWT63-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWT63-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWT63-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWT63-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWT63-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWT63-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWT63-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWT63-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWT63-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWT80-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWT80-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWT80-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWT80-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWT80-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWT80-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWT80-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWT80-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWT80-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWT80-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWT100-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWT100-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWT100-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWT100-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWT100-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWT100-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWT100-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWT100-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWT100-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWT100-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWU40-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWU40-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWU40-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWU40-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWU40-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWU40-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWU40-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWU40-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWU40-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWU40-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWU50-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWU50-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWU50-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWU50-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWU50-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWU50-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWU50-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWU50-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWU50-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWU50-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWU63-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWU63-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWU63-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWU63-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWU63-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWU63-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWU63-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWU63-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWU63-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWU63-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWU80-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWU80-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWU80-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWU80-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWU80-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWU80-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWU80-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWU80-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWU80-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWU80-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWU100-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWU100-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWU100-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWU100-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWU100-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWU100-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWU100-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWU100-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWU100-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWU100-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHDAWB40-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWB40-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWB40-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWB40-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWB40-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWB40-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWB40-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWB40-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWB40-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWB40-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWB50-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWB50-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWB50-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWB50-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWB50-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWB50-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWB50-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWB50-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWB50-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWB50-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWB63-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWB63-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWB63-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWB63-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWB63-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWB63-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWB63-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWB63-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWB63-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWB63-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWB80-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWB80-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWB80-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWB80-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWB80-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWB80-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWB80-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWB80-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWB80-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWB80-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWB100-25		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWB100-50		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWB100-75		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWB100-100		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWB100-150		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWB100-200		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWB100-250		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWB100-300		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWB100-400		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWB100-500		Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWL40-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWL40-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWL40-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWL40-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWL40-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWL40-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWL40-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWL40-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWL40-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWL40-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWL50-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWL50-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWL50-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWL50-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWL50-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWL50-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWL50-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWL50-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWL50-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWL50-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWL63-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWL63-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWL63-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWL63-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWL63-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWL63-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWL63-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWL63-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWL63-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWL63-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWL80-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWL80-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWL80-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWL80-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWL80-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWL80-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWL80-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWL80-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWL80-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWL80-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWL100-25		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWL100-50		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWL100-75		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWL100-100		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWL100-150		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWL100-200		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWL100-250		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWL100-300		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWL100-400		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWL100-500		Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWF40-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWF40-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWF40-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWF40-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWF40-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWF40-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWF40-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWF40-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWF40-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWF40-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWF50-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWF50-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWF50-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWF50-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWF50-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWF50-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWF50-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWF50-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWF50-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWF50-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWF63-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWF63-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWF63-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWF63-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWF63-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWF63-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWF63-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWF63-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWF63-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWF63-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWF80-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWF80-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWF80-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWF80-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWF80-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWF80-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWF80-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWF80-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWF80-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWF80-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWF100-25		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWF100-50		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWF100-75		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWF100-100		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWF100-150		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWF100-200		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWF100-250		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWF100-300		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWF100-400		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWF100-500		Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWT40-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWT40-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWT40-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWT40-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWT40-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWT40-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWT40-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWT40-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWT40-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWT40-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWT50-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWT50-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWT50-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWT50-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWT50-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWT50-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWT50-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWT50-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWT50-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWT50-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWT63-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWT63-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWT63-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWT63-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWT63-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWT63-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWT63-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWT63-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWT63-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWT63-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWT80-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWT80-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWT80-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWT80-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWT80-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWT80-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWT80-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWT80-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWT80-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWT80-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWT100-25		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWT100-50		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWT100-75		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWT100-100		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWT100-150		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWT100-200		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWT100-250		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWT100-300		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWT100-400		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWT100-500		Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWU40-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWU40-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWU40-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWU40-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWU40-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWU40-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWU40-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWU40-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWU40-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWU40-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWU50-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWU50-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWU50-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWU50-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWU50-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWU50-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWU50-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWU50-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWU50-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWU50-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWU63-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWU63-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWU63-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWU63-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWU63-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWU63-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWU63-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWU63-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWU63-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWU63-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWU80-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWU80-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWU80-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWU80-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWU80-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWU80-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWU80-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWU80-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWU80-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWU80-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHDAWU100-25		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHDAWU100-50		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHDAWU100-75		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHDAWU100-100		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHDAWU100-150		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHDAWU100-200		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHDAWU100-250		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHDAWU100-300		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHDAWU100-400		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHDAWU100-500		Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHAWBF40-25		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWBF40-50		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF40-75		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF40-100		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF40-150		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF40-200		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF40-250		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF40-300		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF40-400		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF40-500		Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWBF50-25		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWBF50-50		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF50-75		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF50-100		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF50-150		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF50-200		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF50-250		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF50-300		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF50-400		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF50-500		Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWBF63-25		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWBF63-50		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF63-75		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF63-100		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF63-150		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF63-200		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF63-250		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF63-300		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF63-400		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF63-500		Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWBF80-25		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWBF80-50		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF80-75		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF80-100		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF80-150		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF80-200		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF80-250		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF80-300		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF80-400		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF80-500		Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWBF100-25		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWBF100-50		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF100-75		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF100-100		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF100-150		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF100-200		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF100-250		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF100-300		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF100-400		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF100-500		Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWBF125-50		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF125-75		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF125-100		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF125-150		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF125-200		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF125-250		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF125-300		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF125-400		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF125-500		Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWBF160-50		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWBF160-75		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWBF160-100		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWBF160-150		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWBF160-200		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWBF160-250		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWBF160-300		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWBF160-400		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWBF160-500		Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF40-25		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWLF40-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF40-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF40-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF40-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF40-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF40-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF40-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF40-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF40-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF50-25		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWLF50-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF50-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF50-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF50-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF50-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF50-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF50-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF50-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF50-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF63-25		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWLF63-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF63-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF63-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF63-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF63-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF63-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF63-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF63-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF63-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF80-25		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWLF80-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF80-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF80-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF80-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF80-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF80-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF80-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF80-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF80-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF100-25		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWLF100-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF100-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF100-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF100-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF100-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF100-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF100-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF100-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF100-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF125-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF125-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF125-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF125-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF125-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF125-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF125-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF125-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF125-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWLF160-50		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWLF160-75		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWLF160-100		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWLF160-150		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWLF160-200		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWLF160-250		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWLF160-300		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWLF160-400		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWLF160-500		Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF40-25		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWFF40-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF40-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF40-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF40-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF40-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF40-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF40-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF40-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF40-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF50-25		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWFF50-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF50-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF50-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF50-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF50-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF50-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF50-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF50-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF50-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF63-25		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWFF63-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF63-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF63-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF63-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF63-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF63-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF63-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF63-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF63-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF80-25		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWFF80-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF80-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF80-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF80-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF80-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF80-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF80-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF80-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF80-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF100-25		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWFF100-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF100-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF100-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF100-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF100-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF100-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF100-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF100-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF100-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF125-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF125-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF125-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF125-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF125-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF125-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF125-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF125-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF125-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWFF160-50		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWFF160-75		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWFF160-100		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWFF160-150		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWFF160-200		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWFF160-250		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWFF160-300		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWFF160-400		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWFF160-500		Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF40-25		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWTF40-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF40-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF40-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF40-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF40-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF40-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF40-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF40-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF40-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF50-25		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWTF50-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF50-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF50-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF50-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF50-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF50-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF50-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF50-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF50-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF63-25		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWTF63-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF63-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF63-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF63-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF63-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF63-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF63-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF63-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF63-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF80-25		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWTF80-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF80-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF80-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF80-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF80-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF80-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF80-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF80-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF80-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF100-25		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWTF100-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF100-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF100-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF100-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF100-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF100-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF100-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF100-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF100-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF125-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF125-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF125-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF125-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF125-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF125-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF125-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF125-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF125-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWTF160-50		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWTF160-75		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWTF160-100		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWTF160-150		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWTF160-200		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWTF160-250		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWTF160-300		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWTF160-400		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWTF160-500		Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF40-25		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWUF40-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF40-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF40-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF40-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF40-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF40-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF40-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF40-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF40-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF50-25		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWUF50-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF50-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF50-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF50-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF50-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF50-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF50-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF50-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF50-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF63-25		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWUF63-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF63-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF63-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF63-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF63-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF63-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF63-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF63-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF63-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF80-25		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWUF80-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF80-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF80-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF80-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF80-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF80-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF80-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF80-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF80-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF100-25		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CHAWUF100-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF100-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF100-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF100-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF100-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF100-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF100-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF100-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF100-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF125-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF125-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF125-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF125-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF125-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF125-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF125-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF125-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF125-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHAWUF160-50		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
CHAWUF160-75		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
CHAWUF160-100		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
CHAWUF160-150		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
CHAWUF160-200		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
CHAWUF160-250		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
CHAWUF160-300		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
CHAWUF160-400		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
CHAWUF160-500		Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No

Hydraulic CylindersSMC

840 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CHAW Tie-Rod Hydraulic Cylinder (Double Rod, 3.5 MPa, ø40 to ø160)

Brand SMC·Hydraulic Cylinders

Available part numbers (840)

CHAWB40-25, CHAWB40-50, CHAWB40-75, CHAWB40-100, CHAWB40-150, CHAWB40-200, CHAWB40-250, CHAWB40-300, CHAWB40-400, CHAWB40-500 + 830 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CHAWB40-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWB40-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWB40-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWB40-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWB40-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWB40-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWB40-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWB40-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWB40-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWB40-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWB50-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWB50-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWB50-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWB50-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWB50-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWB50-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWB50-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWB50-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWB50-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWB50-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWB63-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWB63-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWB63-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWB63-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWB63-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWB63-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWB63-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWB63-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWB63-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWB63-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWB80-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWB80-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWB80-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWB80-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWB80-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWB80-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWB80-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWB80-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWB80-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWB80-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWB100-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWB100-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWB100-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWB100-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWB100-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWB100-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWB100-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWB100-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWB100-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWB100-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWL40-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWL40-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWL40-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWL40-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWL40-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWL40-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWL40-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWL40-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWL40-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWL40-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWL50-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWL50-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWL50-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWL50-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWL50-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWL50-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWL50-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWL50-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWL50-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWL50-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWL63-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWL63-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWL63-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWL63-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWL63-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWL63-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWL63-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWL63-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWL63-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWL63-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWL80-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWL80-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWL80-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWL80-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWL80-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWL80-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWL80-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWL80-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWL80-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWL80-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWL100-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWL100-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWL100-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWL100-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWL100-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWL100-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWL100-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWL100-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWL100-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWL100-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWF40-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWF40-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWF40-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWF40-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWF40-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWF40-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWF40-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWF40-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWF40-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWF40-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWF50-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWF50-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWF50-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWF50-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWF50-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWF50-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWF50-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWF50-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWF50-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWF50-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWF63-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWF63-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWF63-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWF63-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWF63-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWF63-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWF63-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWF63-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWF63-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWF63-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWF80-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWF80-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWF80-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWF80-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWF80-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWF80-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWF80-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWF80-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWF80-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWF80-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWF100-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWF100-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWF100-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWF100-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWF100-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWF100-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWF100-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWF100-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWF100-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWF100-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWT40-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWT40-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWT40-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWT40-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWT40-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWT40-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWT40-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWT40-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWT40-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWT40-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWT50-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWT50-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWT50-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWT50-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWT50-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWT50-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWT50-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWT50-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWT50-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWT50-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWT63-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWT63-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWT63-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWT63-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWT63-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWT63-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWT63-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWT63-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWT63-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWT63-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWT80-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWT80-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWT80-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWT80-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWT80-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWT80-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWT80-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWT80-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWT80-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWT80-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWT100-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWT100-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWT100-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWT100-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWT100-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWT100-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWT100-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWT100-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWT100-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWT100-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWU40-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWU40-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWU40-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWU40-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWU40-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWU40-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWU40-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWU40-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWU40-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWU40-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWU50-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWU50-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWU50-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWU50-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWU50-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWU50-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWU50-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWU50-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWU50-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWU50-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWU63-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWU63-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWU63-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWU63-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWU63-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWU63-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWU63-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWU63-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWU63-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWU63-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWU80-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWU80-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWU80-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWU80-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWU80-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWU80-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWU80-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWU80-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWU80-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWU80-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWU100-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWU100-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWU100-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWU100-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWU100-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWU100-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWU100-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWU100-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWU100-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWU100-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHDAWB40-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWB40-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWB40-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWB40-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWB40-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWB40-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWB40-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWB40-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWB40-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWB40-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWB50-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWB50-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWB50-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWB50-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWB50-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWB50-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWB50-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWB50-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWB50-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWB50-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWB63-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWB63-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWB63-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWB63-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWB63-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWB63-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWB63-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWB63-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWB63-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWB63-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWB80-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWB80-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWB80-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWB80-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWB80-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWB80-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWB80-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWB80-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWB80-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWB80-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWB100-25	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWB100-50	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWB100-75	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWB100-100	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWB100-150	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWB100-200	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWB100-250	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWB100-300	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWB100-400	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWB100-500	Mounting: Basic \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWL40-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWL40-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWL40-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWL40-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWL40-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWL40-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWL40-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWL40-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWL40-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWL40-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWL50-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWL50-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWL50-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWL50-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWL50-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWL50-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWL50-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWL50-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWL50-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWL50-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWL63-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWL63-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWL63-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWL63-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWL63-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWL63-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWL63-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWL63-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWL63-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWL63-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWL80-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWL80-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWL80-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWL80-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWL80-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWL80-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWL80-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWL80-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWL80-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWL80-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWL100-25	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWL100-50	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWL100-75	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWL100-100	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWL100-150	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWL100-200	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWL100-250	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWL100-300	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWL100-400	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWL100-500	Mounting: Axial foot \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWF40-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWF40-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWF40-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWF40-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWF40-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWF40-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWF40-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWF40-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWF40-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWF40-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWF50-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWF50-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWF50-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWF50-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWF50-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWF50-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWF50-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWF50-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWF50-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWF50-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWF63-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWF63-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWF63-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWF63-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWF63-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWF63-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWF63-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWF63-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWF63-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWF63-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWF80-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWF80-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWF80-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWF80-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWF80-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWF80-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWF80-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWF80-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWF80-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWF80-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWF100-25	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWF100-50	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWF100-75	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWF100-100	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWF100-150	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWF100-200	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWF100-250	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWF100-300	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWF100-400	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWF100-500	Mounting: Rod flange \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWT40-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWT40-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWT40-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWT40-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWT40-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWT40-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWT40-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWT40-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWT40-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWT40-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWT50-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWT50-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWT50-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWT50-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWT50-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWT50-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWT50-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWT50-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWT50-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWT50-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWT63-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWT63-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWT63-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWT63-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWT63-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWT63-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWT63-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWT63-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWT63-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWT63-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWT80-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWT80-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWT80-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWT80-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWT80-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWT80-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWT80-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWT80-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWT80-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWT80-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWT100-25	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWT100-50	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWT100-75	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWT100-100	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWT100-150	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWT100-200	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWT100-250	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWT100-300	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWT100-400	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWT100-500	Mounting: Center trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWU40-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWU40-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWU40-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWU40-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWU40-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWU40-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWU40-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWU40-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWU40-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWU40-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWU50-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWU50-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWU50-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWU50-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWU50-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWU50-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWU50-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWU50-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWU50-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWU50-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWU63-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWU63-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWU63-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWU63-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWU63-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWU63-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWU63-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWU63-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWU63-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWU63-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWU80-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWU80-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWU80-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWU80-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWU80-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWU80-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWU80-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWU80-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWU80-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWU80-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHDAWU100-25	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHDAWU100-50	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHDAWU100-75	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHDAWU100-100	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHDAWU100-150	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHDAWU100-200	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHDAWU100-250	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHDAWU100-300	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHDAWU100-400	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHDAWU100-500	Mounting: Rod trunnion \| Tube: Aluminum \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHAWBF40-25	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWBF40-50	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF40-75	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF40-100	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF40-150	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF40-200	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF40-250	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF40-300	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF40-400	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF40-500	Mounting: Basic \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWBF50-25	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWBF50-50	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF50-75	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF50-100	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF50-150	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF50-200	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF50-250	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF50-300	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF50-400	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF50-500	Mounting: Basic \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWBF63-25	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWBF63-50	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF63-75	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF63-100	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF63-150	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF63-200	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF63-250	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF63-300	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF63-400	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF63-500	Mounting: Basic \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWBF80-25	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWBF80-50	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF80-75	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF80-100	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF80-150	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF80-200	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF80-250	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF80-300	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF80-400	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF80-500	Mounting: Basic \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWBF100-25	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWBF100-50	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF100-75	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF100-100	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF100-150	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF100-200	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF100-250	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF100-300	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF100-400	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF100-500	Mounting: Basic \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWBF125-50	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF125-75	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF125-100	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF125-150	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF125-200	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF125-250	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF125-300	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF125-400	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF125-500	Mounting: Basic \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWBF160-50	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWBF160-75	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWBF160-100	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWBF160-150	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWBF160-200	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWBF160-250	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWBF160-300	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWBF160-400	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWBF160-500	Mounting: Basic \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF40-25	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWLF40-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF40-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF40-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF40-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF40-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF40-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF40-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF40-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF40-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF50-25	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWLF50-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF50-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF50-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF50-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF50-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF50-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF50-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF50-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF50-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF63-25	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWLF63-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF63-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF63-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF63-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF63-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF63-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF63-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF63-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF63-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF80-25	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWLF80-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF80-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF80-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF80-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF80-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF80-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF80-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF80-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF80-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF100-25	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWLF100-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF100-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF100-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF100-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF100-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF100-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF100-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF100-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF100-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF125-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF125-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF125-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF125-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF125-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF125-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF125-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF125-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF125-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWLF160-50	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWLF160-75	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWLF160-100	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWLF160-150	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWLF160-200	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWLF160-250	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWLF160-300	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWLF160-400	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWLF160-500	Mounting: Axial foot \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF40-25	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWFF40-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF40-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF40-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF40-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF40-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF40-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF40-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF40-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF40-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF50-25	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWFF50-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF50-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF50-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF50-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF50-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF50-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF50-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF50-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF50-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF63-25	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWFF63-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF63-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF63-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF63-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF63-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF63-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF63-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF63-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF63-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF80-25	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWFF80-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF80-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF80-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF80-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF80-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF80-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF80-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF80-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF80-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF100-25	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWFF100-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF100-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF100-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF100-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF100-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF100-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF100-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF100-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF100-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF125-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF125-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF125-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF125-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF125-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF125-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF125-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF125-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF125-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWFF160-50	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWFF160-75	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWFF160-100	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWFF160-150	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWFF160-200	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWFF160-250	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWFF160-300	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWFF160-400	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWFF160-500	Mounting: Rod flange \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF40-25	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWTF40-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF40-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF40-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF40-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF40-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF40-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF40-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF40-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF40-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF50-25	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWTF50-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF50-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF50-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF50-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF50-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF50-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF50-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF50-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF50-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF63-25	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWTF63-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF63-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF63-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF63-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF63-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF63-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF63-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF63-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF63-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF80-25	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWTF80-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF80-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF80-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF80-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF80-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF80-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF80-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF80-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF80-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF100-25	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWTF100-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF100-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF100-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF100-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF100-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF100-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF100-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF100-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF100-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF125-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF125-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF125-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF125-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF125-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF125-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF125-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF125-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF125-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWTF160-50	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWTF160-75	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWTF160-100	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWTF160-150	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWTF160-200	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWTF160-250	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWTF160-300	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWTF160-400	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWTF160-500	Mounting: Center trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF40-25	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWUF40-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF40-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF40-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF40-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF40-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF40-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF40-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF40-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF40-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF50-25	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWUF50-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF50-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF50-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF50-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF50-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF50-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF50-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF50-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF50-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF63-25	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWUF63-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF63-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF63-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF63-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF63-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF63-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF63-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF63-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF63-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF80-25	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWUF80-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF80-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF80-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF80-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF80-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF80-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF80-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF80-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF80-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF100-25	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CHAWUF100-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF100-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF100-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF100-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF100-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF100-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF100-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF100-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF100-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF125-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF125-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF125-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF125-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF125-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF125-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF125-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF125-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF125-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø125 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHAWUF160-50	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CHAWUF160-75	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CHAWUF160-100	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CHAWUF160-150	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CHAWUF160-200	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CHAWUF160-250	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CHAWUF160-300	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CHAWUF160-400	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CHAWUF160-500	Mounting: Rod trunnion \| Tube: Steel \| Bore: ø160 mm \| Stroke: 500 mm \| Auto switch magnet: No

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CHAW Tie-Rod Hydraulic Cylinder (Double Rod, 3.5 MPa, ø40 to ø160)
