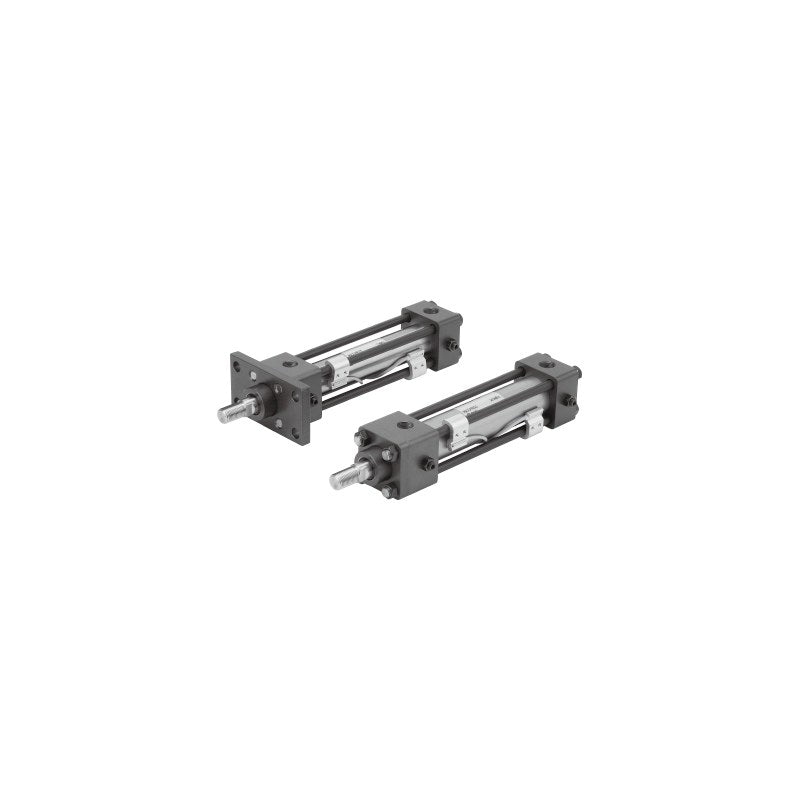

SMC CH2F JIS Hydraulic Cylinder (7 MPa, ø32 to ø100)

SMC CH2F series JIS-compliant hydraulic cylinder with stainless steel tube, 7 MPa nominal, double acting single rod, ø32 to ø100 mm, with or without a built-in auto switch magnet (CHD2F).

Key features

JIS-compliant tie-rod hydraulic cylinder with stainless steel tube, 7 MPa nominal pressure
Mounting: basic (B), axial-perpendicular foot (LA), axial foot (LB), rod rectangular flange (FA), head rectangular flange (FB), rod square flange (FC), head square flange (FD), single clevis (CA), double clevis (CB), center trunnion (TC)
Rod size series B listed (C series rod for ø40 to ø100 as order symbol); cushion at both ends standard (N/R/H options)
Options as order symbols: rod end nut (A), nylon tarpaulin (J) or heat-resistant tarpaulin (K) bellows, port and cushion valve position (A to H)
Built-in magnet models (CHD2F) accept tie-rod or band mounted D-M9/D-F5/D-G5/D-A5 series auto switches, ordered as a suffix
Made-to-order: rod end change (-XA), trunnion position change (-XC14), short stroke 5 to 24 mm (-X2967)

Specifications

Action	Double acting
Fluid	Hydraulic oil (general mineral, W/O, O/W)
Nominal pressure	7 MPa
Proof pressure	10.5 MPa
Max. allowable pressure	9 MPa (head), 13.5 MPa (rod, B rod)
Min. operating pressure	0.15 MPa (head side), 0.2 MPa (rod side)
Ambient and fluid temperature	-10 to 80°C (no switch), -10 to 60°C (with switch)
Piston speed	8 to 300 mm/s
Cushion	Yes, both ends
Tube material	Stainless steel
Rod size series	B (listed); C on order (ø40 to ø100)
Standard stroke range	25 to 1400 (ø32 to ø50), 25 to 1500 (ø63), 25 to 1800 mm (ø80/ø100)
Source	SMC Korea catalog CH2E/CH2F/CH2G/CH2H (SMCKR_CH2E_CH2F_CH2G_CH2H.pdf), p. 358-359 (PDF p. 2-3)

CH2FB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLB32B-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLB32B-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLB32B-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLB32B-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLB32B-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLB32B-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLB32B-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLB32B-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLB32B-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLB32B-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLB40B-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLB40B-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLB40B-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLB40B-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLB40B-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLB40B-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLB40B-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLB40B-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLB40B-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLB40B-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLB50B-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLB50B-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLB50B-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLB50B-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLB50B-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLB50B-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLB50B-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLB50B-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLB50B-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLB50B-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLB63B-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLB63B-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLB63B-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLB63B-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLB63B-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLB63B-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLB63B-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLB63B-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLB63B-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLB63B-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLB80B-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLB80B-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLB80B-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLB80B-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLB80B-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLB80B-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLB80B-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLB80B-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLB80B-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLB80B-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FLB100B-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FLB100B-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FLB100B-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FLB100B-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FLB100B-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FLB100B-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FLB100B-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FLB100B-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FLB100B-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FLB100B-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFA32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFA32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFA32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFA32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFA32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFA32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFA32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFA32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFA32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFA32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFA40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFA40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFA40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFA40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFA40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFA40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFA40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFA40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFA40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFA40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFA50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFA50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFA50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFA50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFA50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFA50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFA50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFA50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFA50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFA50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFA63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFA63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFA63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFA63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFA63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFA63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFA63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFA63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFA63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFA63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFA80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFA80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFA80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFA80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFA80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFA80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFA80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFA80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFA80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFA80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFA100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFA100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFA100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFA100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFA100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFA100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFA100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFA100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFA100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFA100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFB32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFB32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFB32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFB32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFB32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFB32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFB32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFB32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFB32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFB32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFB40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFB40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFB40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFB40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFB40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFB40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFB40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFB40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFB40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFB40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFB50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFB50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFB50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFB50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFB50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFB50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFB50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFB50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFB50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFB50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFB63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFB63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFB63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFB63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFB63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFB63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFB63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFB63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFB63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFB63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFB80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFB80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFB80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFB80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFB80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFB80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFB80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFB80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFB80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFB80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFB100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFB100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFB100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFB100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFB100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFB100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFB100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFB100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFB100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFB100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FCB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FCB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FCB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FCB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FCB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FCB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FCB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FCB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FCB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FCB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FTC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FTC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FTC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FTC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FTC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FTC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FTC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FTC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FTC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FTC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FTC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FTC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FTC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FTC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FTC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FTC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FTC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FTC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FTC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FTC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FTC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FTC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FTC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FTC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FTC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FTC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FTC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FTC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FTC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FTC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FTC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FTC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FTC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FTC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FTC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FTC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FTC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FTC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FTC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FTC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FTC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FTC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FTC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FTC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FTC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FTC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FTC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FTC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FTC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FTC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
CH2FTC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
CH2FTC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
CH2FTC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
CH2FTC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
CH2FTC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
CH2FTC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
CH2FTC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
CH2FTC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
CH2FTC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
CH2FTC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
CHD2FB32B-25		Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FB32B-50		Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FB32B-75		Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FB32B-100		Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FB32B-150		Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FB32B-200		Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FB32B-250		Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FB32B-300		Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FB32B-400		Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FB32B-500		Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FB40B-25		Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FB40B-50		Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FB40B-75		Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FB40B-100		Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FB40B-150		Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FB40B-200		Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FB40B-250		Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FB40B-300		Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FB40B-400		Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FB40B-500		Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FB50B-25		Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FB50B-50		Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FB50B-75		Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FB50B-100		Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FB50B-150		Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FB50B-200		Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FB50B-250		Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FB50B-300		Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FB50B-400		Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FB50B-500		Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FB63B-25		Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FB63B-50		Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FB63B-75		Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FB63B-100		Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FB63B-150		Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FB63B-200		Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FB63B-250		Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FB63B-300		Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FB63B-400		Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FB63B-500		Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FB80B-25		Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FB80B-50		Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FB80B-75		Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FB80B-100		Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FB80B-150		Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FB80B-200		Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FB80B-250		Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FB80B-300		Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FB80B-400		Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FB80B-500		Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FB100B-25		Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FB100B-50		Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FB100B-75		Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FB100B-100		Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FB100B-150		Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FB100B-200		Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FB100B-250		Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FB100B-300		Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FB100B-400		Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FB100B-500		Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLA32B-25		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLA32B-50		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLA32B-75		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLA32B-100		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLA32B-150		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLA32B-200		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLA32B-250		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLA32B-300		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLA32B-400		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLA32B-500		Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLA40B-25		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLA40B-50		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLA40B-75		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLA40B-100		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLA40B-150		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLA40B-200		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLA40B-250		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLA40B-300		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLA40B-400		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLA40B-500		Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLA50B-25		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLA50B-50		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLA50B-75		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLA50B-100		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLA50B-150		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLA50B-200		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLA50B-250		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLA50B-300		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLA50B-400		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLA50B-500		Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLA63B-25		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLA63B-50		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLA63B-75		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLA63B-100		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLA63B-150		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLA63B-200		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLA63B-250		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLA63B-300		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLA63B-400		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLA63B-500		Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLA80B-25		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLA80B-50		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLA80B-75		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLA80B-100		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLA80B-150		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLA80B-200		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLA80B-250		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLA80B-300		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLA80B-400		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLA80B-500		Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLA100B-25		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLA100B-50		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLA100B-75		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLA100B-100		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLA100B-150		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLA100B-200		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLA100B-250		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLA100B-300		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLA100B-400		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLA100B-500		Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLB32B-25		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLB32B-50		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLB32B-75		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLB32B-100		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLB32B-150		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLB32B-200		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLB32B-250		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLB32B-300		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLB32B-400		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLB32B-500		Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLB40B-25		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLB40B-50		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLB40B-75		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLB40B-100		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLB40B-150		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLB40B-200		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLB40B-250		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLB40B-300		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLB40B-400		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLB40B-500		Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLB50B-25		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLB50B-50		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLB50B-75		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLB50B-100		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLB50B-150		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLB50B-200		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLB50B-250		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLB50B-300		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLB50B-400		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLB50B-500		Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLB63B-25		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLB63B-50		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLB63B-75		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLB63B-100		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLB63B-150		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLB63B-200		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLB63B-250		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLB63B-300		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLB63B-400		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLB63B-500		Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLB80B-25		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLB80B-50		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLB80B-75		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLB80B-100		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLB80B-150		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLB80B-200		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLB80B-250		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLB80B-300		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLB80B-400		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLB80B-500		Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FLB100B-25		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FLB100B-50		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FLB100B-75		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FLB100B-100		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FLB100B-150		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FLB100B-200		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FLB100B-250		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FLB100B-300		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FLB100B-400		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FLB100B-500		Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFA32B-25		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFA32B-50		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFA32B-75		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFA32B-100		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFA32B-150		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFA32B-200		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFA32B-250		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFA32B-300		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFA32B-400		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFA32B-500		Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFA40B-25		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFA40B-50		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFA40B-75		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFA40B-100		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFA40B-150		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFA40B-200		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFA40B-250		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFA40B-300		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFA40B-400		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFA40B-500		Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFA50B-25		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFA50B-50		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFA50B-75		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFA50B-100		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFA50B-150		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFA50B-200		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFA50B-250		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFA50B-300		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFA50B-400		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFA50B-500		Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFA63B-25		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFA63B-50		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFA63B-75		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFA63B-100		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFA63B-150		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFA63B-200		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFA63B-250		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFA63B-300		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFA63B-400		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFA63B-500		Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFA80B-25		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFA80B-50		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFA80B-75		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFA80B-100		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFA80B-150		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFA80B-200		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFA80B-250		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFA80B-300		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFA80B-400		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFA80B-500		Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFA100B-25		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFA100B-50		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFA100B-75		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFA100B-100		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFA100B-150		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFA100B-200		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFA100B-250		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFA100B-300		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFA100B-400		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFA100B-500		Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFB32B-25		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFB32B-50		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFB32B-75		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFB32B-100		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFB32B-150		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFB32B-200		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFB32B-250		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFB32B-300		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFB32B-400		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFB32B-500		Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFB40B-25		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFB40B-50		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFB40B-75		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFB40B-100		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFB40B-150		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFB40B-200		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFB40B-250		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFB40B-300		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFB40B-400		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFB40B-500		Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFB50B-25		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFB50B-50		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFB50B-75		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFB50B-100		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFB50B-150		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFB50B-200		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFB50B-250		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFB50B-300		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFB50B-400		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFB50B-500		Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFB63B-25		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFB63B-50		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFB63B-75		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFB63B-100		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFB63B-150		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFB63B-200		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFB63B-250		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFB63B-300		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFB63B-400		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFB63B-500		Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFB80B-25		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFB80B-50		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFB80B-75		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFB80B-100		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFB80B-150		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFB80B-200		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFB80B-250		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFB80B-300		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFB80B-400		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFB80B-500		Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFB100B-25		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFB100B-50		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFB100B-75		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFB100B-100		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFB100B-150		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFB100B-200		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFB100B-250		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFB100B-300		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFB100B-400		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFB100B-500		Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFC32B-25		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFC32B-50		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFC32B-75		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFC32B-100		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFC32B-150		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFC32B-200		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFC32B-250		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFC32B-300		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFC32B-400		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFC32B-500		Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFC40B-25		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFC40B-50		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFC40B-75		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFC40B-100		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFC40B-150		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFC40B-200		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFC40B-250		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFC40B-300		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFC40B-400		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFC40B-500		Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFC50B-25		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFC50B-50		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFC50B-75		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFC50B-100		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFC50B-150		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFC50B-200		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFC50B-250		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFC50B-300		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFC50B-400		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFC50B-500		Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFC63B-25		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFC63B-50		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFC63B-75		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFC63B-100		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFC63B-150		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFC63B-200		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFC63B-250		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFC63B-300		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFC63B-400		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFC63B-500		Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFC80B-25		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFC80B-50		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFC80B-75		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFC80B-100		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFC80B-150		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFC80B-200		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFC80B-250		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFC80B-300		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFC80B-400		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFC80B-500		Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFC100B-25		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFC100B-50		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFC100B-75		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFC100B-100		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFC100B-150		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFC100B-200		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFC100B-250		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFC100B-300		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFC100B-400		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFC100B-500		Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFD32B-25		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFD32B-50		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFD32B-75		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFD32B-100		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFD32B-150		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFD32B-200		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFD32B-250		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFD32B-300		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFD32B-400		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFD32B-500		Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFD40B-25		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFD40B-50		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFD40B-75		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFD40B-100		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFD40B-150		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFD40B-200		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFD40B-250		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFD40B-300		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFD40B-400		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFD40B-500		Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFD50B-25		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFD50B-50		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFD50B-75		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFD50B-100		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFD50B-150		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFD50B-200		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFD50B-250		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFD50B-300		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFD50B-400		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFD50B-500		Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFD63B-25		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFD63B-50		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFD63B-75		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFD63B-100		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFD63B-150		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFD63B-200		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFD63B-250		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFD63B-300		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFD63B-400		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFD63B-500		Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFD80B-25		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFD80B-50		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFD80B-75		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFD80B-100		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFD80B-150		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFD80B-200		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFD80B-250		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFD80B-300		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFD80B-400		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFD80B-500		Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FFD100B-25		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FFD100B-50		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FFD100B-75		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FFD100B-100		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FFD100B-150		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FFD100B-200		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FFD100B-250		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FFD100B-300		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FFD100B-400		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FFD100B-500		Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCA32B-25		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCA32B-50		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCA32B-75		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCA32B-100		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCA32B-150		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCA32B-200		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCA32B-250		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCA32B-300		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCA32B-400		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCA32B-500		Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCA40B-25		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCA40B-50		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCA40B-75		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCA40B-100		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCA40B-150		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCA40B-200		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCA40B-250		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCA40B-300		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCA40B-400		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCA40B-500		Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCA50B-25		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCA50B-50		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCA50B-75		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCA50B-100		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCA50B-150		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCA50B-200		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCA50B-250		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCA50B-300		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCA50B-400		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCA50B-500		Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCA63B-25		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCA63B-50		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCA63B-75		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCA63B-100		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCA63B-150		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCA63B-200		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCA63B-250		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCA63B-300		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCA63B-400		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCA63B-500		Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCA80B-25		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCA80B-50		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCA80B-75		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCA80B-100		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCA80B-150		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCA80B-200		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCA80B-250		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCA80B-300		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCA80B-400		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCA80B-500		Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCA100B-25		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCA100B-50		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCA100B-75		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCA100B-100		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCA100B-150		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCA100B-200		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCA100B-250		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCA100B-300		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCA100B-400		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCA100B-500		Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCB32B-25		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCB32B-50		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCB32B-75		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCB32B-100		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCB32B-150		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCB32B-200		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCB32B-250		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCB32B-300		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCB32B-400		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCB32B-500		Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCB40B-25		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCB40B-50		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCB40B-75		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCB40B-100		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCB40B-150		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCB40B-200		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCB40B-250		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCB40B-300		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCB40B-400		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCB40B-500		Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCB50B-25		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCB50B-50		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCB50B-75		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCB50B-100		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCB50B-150		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCB50B-200		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCB50B-250		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCB50B-300		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCB50B-400		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCB50B-500		Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCB63B-25		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCB63B-50		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCB63B-75		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCB63B-100		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCB63B-150		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCB63B-200		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCB63B-250		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCB63B-300		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCB63B-400		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCB63B-500		Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCB80B-25		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCB80B-50		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCB80B-75		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCB80B-100		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCB80B-150		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCB80B-200		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCB80B-250		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCB80B-300		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCB80B-400		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCB80B-500		Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FCB100B-25		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FCB100B-50		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FCB100B-75		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FCB100B-100		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FCB100B-150		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FCB100B-200		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FCB100B-250		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FCB100B-300		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FCB100B-400		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FCB100B-500		Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FTC32B-25		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FTC32B-50		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FTC32B-75		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FTC32B-100		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FTC32B-150		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FTC32B-200		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FTC32B-250		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FTC32B-300		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FTC32B-400		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FTC32B-500		Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FTC40B-25		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FTC40B-50		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FTC40B-75		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FTC40B-100		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FTC40B-150		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FTC40B-200		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FTC40B-250		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FTC40B-300		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FTC40B-400		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FTC40B-500		Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FTC50B-25		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FTC50B-50		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FTC50B-75		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FTC50B-100		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FTC50B-150		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FTC50B-200		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FTC50B-250		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FTC50B-300		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FTC50B-400		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FTC50B-500		Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FTC63B-25		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FTC63B-50		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FTC63B-75		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FTC63B-100		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FTC63B-150		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FTC63B-200		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FTC63B-250		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FTC63B-300		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FTC63B-400		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FTC63B-500		Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FTC80B-25		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FTC80B-50		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FTC80B-75		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FTC80B-100		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FTC80B-150		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FTC80B-200		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FTC80B-250		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FTC80B-300		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FTC80B-400		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FTC80B-500		Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
CHD2FTC100B-25		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
CHD2FTC100B-50		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
CHD2FTC100B-75		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
CHD2FTC100B-100		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
CHD2FTC100B-150		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
CHD2FTC100B-200		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
CHD2FTC100B-250		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
CHD2FTC100B-300		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
CHD2FTC100B-400		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
CHD2FTC100B-500		Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Hydraulic CylindersSMC

1200 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC CH2F JIS Hydraulic Cylinder (7 MPa, ø32 to ø100)

Brand SMC·Hydraulic Cylinders

Available part numbers (1200)

CH2FB32B-25, CH2FB32B-50, CH2FB32B-75, CH2FB32B-100, CH2FB32B-150, CH2FB32B-200, CH2FB32B-250, CH2FB32B-300, CH2FB32B-400, CH2FB32B-500 + 1190 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	CH2FB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLB32B-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLB32B-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLB32B-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLB32B-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLB32B-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLB32B-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLB32B-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLB32B-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLB32B-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLB32B-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLB40B-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLB40B-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLB40B-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLB40B-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLB40B-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLB40B-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLB40B-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLB40B-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLB40B-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLB40B-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLB50B-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLB50B-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLB50B-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLB50B-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLB50B-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLB50B-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLB50B-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLB50B-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLB50B-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLB50B-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLB63B-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLB63B-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLB63B-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLB63B-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLB63B-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLB63B-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLB63B-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLB63B-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLB63B-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLB63B-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLB80B-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLB80B-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLB80B-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLB80B-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLB80B-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLB80B-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLB80B-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLB80B-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLB80B-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLB80B-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FLB100B-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FLB100B-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FLB100B-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FLB100B-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FLB100B-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FLB100B-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FLB100B-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FLB100B-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FLB100B-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FLB100B-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFA32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFA32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFA32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFA32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFA32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFA32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFA32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFA32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFA32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFA32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFA40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFA40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFA40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFA40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFA40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFA40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFA40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFA40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFA40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFA40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFA50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFA50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFA50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFA50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFA50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFA50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFA50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFA50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFA50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFA50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFA63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFA63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFA63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFA63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFA63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFA63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFA63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFA63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFA63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFA63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFA80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFA80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFA80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFA80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFA80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFA80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFA80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFA80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFA80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFA80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFA100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFA100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFA100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFA100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFA100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFA100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFA100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFA100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFA100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFA100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFB32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFB32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFB32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFB32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFB32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFB32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFB32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFB32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFB32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFB32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFB40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFB40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFB40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFB40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFB40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFB40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFB40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFB40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFB40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFB40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFB50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFB50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFB50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFB50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFB50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFB50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFB50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFB50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFB50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFB50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFB63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFB63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFB63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFB63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFB63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFB63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFB63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFB63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFB63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFB63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFB80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFB80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFB80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFB80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFB80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFB80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFB80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFB80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFB80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFB80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFB100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFB100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFB100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFB100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFB100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFB100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFB100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFB100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFB100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFB100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FCB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FCB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FCB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FCB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FCB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FCB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FCB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FCB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FCB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FCB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FTC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FTC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FTC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FTC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FTC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FTC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FTC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FTC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FTC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FTC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FTC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FTC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FTC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FTC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FTC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FTC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FTC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FTC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FTC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FTC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FTC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FTC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FTC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FTC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FTC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FTC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FTC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FTC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FTC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FTC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FTC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FTC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FTC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FTC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FTC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FTC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FTC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FTC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FTC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FTC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FTC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FTC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FTC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FTC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FTC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FTC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FTC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FTC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FTC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FTC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CH2FTC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: No
	CH2FTC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: No
	CH2FTC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: No
	CH2FTC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: No
	CH2FTC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: No
	CH2FTC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: No
	CH2FTC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: No
	CH2FTC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: No
	CH2FTC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: No
	CH2FTC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: No
	CHD2FB32B-25	Mounting: Basic \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FB32B-50	Mounting: Basic \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FB32B-75	Mounting: Basic \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FB32B-100	Mounting: Basic \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FB32B-150	Mounting: Basic \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FB32B-200	Mounting: Basic \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FB32B-250	Mounting: Basic \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FB32B-300	Mounting: Basic \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FB32B-400	Mounting: Basic \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FB32B-500	Mounting: Basic \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FB40B-25	Mounting: Basic \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FB40B-50	Mounting: Basic \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FB40B-75	Mounting: Basic \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FB40B-100	Mounting: Basic \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FB40B-150	Mounting: Basic \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FB40B-200	Mounting: Basic \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FB40B-250	Mounting: Basic \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FB40B-300	Mounting: Basic \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FB40B-400	Mounting: Basic \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FB40B-500	Mounting: Basic \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FB50B-25	Mounting: Basic \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FB50B-50	Mounting: Basic \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FB50B-75	Mounting: Basic \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FB50B-100	Mounting: Basic \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FB50B-150	Mounting: Basic \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FB50B-200	Mounting: Basic \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FB50B-250	Mounting: Basic \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FB50B-300	Mounting: Basic \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FB50B-400	Mounting: Basic \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FB50B-500	Mounting: Basic \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FB63B-25	Mounting: Basic \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FB63B-50	Mounting: Basic \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FB63B-75	Mounting: Basic \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FB63B-100	Mounting: Basic \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FB63B-150	Mounting: Basic \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FB63B-200	Mounting: Basic \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FB63B-250	Mounting: Basic \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FB63B-300	Mounting: Basic \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FB63B-400	Mounting: Basic \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FB63B-500	Mounting: Basic \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FB80B-25	Mounting: Basic \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FB80B-50	Mounting: Basic \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FB80B-75	Mounting: Basic \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FB80B-100	Mounting: Basic \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FB80B-150	Mounting: Basic \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FB80B-200	Mounting: Basic \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FB80B-250	Mounting: Basic \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FB80B-300	Mounting: Basic \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FB80B-400	Mounting: Basic \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FB80B-500	Mounting: Basic \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FB100B-25	Mounting: Basic \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FB100B-50	Mounting: Basic \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FB100B-75	Mounting: Basic \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FB100B-100	Mounting: Basic \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FB100B-150	Mounting: Basic \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FB100B-200	Mounting: Basic \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FB100B-250	Mounting: Basic \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FB100B-300	Mounting: Basic \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FB100B-400	Mounting: Basic \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FB100B-500	Mounting: Basic \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLA32B-25	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLA32B-50	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLA32B-75	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLA32B-100	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLA32B-150	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLA32B-200	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLA32B-250	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLA32B-300	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLA32B-400	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLA32B-500	Mounting: Axial-perpendicular foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLA40B-25	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLA40B-50	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLA40B-75	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLA40B-100	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLA40B-150	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLA40B-200	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLA40B-250	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLA40B-300	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLA40B-400	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLA40B-500	Mounting: Axial-perpendicular foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLA50B-25	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLA50B-50	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLA50B-75	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLA50B-100	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLA50B-150	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLA50B-200	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLA50B-250	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLA50B-300	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLA50B-400	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLA50B-500	Mounting: Axial-perpendicular foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLA63B-25	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLA63B-50	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLA63B-75	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLA63B-100	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLA63B-150	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLA63B-200	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLA63B-250	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLA63B-300	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLA63B-400	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLA63B-500	Mounting: Axial-perpendicular foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLA80B-25	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLA80B-50	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLA80B-75	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLA80B-100	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLA80B-150	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLA80B-200	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLA80B-250	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLA80B-300	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLA80B-400	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLA80B-500	Mounting: Axial-perpendicular foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLA100B-25	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLA100B-50	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLA100B-75	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLA100B-100	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLA100B-150	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLA100B-200	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLA100B-250	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLA100B-300	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLA100B-400	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLA100B-500	Mounting: Axial-perpendicular foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLB32B-25	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLB32B-50	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLB32B-75	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLB32B-100	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLB32B-150	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLB32B-200	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLB32B-250	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLB32B-300	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLB32B-400	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLB32B-500	Mounting: Axial foot \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLB40B-25	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLB40B-50	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLB40B-75	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLB40B-100	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLB40B-150	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLB40B-200	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLB40B-250	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLB40B-300	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLB40B-400	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLB40B-500	Mounting: Axial foot \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLB50B-25	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLB50B-50	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLB50B-75	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLB50B-100	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLB50B-150	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLB50B-200	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLB50B-250	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLB50B-300	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLB50B-400	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLB50B-500	Mounting: Axial foot \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLB63B-25	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLB63B-50	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLB63B-75	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLB63B-100	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLB63B-150	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLB63B-200	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLB63B-250	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLB63B-300	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLB63B-400	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLB63B-500	Mounting: Axial foot \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLB80B-25	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLB80B-50	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLB80B-75	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLB80B-100	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLB80B-150	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLB80B-200	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLB80B-250	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLB80B-300	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLB80B-400	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLB80B-500	Mounting: Axial foot \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FLB100B-25	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FLB100B-50	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FLB100B-75	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FLB100B-100	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FLB100B-150	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FLB100B-200	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FLB100B-250	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FLB100B-300	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FLB100B-400	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FLB100B-500	Mounting: Axial foot \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFA32B-25	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFA32B-50	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFA32B-75	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFA32B-100	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFA32B-150	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFA32B-200	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFA32B-250	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFA32B-300	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFA32B-400	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFA32B-500	Mounting: Rod rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFA40B-25	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFA40B-50	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFA40B-75	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFA40B-100	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFA40B-150	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFA40B-200	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFA40B-250	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFA40B-300	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFA40B-400	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFA40B-500	Mounting: Rod rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFA50B-25	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFA50B-50	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFA50B-75	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFA50B-100	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFA50B-150	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFA50B-200	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFA50B-250	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFA50B-300	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFA50B-400	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFA50B-500	Mounting: Rod rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFA63B-25	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFA63B-50	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFA63B-75	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFA63B-100	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFA63B-150	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFA63B-200	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFA63B-250	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFA63B-300	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFA63B-400	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFA63B-500	Mounting: Rod rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFA80B-25	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFA80B-50	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFA80B-75	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFA80B-100	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFA80B-150	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFA80B-200	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFA80B-250	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFA80B-300	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFA80B-400	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFA80B-500	Mounting: Rod rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFA100B-25	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFA100B-50	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFA100B-75	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFA100B-100	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFA100B-150	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFA100B-200	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFA100B-250	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFA100B-300	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFA100B-400	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFA100B-500	Mounting: Rod rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFB32B-25	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFB32B-50	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFB32B-75	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFB32B-100	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFB32B-150	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFB32B-200	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFB32B-250	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFB32B-300	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFB32B-400	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFB32B-500	Mounting: Head rectangular flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFB40B-25	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFB40B-50	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFB40B-75	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFB40B-100	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFB40B-150	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFB40B-200	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFB40B-250	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFB40B-300	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFB40B-400	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFB40B-500	Mounting: Head rectangular flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFB50B-25	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFB50B-50	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFB50B-75	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFB50B-100	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFB50B-150	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFB50B-200	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFB50B-250	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFB50B-300	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFB50B-400	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFB50B-500	Mounting: Head rectangular flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFB63B-25	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFB63B-50	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFB63B-75	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFB63B-100	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFB63B-150	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFB63B-200	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFB63B-250	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFB63B-300	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFB63B-400	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFB63B-500	Mounting: Head rectangular flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFB80B-25	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFB80B-50	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFB80B-75	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFB80B-100	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFB80B-150	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFB80B-200	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFB80B-250	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFB80B-300	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFB80B-400	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFB80B-500	Mounting: Head rectangular flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFB100B-25	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFB100B-50	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFB100B-75	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFB100B-100	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFB100B-150	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFB100B-200	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFB100B-250	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFB100B-300	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFB100B-400	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFB100B-500	Mounting: Head rectangular flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFC32B-25	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFC32B-50	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFC32B-75	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFC32B-100	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFC32B-150	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFC32B-200	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFC32B-250	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFC32B-300	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFC32B-400	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFC32B-500	Mounting: Rod square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFC40B-25	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFC40B-50	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFC40B-75	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFC40B-100	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFC40B-150	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFC40B-200	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFC40B-250	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFC40B-300	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFC40B-400	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFC40B-500	Mounting: Rod square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFC50B-25	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFC50B-50	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFC50B-75	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFC50B-100	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFC50B-150	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFC50B-200	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFC50B-250	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFC50B-300	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFC50B-400	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFC50B-500	Mounting: Rod square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFC63B-25	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFC63B-50	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFC63B-75	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFC63B-100	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFC63B-150	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFC63B-200	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFC63B-250	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFC63B-300	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFC63B-400	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFC63B-500	Mounting: Rod square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFC80B-25	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFC80B-50	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFC80B-75	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFC80B-100	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFC80B-150	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFC80B-200	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFC80B-250	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFC80B-300	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFC80B-400	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFC80B-500	Mounting: Rod square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFC100B-25	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFC100B-50	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFC100B-75	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFC100B-100	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFC100B-150	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFC100B-200	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFC100B-250	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFC100B-300	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFC100B-400	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFC100B-500	Mounting: Rod square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFD32B-25	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFD32B-50	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFD32B-75	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFD32B-100	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFD32B-150	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFD32B-200	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFD32B-250	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFD32B-300	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFD32B-400	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFD32B-500	Mounting: Head square flange \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFD40B-25	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFD40B-50	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFD40B-75	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFD40B-100	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFD40B-150	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFD40B-200	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFD40B-250	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFD40B-300	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFD40B-400	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFD40B-500	Mounting: Head square flange \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFD50B-25	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFD50B-50	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFD50B-75	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFD50B-100	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFD50B-150	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFD50B-200	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFD50B-250	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFD50B-300	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFD50B-400	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFD50B-500	Mounting: Head square flange \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFD63B-25	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFD63B-50	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFD63B-75	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFD63B-100	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFD63B-150	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFD63B-200	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFD63B-250	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFD63B-300	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFD63B-400	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFD63B-500	Mounting: Head square flange \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFD80B-25	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFD80B-50	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFD80B-75	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFD80B-100	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFD80B-150	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFD80B-200	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFD80B-250	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFD80B-300	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFD80B-400	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFD80B-500	Mounting: Head square flange \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FFD100B-25	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FFD100B-50	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FFD100B-75	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FFD100B-100	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FFD100B-150	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FFD100B-200	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FFD100B-250	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FFD100B-300	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FFD100B-400	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FFD100B-500	Mounting: Head square flange \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCA32B-25	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCA32B-50	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCA32B-75	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCA32B-100	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCA32B-150	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCA32B-200	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCA32B-250	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCA32B-300	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCA32B-400	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCA32B-500	Mounting: Single clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCA40B-25	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCA40B-50	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCA40B-75	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCA40B-100	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCA40B-150	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCA40B-200	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCA40B-250	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCA40B-300	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCA40B-400	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCA40B-500	Mounting: Single clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCA50B-25	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCA50B-50	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCA50B-75	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCA50B-100	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCA50B-150	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCA50B-200	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCA50B-250	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCA50B-300	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCA50B-400	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCA50B-500	Mounting: Single clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCA63B-25	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCA63B-50	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCA63B-75	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCA63B-100	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCA63B-150	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCA63B-200	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCA63B-250	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCA63B-300	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCA63B-400	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCA63B-500	Mounting: Single clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCA80B-25	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCA80B-50	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCA80B-75	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCA80B-100	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCA80B-150	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCA80B-200	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCA80B-250	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCA80B-300	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCA80B-400	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCA80B-500	Mounting: Single clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCA100B-25	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCA100B-50	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCA100B-75	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCA100B-100	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCA100B-150	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCA100B-200	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCA100B-250	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCA100B-300	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCA100B-400	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCA100B-500	Mounting: Single clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCB32B-25	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCB32B-50	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCB32B-75	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCB32B-100	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCB32B-150	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCB32B-200	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCB32B-250	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCB32B-300	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCB32B-400	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCB32B-500	Mounting: Double clevis \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCB40B-25	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCB40B-50	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCB40B-75	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCB40B-100	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCB40B-150	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCB40B-200	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCB40B-250	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCB40B-300	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCB40B-400	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCB40B-500	Mounting: Double clevis \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCB50B-25	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCB50B-50	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCB50B-75	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCB50B-100	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCB50B-150	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCB50B-200	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCB50B-250	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCB50B-300	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCB50B-400	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCB50B-500	Mounting: Double clevis \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCB63B-25	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCB63B-50	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCB63B-75	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCB63B-100	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCB63B-150	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCB63B-200	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCB63B-250	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCB63B-300	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCB63B-400	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCB63B-500	Mounting: Double clevis \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCB80B-25	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCB80B-50	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCB80B-75	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCB80B-100	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCB80B-150	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCB80B-200	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCB80B-250	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCB80B-300	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCB80B-400	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCB80B-500	Mounting: Double clevis \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FCB100B-25	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FCB100B-50	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FCB100B-75	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FCB100B-100	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FCB100B-150	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FCB100B-200	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FCB100B-250	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FCB100B-300	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FCB100B-400	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FCB100B-500	Mounting: Double clevis \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FTC32B-25	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FTC32B-50	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FTC32B-75	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FTC32B-100	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FTC32B-150	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FTC32B-200	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FTC32B-250	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FTC32B-300	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FTC32B-400	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FTC32B-500	Mounting: Center trunnion \| Bore: ø32 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FTC40B-25	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FTC40B-50	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FTC40B-75	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FTC40B-100	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FTC40B-150	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FTC40B-200	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FTC40B-250	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FTC40B-300	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FTC40B-400	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FTC40B-500	Mounting: Center trunnion \| Bore: ø40 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FTC50B-25	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FTC50B-50	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FTC50B-75	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FTC50B-100	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FTC50B-150	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FTC50B-200	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FTC50B-250	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FTC50B-300	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FTC50B-400	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FTC50B-500	Mounting: Center trunnion \| Bore: ø50 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FTC63B-25	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FTC63B-50	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FTC63B-75	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FTC63B-100	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FTC63B-150	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FTC63B-200	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FTC63B-250	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FTC63B-300	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FTC63B-400	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FTC63B-500	Mounting: Center trunnion \| Bore: ø63 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FTC80B-25	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FTC80B-50	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FTC80B-75	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FTC80B-100	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FTC80B-150	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FTC80B-200	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FTC80B-250	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FTC80B-300	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FTC80B-400	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FTC80B-500	Mounting: Center trunnion \| Bore: ø80 mm \| Stroke: 500 mm \| Auto switch magnet: Yes
	CHD2FTC100B-25	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	CHD2FTC100B-50	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	CHD2FTC100B-75	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	CHD2FTC100B-100	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	CHD2FTC100B-150	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 150 mm \| Auto switch magnet: Yes
	CHD2FTC100B-200	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 200 mm \| Auto switch magnet: Yes
	CHD2FTC100B-250	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 250 mm \| Auto switch magnet: Yes
	CHD2FTC100B-300	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 300 mm \| Auto switch magnet: Yes
	CHD2FTC100B-400	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 400 mm \| Auto switch magnet: Yes
	CHD2FTC100B-500	Mounting: Center trunnion \| Bore: ø100 mm \| Stroke: 500 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Hydraulics →

Item added to your cart

SMC CH2F JIS Hydraulic Cylinder (7 MPa, ø32 to ø100)
