KJF Bolt Spindles for Toggle Clamps

KJF Bolt Spindles for Toggle Clamps

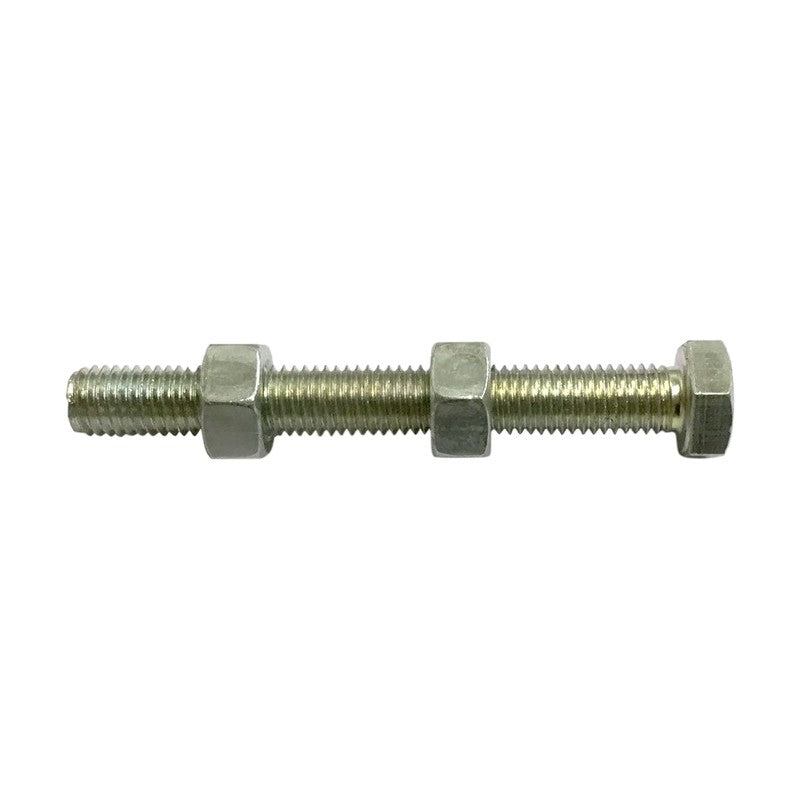

Hex-head bolt spindles with nuts used as the clamping spindle of toggle clamps, M5 to M16.

Key features

  • Hex-head contact bolt with two lock nuts

Specifications

Thread sizes M5-M16
C8130525 Thread: M5 x 0.8 | Dim. B: 25 mm | Dim. C: 3.5 mm | Standard part
C8130630 Thread: M6 x 1 | Dim. B: 30 mm | Dim. C: 4 mm | Standard part
C8130865 Thread: M8 x 1.25 | Dim. B: 65 mm | Dim. C: 5.5 mm | Standard part
C81308100 Thread: M8 x 1.25 | Dim. B: 100 mm | Dim. C: 5.5 mm
C8131050 Thread: M10 x 1.5 | Dim. B: 50 mm | Dim. C: 7 mm
C8131075 Thread: M10 x 1.5 | Dim. B: 75 mm | Dim. C: 7 mm | Standard part
C8131280 Thread: M12 x 1.75 | Dim. B: 80 mm | Dim. C: 8 mm
C81312100 Thread: M12 x 1.75 | Dim. B: 100 mm | Dim. C: 8 mm | Standard part
C81316130 Thread: M16 x 2 | Dim. B: 130 mm | Dim. C: 10 mm | Standard part
Toggle Clamp AccessoriesKJF
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF Bolt Spindles for Toggle Clamps

Brand KJF·Toggle Clamp Accessories

Available part numbers (9)

C8130525, C8130630, C8130865, C81308100, C8131050, C8131075, C8131280, C81312100, C81316130

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C8130525Thread: M5 x 0.8 | Dim. B: 25 mm | Dim. C: 3.5 mm | Standard part
C8130630Thread: M6 x 1 | Dim. B: 30 mm | Dim. C: 4 mm | Standard part
C8130865Thread: M8 x 1.25 | Dim. B: 65 mm | Dim. C: 5.5 mm | Standard part
C81308100Thread: M8 x 1.25 | Dim. B: 100 mm | Dim. C: 5.5 mm
C8131050Thread: M10 x 1.5 | Dim. B: 50 mm | Dim. C: 7 mm
C8131075Thread: M10 x 1.5 | Dim. B: 75 mm | Dim. C: 7 mm | Standard part
C8131280Thread: M12 x 1.75 | Dim. B: 80 mm | Dim. C: 8 mm
C81312100Thread: M12 x 1.75 | Dim. B: 100 mm | Dim. C: 8 mm | Standard part
C81316130Thread: M16 x 2 | Dim. B: 130 mm | Dim. C: 10 mm | Standard part

Need a different model, or a part not listed here? Send us your parts list →
