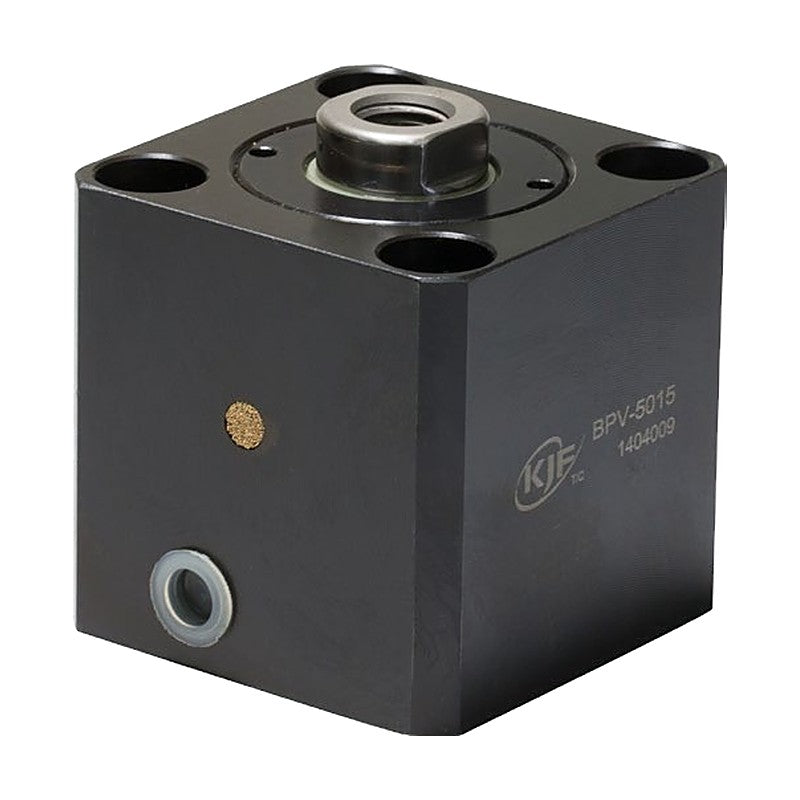

KJF BPV Block Clamp, Hydraulic, Vertical Push Type (Single-Acting)

KJF BPV Block Clamp, Hydraulic, Vertical Push Type (Single-Acting)

Single-acting, spring-return hydraulic block cylinder (vertical type) for pushing clamps in compact fixtures.

Key features

  • Single-acting with spring return
  • Easy installation; make piping size as large as possible
  • Bores Ø28-63 mm, strokes 15/25 mm
  • If air-filter moisture absorption is a problem, use a tapped port with nipple piping

Specifications

Fluid Hydraulic oil
Operating pressure 15-250 kgf/cm²
Operating temperature 0-60 °C
Piston speed 8-100 mm/s
BPV-2815 Piston diameter: Ø28 mm | Stroke: 15 mm | Max clamping force: push 1,520 kgf | Effective area: 6.1 cm² | Oil capacity: 9.3 cm³ | Port: 1/8 | Weight: 1.4 kg
BPV-2825 Piston diameter: Ø28 mm | Stroke: 25 mm | Max clamping force: push 1,520 kgf | Effective area: 6.1 cm² | Oil capacity: 15.4 cm³ | Port: 1/8 | Weight: 1.9 kg
BPV-3215 Piston diameter: Ø32 mm | Stroke: 15 mm | Max clamping force: push 2,000 kgf | Effective area: 8.0 cm² | Oil capacity: 12.0 cm³ | Port: 1/4 | Weight: 1.9 kg
BPV-3225 Piston diameter: Ø32 mm | Stroke: 25 mm | Max clamping force: push 2,000 kgf | Effective area: 8.0 cm² | Oil capacity: 20.1 cm³ | Port: 1/4 | Weight: 2.4 kg
BPV-4015 Piston diameter: Ø40 mm | Stroke: 15 mm | Max clamping force: push 3,120 kgf | Effective area: 12.5 cm² | Oil capacity: 18.9 cm³ | Port: 1/4 | Weight: 2.4 kg
BPV-4025 Piston diameter: Ø40 mm | Stroke: 25 mm | Max clamping force: push 3,120 kgf | Effective area: 12.5 cm² | Oil capacity: 31.4 cm³ | Port: 1/4 | Weight: 2.9 kg
BPV-5015 Piston diameter: Ø50 mm | Stroke: 15 mm | Max clamping force: push 4,950 kgf | Effective area: 19.8 cm² | Oil capacity: 29.5 cm³ | Port: 1/4 | Weight: 3.3 kg
BPV-5025 Piston diameter: Ø50 mm | Stroke: 25 mm | Max clamping force: push 4,950 kgf | Effective area: 19.8 cm² | Oil capacity: 49.1 cm³ | Port: 1/4 | Weight: 4.1 kg
BPV-6315 Piston diameter: Ø63 mm | Stroke: 15 mm | Max clamping force: push 7,770 kgf | Effective area: 31.1 cm² | Oil capacity: 46.8 cm³ | Port: 1/4 | Weight: 4.9 kg
BPV-6325 Piston diameter: Ø63 mm | Stroke: 25 mm | Max clamping force: push 7,770 kgf | Effective area: 31.1 cm² | Oil capacity: 78.0 cm³ | Port: 1/4 | Weight: 5.4 kg
Block ClampsKJF
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF BPV Block Clamp, Hydraulic, Vertical Push Type (Single-Acting)

Brand KJF·Block Clamps

Available part numbers (10)

BPV-2815, BPV-2825, BPV-3215, BPV-3225, BPV-4015, BPV-4025, BPV-5015, BPV-5025, BPV-6315, BPV-6325

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
BPV-2815Piston diameter: Ø28 mm | Stroke: 15 mm | Max clamping force: push 1,520 kgf | Effective area: 6.1 cm² | Oil capacity: 9.3 cm³ | Port: 1/8 | Weight: 1.4 kg
BPV-2825Piston diameter: Ø28 mm | Stroke: 25 mm | Max clamping force: push 1,520 kgf | Effective area: 6.1 cm² | Oil capacity: 15.4 cm³ | Port: 1/8 | Weight: 1.9 kg
BPV-3215Piston diameter: Ø32 mm | Stroke: 15 mm | Max clamping force: push 2,000 kgf | Effective area: 8.0 cm² | Oil capacity: 12.0 cm³ | Port: 1/4 | Weight: 1.9 kg
BPV-3225Piston diameter: Ø32 mm | Stroke: 25 mm | Max clamping force: push 2,000 kgf | Effective area: 8.0 cm² | Oil capacity: 20.1 cm³ | Port: 1/4 | Weight: 2.4 kg
BPV-4015Piston diameter: Ø40 mm | Stroke: 15 mm | Max clamping force: push 3,120 kgf | Effective area: 12.5 cm² | Oil capacity: 18.9 cm³ | Port: 1/4 | Weight: 2.4 kg
BPV-4025Piston diameter: Ø40 mm | Stroke: 25 mm | Max clamping force: push 3,120 kgf | Effective area: 12.5 cm² | Oil capacity: 31.4 cm³ | Port: 1/4 | Weight: 2.9 kg
BPV-5015Piston diameter: Ø50 mm | Stroke: 15 mm | Max clamping force: push 4,950 kgf | Effective area: 19.8 cm² | Oil capacity: 29.5 cm³ | Port: 1/4 | Weight: 3.3 kg
BPV-5025Piston diameter: Ø50 mm | Stroke: 25 mm | Max clamping force: push 4,950 kgf | Effective area: 19.8 cm² | Oil capacity: 49.1 cm³ | Port: 1/4 | Weight: 4.1 kg
BPV-6315Piston diameter: Ø63 mm | Stroke: 15 mm | Max clamping force: push 7,770 kgf | Effective area: 31.1 cm² | Oil capacity: 46.8 cm³ | Port: 1/4 | Weight: 4.9 kg
BPV-6325Piston diameter: Ø63 mm | Stroke: 25 mm | Max clamping force: push 7,770 kgf | Effective area: 31.1 cm² | Oil capacity: 78.0 cm³ | Port: 1/4 | Weight: 5.4 kg
