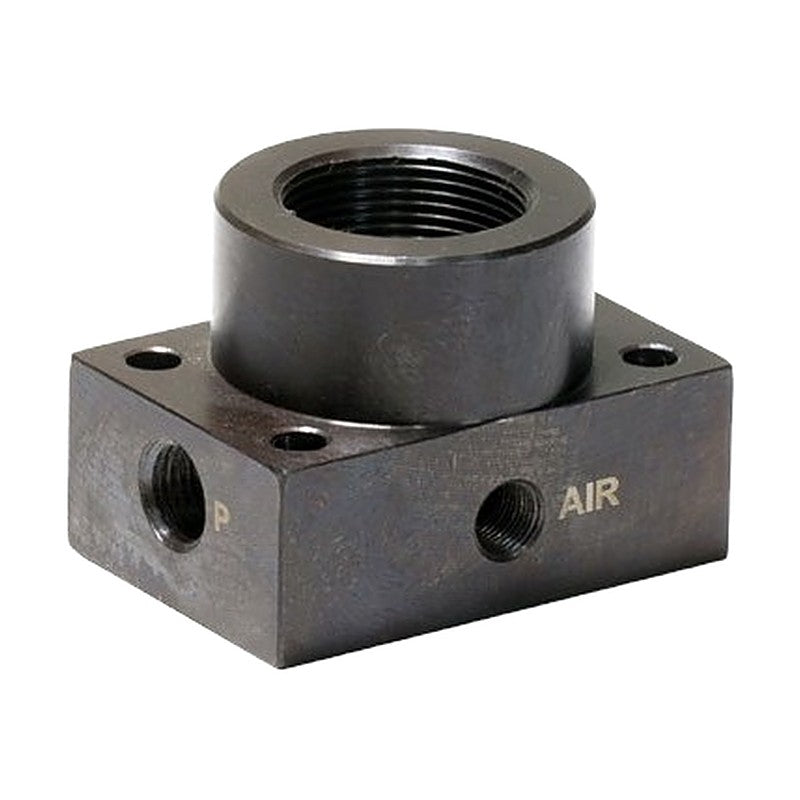

KJF CWB Work Support Brackets
KJF CWB Work Support Brackets
Mounting brackets for threaded built-in work supports, in square block, flange block and T-type versions with air vent and oil inlet ports.
Key features
- Square block, flange block and T-type flange brackets
- Threaded bore receives built-in work supports
| CWB-2637 | Style: Square block | Thread: M26 x 1.5 | Ports: Inlet G1/8, air vent M5 | |
| CWB-3045 | Style: Block with mounting flange | Thread: M30 x 1.5 | Ports: PT 1/8 | |
| CWB-3640 | Style: Square block | Thread: M36 x 1.5 | Ports: Inlet PT 1/8, air vent PT 1/8 | |
| CWB-2660 | Style: T type | Thread: M26 x 1.5 | Height A: 60 mm | Flange diameter: Ø54 mm | Ports: PT 1/8 | |
| CWB-3066 | Style: T type | Thread: M30 x 1.5 | Height A: 66 mm | Flange diameter: Ø60 mm | Ports: PT 1/8 | |
| CWB-3663 | Style: T type | Thread: M36 x 1.5 | Height A: 63 mm | Flange diameter: Ø66 mm | Ports: PT 1/8 |
Work Support AccessoriesKJF
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF CWB Work Support Brackets
Available part numbers (6)
CWB-2637, CWB-3045, CWB-3640, CWB-2660, CWB-3066, CWB-3663
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KJF
Work Support Accessories
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| CWB-2637 | Style: Square block | Thread: M26 x 1.5 | Ports: Inlet G1/8, air vent M5 | ||
| CWB-3045 | Style: Block with mounting flange | Thread: M30 x 1.5 | Ports: PT 1/8 | ||
| CWB-3640 | Style: Square block | Thread: M36 x 1.5 | Ports: Inlet PT 1/8, air vent PT 1/8 | ||
| CWB-2660 | Style: T type | Thread: M26 x 1.5 | Height A: 60 mm | Flange diameter: Ø54 mm | Ports: PT 1/8 | ||
| CWB-3066 | Style: T type | Thread: M30 x 1.5 | Height A: 66 mm | Flange diameter: Ø60 mm | Ports: PT 1/8 | ||
| CWB-3663 | Style: T type | Thread: M36 x 1.5 | Height A: 63 mm | Flange diameter: Ø66 mm | Ports: PT 1/8 |
