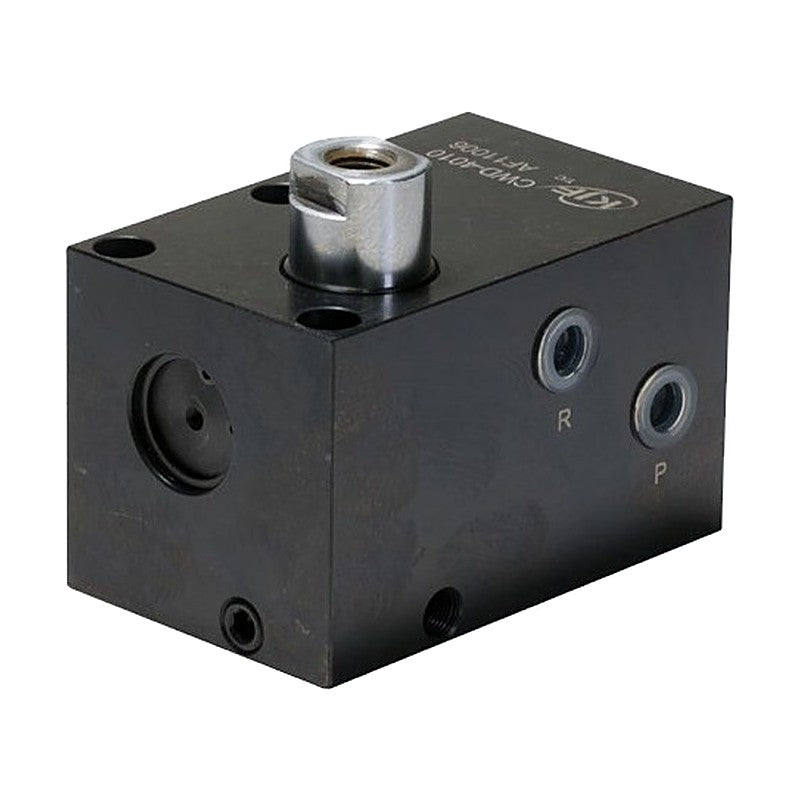

KJF CWD Block Work Support, Hydraulic

KJF CWD Block Work Support, Hydraulic

Hydraulic block-type work support in mirror-image left/right designs for supporting workpieces against machining load.

Key features

  • CWD-4010 and CWD-4011 are symmetrical designs
  • Piston speed 8-100 mm/s
  • Seals: nitrile rubber and polyurethane

Specifications

Fluid Hydraulic oil
Operating pressure 5-100 kgf/cm²
Operating temperature 0-60 °C
Piston diameter Ø40 mm
CWD-4010 Design: Standard hand | Effective area: push 12.56 cm², pull 9.42 cm² | Oil capacity: push 18.84 cm³, pull 14.13 cm³ | Weight: 3.2 kg | Spring force: 1.7 kgf | Stroke: 10 mm
CWD-4011 Design: Symmetrical (mirror) version of CWD-4010 | Effective area: push 12.56 cm², pull 9.42 cm² | Oil capacity: push 18.84 cm³, pull 14.13 cm³ | Weight: 3.2 kg | Spring force: 1.7 kgf | Stroke: 10 mm
Work SupportsKJF
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KJF CWD Block Work Support, Hydraulic

Brand KJF·Work Supports

Available part numbers (2)

CWD-4010, CWD-4011

How to order

Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CWD-4010Design: Standard hand | Effective area: push 12.56 cm², pull 9.42 cm² | Oil capacity: push 18.84 cm³, pull 14.13 cm³ | Weight: 3.2 kg | Spring force: 1.7 kgf | Stroke: 10 mm
CWD-4011Design: Symmetrical (mirror) version of CWD-4010 | Effective area: push 12.56 cm², pull 9.42 cm² | Oil capacity: push 18.84 cm³, pull 14.13 cm³ | Weight: 3.2 kg | Spring force: 1.7 kgf | Stroke: 10 mm
