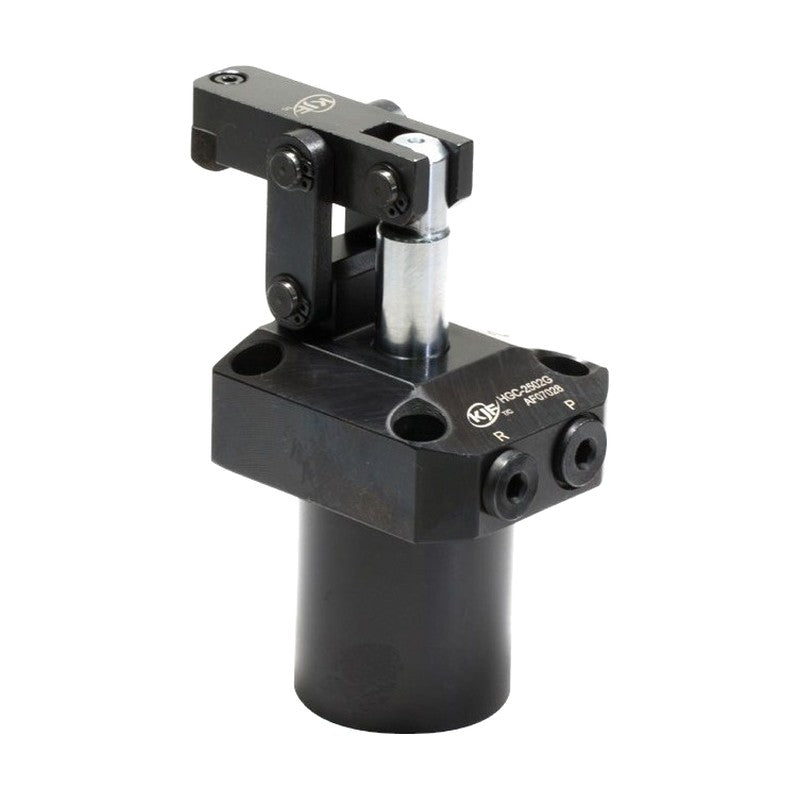

KJF HGC Hinge (Link) Clamp, Hydraulic, Gasket Type

KJF HGC Hinge (Link) Clamp, Hydraulic, Gasket Type

High-pressure hydraulic hinge (link) clamp with gasket (manifold) piping and optional built-in flow control valve, for piston diameters Ø25-80 mm.

Key features

  • Easy manifold piping; rapid clamping and unclamping
  • Easy chip removal
  • GV (side valve, meter-in) and GVT (top valve, meter-out) versions with 2-position flow control valve
  • G and GV types can be ordered with right (-RH) or left (-LH) lever direction
  • Lever is an option item

Specifications

Fluid Hydraulic oil
Operating pressure 15-150 kgf/cm²
Operating temperature 0-60 °C
Model number HGC-[piston Ø][clamping force at 70 kgf/cm², 02 = 200 kgf]
KJF HGC Hinge (Link) Clamp, Hydraulic, Gasket Type
HGC-2502G Piping: Gasket (manifold) piping | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Weight: 1.73 kg
HGC-2502GV Piping: Gasket + side flow control valve (meter-in) | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Weight: 1.73 kg
HGC-2502GVT Piping: Gasket + top flow control valve (meter-out) | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Weight: 1.72 kg
HGC-3203G Piping: Gasket (manifold) piping | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Weight: 2.26 kg
HGC-3203GV Piping: Gasket + side flow control valve (meter-in) | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Weight: 2.27 kg
HGC-3203GVT Piping: Gasket + top flow control valve (meter-out) | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Weight: 2.27 kg
HGC-4005G Piping: Gasket (manifold) piping | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Weight: 3.37 kg
HGC-4005GV Piping: Gasket + side flow control valve (meter-in) | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Weight: 3.38 kg
HGC-4005GVT Piping: Gasket + top flow control valve (meter-out) | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Weight: 3.39 kg
HGC-5009G Piping: Gasket (manifold) piping | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Weight: 5.67 kg
HGC-5009GV Piping: Gasket + side flow control valve (meter-in) | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Weight: 5.68 kg
HGC-5009GVT Piping: Gasket + top flow control valve (meter-out) | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Weight: 5.68 kg
HGC-6315G Piping: Gasket (manifold) piping | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Weight: 9.06 kg
HGC-6315GV Piping: Gasket + side flow control valve (meter-in) | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Weight: 9.07 kg
HGC-6315GVT Piping: Gasket + top flow control valve (meter-out) | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Weight: 9.07 kg
HGC-8023G Piping: Gasket (manifold) piping | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Weight: 15.28 kg
HGC-8023GV Piping: Gasket + side flow control valve (meter-in) | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Weight: 15.29 kg
HGC-8023GVT Piping: Gasket + top flow control valve (meter-out) | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Weight: 15.28 kg
