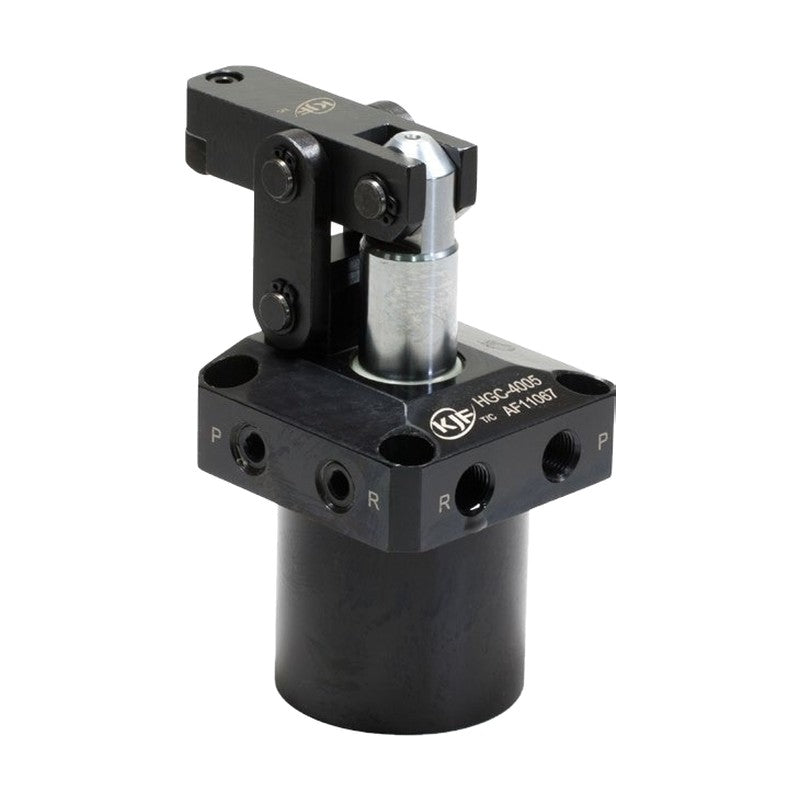

KJF HGC Hinge (Link) Clamp, Hydraulic, Standard (Nipple Piping) Type

KJF HGC Hinge (Link) Clamp, Hydraulic, Standard (Nipple Piping) Type

High-pressure hydraulic hinge (link) clamp with nipple piping ports in three directions, for piston diameters Ø25-80 mm.

Key features

  • 3-direction piping ports for easy installation and piping
  • Easy loading and removal of the workpiece
  • Lever and pad are option items

Specifications

Fluid Hydraulic oil
Operating pressure 15-150 kgf/cm²
Operating temperature 0-60 °C
HGC-2502 Piping: Nipple, 3-direction ports | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.48 kg
HGC-3203 Piping: Nipple, 3-direction ports | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 1.90 kg
HGC-4005 Piping: Nipple, 3-direction ports | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 2.80 kg
HGC-5009 Piping: Nipple, 3-direction ports | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 4.77 kg
HGC-6315 Piping: Nipple, 3-direction ports | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 7.65 kg
HGC-8023 Piping: Nipple, 3-direction ports | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 12.73 kg
