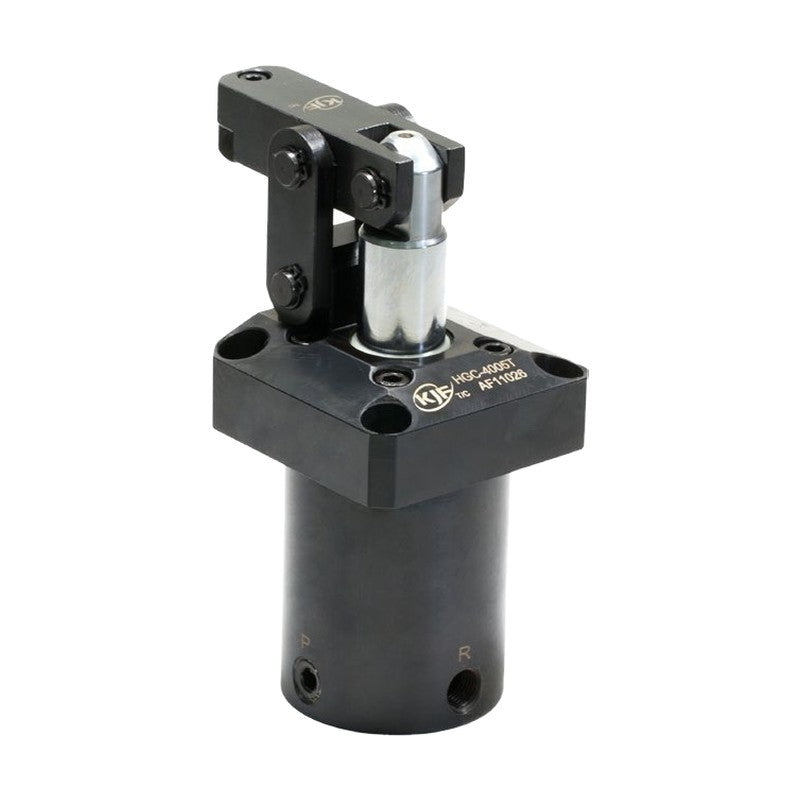

KJF HGC-T/TV/TS Hinge (Link) Clamp, Hydraulic, Tube Type
KJF HGC-T/TV/TS Hinge (Link) Clamp, Hydraulic, Tube Type
Hydraulic hinge (link) clamp with tube piping on the lower housing (T) or bottom (TS), optionally with a flow control valve on the flange (TV), for use up to 70 kgf/cm².
Key features
- Piping on the lower position of the housing
- TV type has the flow control valve located on top of the flange
- Easy loading and removal of the workpiece
- Lever and pad are option items
Specifications
| Fluid | Hydraulic oil |
|---|---|
| Operating pressure | 15-70 kgf/cm² |
| Operating temperature | 0-60 °C |
| HGC-2502T | Piping: Tube piping on lower housing | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.73 kg | |
| HGC-2502TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.73 kg | |
| HGC-2502TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.72 kg | |
| HGC-3203T | Piping: Tube piping on lower housing | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 2.26 kg | |
| HGC-3203TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 2.27 kg | |
| HGC-3203TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 2.27 kg | |
| HGC-4005T | Piping: Tube piping on lower housing | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 3.37 kg | |
| HGC-4005TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 3.38 kg | |
| HGC-4005TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 3.39 kg | |
| HGC-5009T | Piping: Tube piping on lower housing | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 5.67 kg | |
| HGC-5009TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 5.68 kg | |
| HGC-5009TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 5.68 kg | |
| HGC-6315T | Piping: Tube piping on lower housing | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 9.06 kg | |
| HGC-6315TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 9.07 kg | |
| HGC-6315TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 9.07 kg | |
| HGC-8023T | Piping: Tube piping on lower housing | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 15.28 kg | |
| HGC-8023TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 15.29 kg | |
| HGC-8023TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 15.28 kg |
Link ClampsKJF
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
KJF HGC-T/TV/TS Hinge (Link) Clamp, Hydraulic, Tube Type
Available part numbers (18)
HGC-2502T, HGC-2502TV, HGC-2502TS, HGC-3203T, HGC-3203TV, HGC-3203TS, HGC-4005T, HGC-4005TV, HGC-4005TS, HGC-5009T + 8 more — see full table ↓
How to order
Send the KJF part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
KJF
Link Clamps
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| HGC-2502T | Piping: Tube piping on lower housing | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.73 kg | ||
| HGC-2502TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.73 kg | ||
| HGC-2502TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø25 mm | Clamping force: 228 kgf at 70 / 490 kgf at 150 kgf/cm² | Effective area: 4.9 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 13.7 cm³, unclamp 8.1 cm³ | Port: 1/8 | Weight: 1.72 kg | ||
| HGC-3203T | Piping: Tube piping on lower housing | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 2.26 kg | ||
| HGC-3203TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 2.27 kg | ||
| HGC-3203TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø32 mm | Clamping force: 325 kgf at 70 / 698 kgf at 150 kgf/cm² | Effective area: 8.04 cm² | Stroke: total 28 mm (clamp 26, extra 2) | Oil capacity: clamp 22.5 cm³, unclamp 15.4 cm³ | Port: 1/8 | Weight: 2.27 kg | ||
| HGC-4005T | Piping: Tube piping on lower housing | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 3.37 kg | ||
| HGC-4005TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 3.38 kg | ||
| HGC-4005TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø40 mm | Clamping force: 544 kgf at 70 / 1,166 kgf at 150 kgf/cm² | Effective area: 12.56 cm² | Stroke: total 33 mm (clamp 31, extra 2) | Oil capacity: clamp 41.4 cm³, unclamp 25.2 cm³ | Port: 1/4 | Weight: 3.39 kg | ||
| HGC-5009T | Piping: Tube piping on lower housing | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 5.67 kg | ||
| HGC-5009TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 5.68 kg | ||
| HGC-5009TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø50 mm | Clamping force: 935 kgf at 70 / 2,004 kgf at 150 kgf/cm² | Effective area: 19.63 cm² | Stroke: total 42 mm (clamp 38, extra 4) | Oil capacity: clamp 82.5 cm³, unclamp 52.8 cm³ | Port: 1/4 | Weight: 5.68 kg | ||
| HGC-6315T | Piping: Tube piping on lower housing | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 9.06 kg | ||
| HGC-6315TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 9.07 kg | ||
| HGC-6315TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø63 mm | Clamping force: 1,563 kgf at 70 / 3,351 kgf at 150 kgf/cm² | Effective area: 31.16 cm² | Stroke: total 50 mm (clamp 46, extra 4) | Oil capacity: clamp 155.8 cm³, unclamp 106.3 cm³ | Port: 3/8 | Weight: 9.07 kg | ||
| HGC-8023T | Piping: Tube piping on lower housing | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 15.28 kg | ||
| HGC-8023TV | Piping: Bottom tube piping + flow control valve (meter-out) | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 15.29 kg | ||
| HGC-8023TS | Piping: Bottom tube piping (type 2) | Piston diameter: Ø80 mm | Clamping force: 2,344 kgf at 70 / 5,023 kgf at 150 kgf/cm² | Effective area: 50.24 cm² | Stroke: total 60 mm (clamp 56, extra 4) | Oil capacity: clamp 301.4 cm³, unclamp 206 cm³ | Port: 3/8 | Weight: 15.28 kg |
Need a different model, or a part not listed here? Send us your parts list →
